The Vital Role of Ultrasonic Concrete Testing in Construction

Quality concrete is crucial in construction, as it directly affects the durability and overall structural integrity of a building. To maintain the highest standards of concrete quality, non-destructive testing methods have become invaluable. Ultrasonic concrete testing is a leading-edge technology that revolutionizes the way we assess concrete integrity and is one of the most effective methods available today.

Ultrasonic testing of a concrete column for internal voids
Fig. 1: Ultrasonic testing of a concrete column for internal voids

Navigating the Complexities of Concrete Quality Assurance

In the complex construction landscape, ensuring concrete quality is a critical endeavor. However, even with the most meticulous practices, several challenges persist in guaranteeing the integrity of concrete structures. These challenges can be categorized into the following areas:

1. Hidden Defects:

  • Cracks and Delaminations
    These imperfections may go unnoticed by visual inspection but can lead to significant structural issues over time.
  • Internal Voids
    Voids within the concrete matrix can weaken its load-bearing capacity and compromise the structure's overall stability.

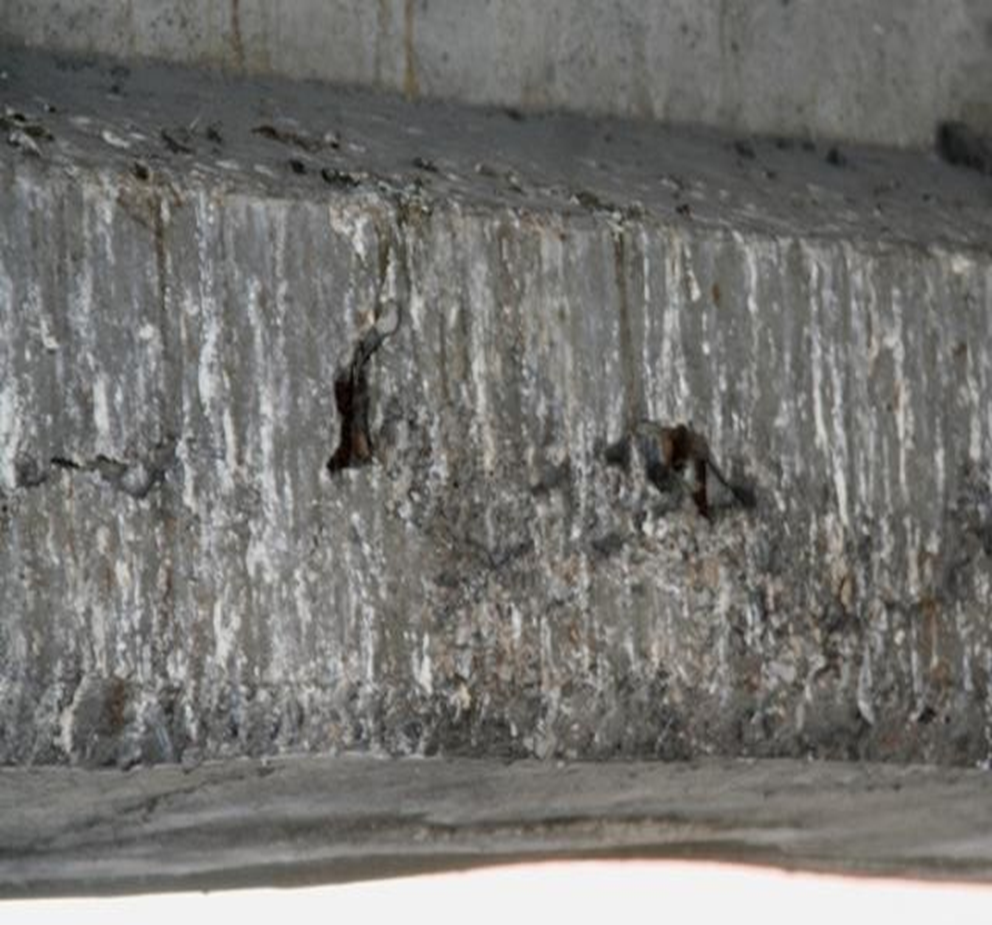

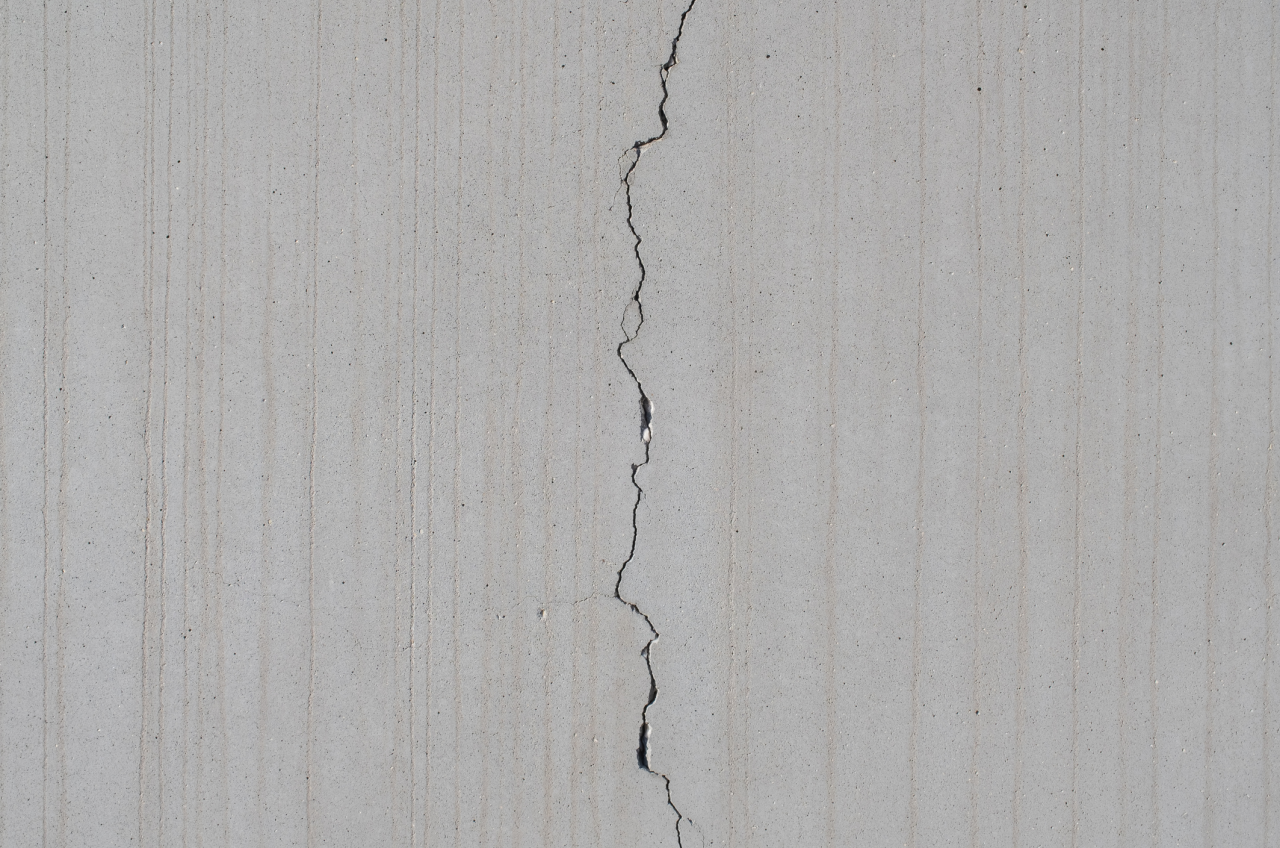

Material cracks in concrete detectable through ultrasonic testing  Internal material voids in concrete detectable through ultrasonic testing
Fig. 2: Material voids in concrete detectable through ultrasonic testing

2. Variations in Material Properties:

  • Inconsistent Strength
    Concrete batches can exhibit variations in compressive strength, leading to discrepancies in structural performance.
  • Density Inhomogeneities
    Differences in concrete density can result in uneven load distribution, potentially causing structural imbalances.

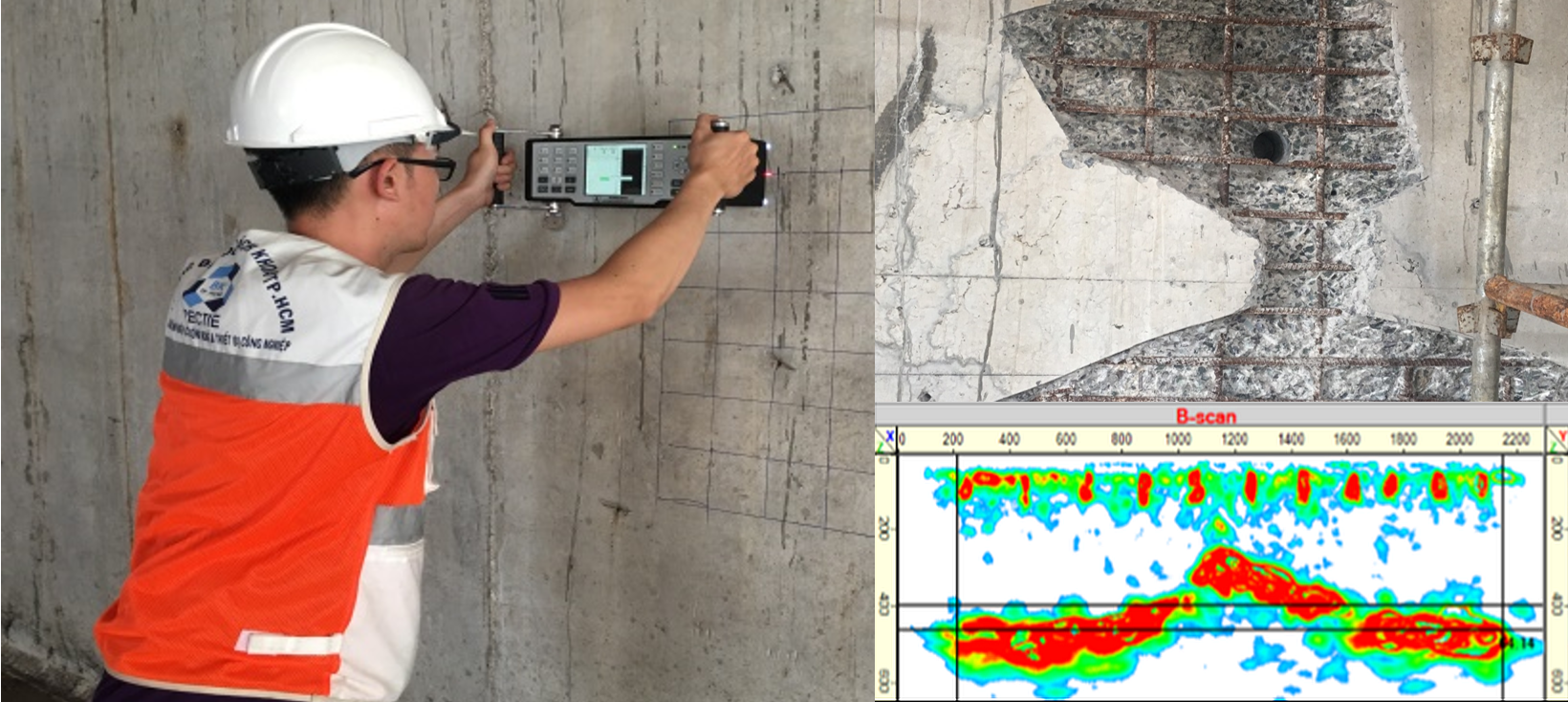

Measuring the thickness of a reinforced concrete wall with one-side access
Fig. 3: Measuring the thickness of a reinforced concrete wall with one-side access

3. Risks of Substandard Concrete:

  • Low Durability
    Substandard concrete may lack the durability required to withstand environmental factors, leading to premature deterioration.
  • Reduced Load Capacity
    Inadequate concrete quality can result in a lower load-bearing capacity than what is specified in the design, posing a significant risk to the safety of the structure.

These challenges, if not addressed effectively, have the potential to undermine the long-term performance of structures and compromise safety standards. To combat these issues, non-destructive testing methods via ultrasonic concrete tomographs have emerged as invaluable tools, offering accurate and reliable assessments without compromising the integrity of the material.

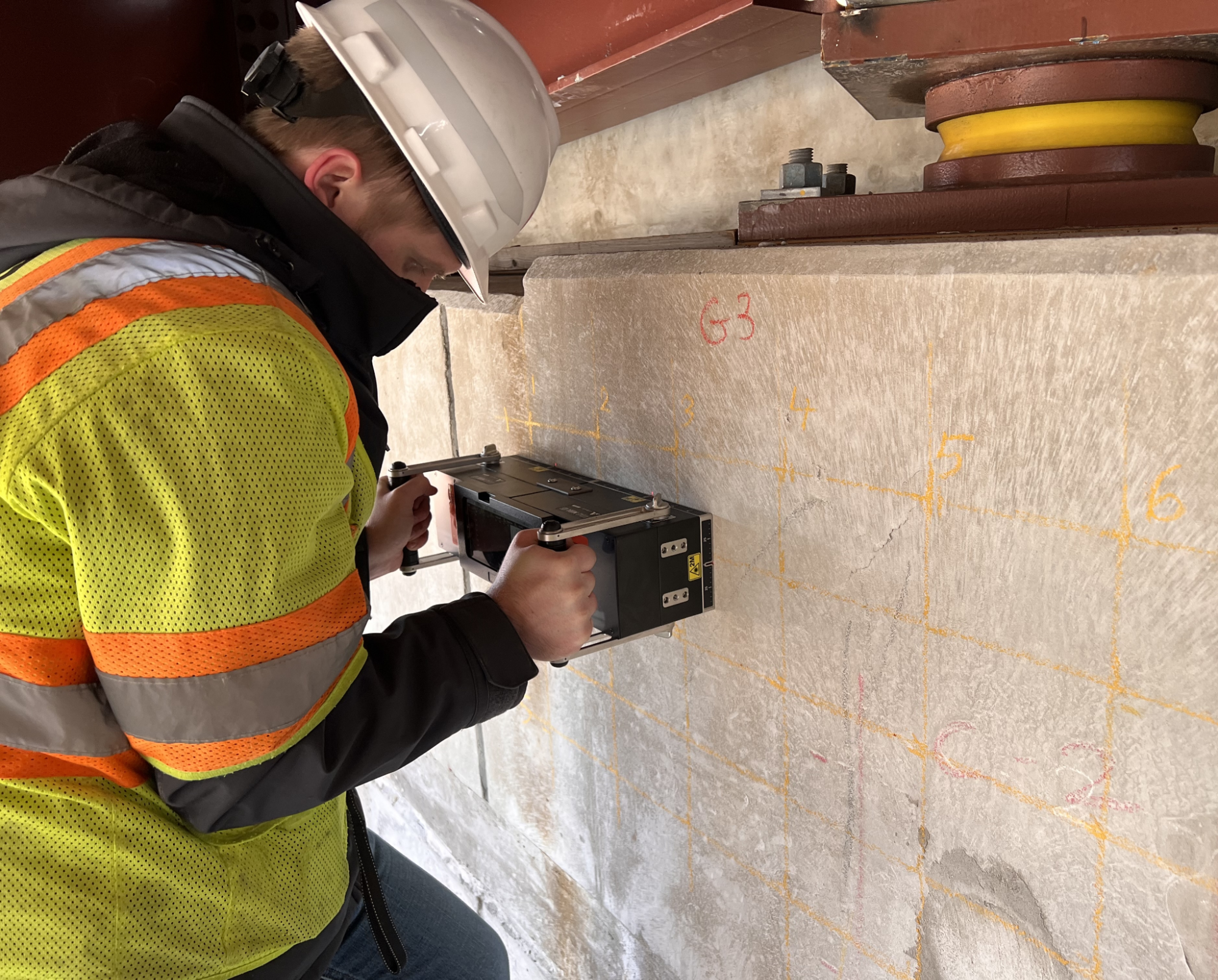

Ultrasonic testing of a concrete bridge
Fig. 4: Ultrasonic testing of a concrete bridge

Understanding Ultrasonic Concrete Testing

Ultrasonic concrete testing is an effective non-destructive technique that assesses concrete properties through the transmission of high-frequency sound waves. This method provides a comprehensive evaluation without compromising the material's structural integrity.
At the heart of this technique lies the transmission, receiving, and analysis of ultrasonic signals. Depending on how signals are sent and received, ultrasonic testing uses one of two main methods:

  • Ultrasonic Pulse Velocity Testing (UPVT)
  • Ultrasonic Pulse-Echo Tomography (UPET)

Ultrasonic Pulse Velocity Testing

Pulse velocity involves precisely timing the travel of ultrasonic pulses through the concrete. By analyzing the time taken for these waves to propagate the known traveling distance, it becomes possible to determine the ultrasonic sound velocity. This velocity correlates with essential characteristics of the material, including compressive strength, density, homogeneity, and potential presence of defects.
Pulse velocity emerges as a vital metric, providing invaluable information for understanding the structural health of concrete elements. Ultrasonic pulse velocity testers are the established and easy-to-use application for in-situ evaluation of compressive strength by means of ultrasound.

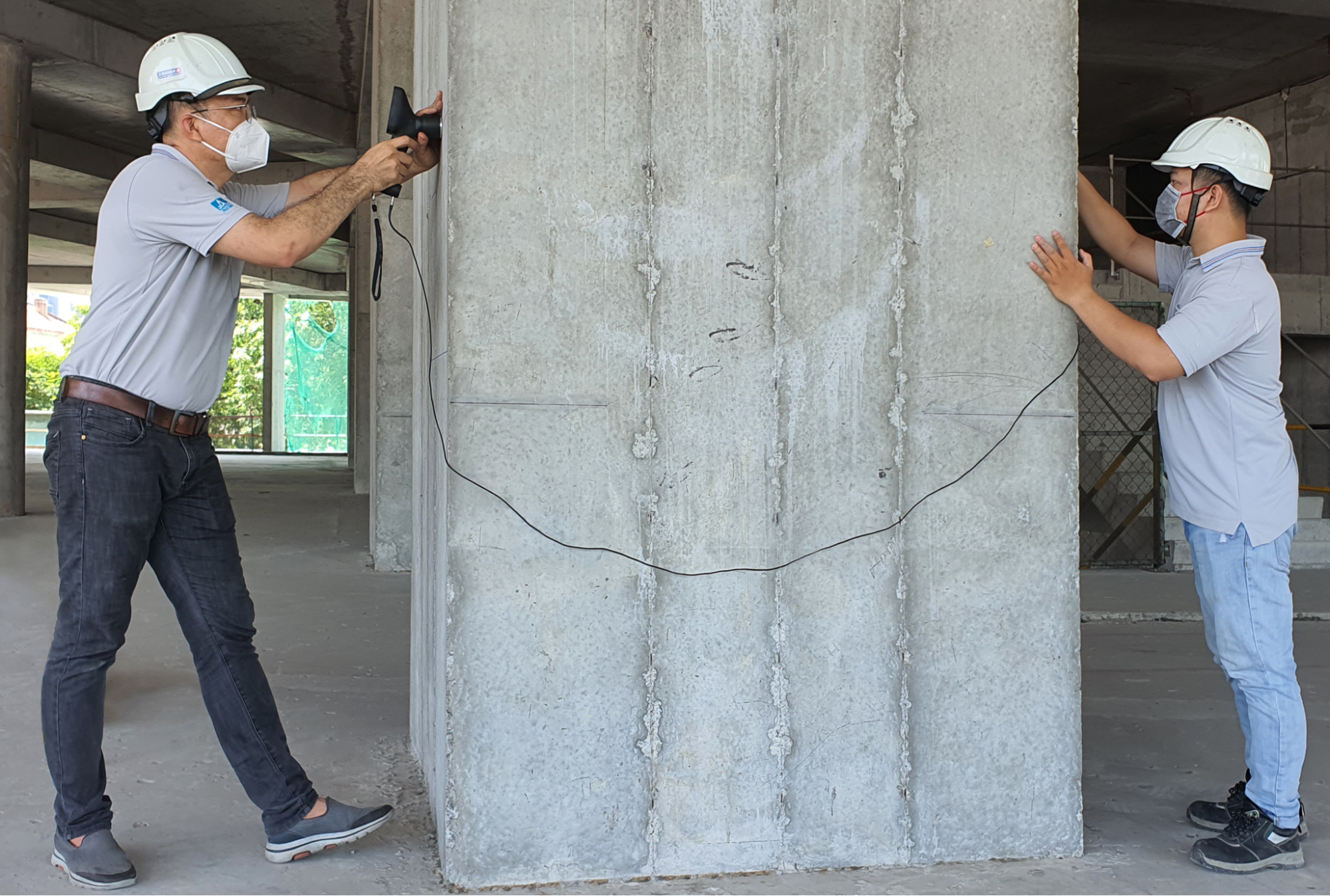

Ultrasonic Pulse Velocity Testing (UPVT) of a concrete pole for evaluating the compressive strength
Fig. 5: Ultrasonic Pulse Velocity Testing (UPVT) of a concrete pole for evaluating the compressive strength

Ultrasonic Pulse-Echo Tomography

Pulse-echo tomography represents an imaging technique enabling the visualization of construction volume with one-side access. Applying image reconstruction principles akin to medical imaging, this method utilizes low-frequency ultrasonic waves due to concrete's inhomogeneous properties. Within this technique, metallic structural elements like reinforcement rebars, tendon ducts, anchor bolts, and material defects are reliably detected and evaluated using ultrasonic tomographic instruments (for instance A1040 MIRA 3D).

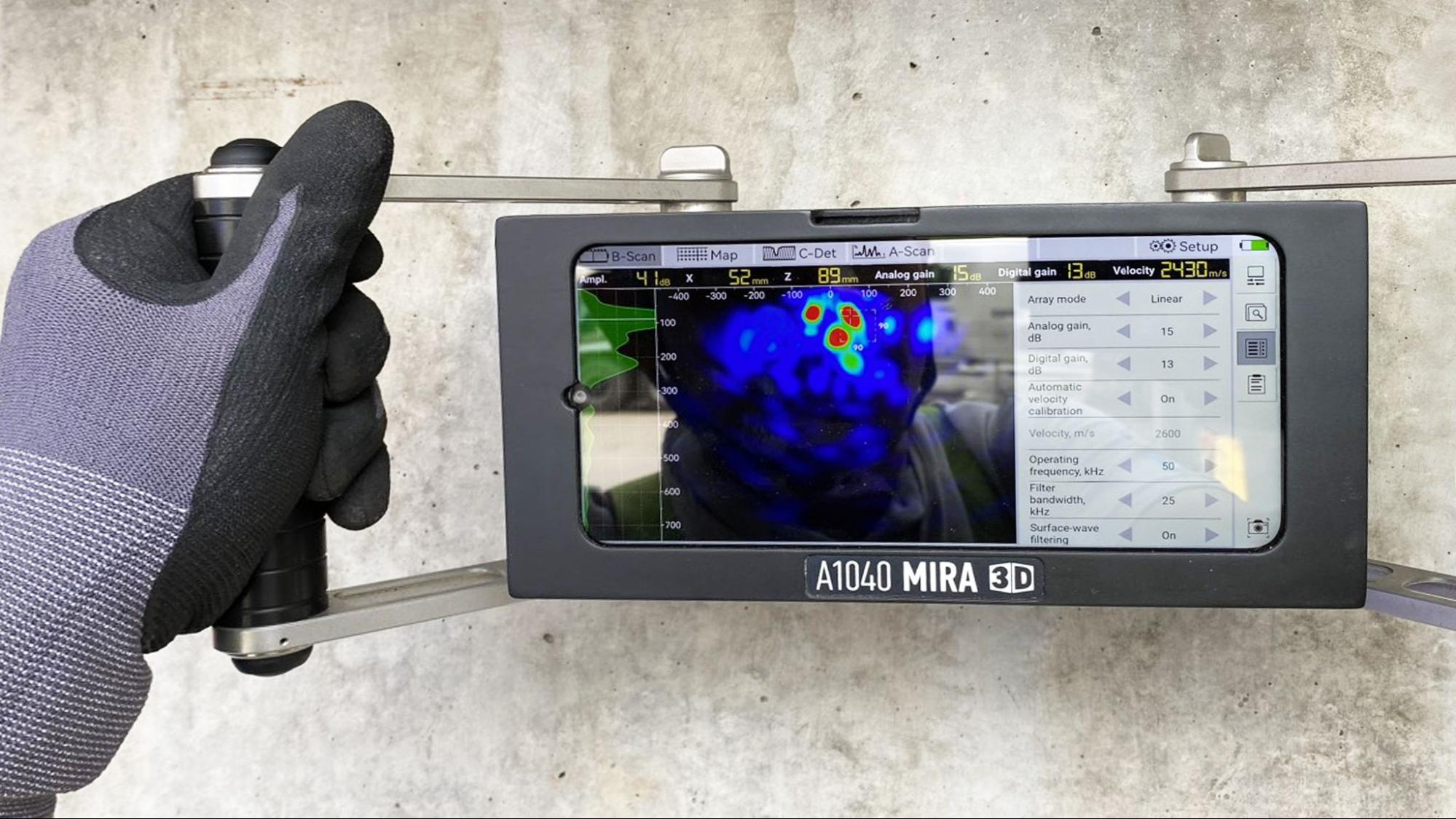

Visualization of reinforcement rebars in a concrete construction
Fig. 6: Visualization of reinforcement rebars in a concrete construction

Ultrasonic concrete testing, employing these methodologies, presents a holistic approach to assessing concrete integrity. It offers precise measurements and imaging capabilities, enabling a thorough understanding of concrete properties and the identification of critical structural elements and defects.

Advantages of Ultrasonic Concrete Testing

A range of distinct advantages set it apart as a leading method for assessing concrete quality. By harnessing the power of ultrasonic waves, this non-destructive technique provides unparalleled insights into the structural integrity and properties of concrete. Below are the key advantages that make ultrasonic concrete testing an indispensable tool in the construction industry.

Non-Destructive Nature
Unlike traditional destructive testing methods that necessitate the material coring, ultrasonic testing is entirely non-destructive. It allows for a thorough assessment of concrete integrity without compromising the material's structural integrity.

Extended Inspection Capabilities
Ultrasonic testing offers the ability to investigate large and complex structures, providing a comprehensive assessment of the material's condition over the large inspection range of several meters. This extended inspection range is particularly valuable in scenarios where accessing every part of a structure may be challenging.

Advanced Detection of Material Voids
One strength of ultrasonic testing is its exceptional ability to detect internal voids within the concrete matrix. These voids, if left undetected, can significantly weaken the material's structural integrity over time.

Real-Time Data Analysis
Ultrasonic testing provides immediate feedback, enabling construction professionals to promptly assess concrete quality and take necessary actions if any discrepancies are identified.

By leveraging these advantages, ultrasonic concrete testing emerges as a powerful tool in the construction industry, revolutionizing the way we evaluate and ensure the quality of concrete structures.

Key Applications and Use Cases

You can find applications across a wide spectrum of construction scenarios. The ability to provide accurate and non-destructive assessments of concrete integrity makes it an invaluable tool in various aspects of construction projects. Below, we explore some of the key applications and real-world use cases where ultrasonic concrete testing instruments have proven instrumental:

    • Determining Concrete Strength
      Assessing concrete strength accurately is crucial for structural stability. Ultrasonic testing provides precise data on compressive strength, aiding in optimizing construction methodologies and ensuring compliance with engineering specifications.
    • Measuring the Thickness of Concrete Walls
      Utilizing the pulse-echo principle, these instruments enable measuring wall thickness with access from one side of the construction. This method offers efficient assessment without requiring extensive access points.
    • Localization of Structural Elements
      Through the tomographic nature of applied image reconstruction, pulse-echo instruments facilitate precise visualization of diverse structural elements (e.g., rebars, pipes, tendons) within concrete walls. These elements possess varying material properties, acting as distinct "foreign bodies" or "reflectors," and their accurate localization enhances construction precision.
    • Identifying Flaws
      Ultrasonic testing instruments excel at identifying hidden flaws within concrete structures. This capability has proven invaluable in detecting defects early in construction phases, preventing costly and potentially dangerous issues down the line.
    • Assessing Structural Health
      Regular assessment of structural health is essential for the maintenance and longevity of a building. Ultrasonic concrete testing instruments enable professionals to monitor structural integrity over time, allowing for proactive maintenance and necessary repairs.
    • Optimizing Construction Practices

By providing immediate feedback on concrete quality, ultrasonic testing aids in fine-tuning construction methodologies and ensuring compliance with engineering specifications.

These applications represent just a fraction of the diverse ways in which ultrasonic concrete testing contributes to the success and safety of construction projects.

Ensuring Safety and Compliance

Adherence to rigorous safety standards and building codes is an uncompromising imperative in the construction industry. Safety is not just a regulatory requirement but the bedrock upon which responsible and sustainable construction practices stand. Ultrasonic concrete testing emerges as a linchpin in upholding these standards, playing a vital role in ensuring the safety of occupants and the longevity of structures.

Safety in construction is non-negotiable. Compromised structural integrity can lead to consequences ranging from inconveniences to catastrophic events, underscoring the critical importance of meeting the highest safety standards. Ultrasonic concrete testing, employing high-frequency sound waves, becomes a guardian of quality assurance. Beyond data collection, it instills confidence in the safety of constructed environments by delving into the core of concrete structures, revealing essential information about their integrity and strength.

Performing ultrasonic testing of a concrete construction
Fig. 7: Performing ultrasonic testing of a concrete construction

Ultrasonic concrete testing empowers construction professionals to make informed decisions, fostering a culture of confidence among stakeholders. Beyond mere compliance, it is a commitment to safety, precision, and the enduring quality of construction projects. By building with precision and ensuring structures not only meet but exceed safety standards, this method becomes a cornerstone in constructing environments where occupants can trust in the robustness and longevity of the built environment.

In essence, Ultrasonic concrete testing transcends being merely a method. It becomes a pledge to uphold safety, compliance, and the enduring quality of every construction project it touches.

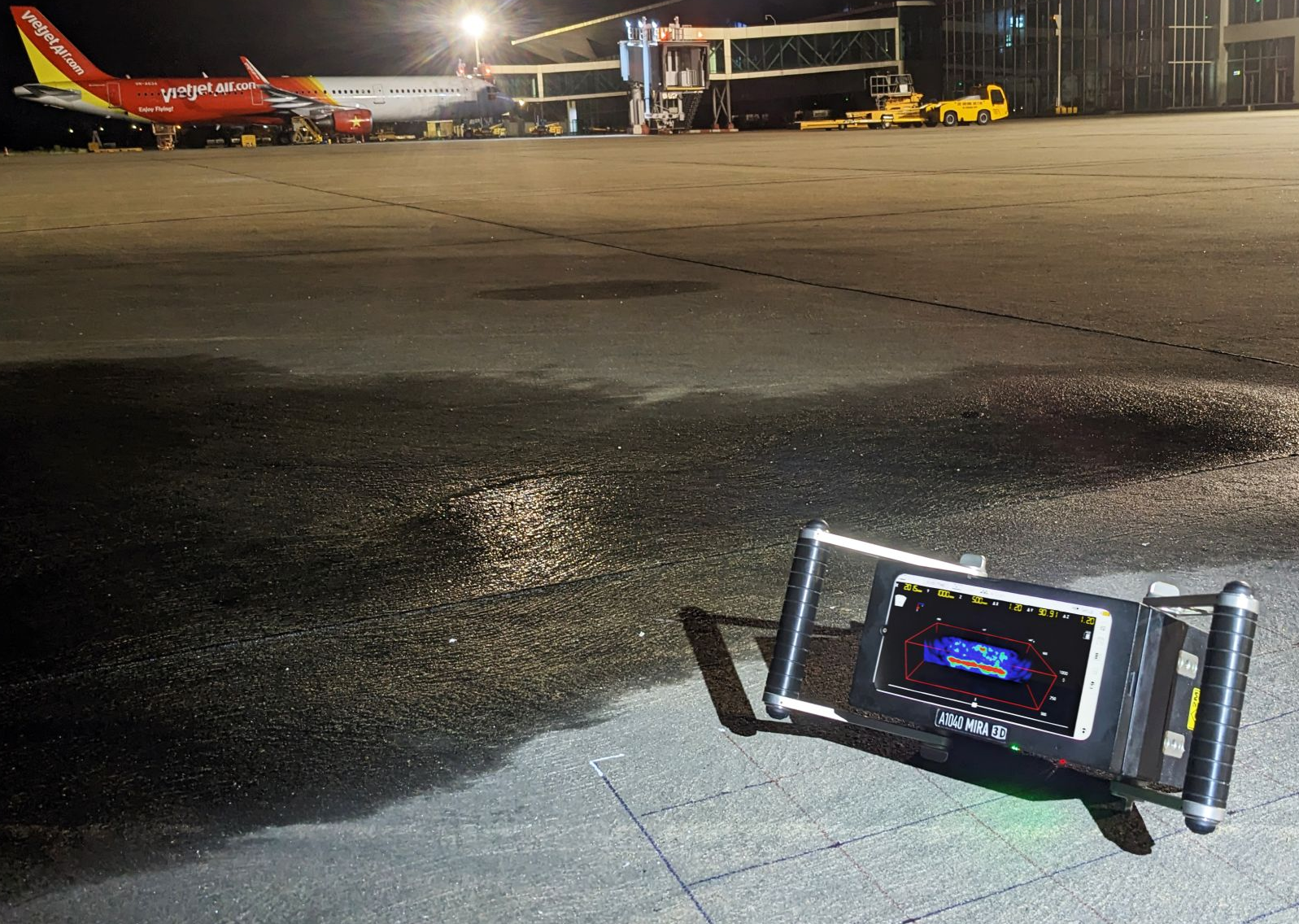

Ultrasonic tomograph A1040 MIRA 3D applied on a runway concrete bay
Fig. 8: Ultrasonic tomograph A1040 MIRA 3D applied on a runway concrete bay

Advancing Construction Industry Practices

In the dynamic world of construction, innovation propels progress. Ultrasonic testing instruments stand out as a transformative force, redefining accuracy, efficiency, and project workflows. Adopting these cutting-edge tools positions construction professionals at the forefront of change, fundamentally altering project execution and enhancing the quality of structures.

Precision guides project planning, as real-time data on concrete quality allows informed decisions from the outset. During construction, these instruments assure quality by providing on-the-spot assessments, enabling immediate adjustments and minimizing future issues. Post-construction, proactive maintenance becomes a reality, with the ability to monitor structural health and address potential problems before they escalate.

Integrating ultrasonic testing instruments streamlines project workflows, which is particularly beneficial for large-scale and complex structures. The real-world impact is evident in heightened construction efficiency, reducing rework and delays. This technological evolution isn't just an upgrade; it signifies a shift in how construction projects are approached, enabling professionals to reshape practices and deliver structurally sound, efficient, and enduring structures.

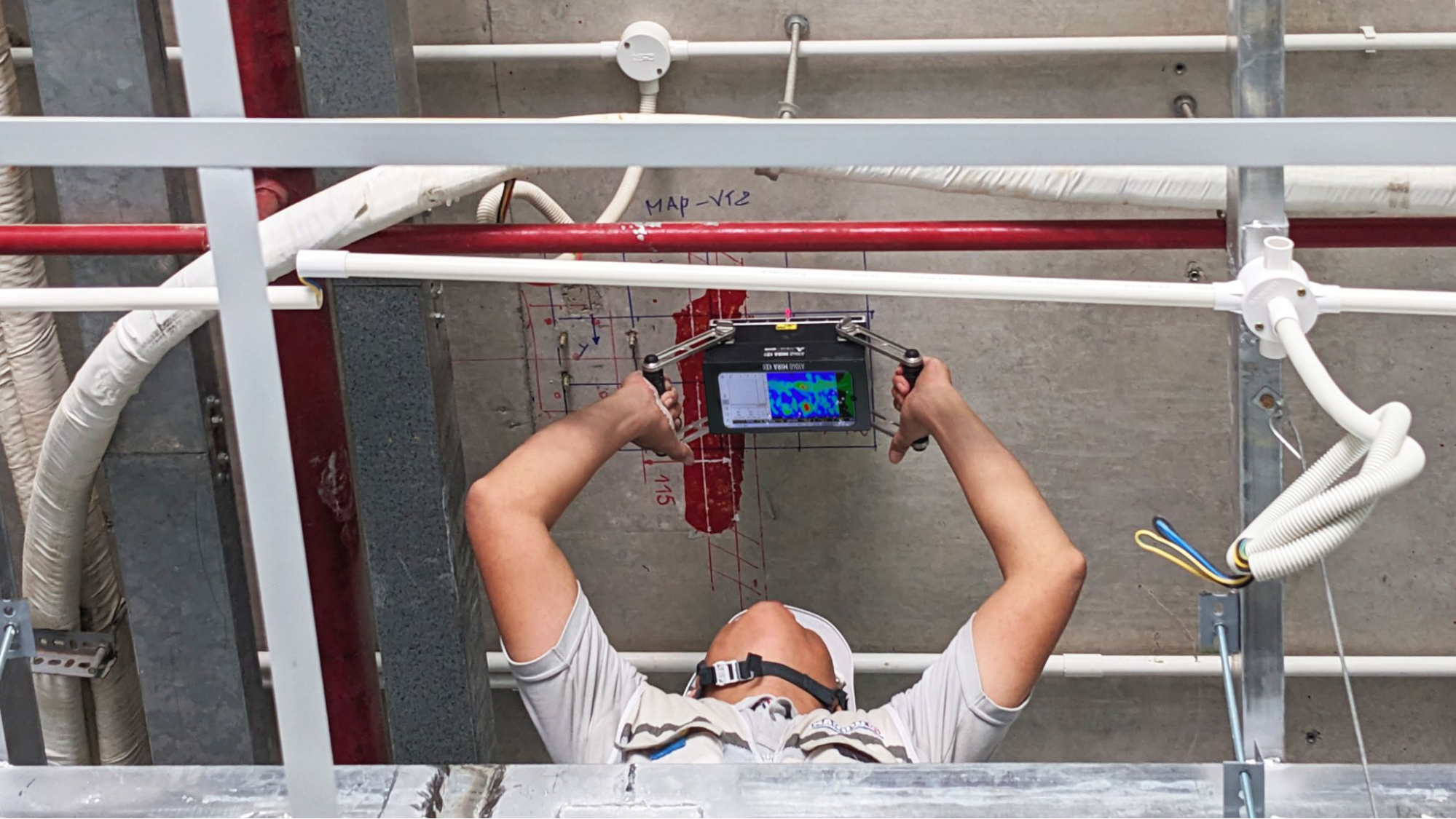

Working with the ultrasonic tomograph on construction site
Fig. 9: Working with the ultrasonic tomograph on construction site

The significance of ultrasonic concrete testing in construction cannot be overstated. By addressing the challenges of non-destructive concrete quality control, providing a deeper understanding of concrete properties, and enabling precise assessments, these instruments are indispensable in ensuring the structural integrity and longevity of buildings. As the construction industry continues to evolve, embracing technologies like ultrasonic testing instruments will undoubtedly lead to safer, more durable, and higher-quality structures.

Three-dimensional tomographic imaging of the ultrasonic inspection results by A1040 MIRA 3D
Fig. 10: Three-dimensional tomographic imaging of the ultrasonic inspection results by A1040 MIRA 3D
