Evaluation of concrete quality, compressive strength and homogeneity using ultrasonic pulse velocity.
UK1401 SURFER

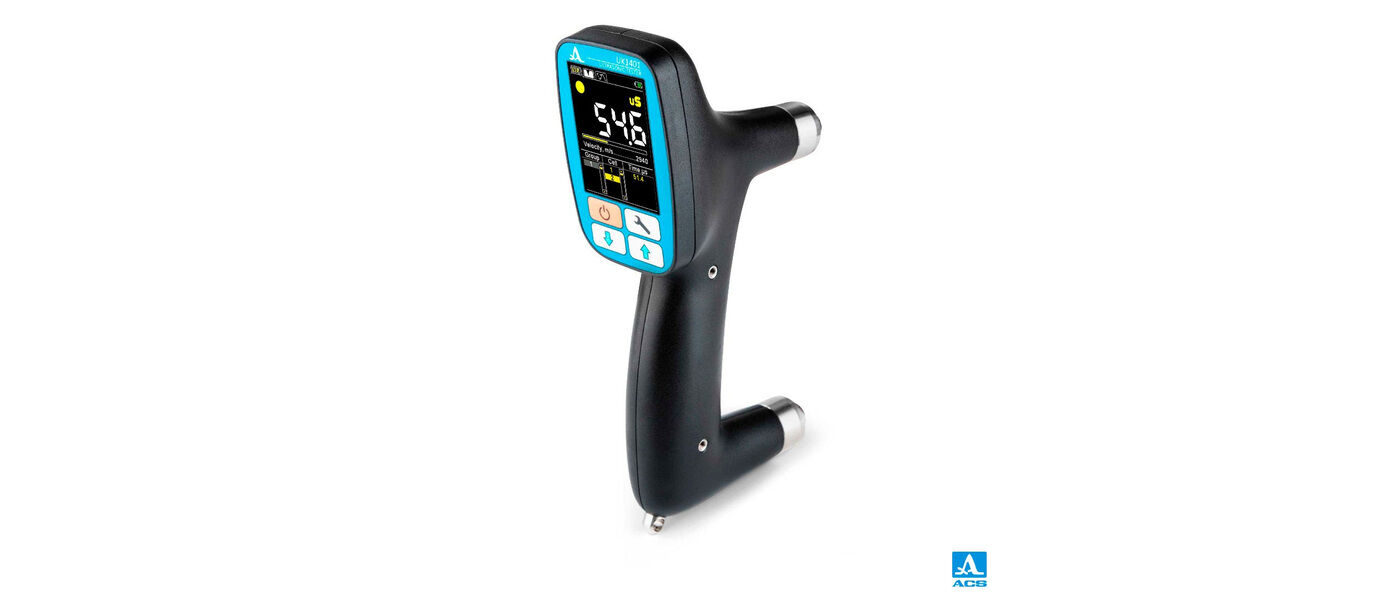

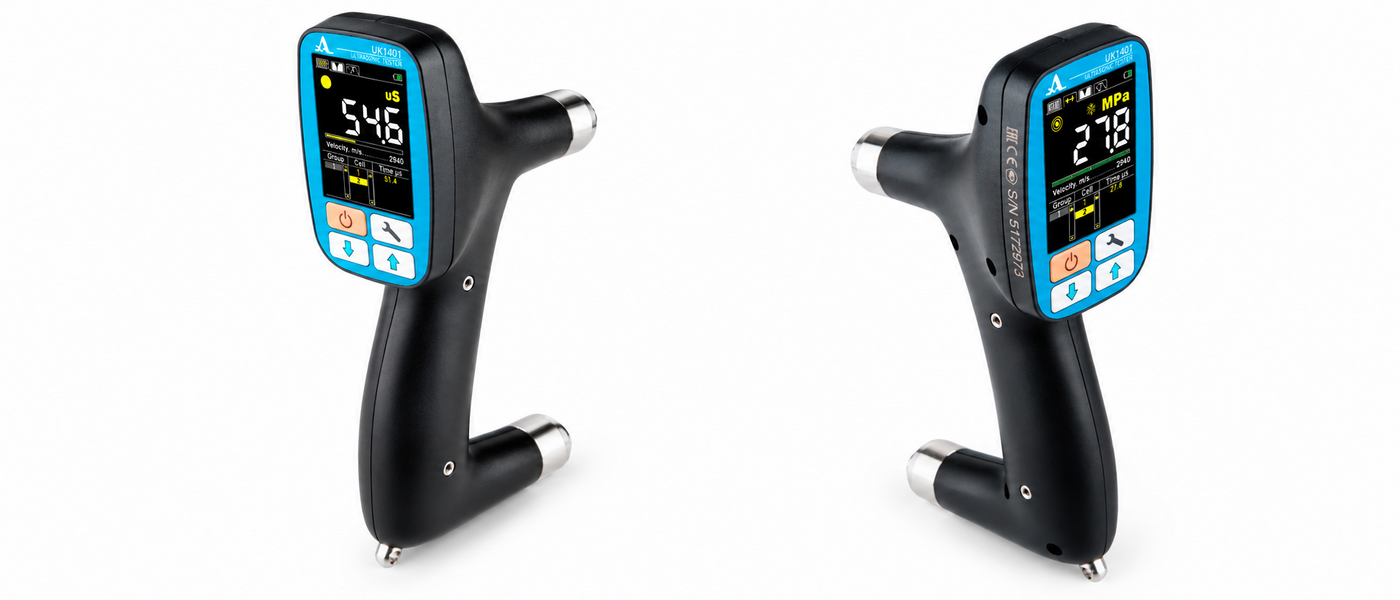

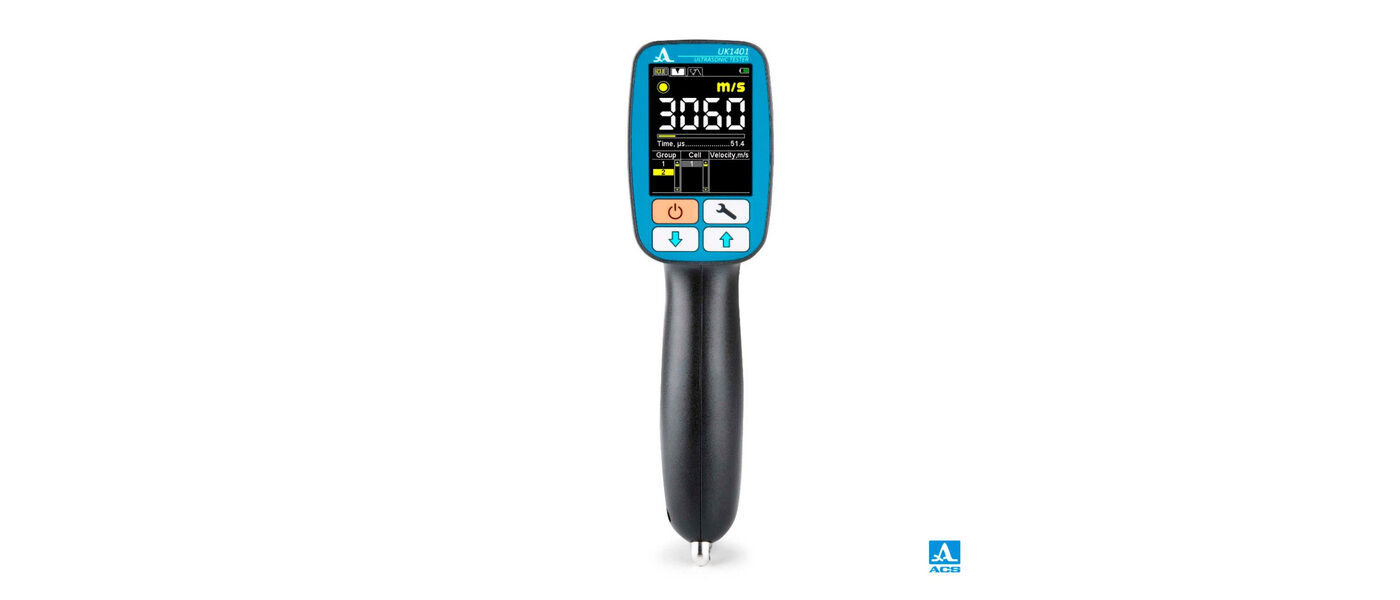

UK1401 SURFER - Couplant-free Ultrasonic Pulse Velocity Tester (UPVT)

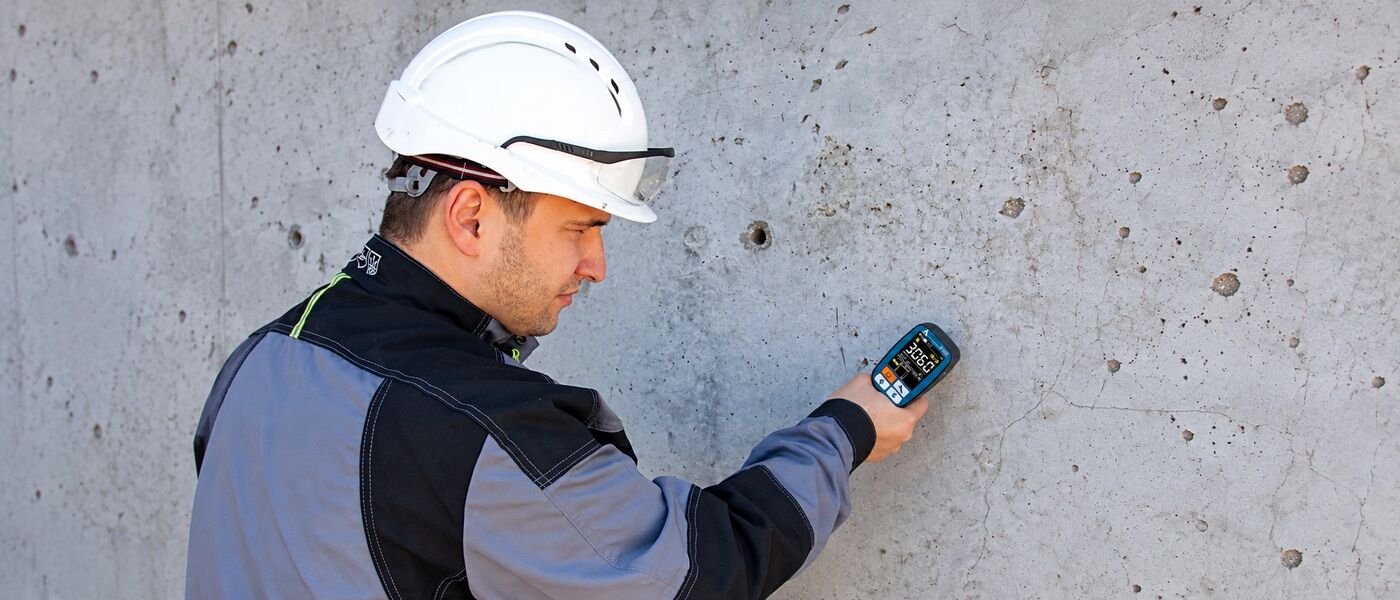

A compact, ergonomic and handheld ultrasonic pulse velocity tester for concrete inspection.

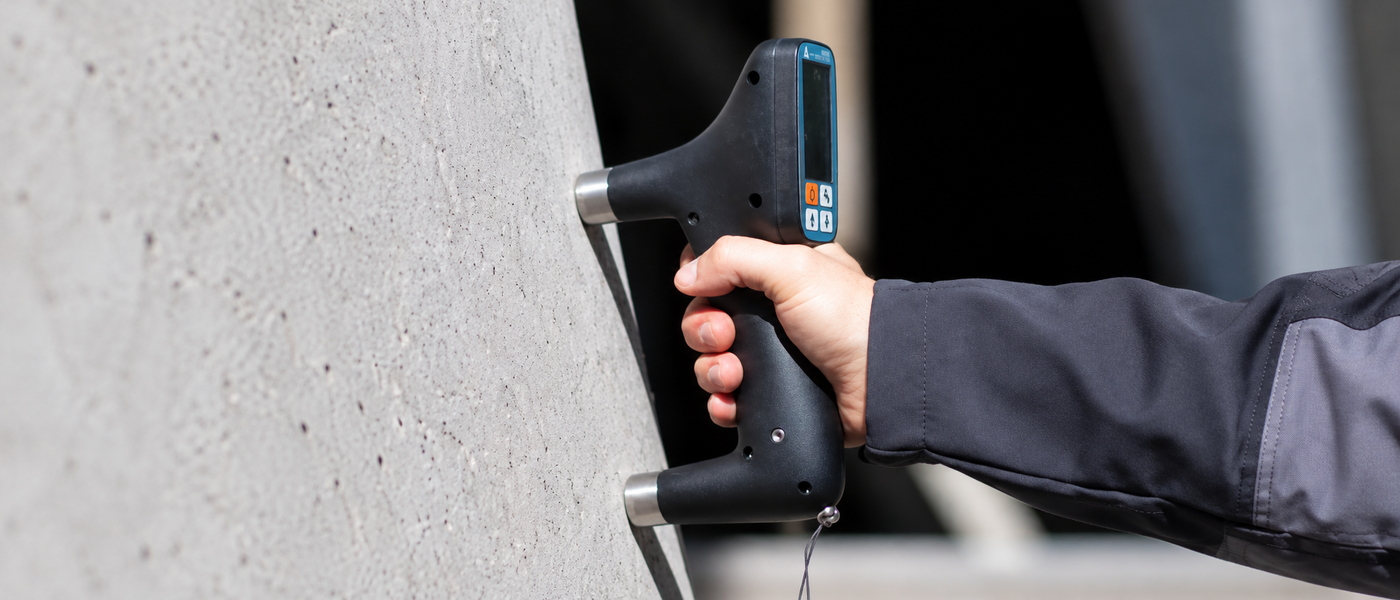

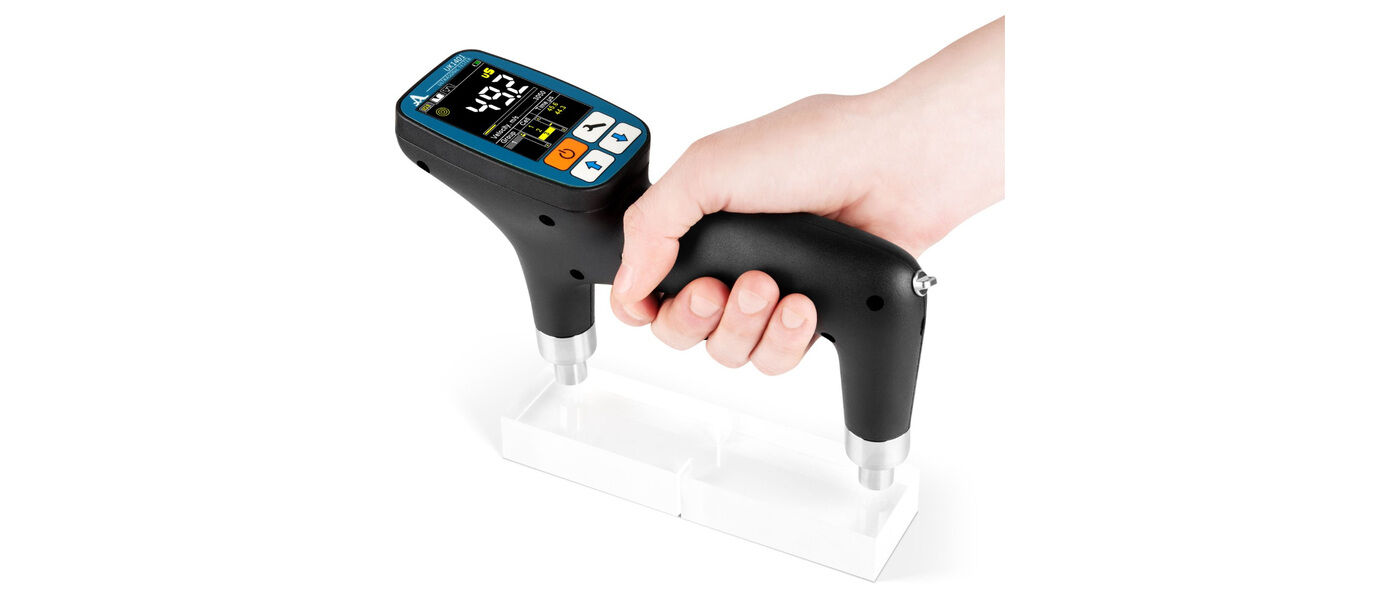

The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm). Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare the surface for measuring.
Description

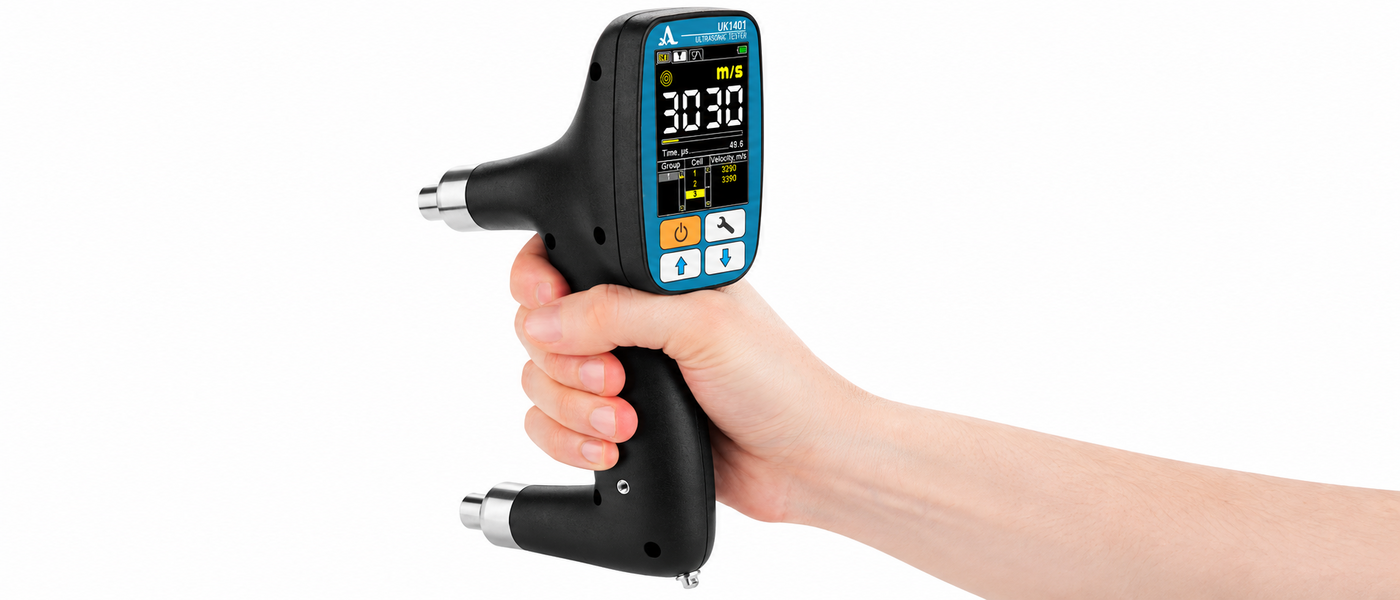

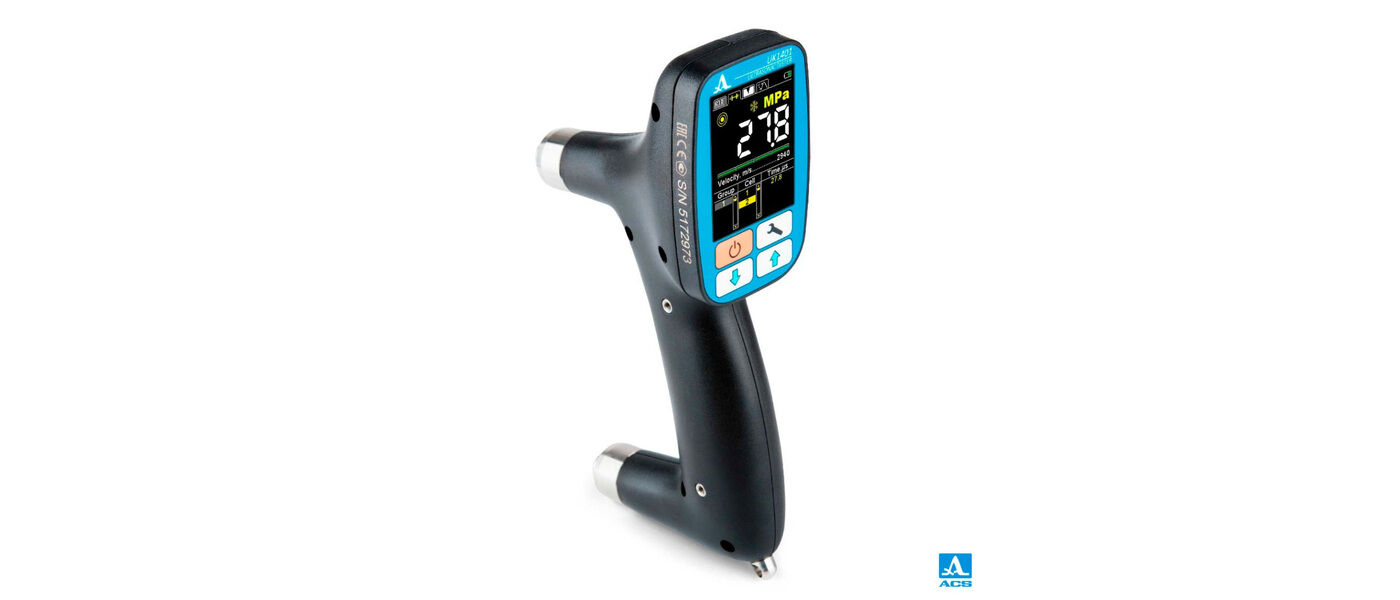

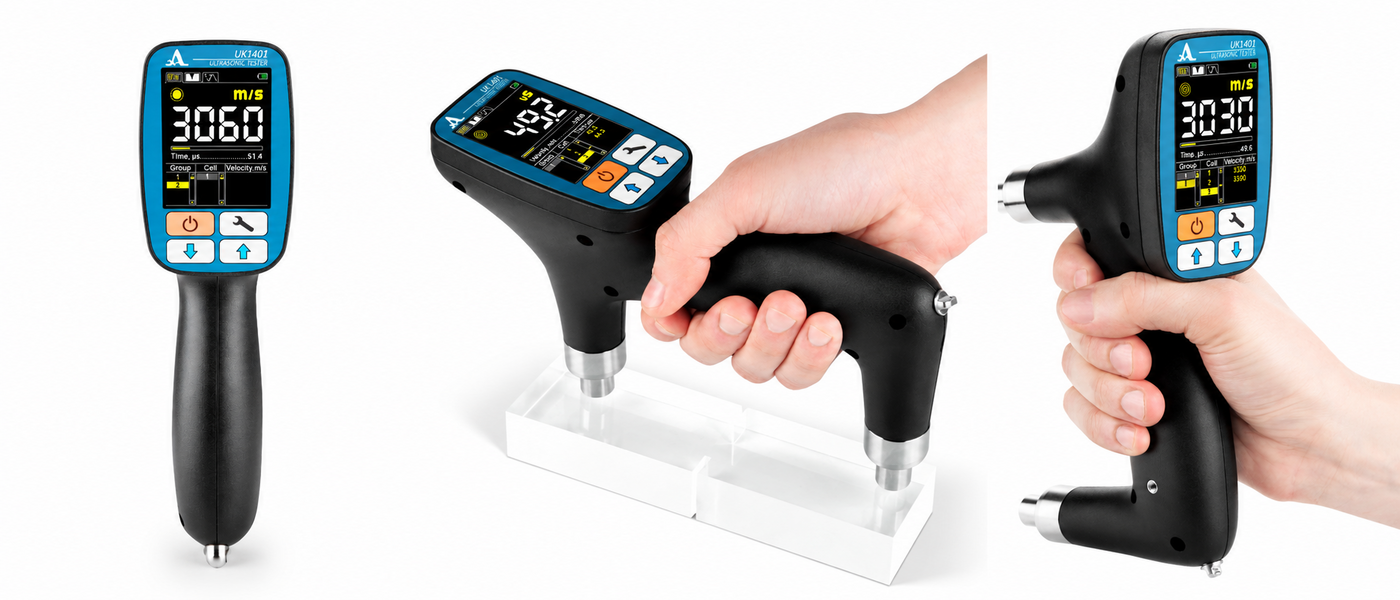

A compact, ergonomic and handheld ultrasonic pulse velocity tester for quality assessment of concrete.
The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm).Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare object surface for testing.

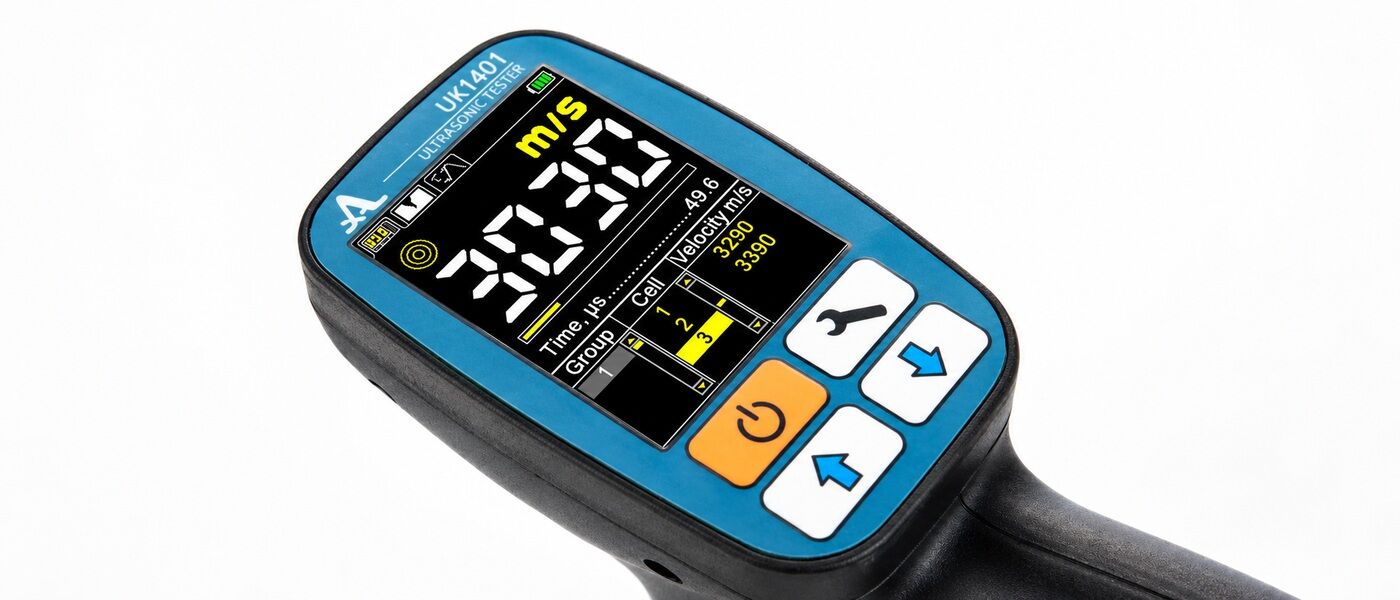

The device has sound indication when ultrasonic signals are being received, non-volatile memory allowing storing of 50000 measurements(the results can be grouped) and USB port for transferring of the saved data to the external PC.
A compact, ergonomic and handheld ultrasonic pulse velocity tester for quality assessment of concrete.
The device is made of light-weight shockproof plastic and has two built-in transducers with dry-point-contact with fixed base (150 mm).Wear resistant tips of the transducers are insensitive to the surface condition. Hence, there is no need to apply coupling gel or to prepare object surface for testing.
The device has sound indication when ultrasonic signals are being received, non-volatile memory allowing storing of 50000 measurements(the results can be grouped) and USB port for transferring of the saved data to the external PC.
Applications
Reliable surface UPV measurements for a wide range of concrete testing tasks
Concrete Quality

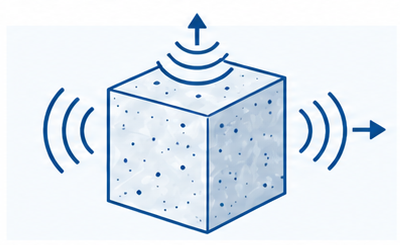

Material Anisotropy
Assessment
Assessment of material anisotropy by comparing ultrasonic pulse velocity measured in different directions.
Crack Depth
Estimation
Estimation of the depth of surface-opening cracks using indirect UPV methods.

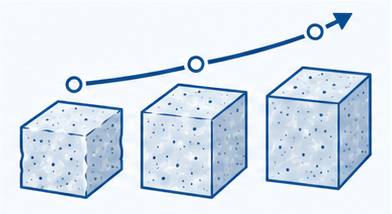

Concrete Curing
Monitoring
Monitoring of changes in ultrasonic pulse velocity during concrete curing and hardening.
Specification
Specification
| Scanning base |
150 mm |
|---|---|
| Time measurement range |
15 – 100 μs |
| Velocity measurement range |
1500 – 9990 m/c |
| Crack deepness measurement range |
10 – 50 mm |
| Working frequency |
50 kHz |
| Pulse repetition frequency |
5 – 25 kHz |
| Quantity of objects in memory |
4 000 |
| Operating temperature range |
from -20 to +45 °C |
| Operation time with battery, not less than |
15 h |
| Size |
199 х 120 х 34 mm |
| Weight of electronic unit |
350 g |

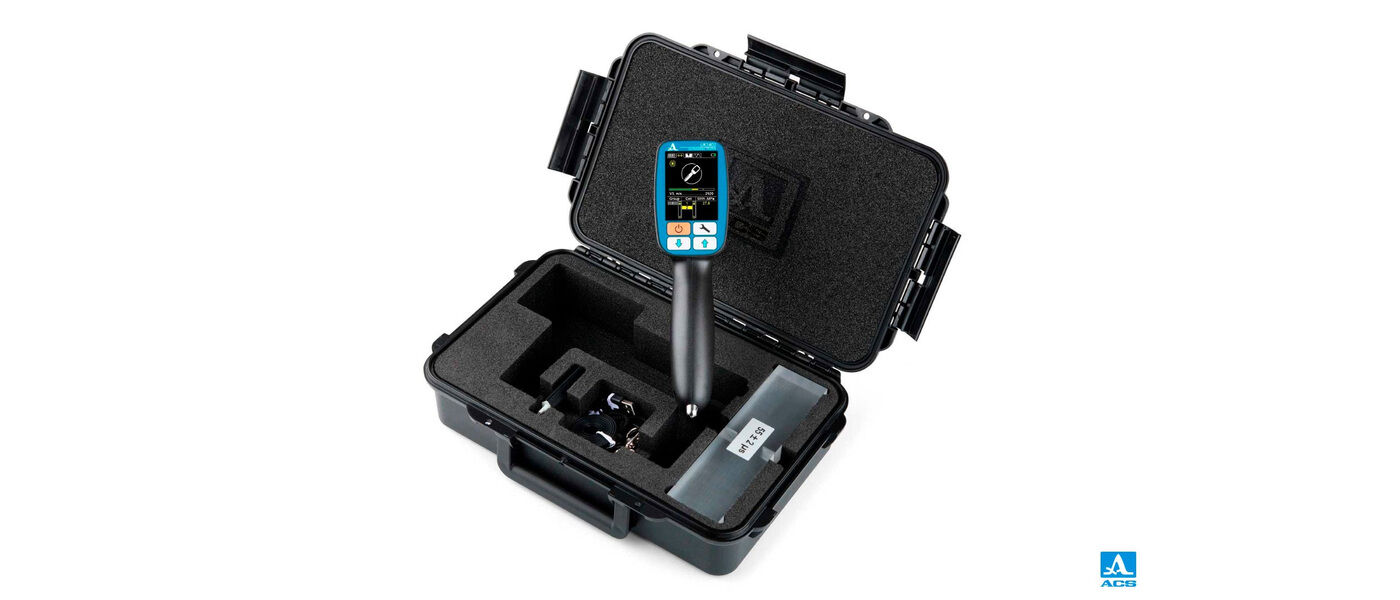

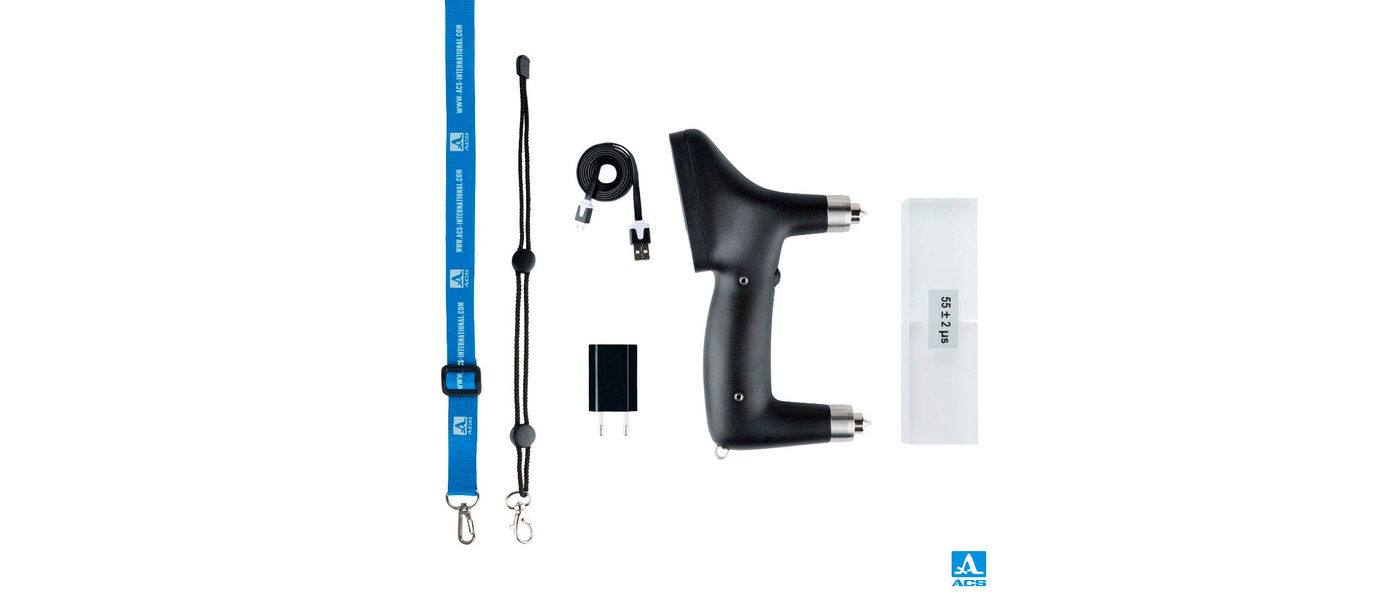

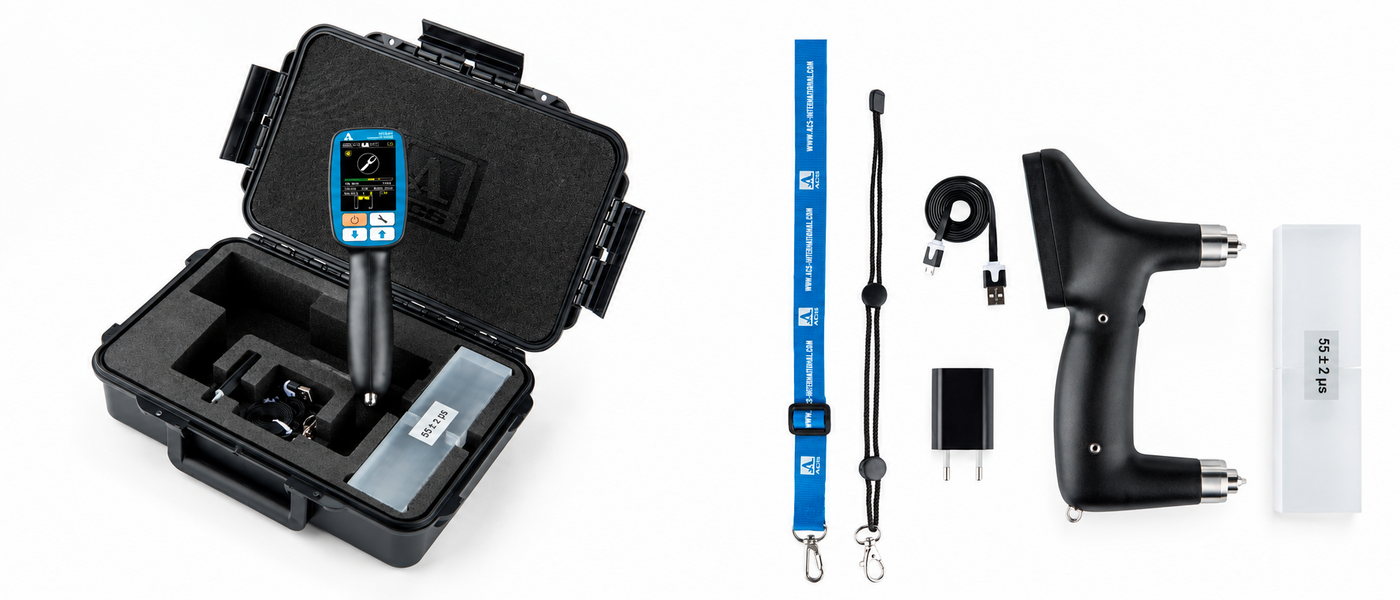

Delivery kit
UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V

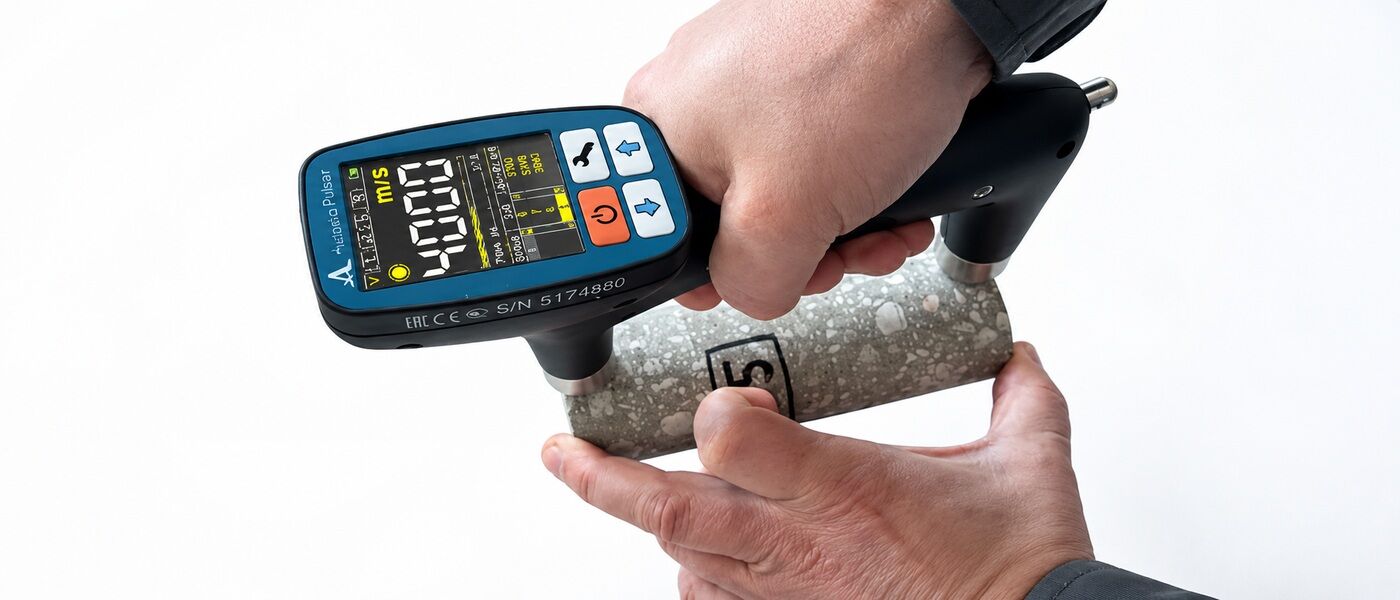

Checking sample
Case
UK1401 – ultrasonic tester
USB A – Micro B cable
USB adapter for 220V
Checking sample
Case
