Evaluation of concrete quality, compressive strength and homogeneity using ultrasonic pulse velocity.
A1410 PULSAR
A1410 PULSAR - Universal Couplant-free Ultrasonic Pulse Velocity Tester (UPVT)
The world-first ultrasonic pulse velocity testing instrument for couplant-free on-site quality assessment of concrete structures with up to 2 meters thru-transmission capability.
Description

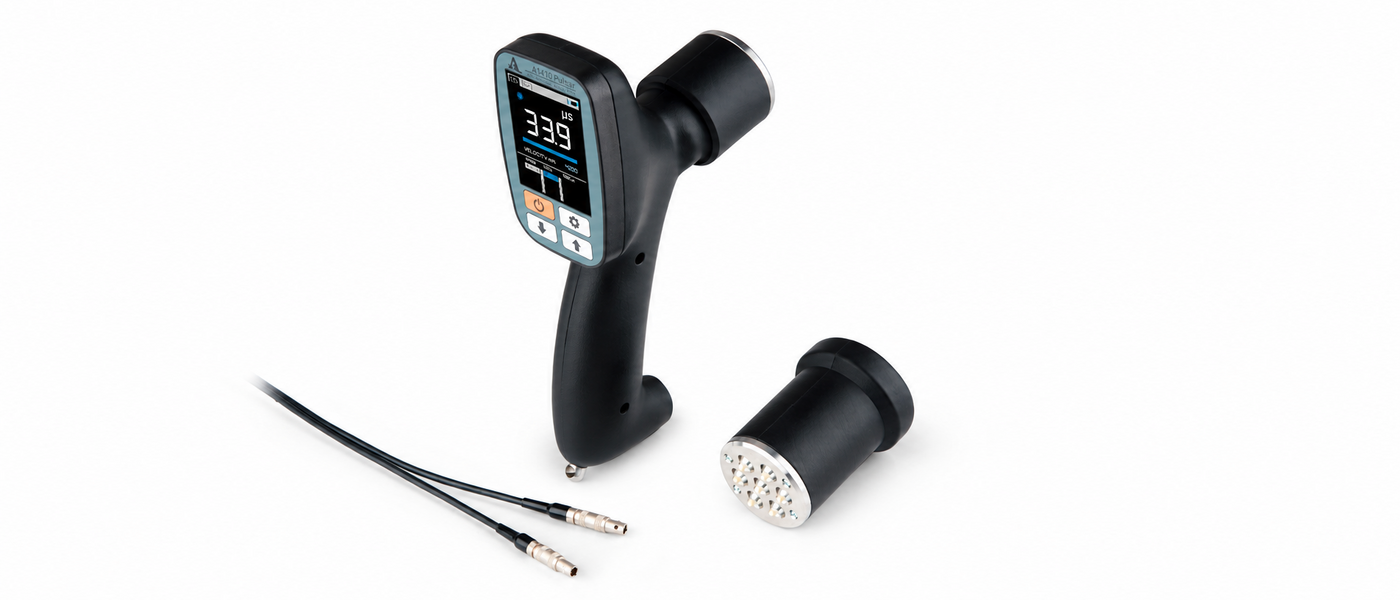

A1410 PULSAR — universal, couplant-free ultrasonic pulse velocity tester
A compact and robust instrument for reliable ultrasonic testing of concrete and other construction materials in the field and in the laboratory. The A1410 PULSAR combines dry-point-contact technology with high-performance electronics to deliver accurate pulse-velocity measurements without the need for coupling gel.
-
Couplant-free testing
Dry-point-contact transducers with wear-resistant ceramic tips provide reliable measurements without coupling gel, even on rough and uneven concrete surfaces.
-
Up to 2 m
High-power pulser and sensitive receiver enable through-transmission measurements over long paths in concrete elements up to 2 meters.
-
50 kHz
Low-frequency operation optimized for concrete and other construction materials, providing high signal stability and reliable results in field conditions.
-
Pulsed-wave velocity
Accurate measurement of ultrasonic transit time and pulse velocity using longitudinal (P-wave) pulses for material assessment and quality control of concrete and other construction materials.
-
7-element DPC arrays
Durable ceramic-tipped transducers arranged in a daisy-wheel configuration ensure stable coupling, high measurement repeatability and practical operation on various surfaces.
-
Compact and field-ready
Lightweight and ergonomic design for convenient handheld use. Powered by rechargeable batteries for long on-site operation.
Applications
Reliable UPV measurements for a wide range of concrete testing tasks
Concrete Quality
Crack Depth
Estimation
Estimation of the depth of surface-opening cracks using indirect UPV methods.
Material Uniformity
& Structural Assessment
Detection of inhomogeneities, voids and local defects. Comparison of UPV values for condition assessment and monitoring over time.
Flexible DPC
Transducers
Use of dry-point-contact (DPC) transducers for reliable measurements on rough, uneven or vertical surfaces without couplant. Ideal for field and on-site testing.
Wide Range of Materials
Concrete, stone, masonry, ceramics, wood, plastics, composites and more.
Compact & Lightweight
Ergonomic handheld design for easy and fast on-site testing.
Simple Operation
Intuitive user interface for efficient testing in the field and in the lab.
Data Storage & Transfer
Store up to 50,000 measurements (organized in groups) with USB port for data transfer to a PC.
Reliable & Robust
Shockproof design for daily use in harsh environments.
Specification
Specification
| Type of ultrasonic transducers |
Undamped DPC transducers |
|---|---|
| Transducer configuration |
Array of 7 x DPC transducers, daisy wheel pattern |
| Operating frequency, kHz |
50 |
| Set delay range, µs |
0 to 20 |
| Adjustable range of the base size, mm |
50 to 2500 |
| Automatic Gain Control (AGC) |
switchable |
| Maximum thickness of the inspection object, m |
2.5 |
| Indication resolution of the propagation time of ultrasonic waves, µs |
0.1 |
| Indication resolution of the propagation velocity of ultrasonic waves, m/s |
10 |
| Measurement range of the sound velocity, m/s |
1.000 to 15.000 |
| Measurement range of sound propagation time, μs |
0,1 to 10.000 |
| Rated supply voltage, V |
3.3 |
| Operation time with battery, not less than, hours |
16 |
| Display |
2,8”, 320×240 pixel |
| Overall dimensions of the electronic unit, mm., max. |
230×125×65 |
| Weight of the electronic unit, gr., max. |
420 |
| Mean time between failures, hours |
18,000 |
| Regular service life, years |
5 |
Delivery kit
Electronic unit of the Ultrasonic pulse velocity tester A1410 Pulsar
Antenna array M1001 0.05A0D25PL
LEMO-LEMO single cable 3 m
Adapter 220 V – USB
Cable USB A – Micro B
Test sample
Hard case
Warranty certificate
Operation Manual
Electronic unit of the Ultrasonic pulse velocity tester A1410 Pulsar
Antenna array M1001 0.05A0D25PL
LEMO-LEMO single cable 3 m
Adapter 220 V – USB
Cable USB A – Micro B
Test sample
Hard case
Warranty certificate
Operation Manual
