Concrete Strength
& Quality
Compressive strength evaluation based on ultrasonic velocity correlation and material properties assessment.

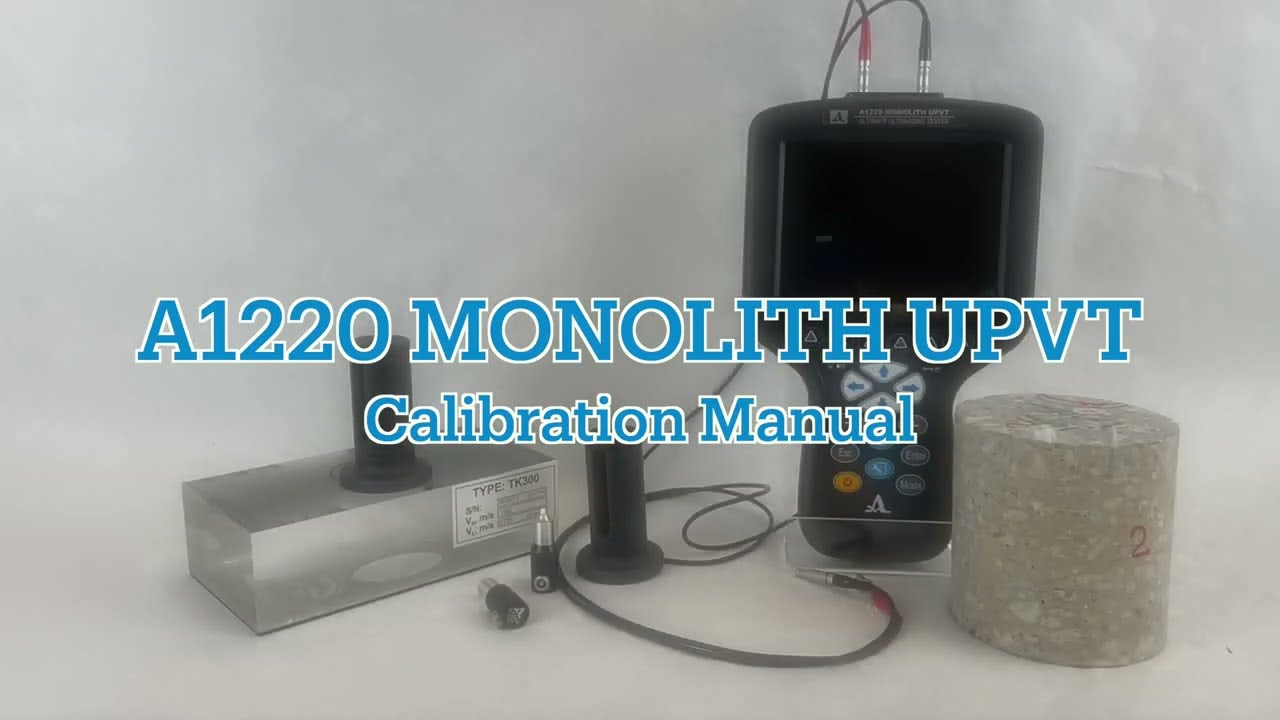

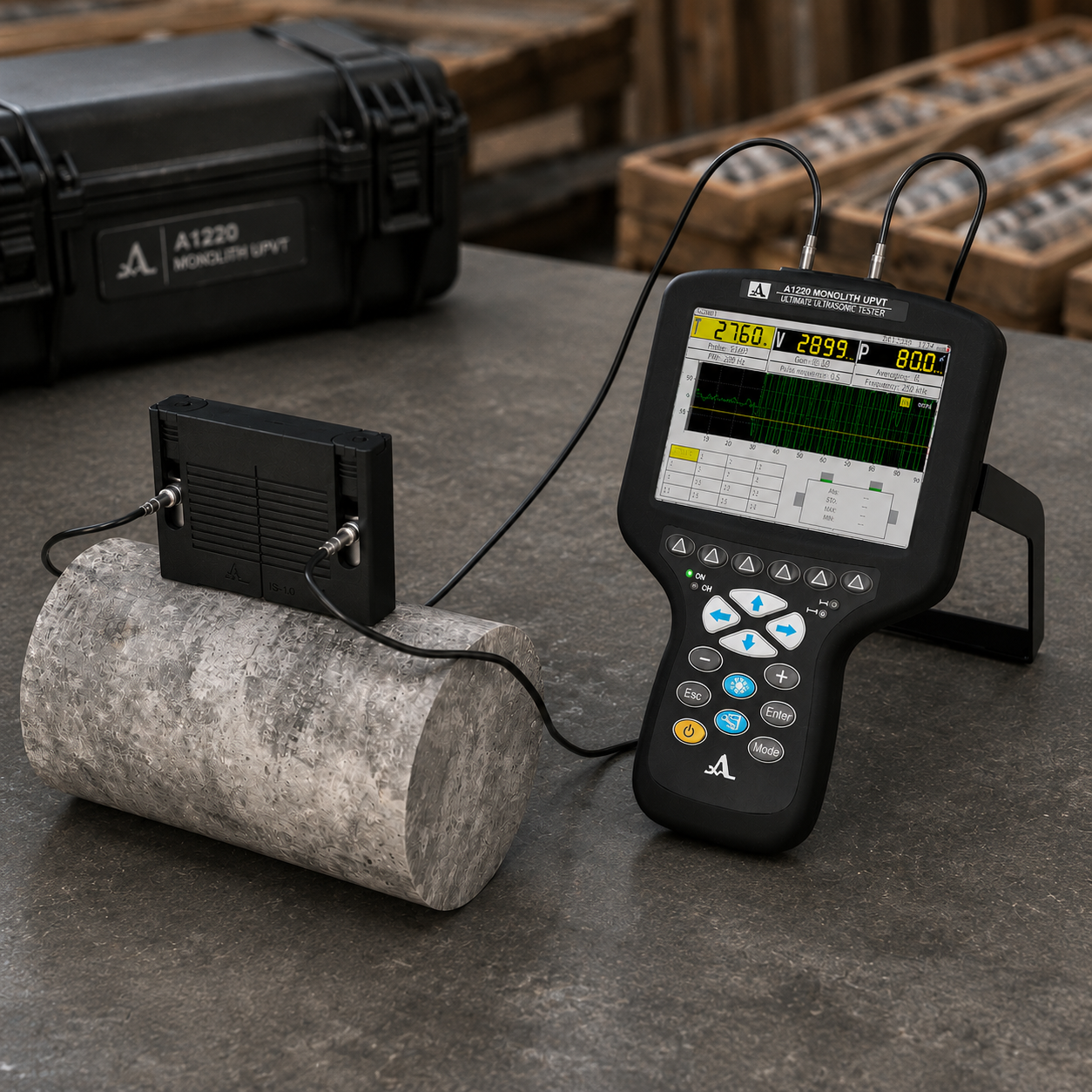

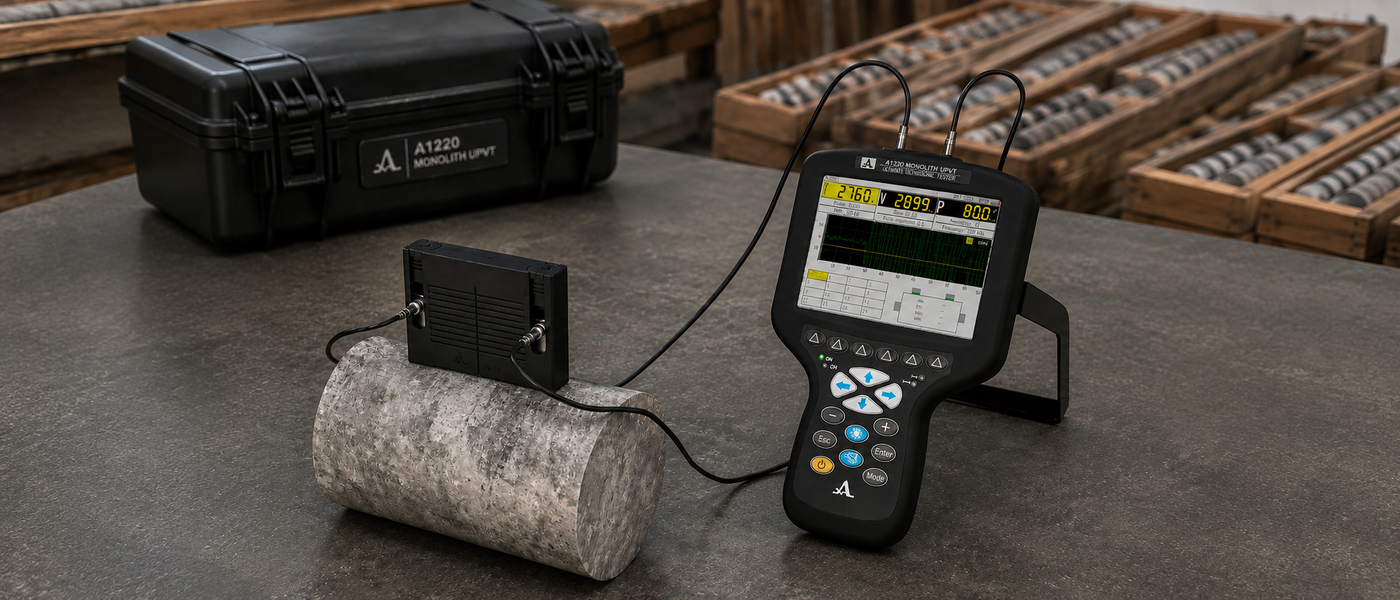

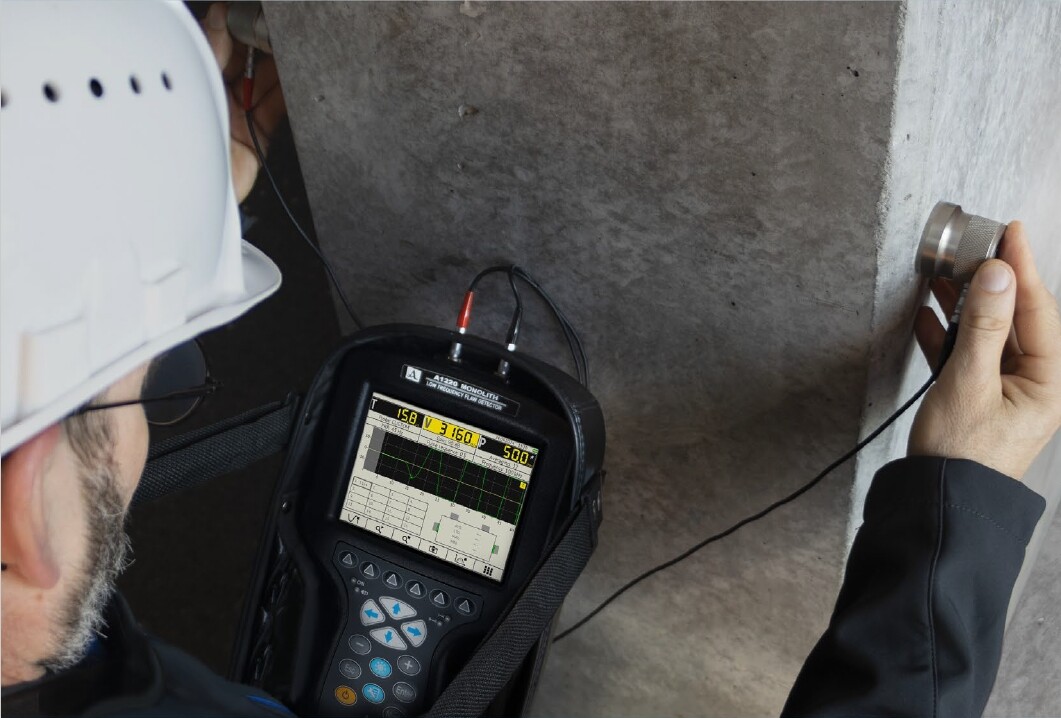

A1220 MONOLITH UPVT - Ultimate Ultrasonic Pulse Velocity Tester
A1220 MONOLITH UPVT - Ultimate Ultrasonic Pulse Velocity Tester

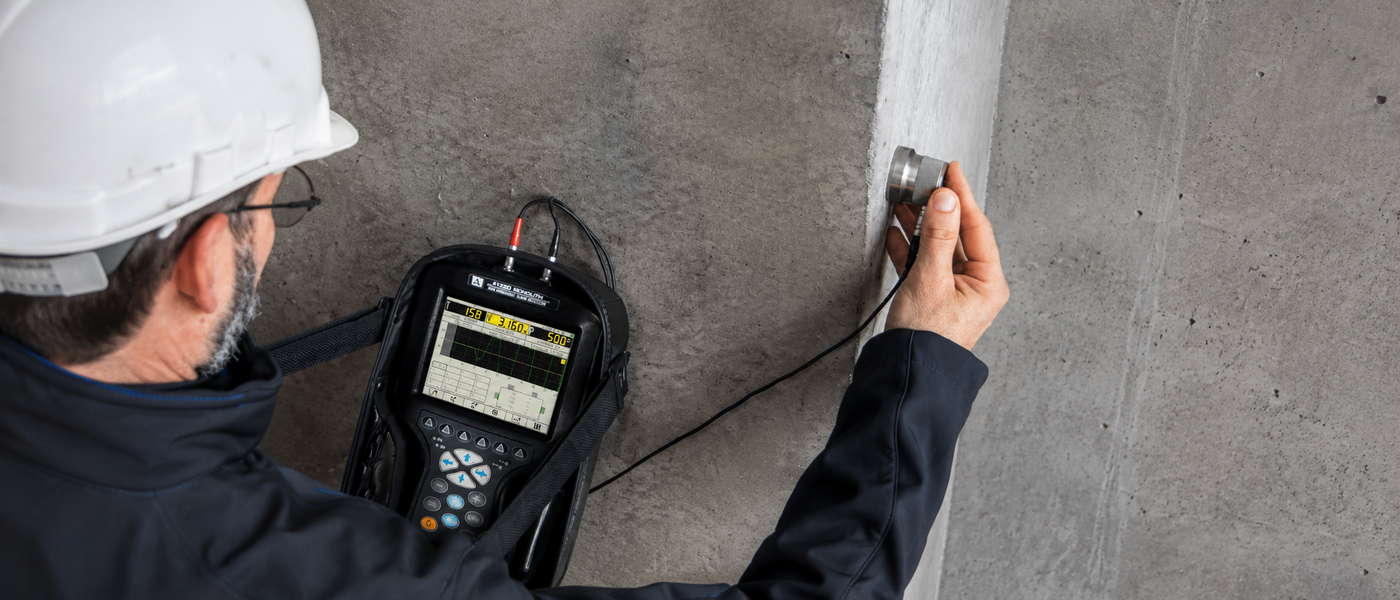

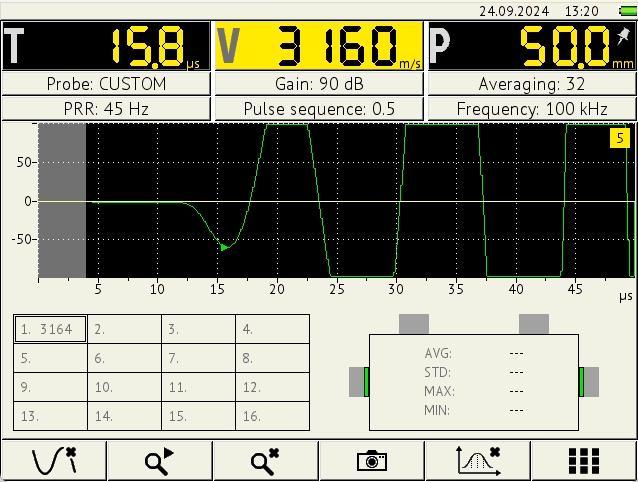

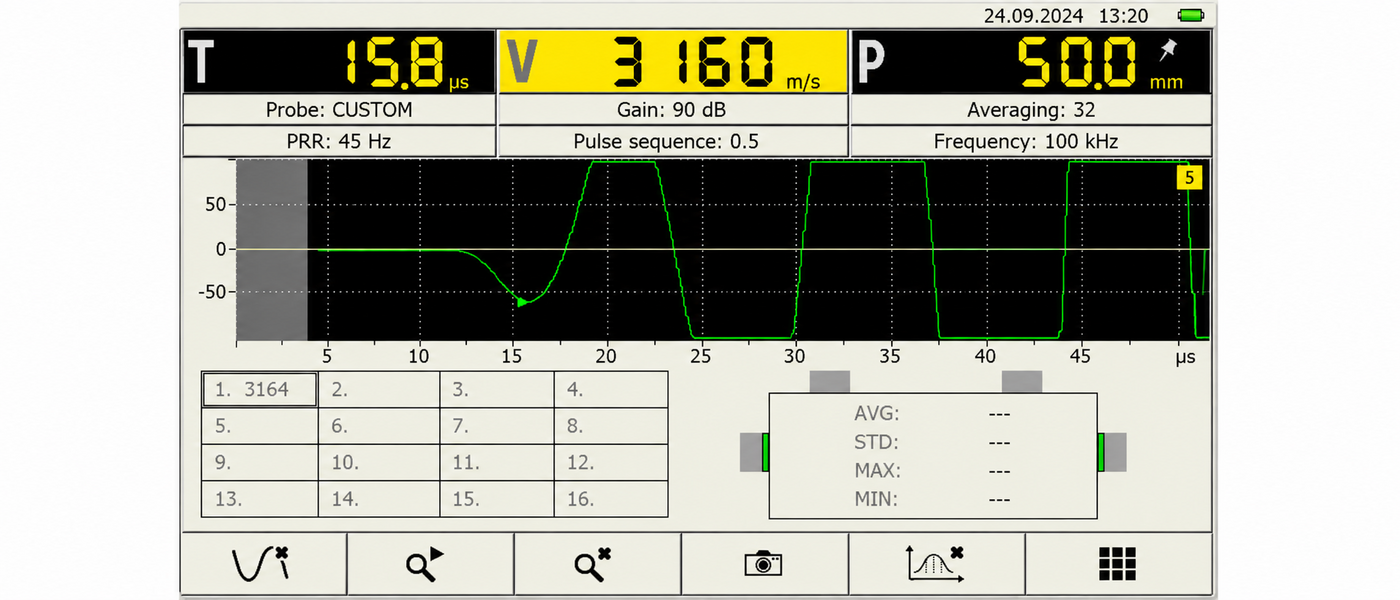

The all-round ultrasonic pulse velocity tester for comprehensive assessment of concrete and other construction materials. P- and S-wave measurements, through-transmission and pulse-echo modes, a wide range of 20 kHz–1 MHz transducers, and transmission paths of up to 15 meters — from small specimens to massive concrete structures.
Description
A versatile platform for ultrasonic concrete testing From laboratory specimens to massive structures, combining conventional pulse velocity measurements with advanced pulse-echo capabilities.
20 kHz – 1 MHz Wide operating frequency range for testing materials and structures of different dimensions and acoustic properties.
Up to 15 m High-power pulser and sensitive receiver enable through-transmission measurements over exceptionally long propagation paths in concrete.
P-wave & S-wave Supports both longitudinal and shear-wave measurements for UPV testing and determination of elastic material properties.

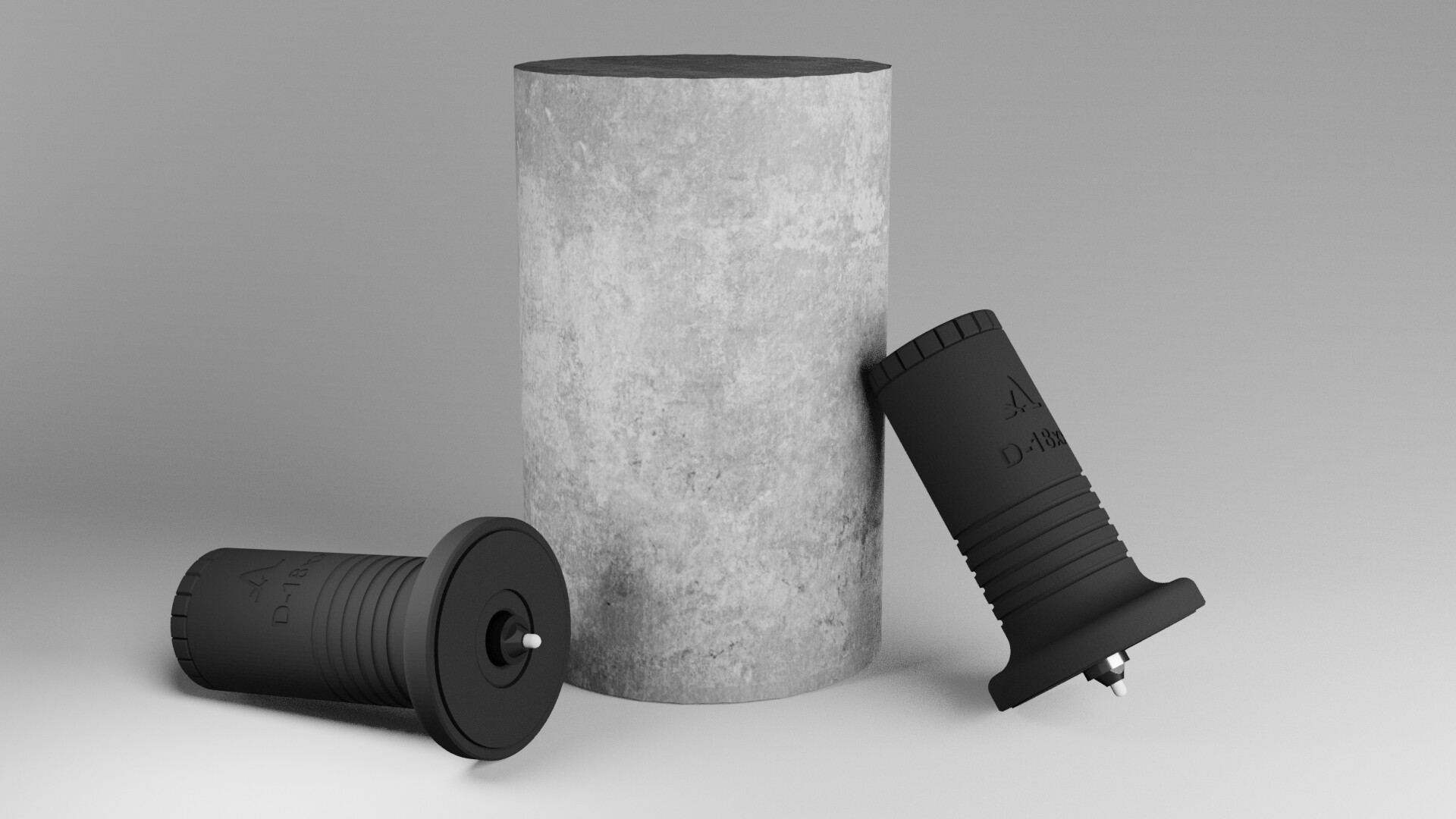

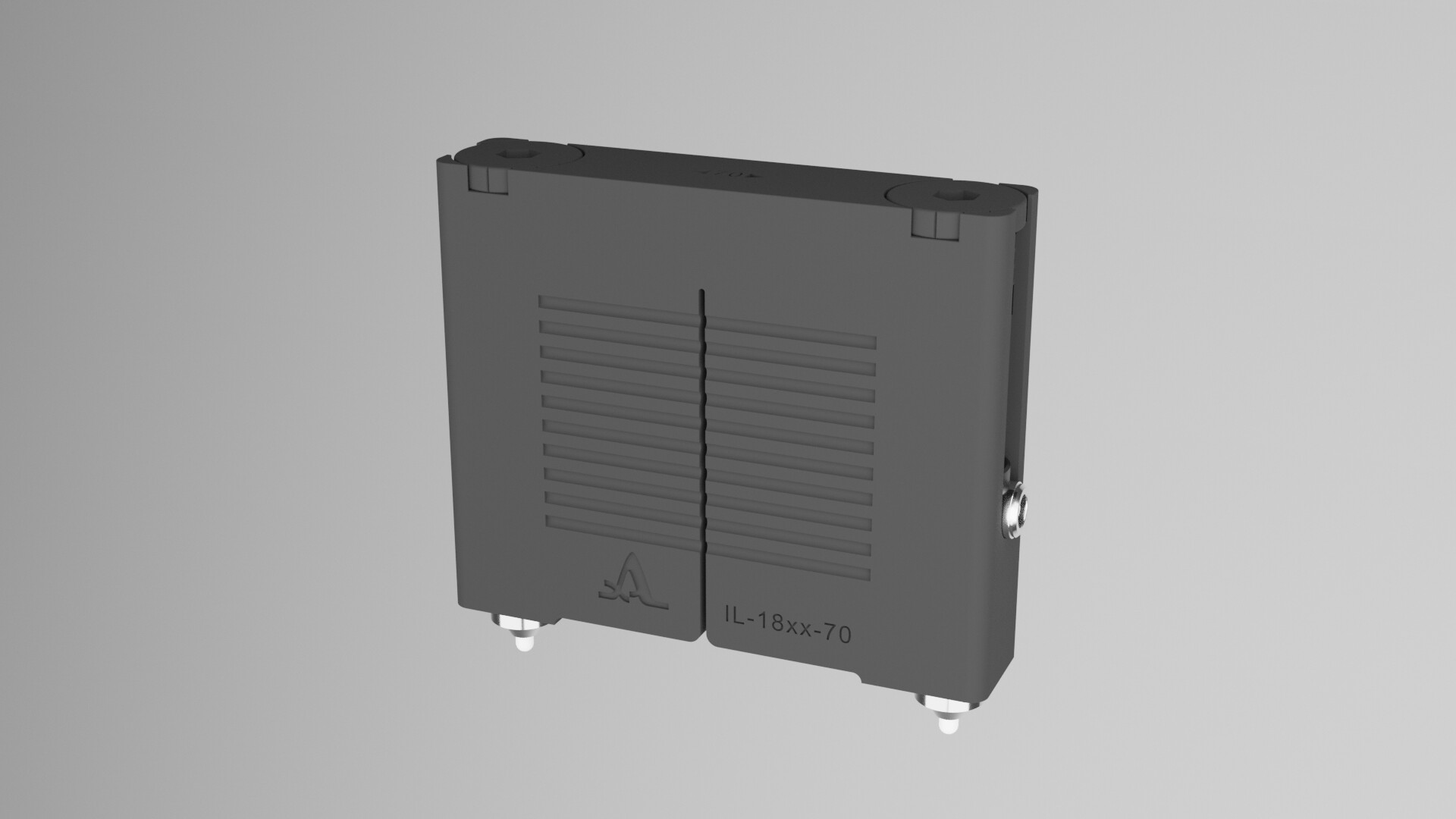

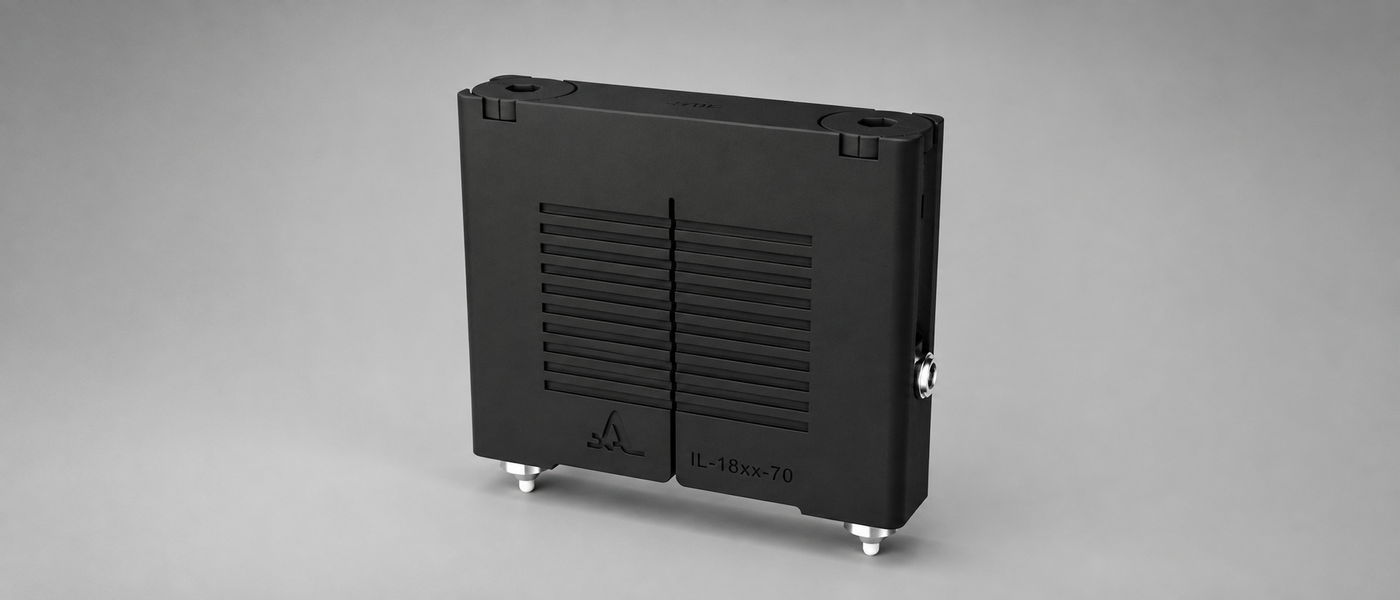

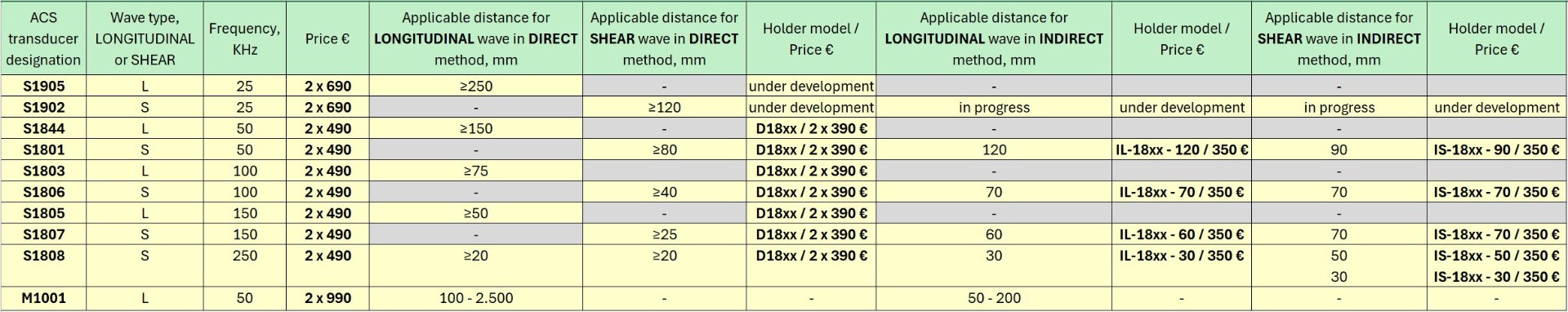

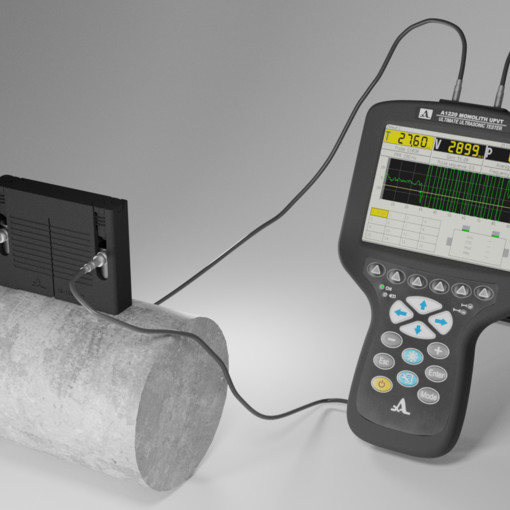

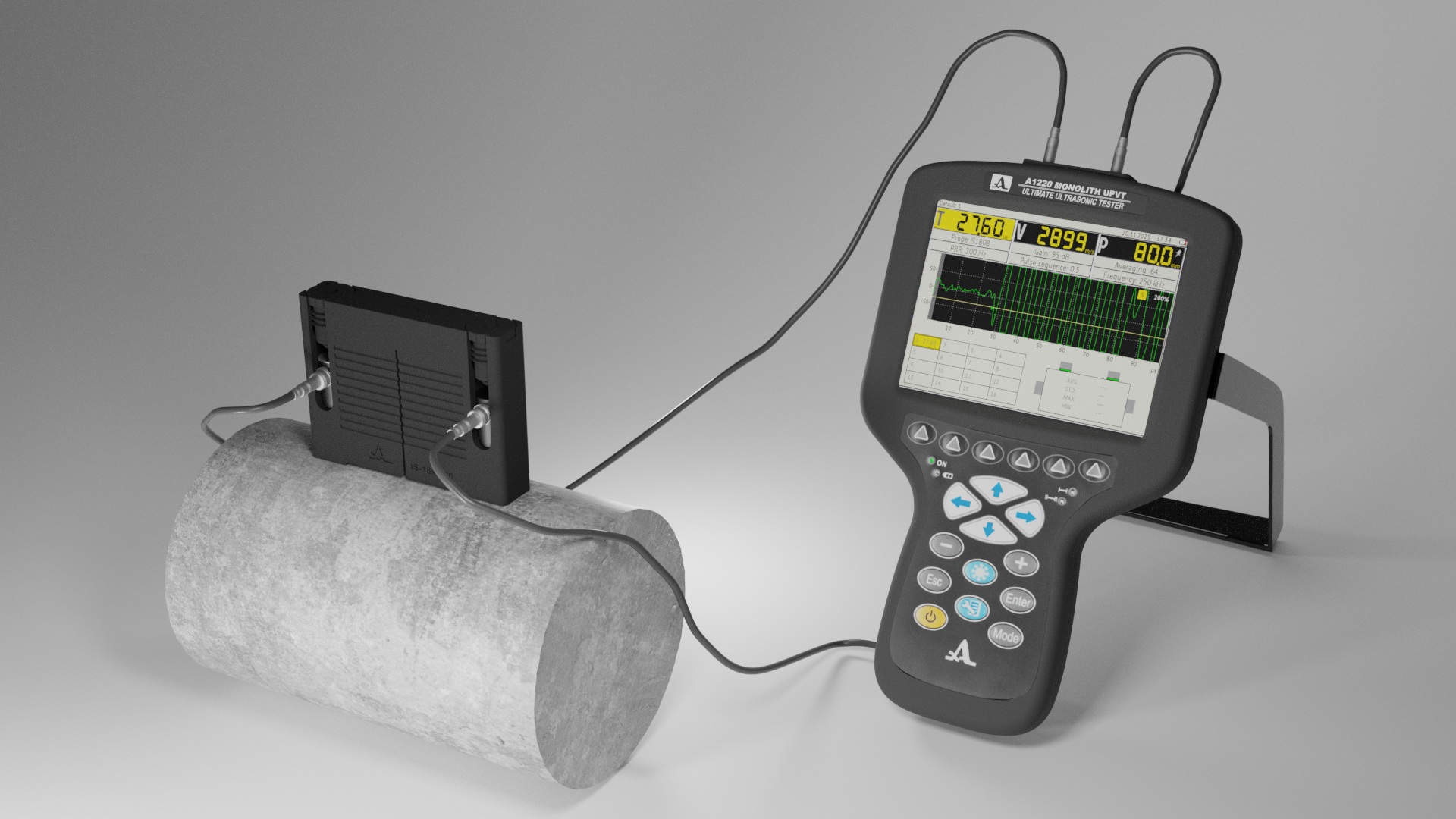

Conventional & DPC transducersWorks with conventional piezoelectric probes as well as ACS Dry-Point-Contact transducers and arrays for couplant-free testing on rough concrete surfaces.

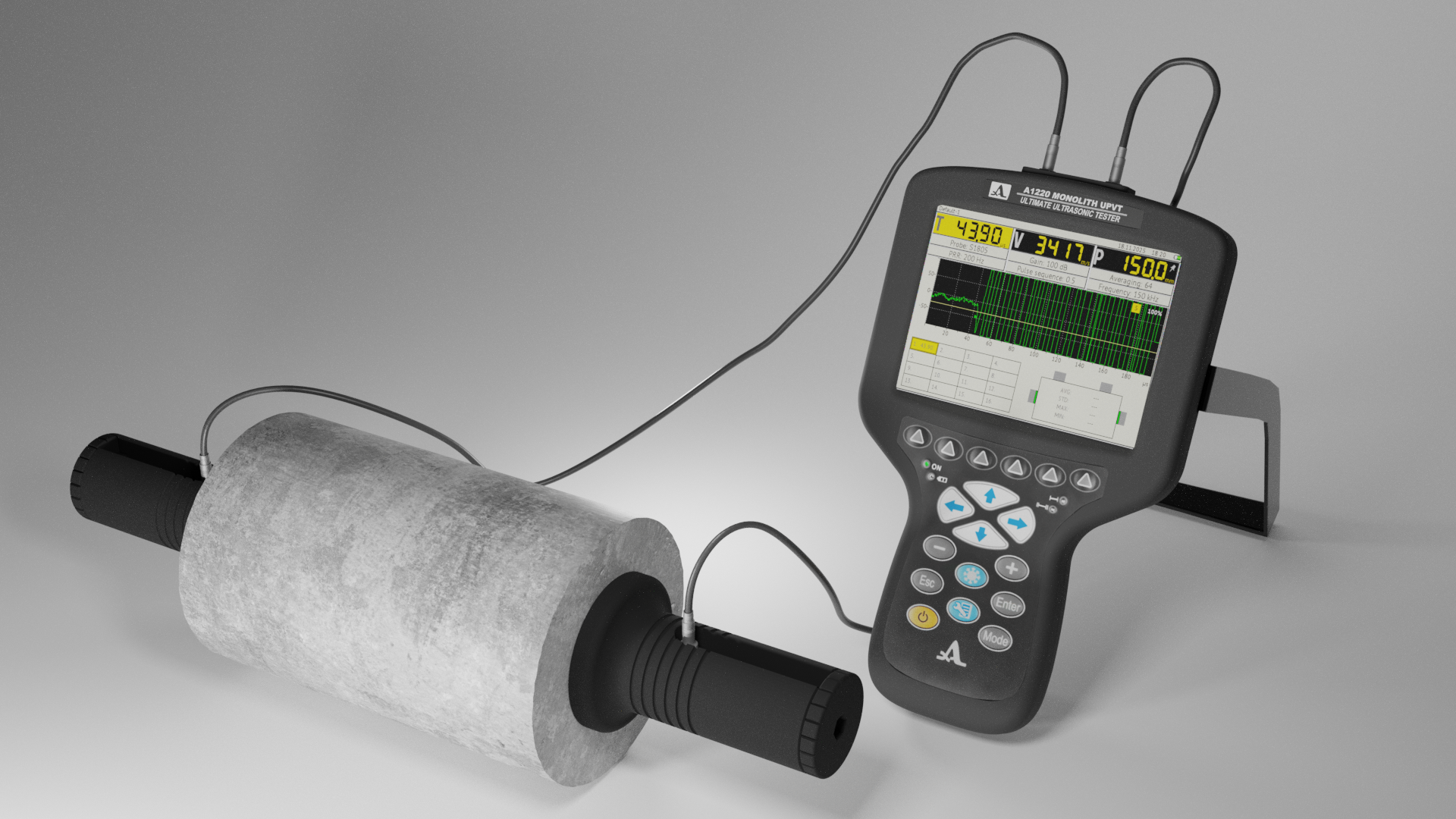

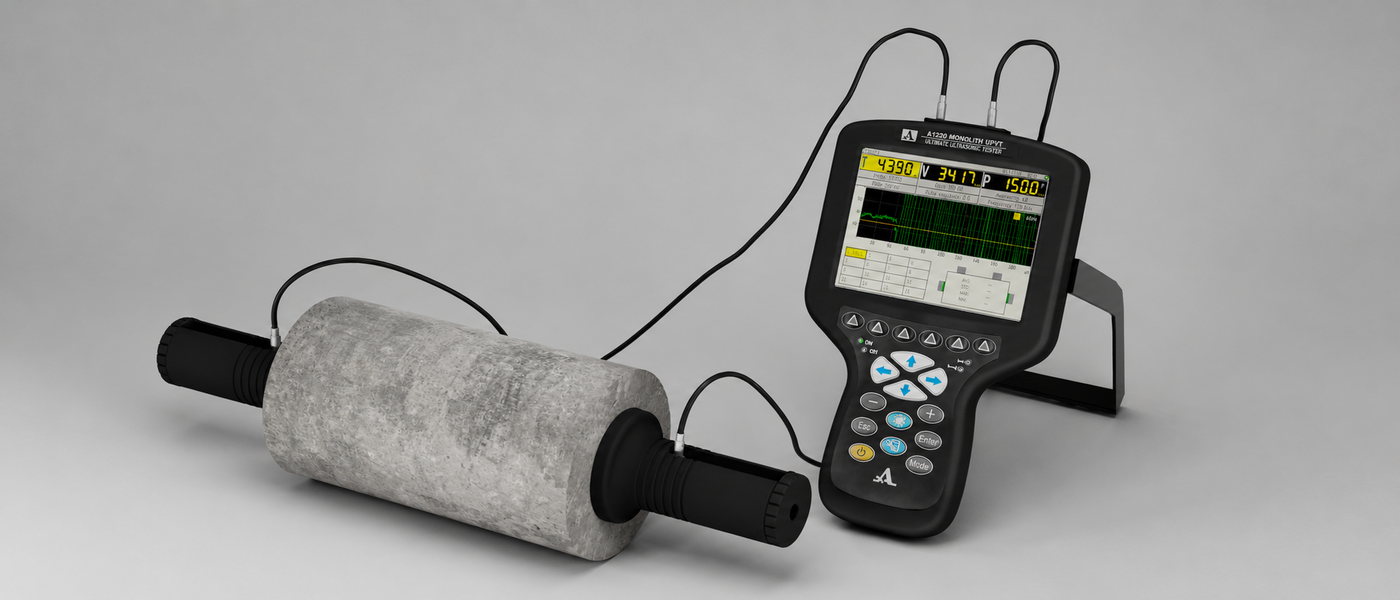

Through-transmission & Pulse-echo One instrument covers classical UPV measurements as well as one-sided ultrasonic testing where access to the opposite surface is not available.
A versatile platform for ultrasonic concrete testing From laboratory specimens to massive structures, combining conventional pulse velocity measurements with advanced pulse-echo capabilities.
20 kHz – 1 MHz Wide operating frequency range for testing materials and structures of different dimensions and acoustic properties.
Up to 15 m High-power pulser and sensitive receiver enable through-transmission measurements over exceptionally long propagation paths in concrete.
P-wave & S-wave Supports both longitudinal and shear-wave measurements for UPV testing and determination of elastic material properties.
Conventional & DPC transducersWorks with conventional piezoelectric probes as well as ACS Dry-Point-Contact transducers and arrays for couplant-free testing on rough concrete surfaces.
Through-transmission & Pulse-echo One instrument covers classical UPV measurements as well as one-sided ultrasonic testing where access to the opposite surface is not available.

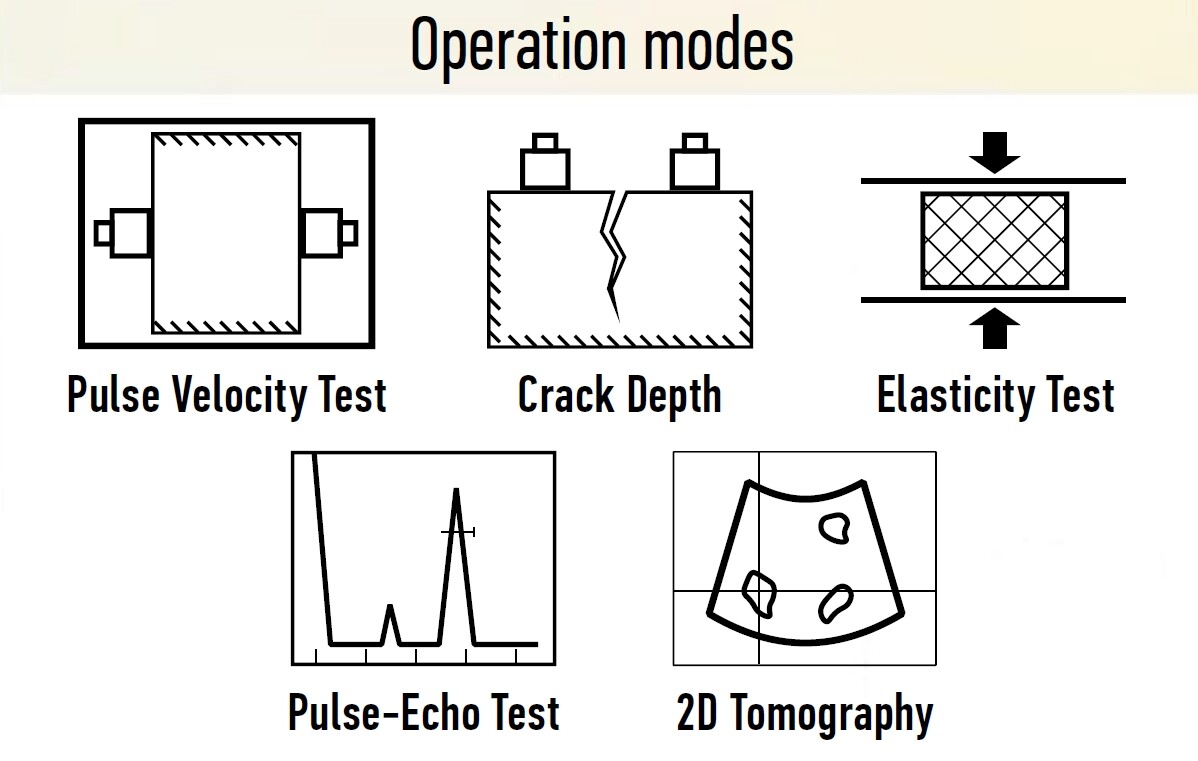

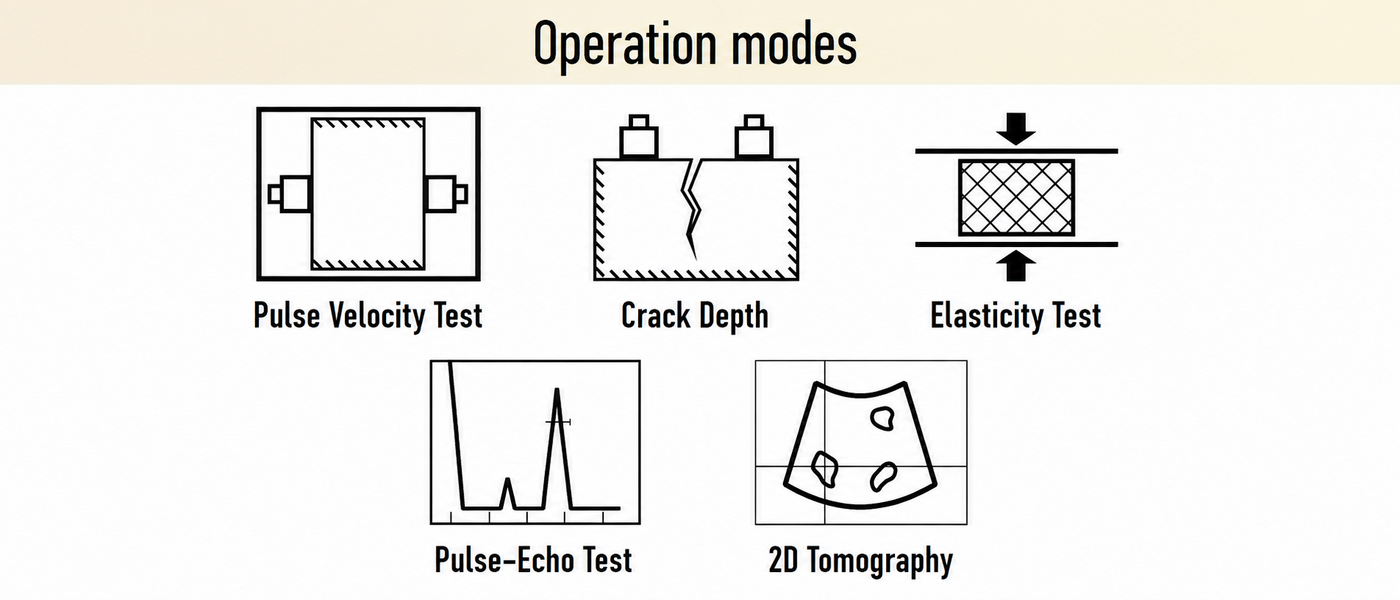

APPLICATIONS
One instrument — multiple inspection tasks
Concrete Strength
Crack Depth
Evaluation
Estimation of the depth of surface-opening cracks using indirect UPV methods.
Elastic Properties
& Material Condition
Evaluation of elastic properties, anisotropy, porosity, fissuring and material ageing to assess structural performance.
Pulse-Echo
Imaging
One-sided inspection and 3D imaging of internal structure using SAFT principle for detailed assessment.
Broad Material Range
Concrete, stone, ceramics, wood, masonry, plastics, polymers, glass, composites, rubber

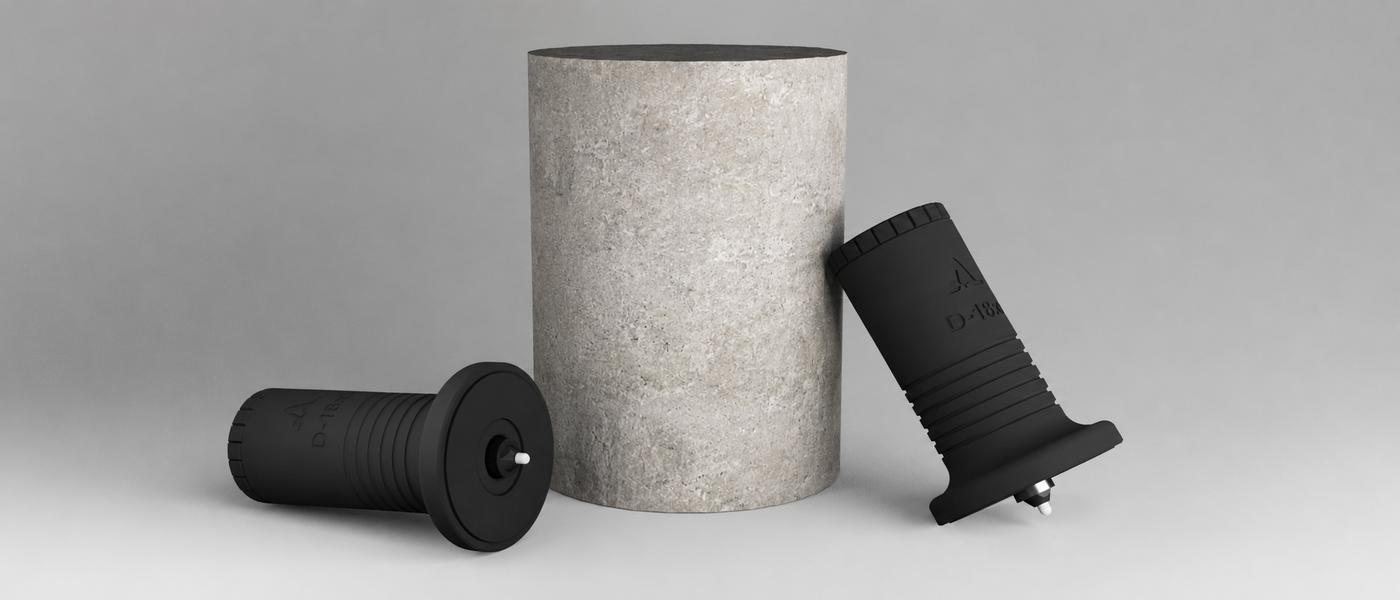

Special Transducers
25 kHz transducers for high penetration in thick structures.
250 kHz transducers for small specimens and concrete cores.
Smart Operation
Automatic gain control for easy-going in-situ setting and operation.
On-board SonReb method.
Data Visualization
Powerful INTROVIEW CONCRETE software for advanced data visualization and reporting.
(in delivery volume).
High Penetration
Extraordinary high penetration ability when using 25 kHz transducers.
Standards & Compliance
DIN EN 12504-4
BS 1881 : Part 203 : 1986
ASTM C597 – 16
IS 516 (Part 5/Sec 1) : 2018
Specification
Specification
| Measurement modes | Transmission / pulse-echo |
|---|---|
| Operating frequency range, KHz | 20 – 1.000 |
| Transit time, μs | 0.1 – 8.000 |
| Measurement resolution, μs | 0.1 |
| Receiver gain, dB (adjustable with 1 dB step) |
0 – 100 |
| Inspection range (depending on concrete quality), meters |
up to 15 |
| Operating time with one battery charge, hours | 14 |
| Instrument memory for saving inspection results | 4 GB |
Delivery kit
A1220 MONOLITH electronic unit
USB A-Micro B cable
Net adaptor with cable 220V-15V
In-situ protective soft cover D12
Carying map case D12
Hard case M20
* Further ultrasonic transducers for P-wave and S-wave transmission
A1220 MONOLITH electronic unit
USB A-Micro B cable
Net adaptor with cable 220V-15V
In-situ protective soft cover D12
Carying map case D12
Hard case M20
* Further ultrasonic transducers for P-wave and S-wave transmission
