Setting Standards in Non-destructive Concrete Testing with Ultimate Ultrasonic Tomograph A1040 Mira 3D

A1040 MIRA 3D - thickness measurement, rebar & flaw detection

Elevate Your Concrete Assessment Game with Unprecedented Precision in Thickness Measurement, Rebar Localization, and Flaw Detection.

  • Unbeatable penetration depth1 of up to 3 m / 8.5 ft
  • Real-time 3D Imaging via three-dimensional FMC/TFM
  • Up to 10 hours of continuous operation on a single battery charge

Download exemplary practical report on ultrasonic testing of a reinforced concrete beam


Key applications and use cases of MIRA 3D

The ultrasonic tomograph A1040 MIRA 3D is the leading-edge solution for ultrasonic testing of highly scattering materials, such as concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials.
Ensure accurate and precise concrete testing results with MIRA 3D
  • Strongly reinforced concrete objects
    Strongly reinforced concrete objects
  • Provides detailed subsurface imaging
    Provides detailed subsurface imaging
  • Assists in inspecting pillars
    Assists in inspecting pillars
  • Effectively assesses structures
    Effectively assesses structures
  • Offers a comprehensive view
    Offers a comprehensive view
  • See Beyond the Surface

    Achieve incomparable penetration depth of up to 2m/6.5ft, revealing hidden details within concrete structures.

  • Cover More Ground

    With a maximum square coverage of 10x10m²/33x33sq.ft, you can assess larger areas efficiently and comprehensively.

  • Uninterrupted Assessments

    Enjoy up to 10 hours of continuous operation on a single battery charge, ensuring you complete multiple tests without interruption.

  • Effortless Control

    Take command remotely with ease. Control the unit via Tablet-PC or Laptop for stand-alone applications, ensuring a seamless testing experience.

  • Cross-Platform Flexibility

    Whether you prefer ANDROID or WINDOWS, our application software is included in the standard delivery set, offering compatibility and convenience.

  • Immediate Insights

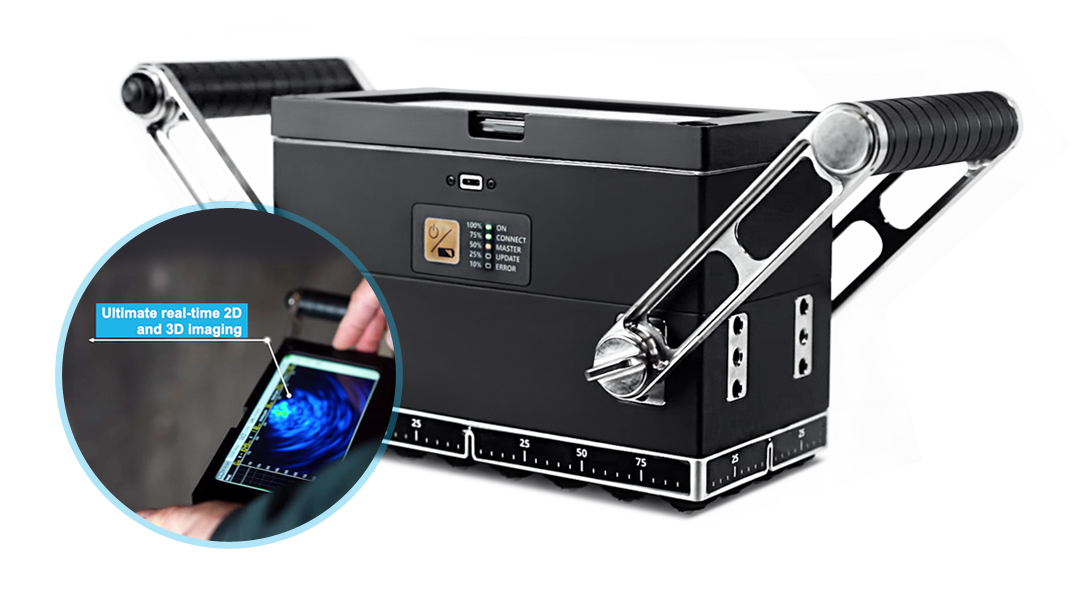

    Experience real-time 3D imaging for instant visualization and on-the-spot decision-making.

Interested in Mira 3D?
Fill out the form and receive a price offer

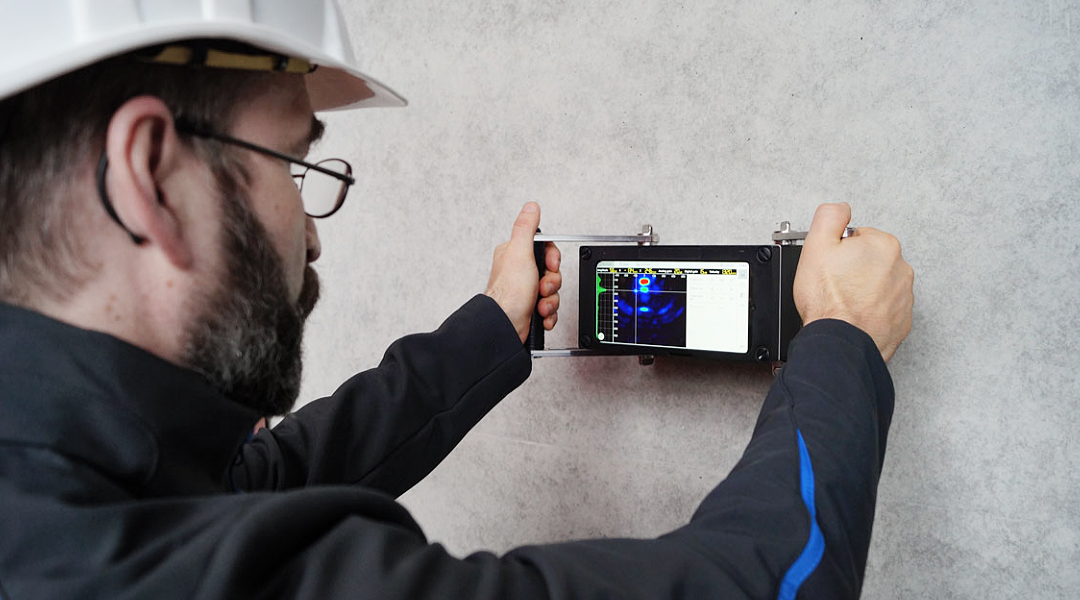

Slide 0

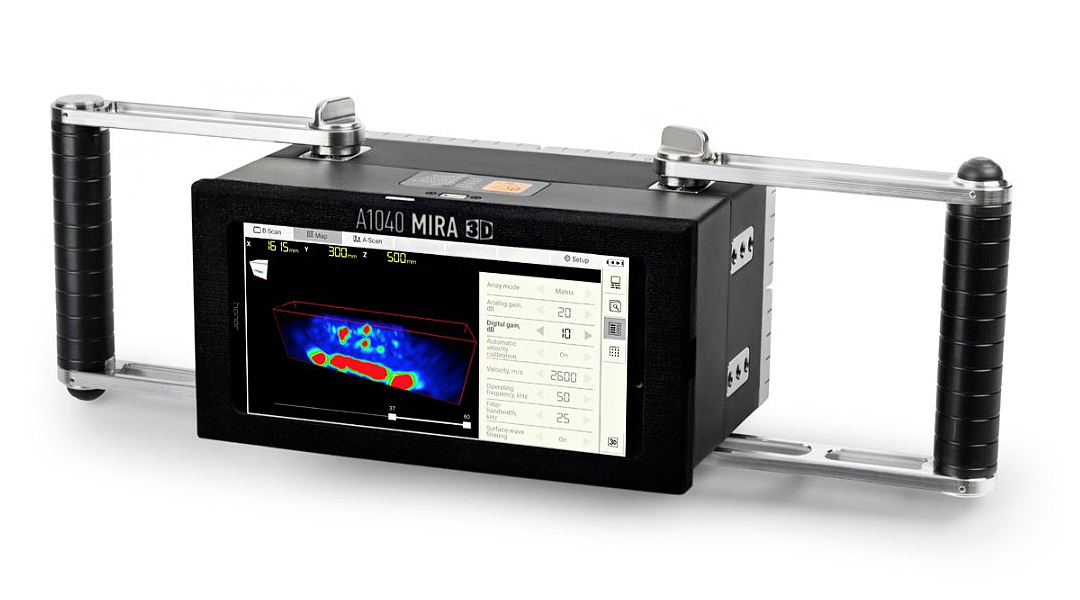

Slide 1

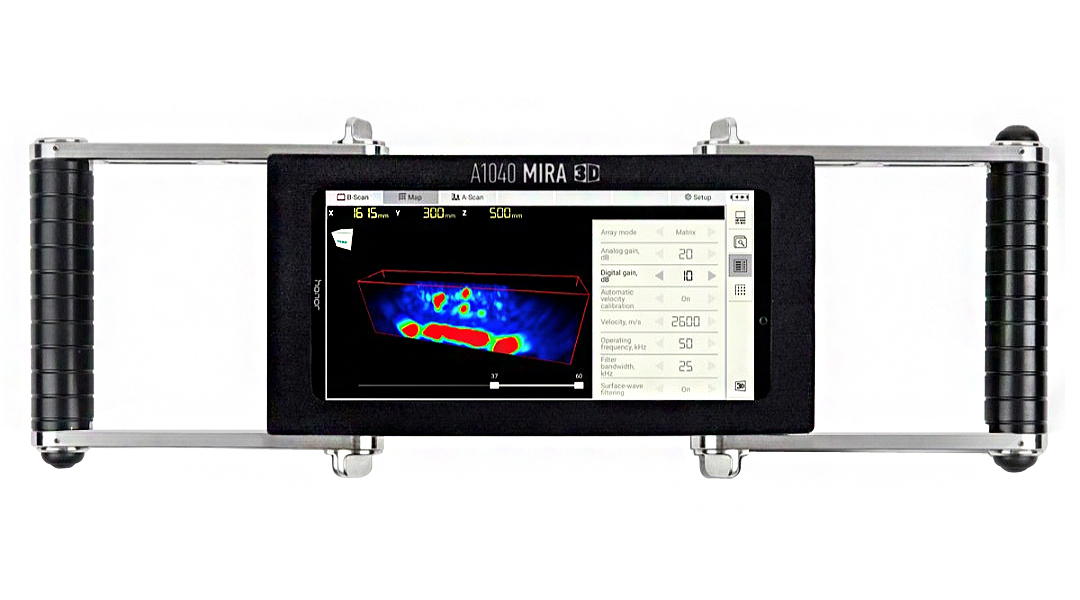

Slide 2
Slide 3
Slide 4
Slide 5
Slide 6
thumb 0
thumb 1
thumb 2
thumb 3
thumb 4
thumb 5
thumb 6

Description

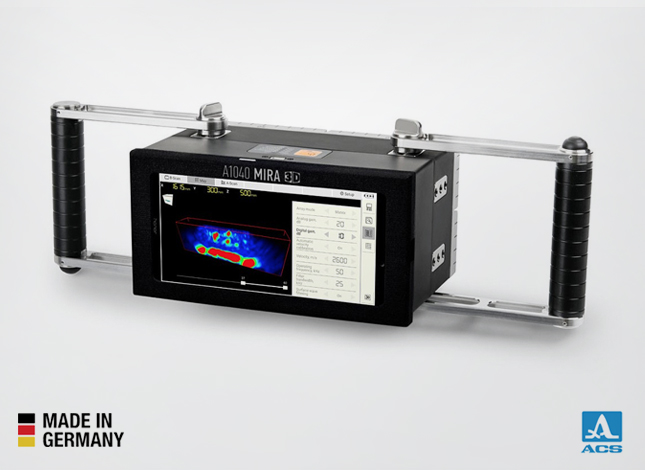

A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable

A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable for manual and automated assessment of concrete structures.

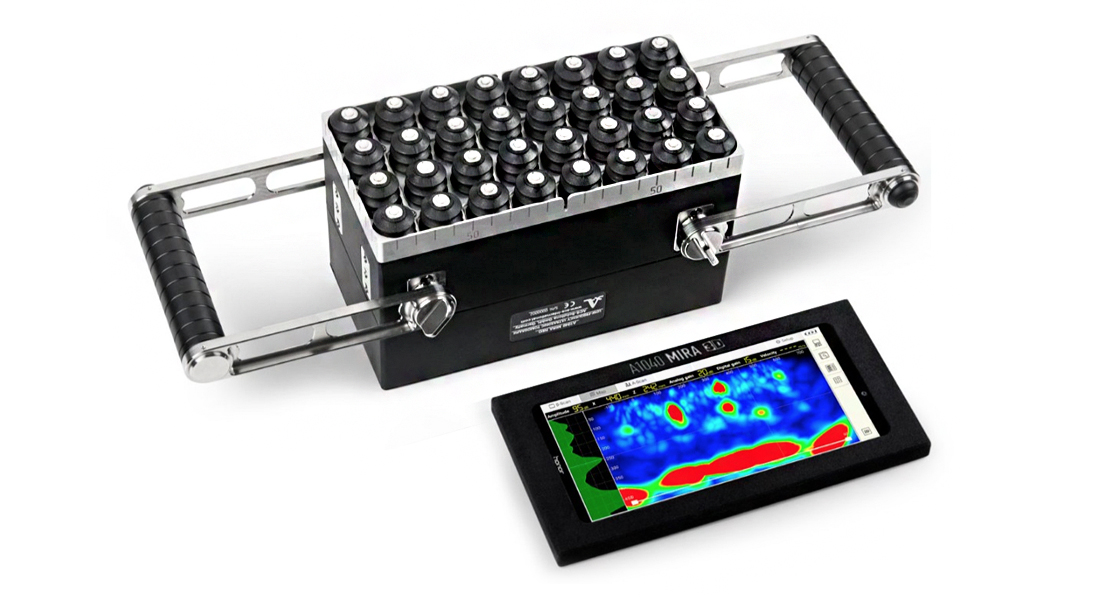

The instrument consists of a lightweight body with 4 x 8 Active Dry-Point-Contact

The instrument consists of a lightweight body with 4 x 8 Active Dry-Point-Contact transducers with integrated pulser-receiver circuits and parallel DAQ.

With special transmitting techniques such as E-Boosting,

With special transmitting techniques such as E-Boosting, an outstanding penetration depth has been achieved even by using the instrument's relatively small active aperture.

MIRA NEO DESKTOP software

MIRA NEO DESKTOP software for remote unit control and 3D visualization & analysis of Big Data is an essential part of the instrument delivered in the standard delivery set.

25

Official
Distributors

  • Over 30 Years of Experience since 1991
  • Pioneering Ultrasonic Tomography in NDT
  • Number of Patents and Innovative Solutions
  • 41 High-demand Proficient Instruments
World Map
Flag of Germany
Interested in Mira 3D?
Fill out the form and receive a price offer

Discover How MIRA 3D Works

The ultrasonic tomograph A1040 MIRA 3D is the best solution for ultrasonic testing of highly scattering materials, such as concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials.

Scheme of work

Step 1
Instrument calibration on the inspection object for achieving maximal sensitivity and resolution.
Step 2
Conducting the ultrasonic data acquisition with preset testing parameters.
Step 3
Evaluation of collected inspection results and generating report for the customer.

Download exemplary practical report on ultrasonic testing of a reinforced concrete beam


Specification

Parameter Value
Instrument type Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array
Number of channels 32 (extendable to 64, 96 etc.)
Number of independent elements in the matrix transducer aperture 32 (extendable to 64, 96 etc.)
Type of the ultrasonic transducers Active dry point contact (A-DPC) transducers with ceramic wear proof tips and integrated pulser-receiver electronics
Bandwidth from 10 to 100 kHz
Material sound velocity range from 1.000 to 4.000 m/s (from 40 to 157 inches / s)
Maximum penetration depth in reinforced concrete up to 3.000 mm (118 inch)
Power supply Exchangeable Li-Ion battery 18650
Battery operation time up to 10 hours
Maximum dimensions of one unit without handles: 200x125x100 mm (7,9 x 4,9 x 3,9 inch)
Maximum weight of the electronic unit with the batteries, handles and tablet PC mounted 3.5 kg
Operating conditions:
air temperature range from -10 to + 50 С (from 14 to 122F)
relative air humidity at +35С / 95F, max. 95 %
Average service life, min. 5 years
Show all information

Documentation

Product flyer A1040 MIRA 3D

Ultimate Ultrasonic Tomograph for quality assessment of concrete structures

Download

Product flyer E-Boosting for A1040 MIRA 3D

Ultimate Ultrasonic Tomograph, boosting technology

Download

Manual, Application, Firmware

Download

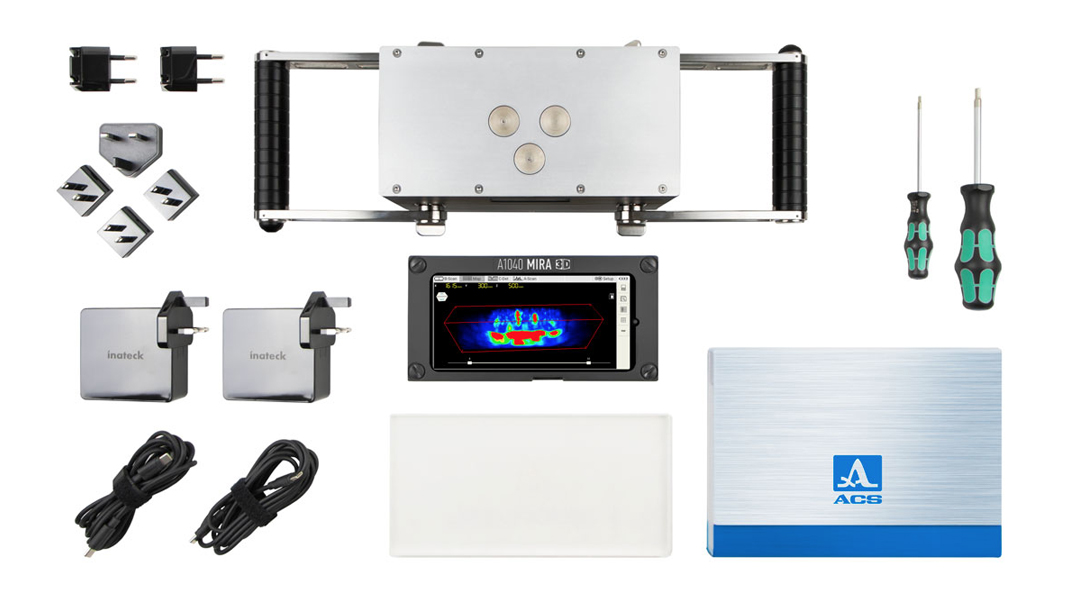

Delivery kit

1
Electronic unit A1040 MIRA 3D with 32 x A-DPC® transducers
6
Exchangeable Li-Ion battery 18650
1
Operating Manual
1
Reference block for regular functional tests
2
Data cable USB Type C
1

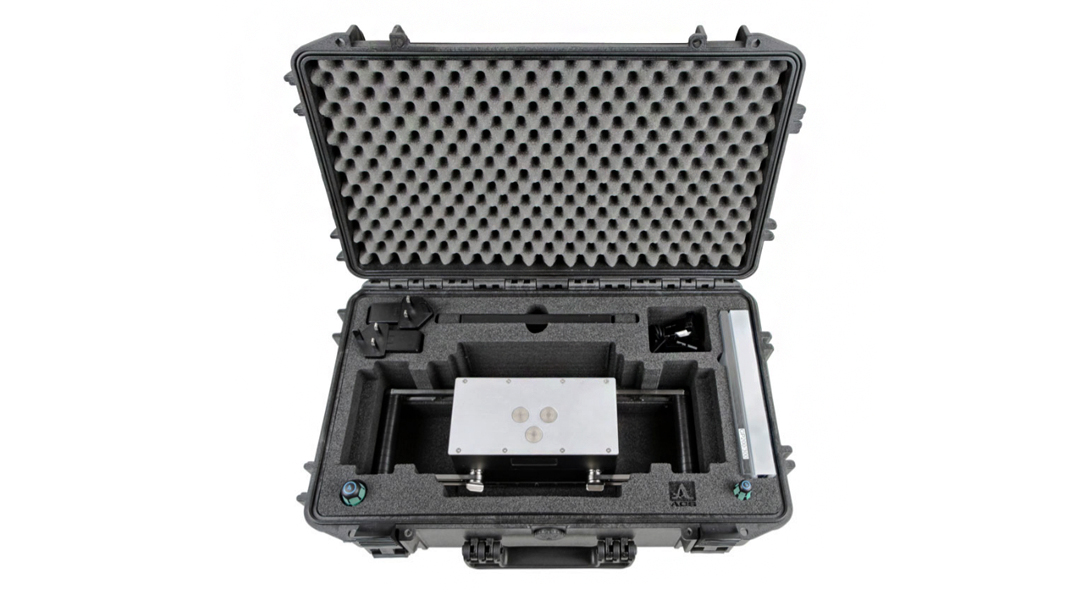

Hard case
1
INTROVIEW® Pro Software with 12 Months Update & Support service
2
Type C power supply
1
Warranty certificate 24 months
1
Tablet-PC with protective case
2
Screwdriver for battery exchange

INTROVIEW® Pro Software

Explore the capabilities of our INTROVIEW® Pro software, an essential component included in the standard delivery set of our instrument.

Remote Control and Real-time Visualization

Operate your MIRA 3D unit from anywhere with the user-friendly interface of INTROVIEW® Pro. Whether on-site or at a distance, you have full control for seamless assessments.

Advanced 3D Visualization and Big Data Analysis

Experience concrete assessment with our 3D visualisation capabilities like never before. INTROVIEW® Pro provides a comprehensive view of your data, allowing for in-depth analysis of even the most complex structures. Make informed decisions backed by precise insights.

Customised Developments for Your Unique Needs

INTROVIEW® Pro supports an open data format, enabling users to tailor the software for specific offline and online applications. This flexibility ensures that our software adapts to your individual requirements.
MIRA NEO – <b>Application Software</b>

MIRA NEO – Application Software

The desktop software application for acquisition and post-processing of the A1040 MIRA 3D data.
The application software MIRA NEO is dedicated to acquisition of measurement data of the ultrasonic tomography system A1040 MIRA 3D in automated inspection systems. Further, the MIRA NEO software offers the full-scale 2D and 3D visualization and analysis tools for post-processing collected data of A1040 MIRA 3D. Learn more

INTROVIEW CONCRETE

INTROVIEW CONCRETE

Aging civil infrastructure made of concrete and reinforced concrete puts new requirements to the quality assurance concepts allowing integral assessment of infrastructural objects. Ultrasonic testing with its unique deep penetrating capability offers substantial opportunities for visualization and evaluation of the internal structure of large constructions.
On the other hand, large dimensions of the inspection objects hinder the evaluation of the inspection results beyond inconclusive single data acquisitions in «local» measurement positions. Learn more

FAQ

What materials can be inspected by means of A1040 MIRA 3D?

The low-frequency ultrasonic pulse-echo tomography is applicable to all heterogeneous materials where "regular" ultrasonic flaw detectors (frequency range 1 – 10 MHz) cannot be applied. The following materials can be considered as "inspectable" by A1040 MIRA 3D:

  • Concrete, rock, marble, stones
  • Refractory materials/ceramics, such as fireproof bricks
  • Composite materials, e.g., glass-fiber components with significant wall thickness (e.g., wind turbines)
  • Large carbon electrodes
What are the typical applications of ultrasonic pulse-echo tomography by means of A1040 MIRA 3D?

The ultrasonic tomograph A1040 MIRA 3D can be applied for:

  • Measuring the thickness of concrete walls
  • Locating structural metallic elements (reinforcement, tendon ducts, pipes)
  • Detecting material voids in concrete (e.g., delaminations, cracks, honeycombs, cold joints).
  • Further advanced applications of MIRA include:
  • Assessment of the tendon ducts
  • Measuring the depth of the open cracks with one-side access
What are the "smallest" elements or defects that can be detected in concrete by means of A1040 MIRA 3D?

The detection and resolution capability of ultrasonic tomography depends on several factors, such as:

  • Material properties (e.g., aggregate size), and thus, the applied inspection frequency
  • Reflectivity of the defect/structural element, which, in turn, depends on its shape and orientation in the inspection volume.
  • Depth position of the reflector
  • Effective aperture of the tomograph

In an "average" case, we can state that for an elongated cylindrical reflector (like rebar), the detectable diameter might be 15 mm, while for a "round air bubble," the detectable diameter might be 20 mm.

What is the attainable inspection range of the ultrasonic pulse-echo inspection?

Keeping in mind that sound attenuation in concrete depends on material properties, such as aggregate size or density of the ceramic blocks, the inspection range must always be considered as a derivative of the optimal inspection frequency. When using an optimal inspection frequency in combination with a sufficient effective aperture of the ultrasonic instrument, the achievable inspection range can be up to 2 – 3 meters. Advanced signal generation and processing techniques, like using coded excitation sequences (E-Boosting), may double the inspection range of the instrument to up to 4 – 6 meters.

Do the INTROVIEW® and MIRA NEO® software support the merging of multiple scans collected over large square?

Both available software packages for visualization and analysis of UT data perform three-dimensional image reconstruction, when the scans are collected in so called MAP mode – when equidistant measurement points are distributed over the region of interest. The 3D representation of the UT results by overlapping multiple scans provide the most comprehensive information about the inspected volume.

Are there established standards for pulse echo testing?

Pulse echo testing is included in the European standard EN 12504-4 for pulse velocity determination. This is then subsequently included in the standard EN13791 for in-situ compressive strength estimation. Though, there are no international standards for pulse-echo imaging and flaw detection yet. The only available guideline for pulse-echo flaw detection is the German Society for Non-Destructive Testing Guideline B4. It is also covered in a German highway authority guideline for measuring tunnel lining thickness (ZTV-ING Teil 5 Tunnelbau) and ACI 228.2R.

Is it possible to identify water-filled voids in concrete with Mira 3D?

Any void filled with the material having different density then concrete can be visualized and detected by ultrasonic tomograph A1040 MIRA 3D, supposed those voids have sufficient spatial dimensions exceeding the ½ of ultrasonic wavelength.

How close to the surface can ultrasonic pulse-echo technology measure?

The image below represents detecting steel rebar of ∅16 mm at 17 mm depth (25 mm to the center of rebar).

Can ultrasonic pulse echo detect voids beneath rebars?

The ultrasonic pulse-echo tomography is the most suitable technology for detecting voids, honeycombs, and delaminations even below the several rebar grid. While a dense rebar structure will shield a GPR signal from penetrating deeper into the structure, an ultrasonic pulse-echo signal passes through is able to detect deeper-lying voids.
