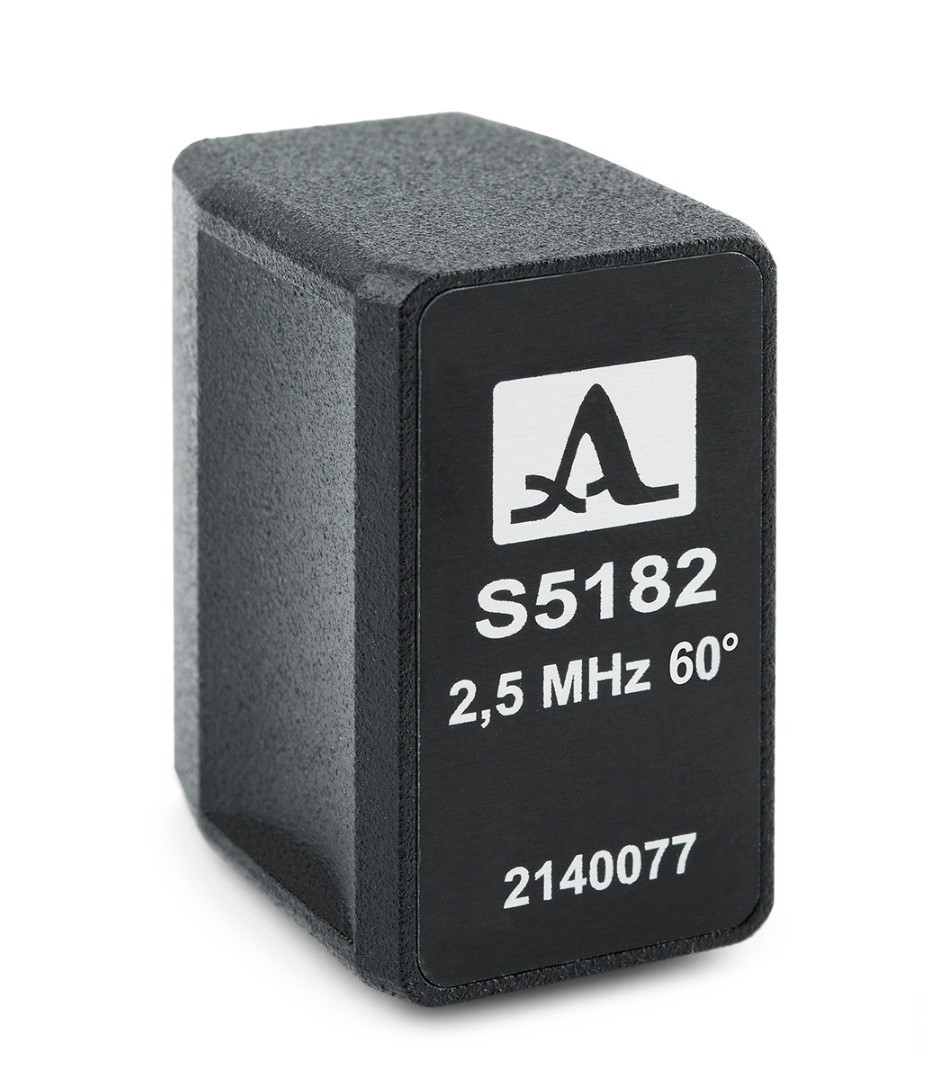

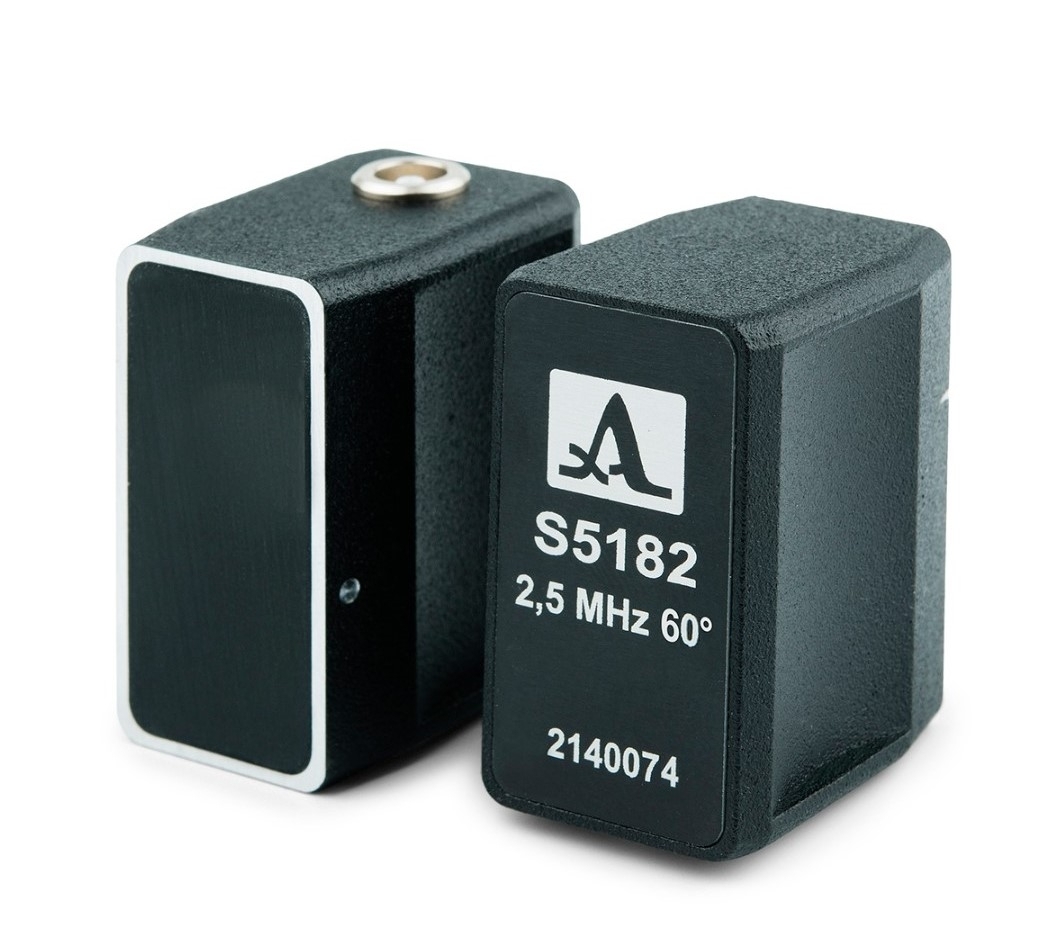

S5182 – angle-beam transducer 2,5 MHz / 60°

Angle-beam ultrasonic transducer for transmitting and receiving the ultrasonic shear waves

The ultrasonic angle-beam transducer S5182 is used to perform ultrasonic flaw detection in metallic, plastic and composite materials by transmitting and receiving ultrasonic shear waves. The transducer can be used as a part of ultrasonic flaw detectors in pulse-echo mode.

The transducer can be driven by the following ACS instruments:

Type of transducer angle-beam, piezoelectric
Nominal beam angle 60°C

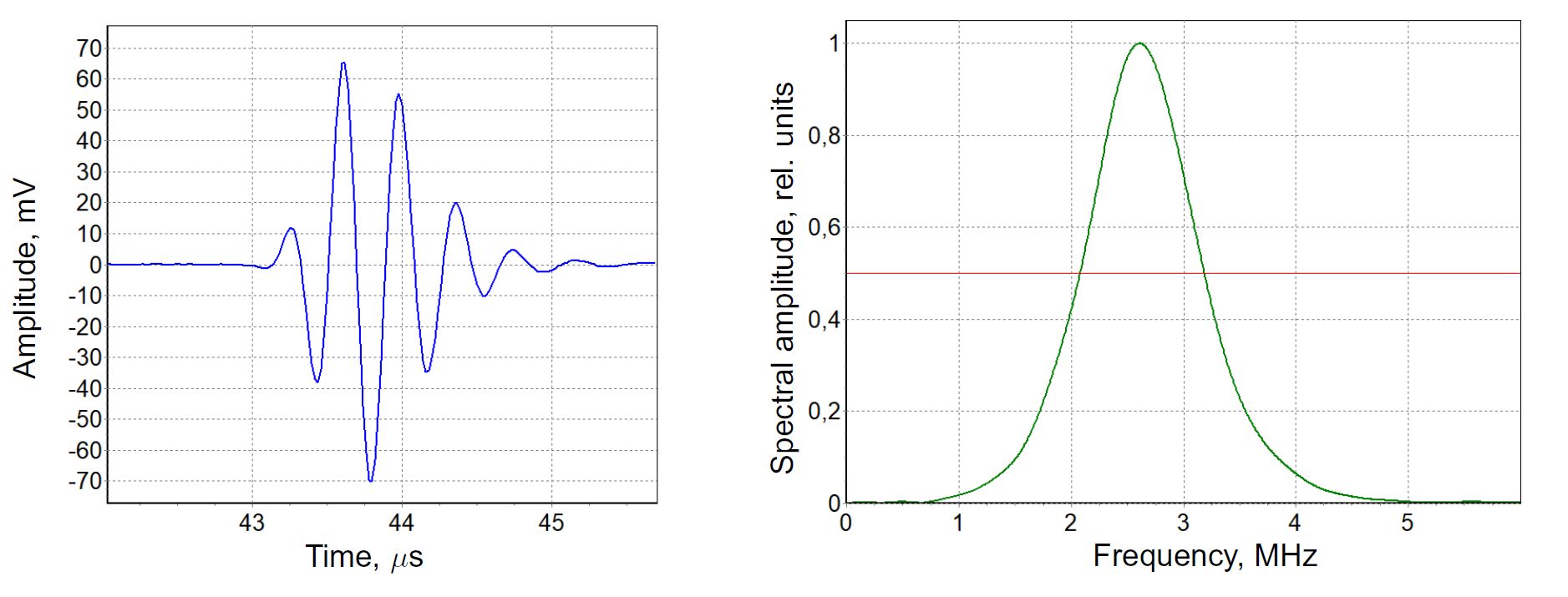

Nominal frequency 2,5 MHz
Effective transducer aperture diameter 12 mm
Piezo-element electric capacity 1300 ± 100 pF
Maximum excitation pulse voltage, V ± 250 V
Operating temperature range –20...+50°C
Connector type LEMO00.250
Dimensions 24 × 19 × 16 mm
Weight 26 g



S5182_60_Data_Sheet
