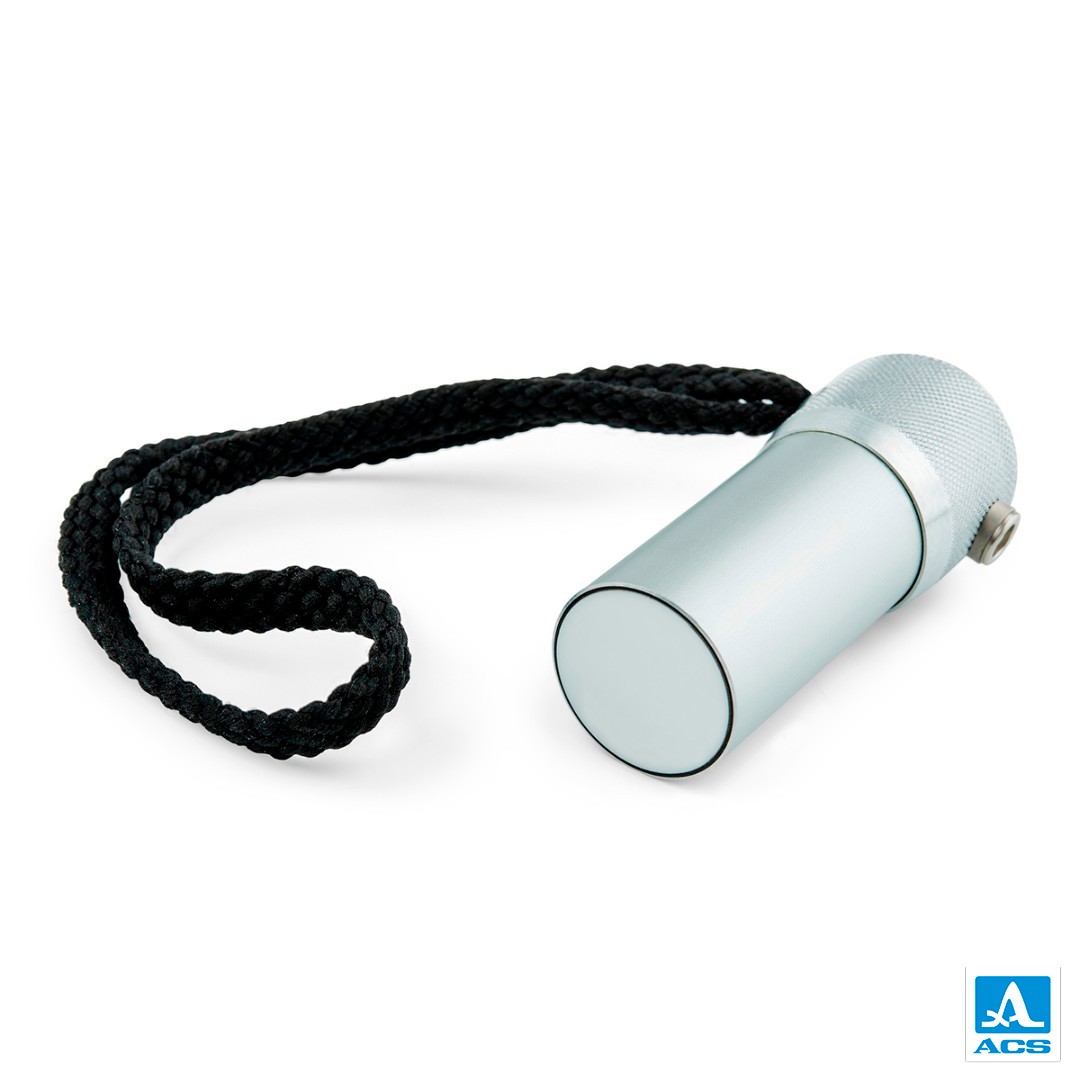

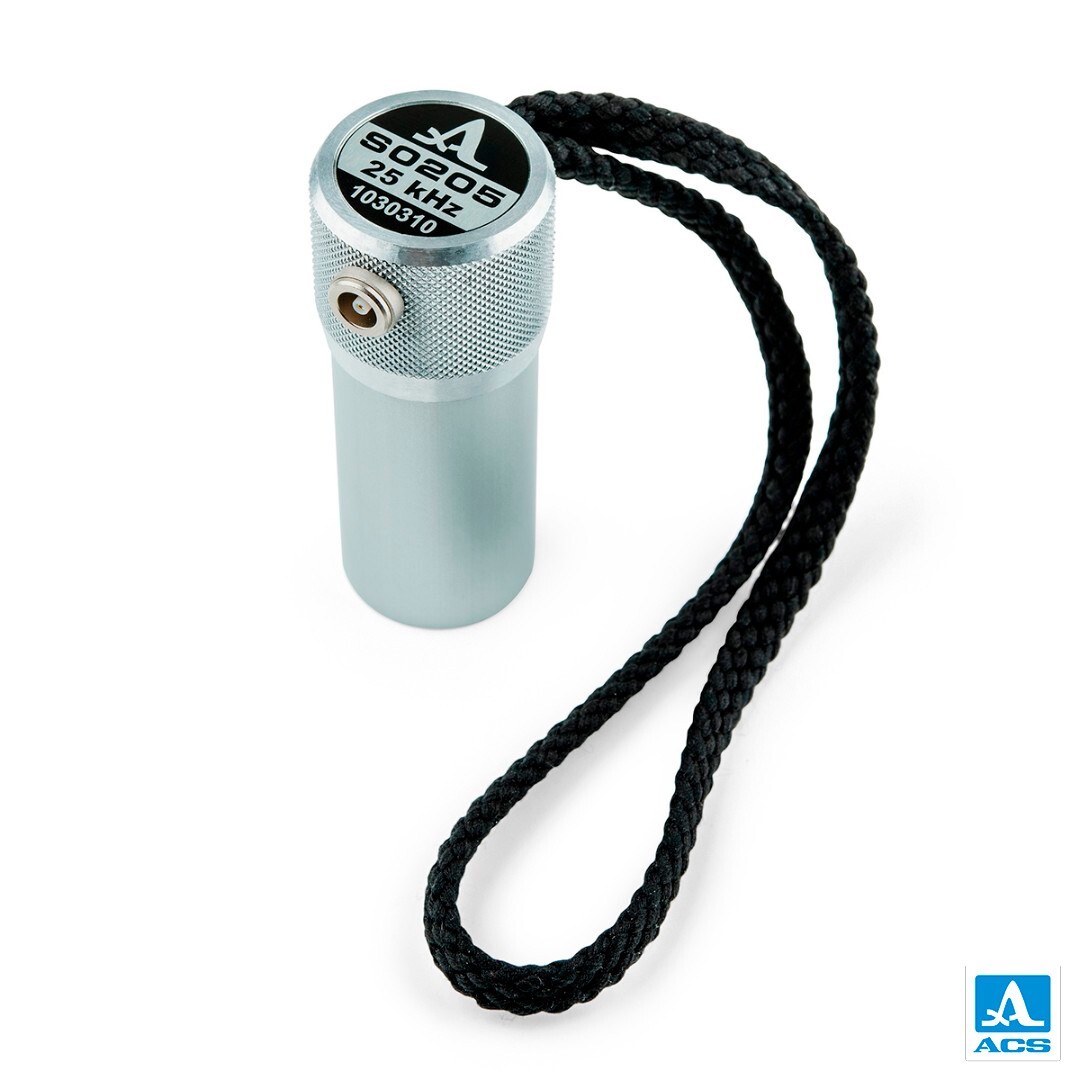

S0205 – Low frequency piezoelectric transducer 25 KHz

Low-frequency ultrasonic transducer for transmitting and receiving the longitudinal ultrasonic waves

A general-purpose ultrasonic transducer S0205 can be applied for ultrasonic testing of various materials and products to evaluate their physical and mechanical properties using transmitting and receiving of ultrasonic longitudinal waves. The transducer can be used as a part of ultrasonic low frequency flaw detectors in pulse-echo mode or ultrasonic pulse velocity testers in through-transmission mode.

The transducer can be driven by following ACS instruments:

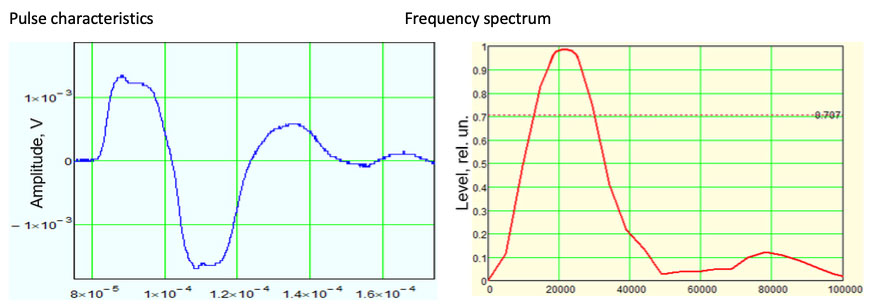

Type of transducer Piezoelectric with liquid contact, low frequency, short pulse, low noise
Type of generated wave mode Longitudinal
Nominal frequency 25 ± 5 kHz
Delay time in the transducer protector 0.2 ms
Effective transducer aperture diameter 25 mm
Electric capacity of the piezoelectric eleme 12500 ± 1000 pF
Maximum excitation pulse voltage, V ± 250 V
Connector type LEMO00
Overall dimensions 69 х d28 mm (31 mm on connector)
Weight 150 gr
