M1002 - shear wave DPC transducer array

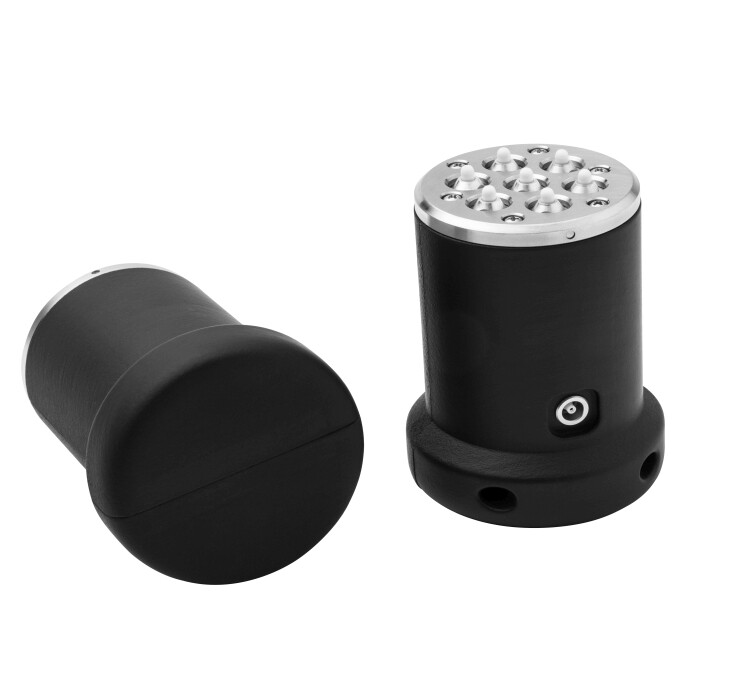

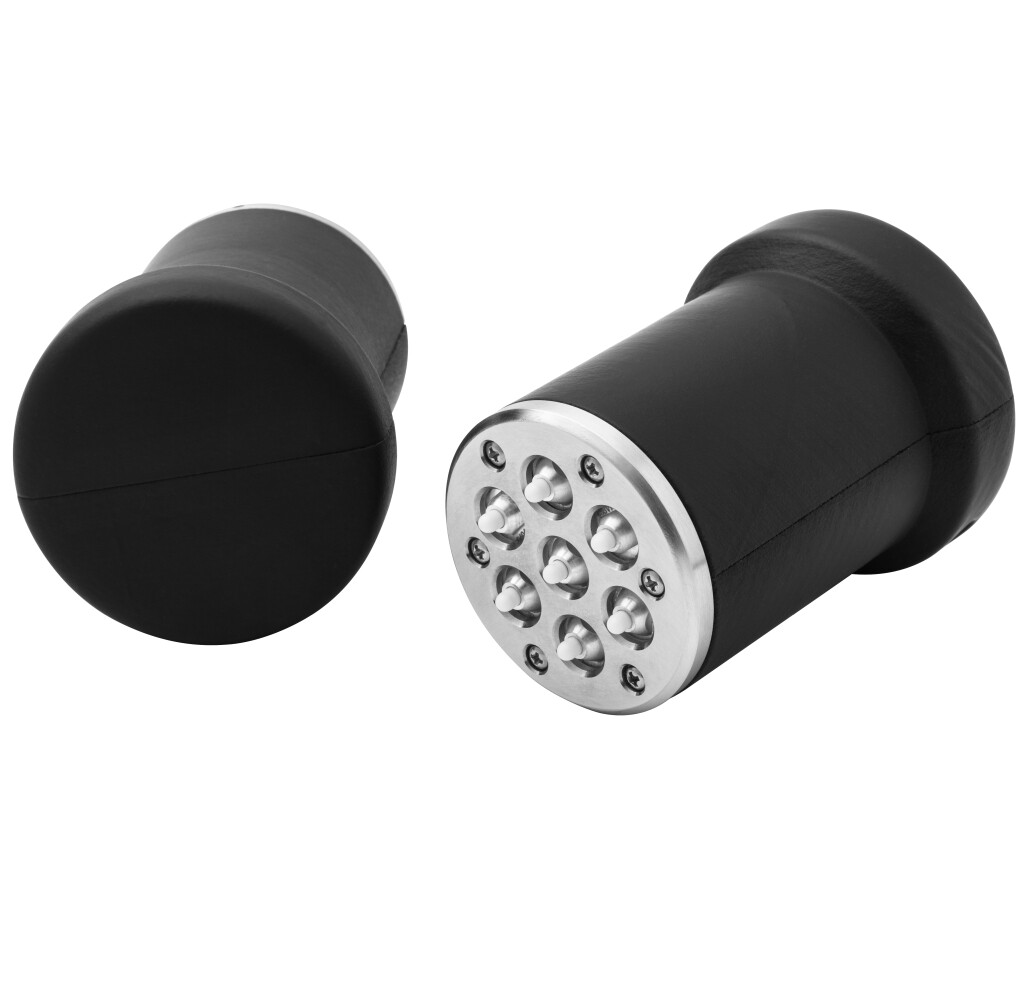

Low-frequency ultrasonic transducer array for transmitting or receiving the shear ultrasonic waves in a broad frequency range from 20 to 80 KHz for ultrasonic pulse velocity testing.

A general-purpose low-frequency transducer with the nominal frequency of 50 KHz for the dry-point-contact (DPC) excitation or acquiring shear-horizontal ultrasonic waves in highly scattering materials (concrete, wood, stones etc.)

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer.

The transducer can be driven by following ACS instruments:

Transducer type Dry Point Contact
Nominal frequency 50 KHz
Band width 20 to 70 KHz
Capacity 1.700 pF ± 100 pF
Maximal pulse voltage (bipolar) 400 V (peak-to-peak)
Temperature range -20 to +50ºC
Weight 14 g
