A1050 RANGER - Guided Wave Ultrasonic Inspection System
A1050 RANGER - Guided Wave Ultrasonic Inspection System

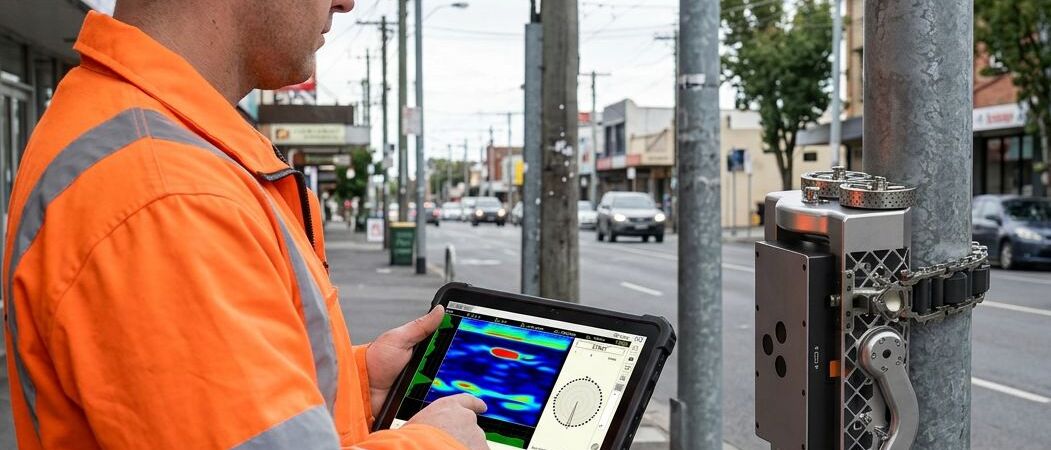

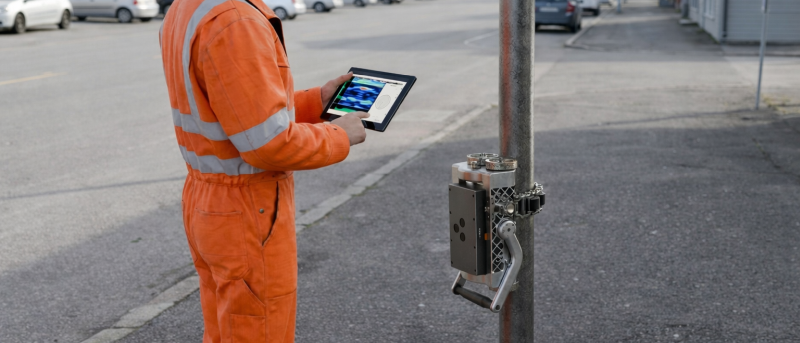

A compact guided wave ultrasonic inspection system designed for rapid detection of hidden corrosion in pipes and light poles—especially in hard-to-access areas such as under supports. Utilizing dry-point-contact (DPC) transducers, the system requires no couplant and enables efficient field deployment. The scanner performs a full 360° circumferential scan, capturing high-resolution B-scan images that clearly indicate corrosion locations and severity. Its robust, portable design and intuitive data visualization make it ideal for on-site inspections, delivering reliable results with minimal setup time.
Description

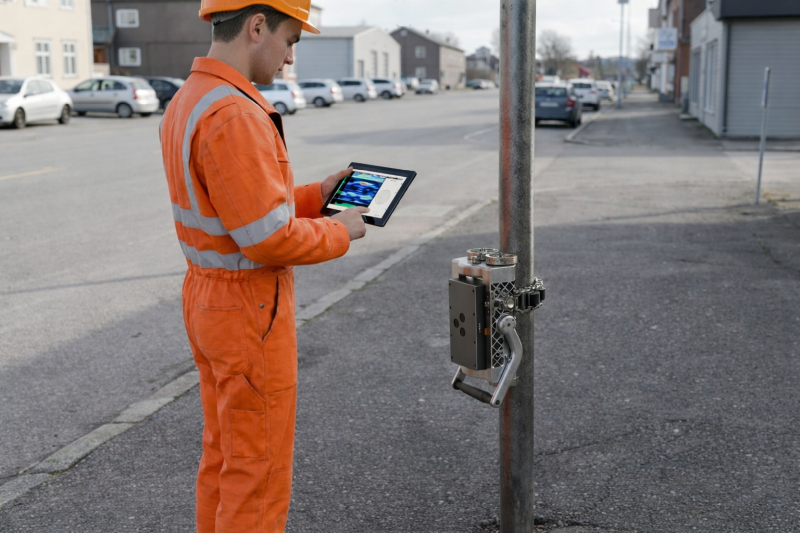

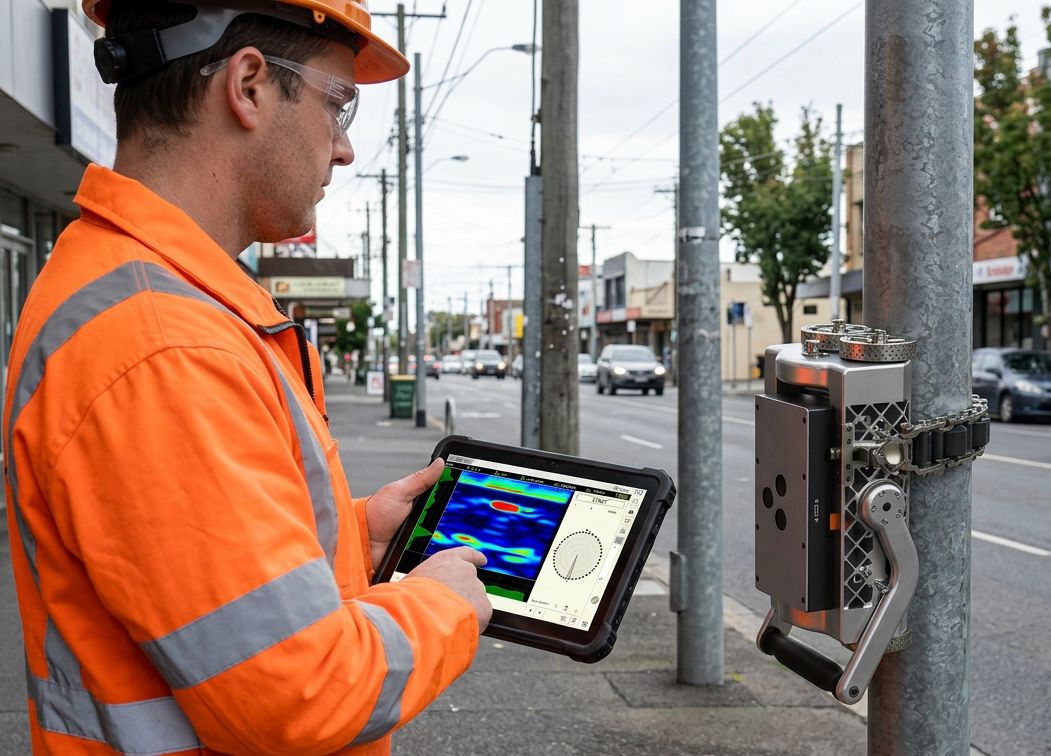

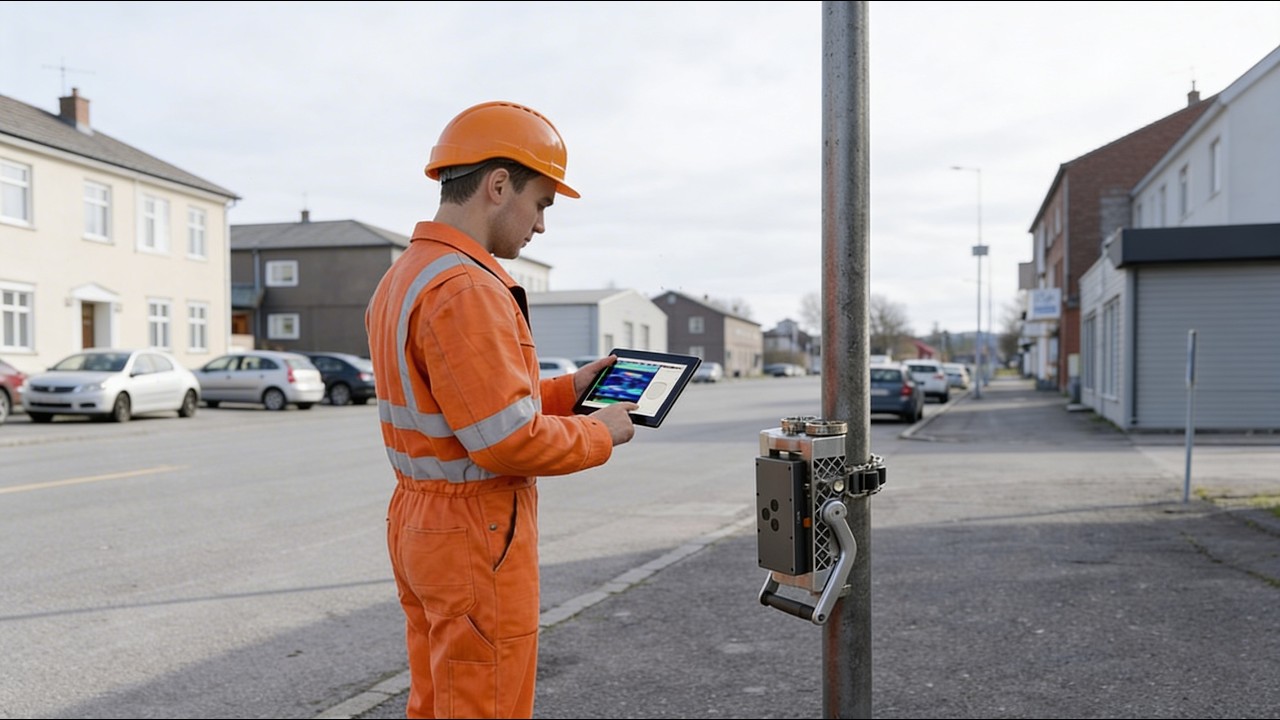

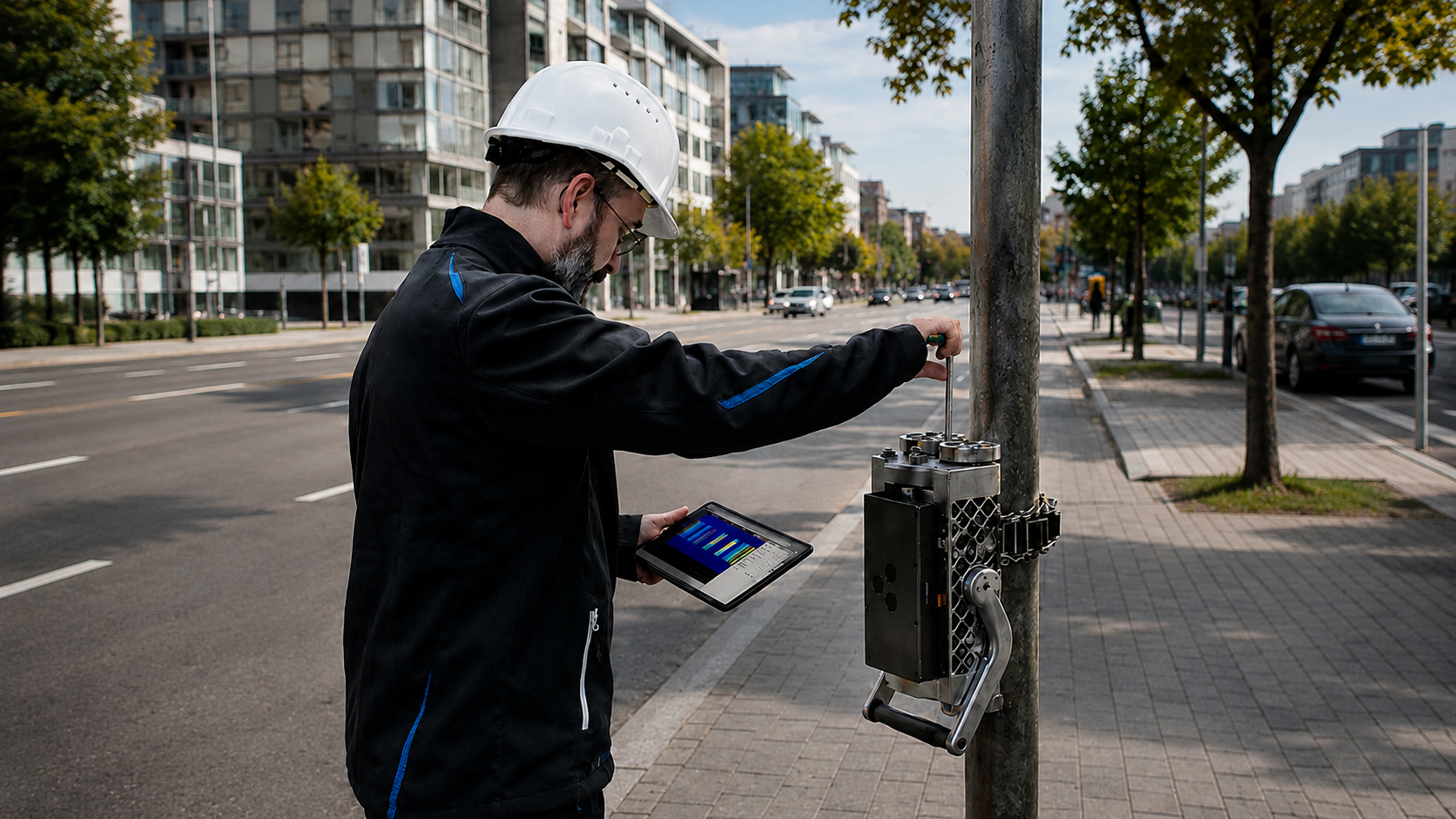

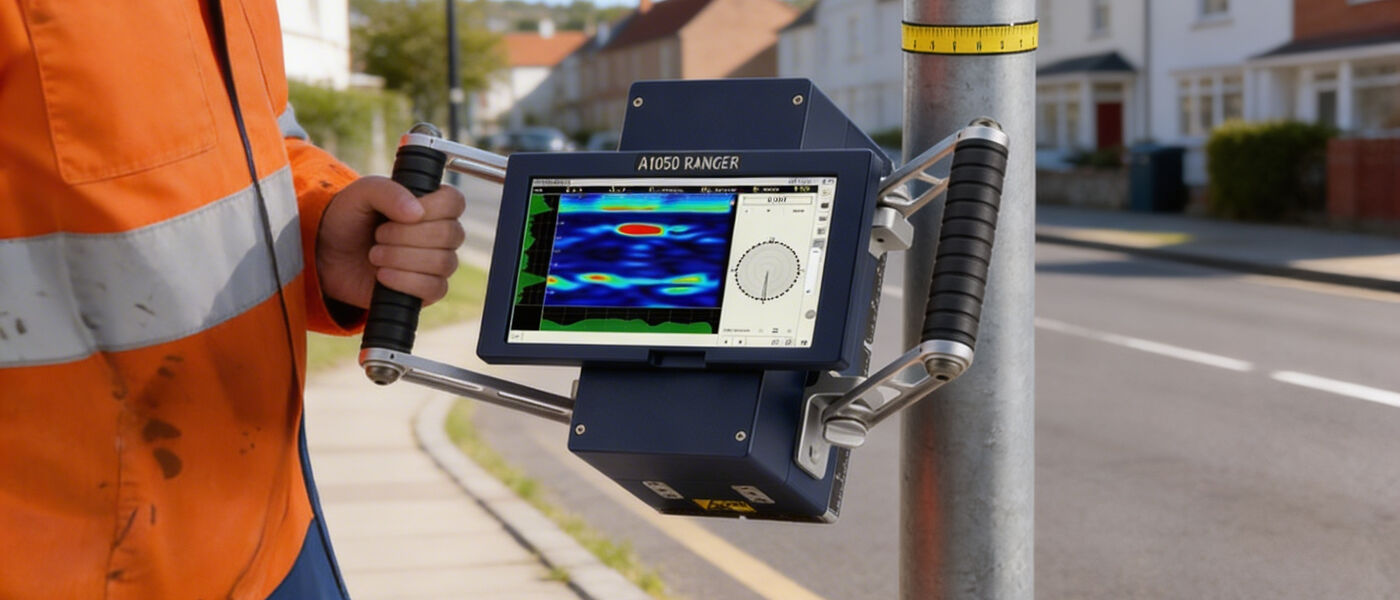

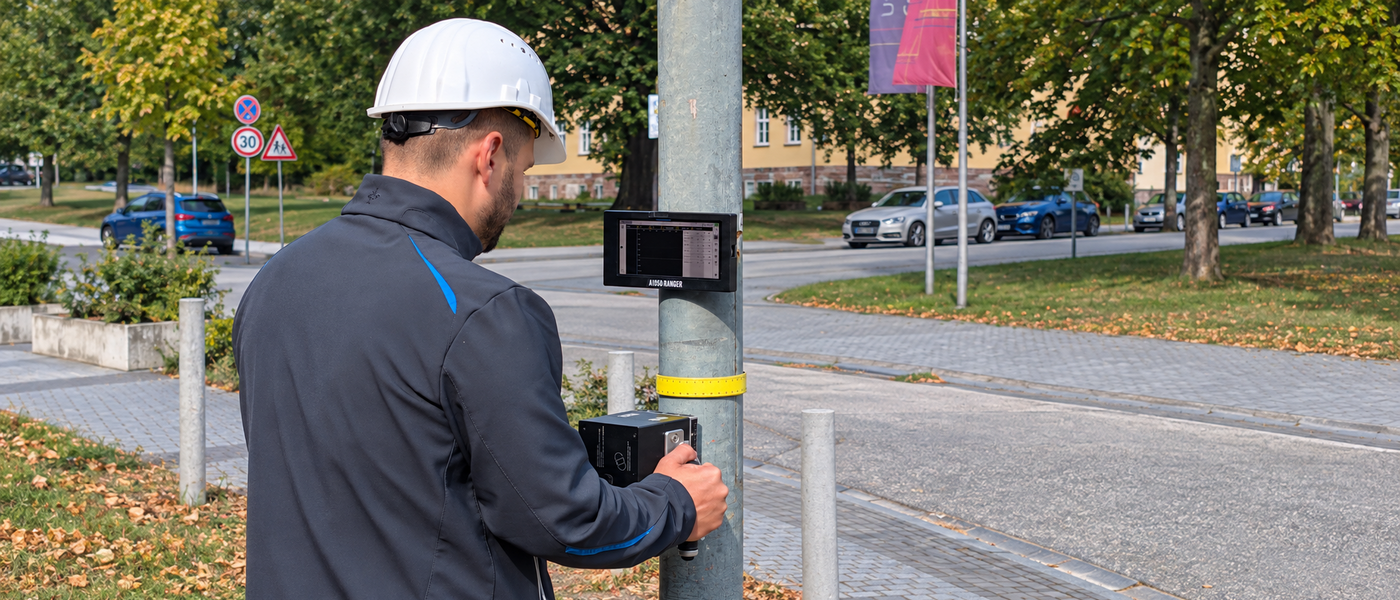

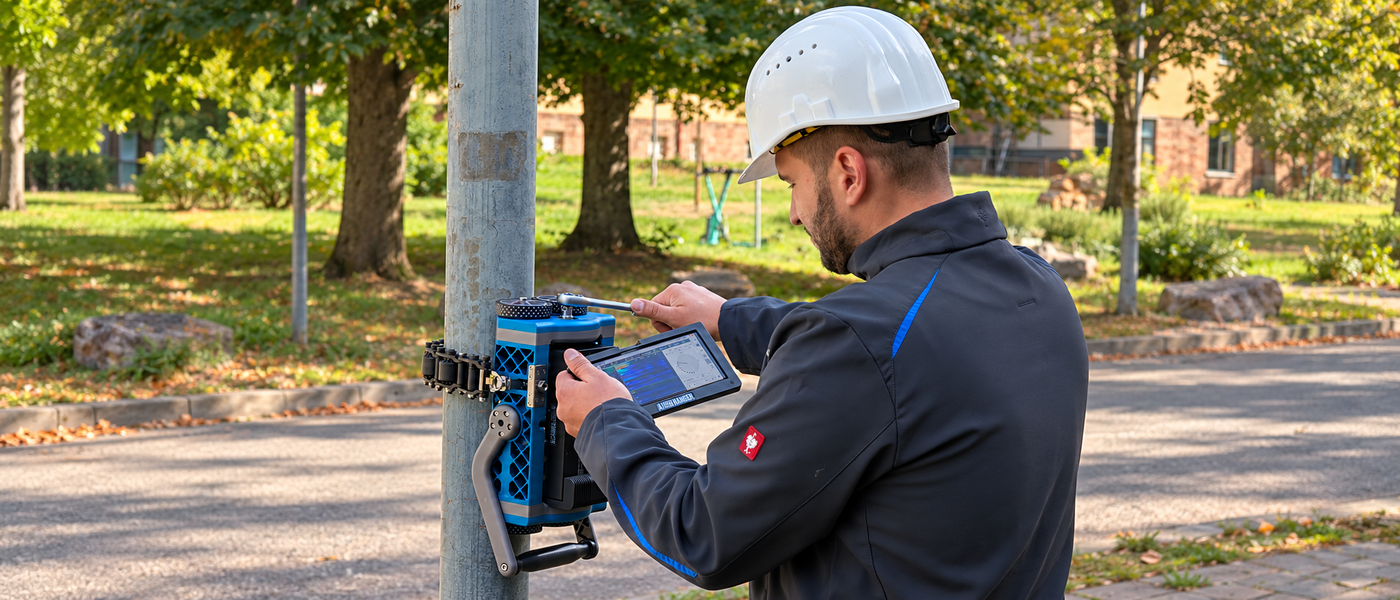

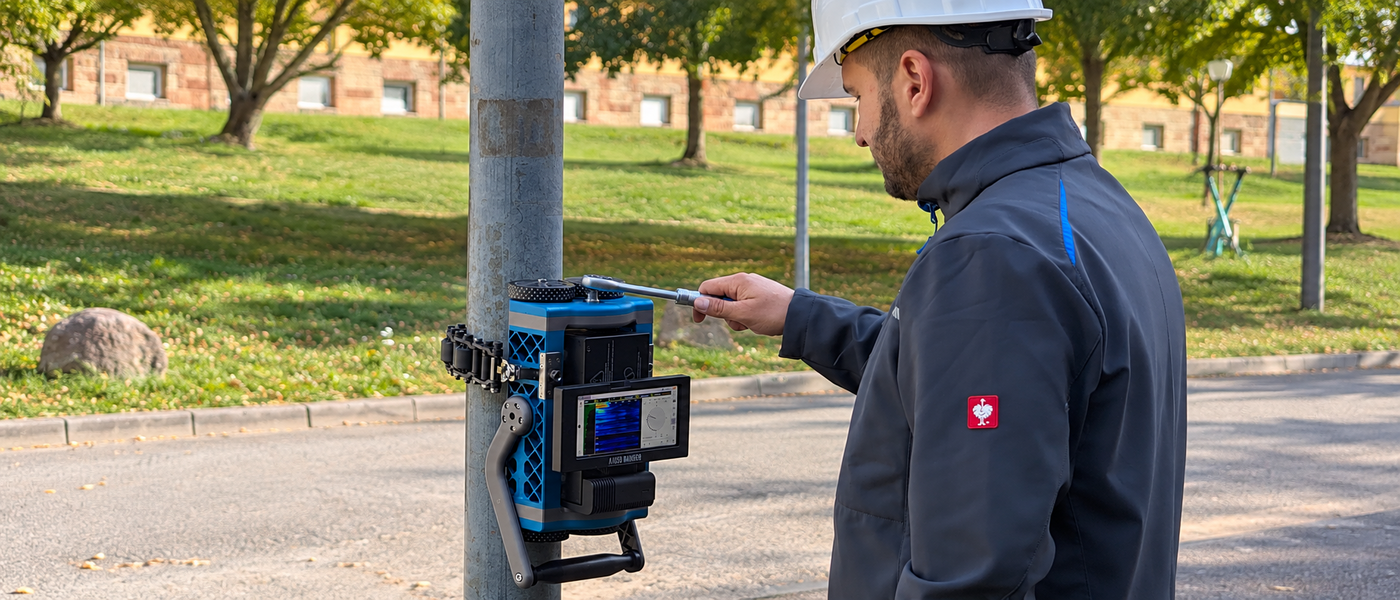

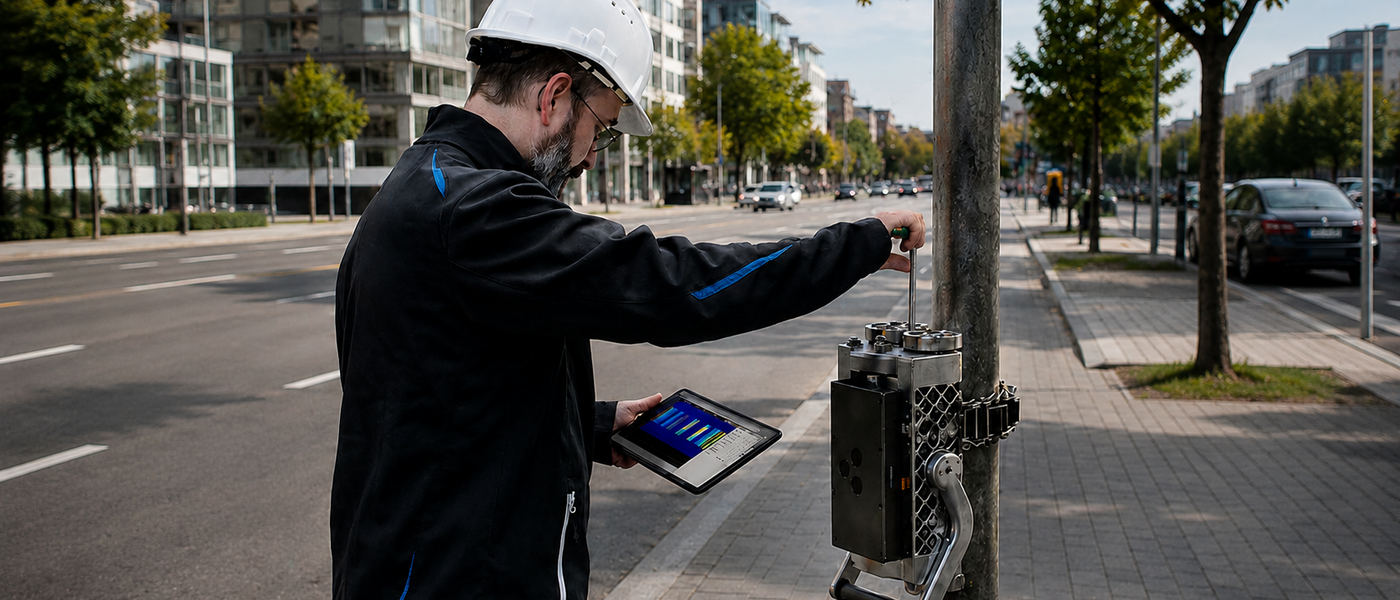

The operator scans the inspection object using a manipuator or manually using two handles an a magnetic ruler
The instrument collects ultrasonic data at several equidistant measurement positions along the pipe circumference

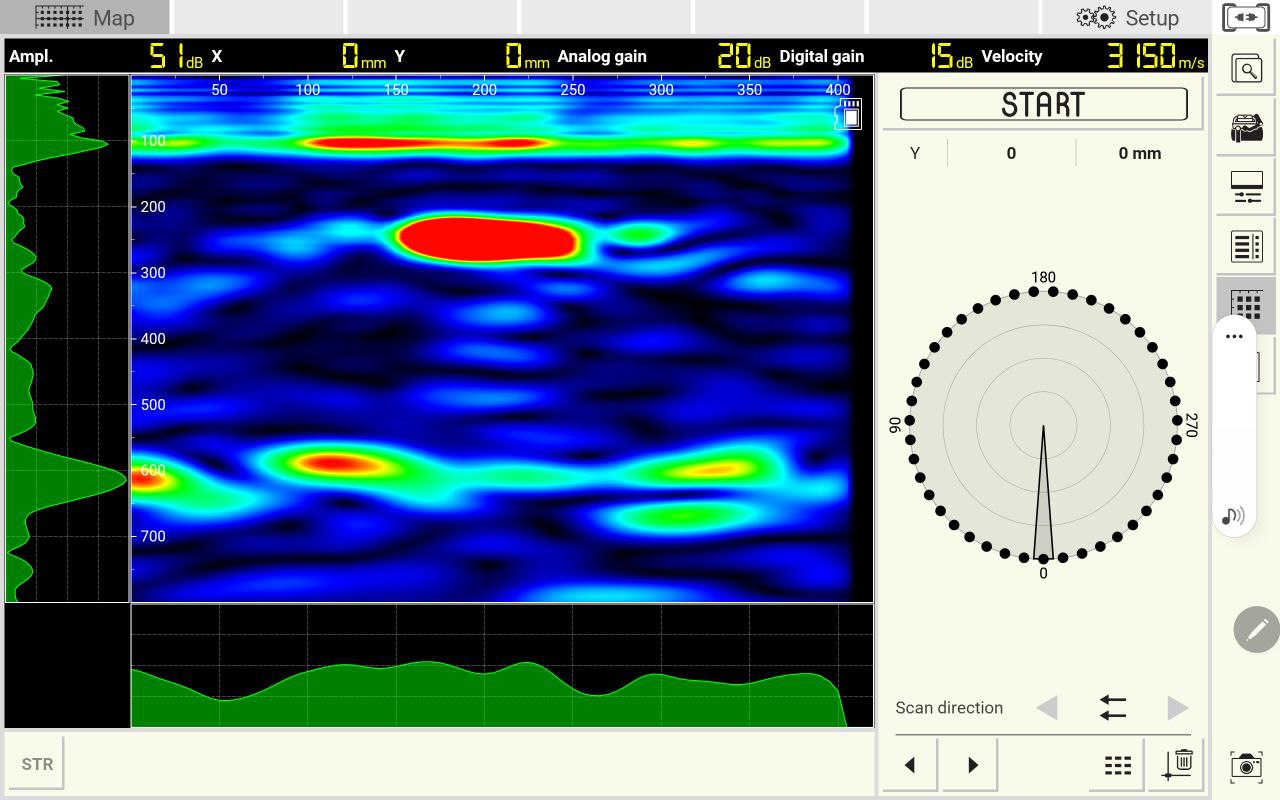

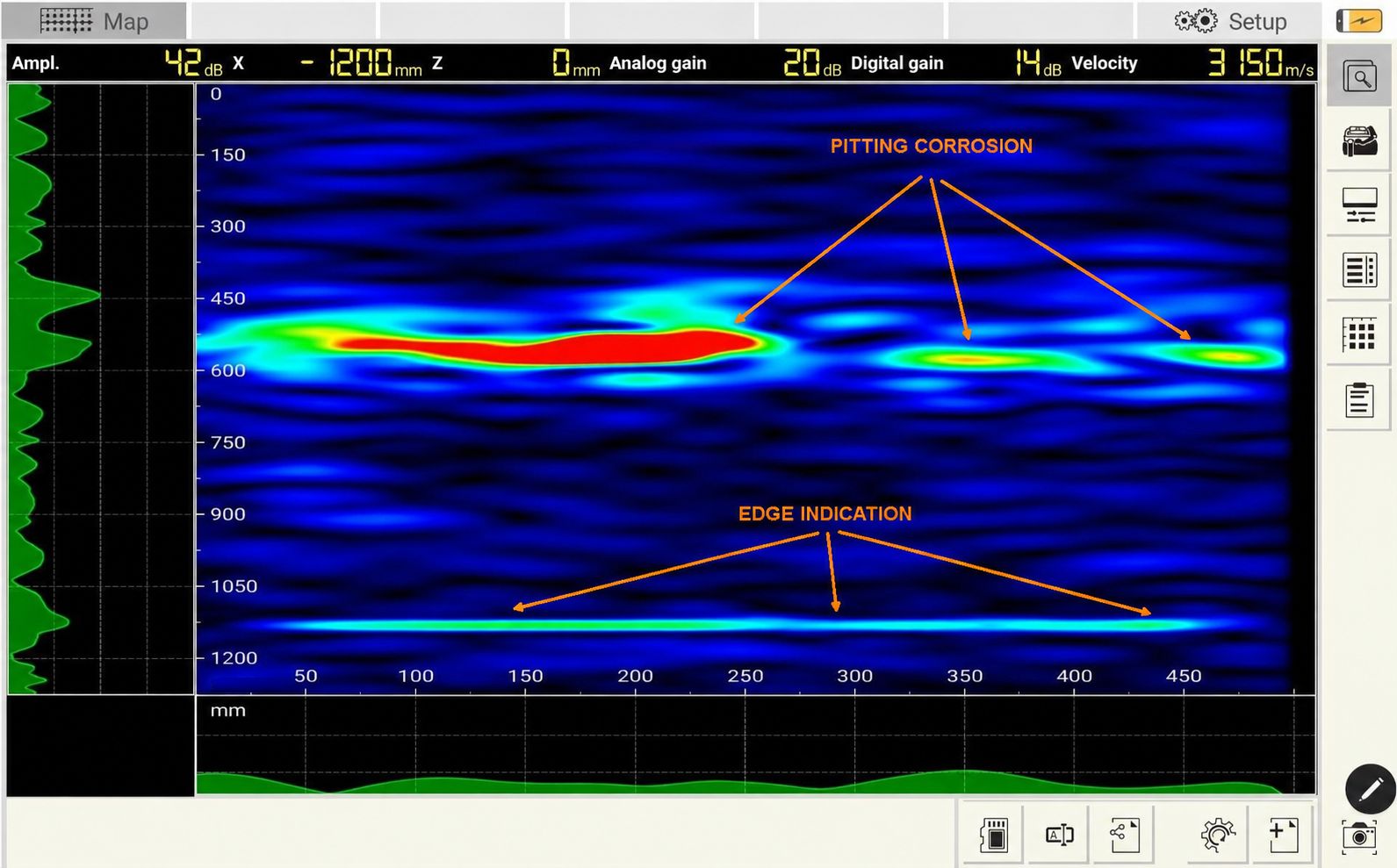

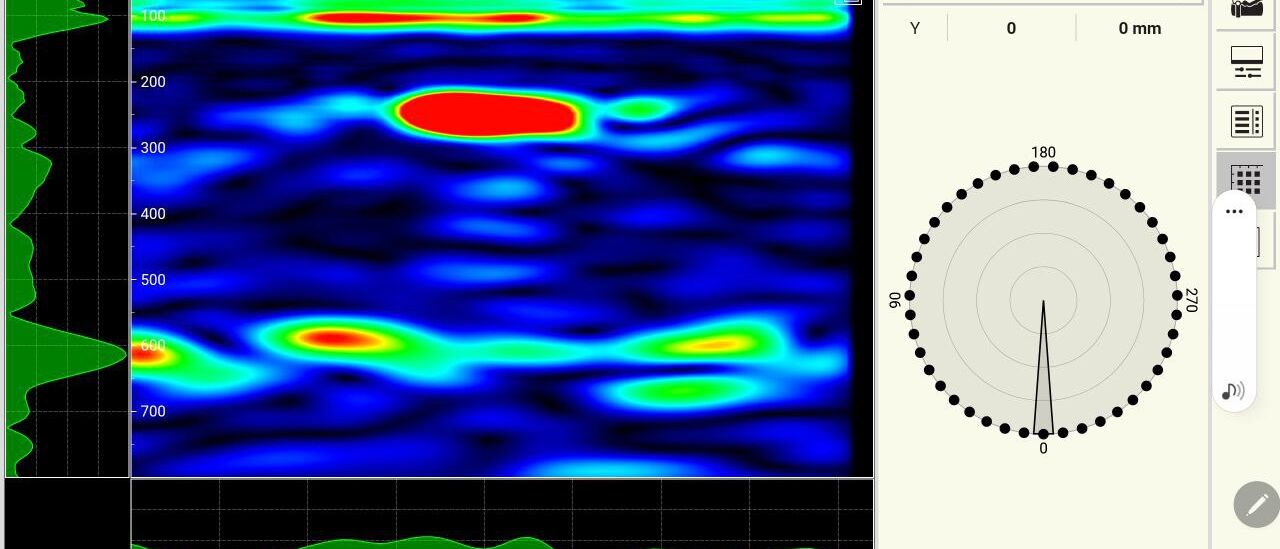

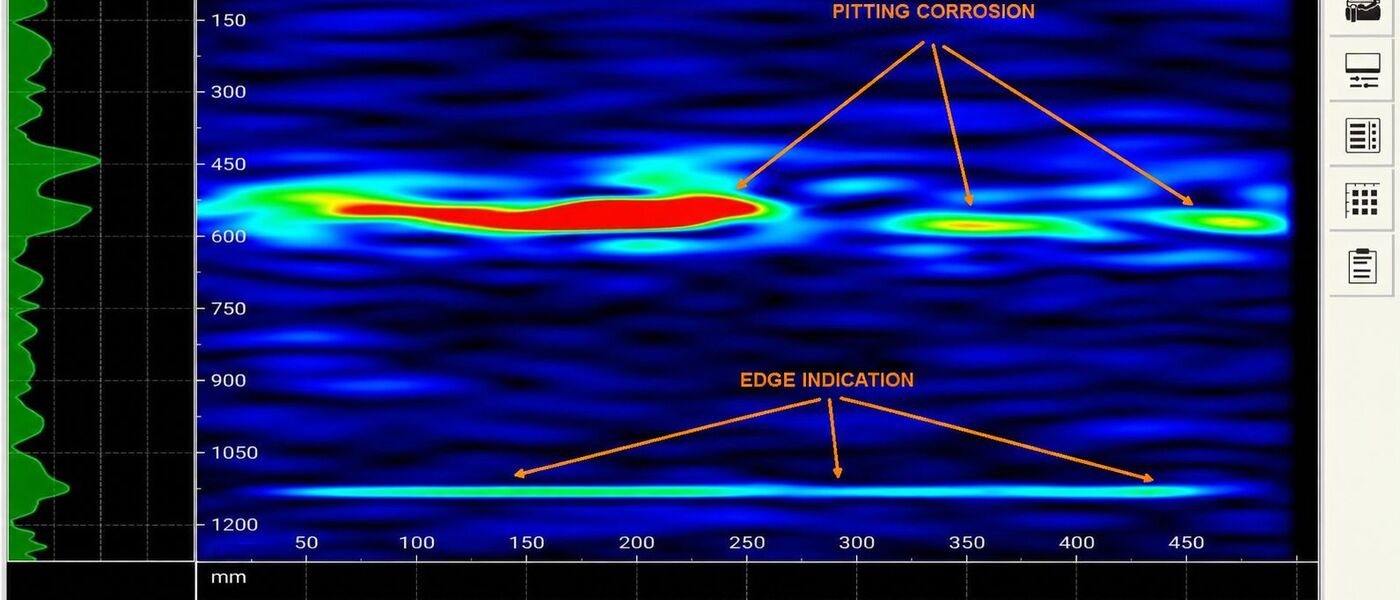

The application software reconstructs a B-Scan image in real time, indicating corrosion damage

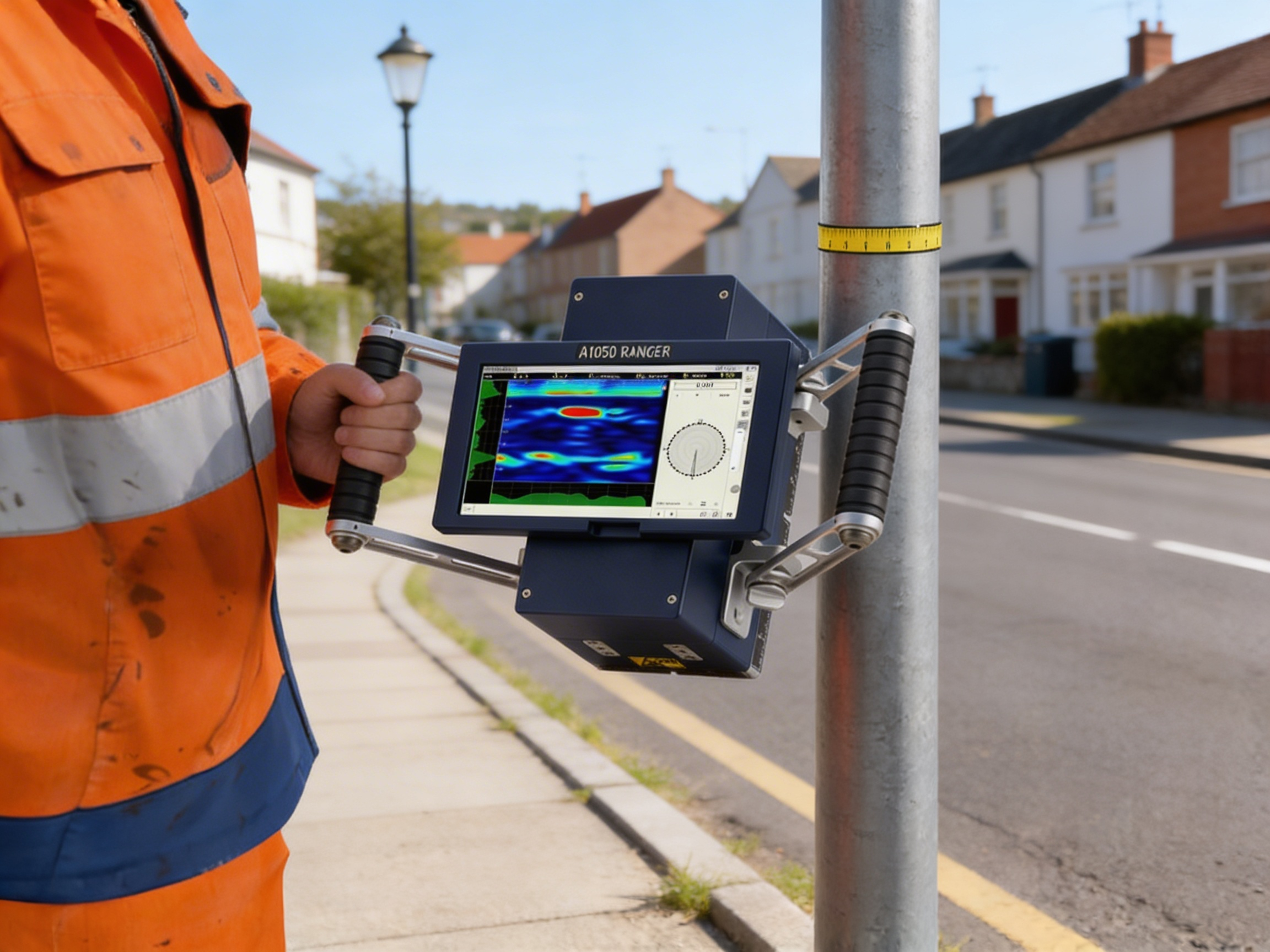

The operator scans the inspection object using a manipuator or manually using two handles an a magnetic ruler
The instrument collects ultrasonic data at several equidistant measurement positions along the pipe circumference
The application software reconstructs a B-Scan image in real time, indicating corrosion damage
Applications
The inspection task involves the detection of hidden corrosion in metallic structures such as pipelines and light poles, particularly in hard-to-access areas, for example beneath pipe supports. Using guided ultrasonic waves and Dry-Point-Contact (DPC) transducers, the entire circumference of the structure is scanned over 360°. During the inspection, the system acquires multi-channel ultrasonic data at various measurement positions and generates B-scan images using the Synthetic Aperture Focusing Technique (SAFT). This enables users to determine the location and severity of corrosion without having to dismantle the structure or interrupt operation.
The inspection task involves the detection of hidden corrosion in metallic structures such as pipelines and light poles, particularly in hard-to-access areas, for example beneath pipe supports. Using guided ultrasonic waves and Dry-Point-Contact (DPC) transducers, the entire circumference of the structure is scanned over 360°. During the inspection, the system acquires multi-channel ultrasonic data at various measurement positions and generates B-scan images using the Synthetic Aperture Focusing Technique (SAFT). This enables users to determine the location and severity of corrosion without having to dismantle the structure or interrupt operation.
Specification
|
PARAMETER |
VALUE |
|
Measurement technology |
Ultrasonic guided wave (SH0 Mode) |
|
Operating Frequency |
50 KHz |
|
Inspection range |
Up to 3 meters 9.8 ft |
|
Number of DAQ channels |
32 |
|
Applicable on diameters |
70 mm – 380 mm 2,7‘‘ – 15‘‘ |
|
Operating time on a single battery charge |
up to 10 hours |
Delivery kit

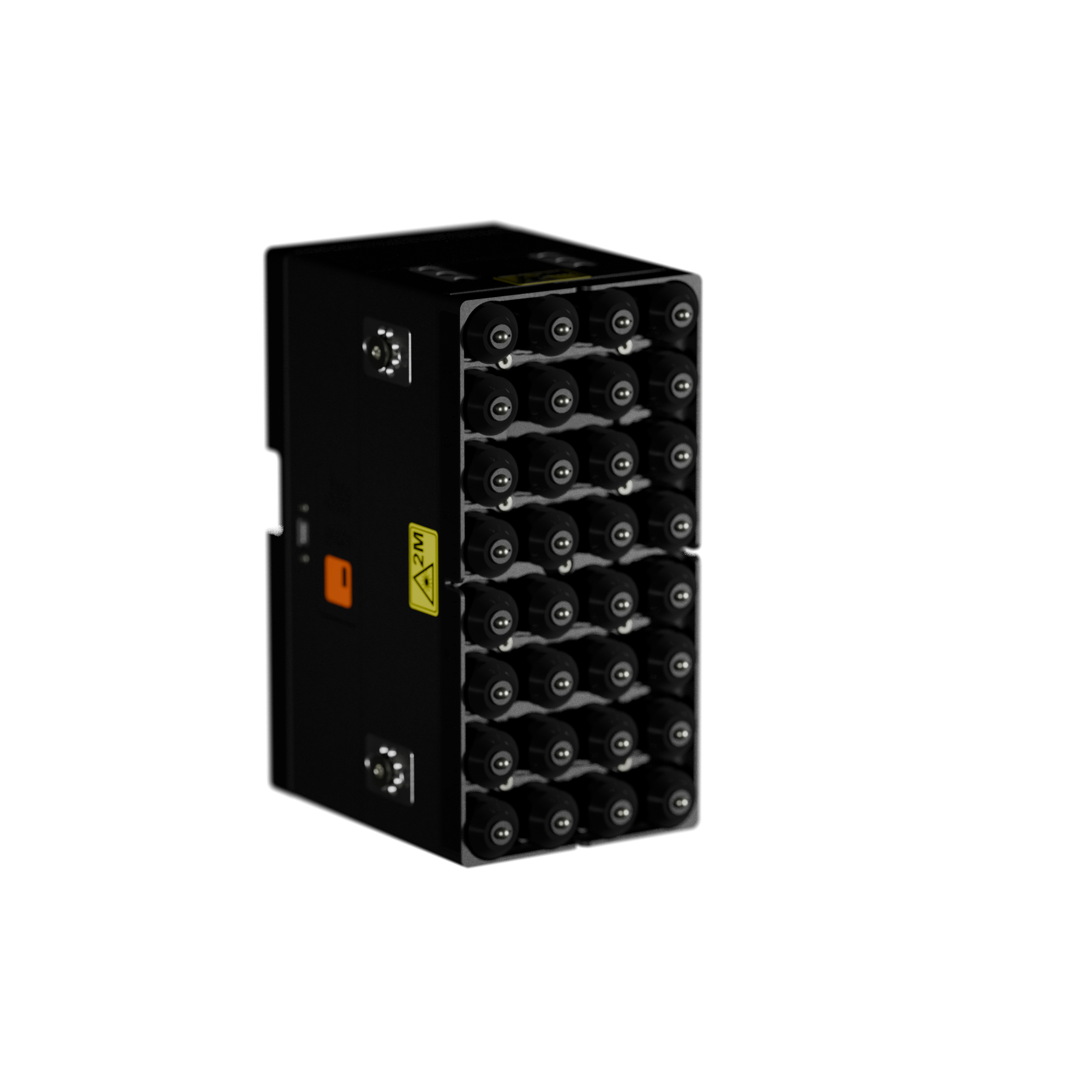

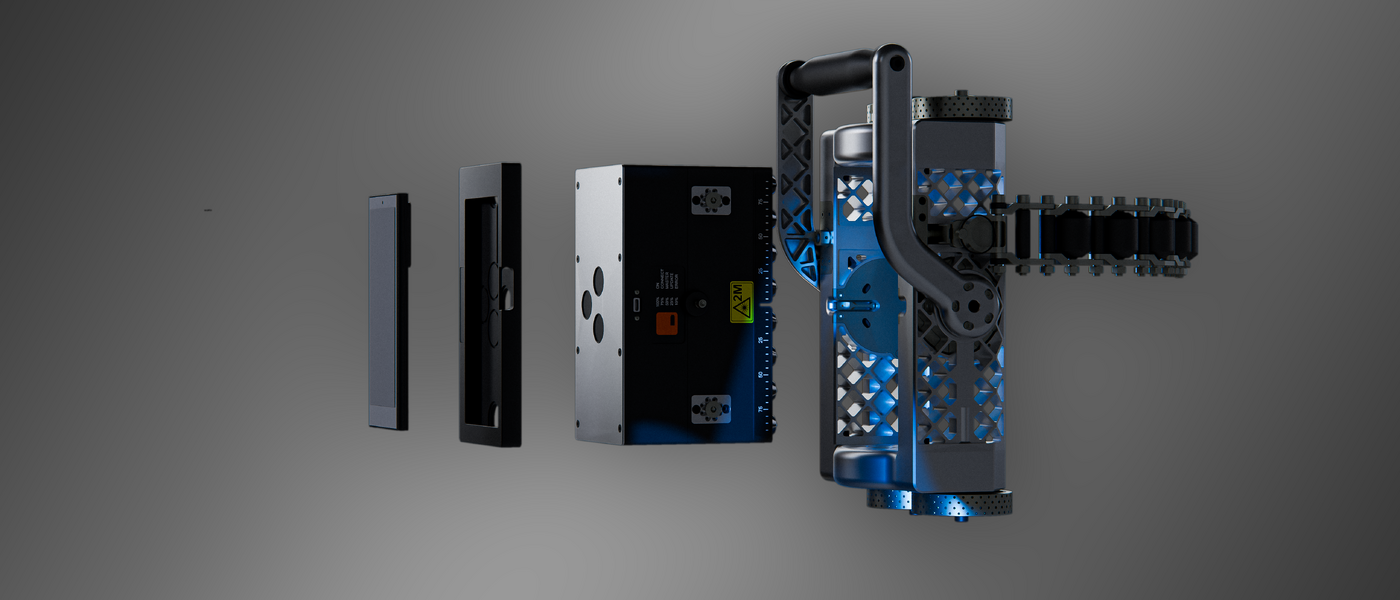

A1050 RANGER electronic unit Tablet-PC in a protective case
Android tablet-PC in a protective case

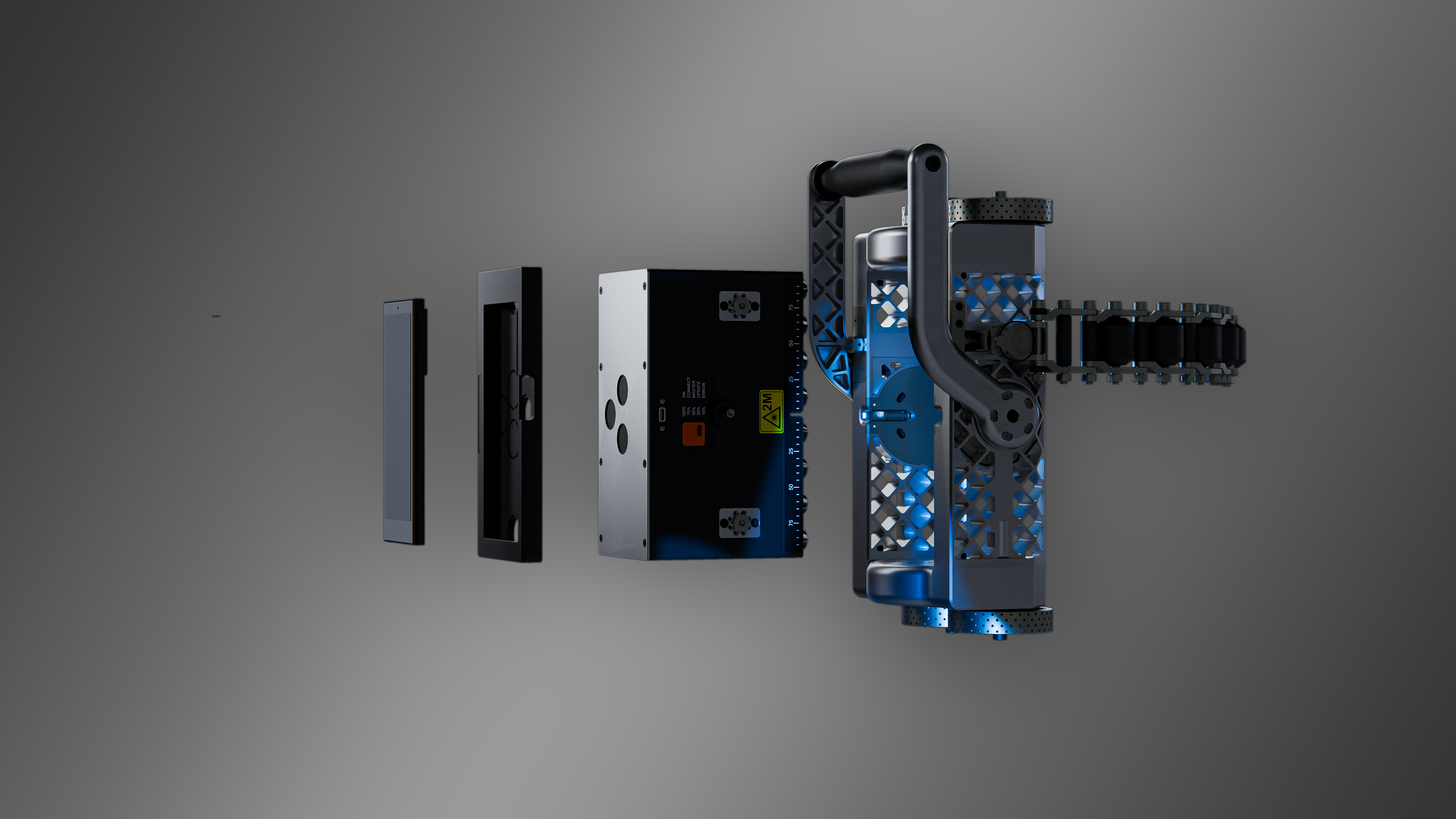

Adaptive inspection manipulator applicable to various pipe diameters
Type C power supply for electronic unit & tablet-PC
Carrying hard case

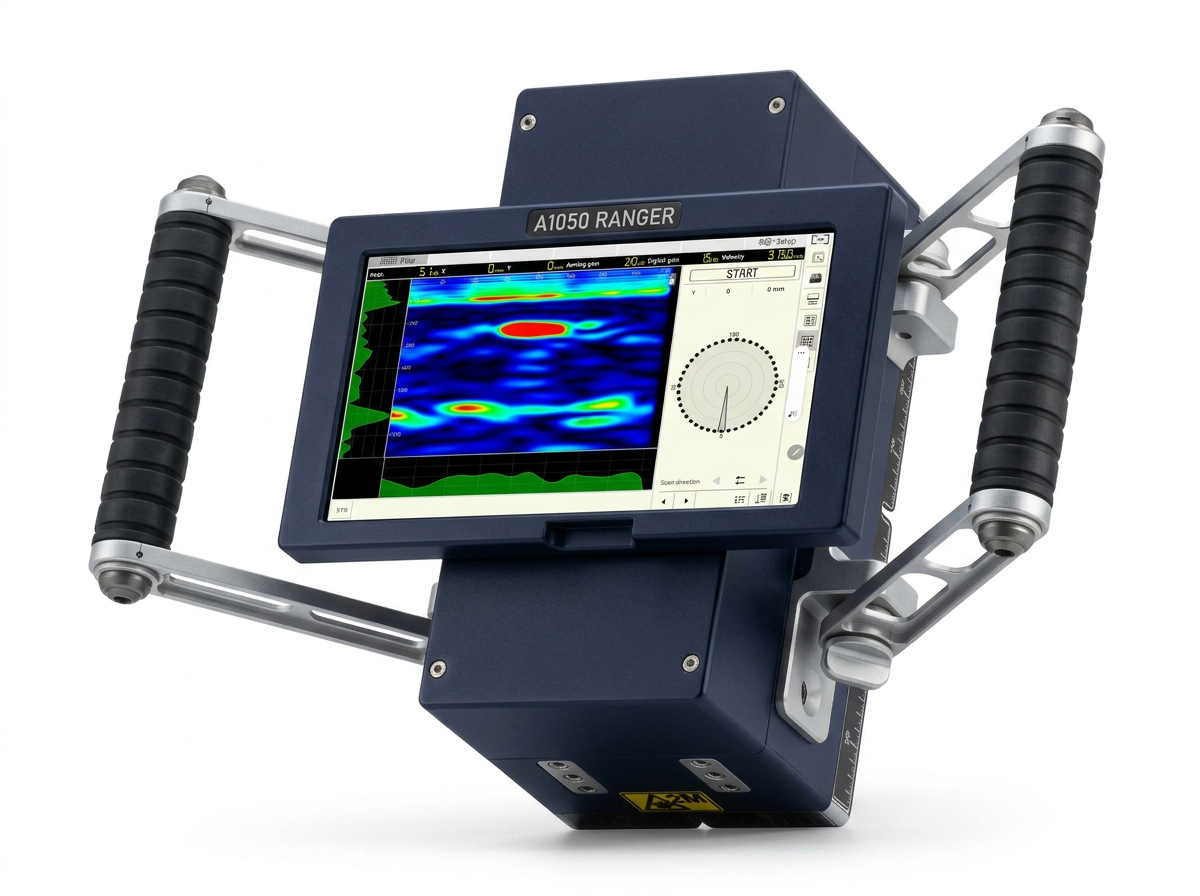

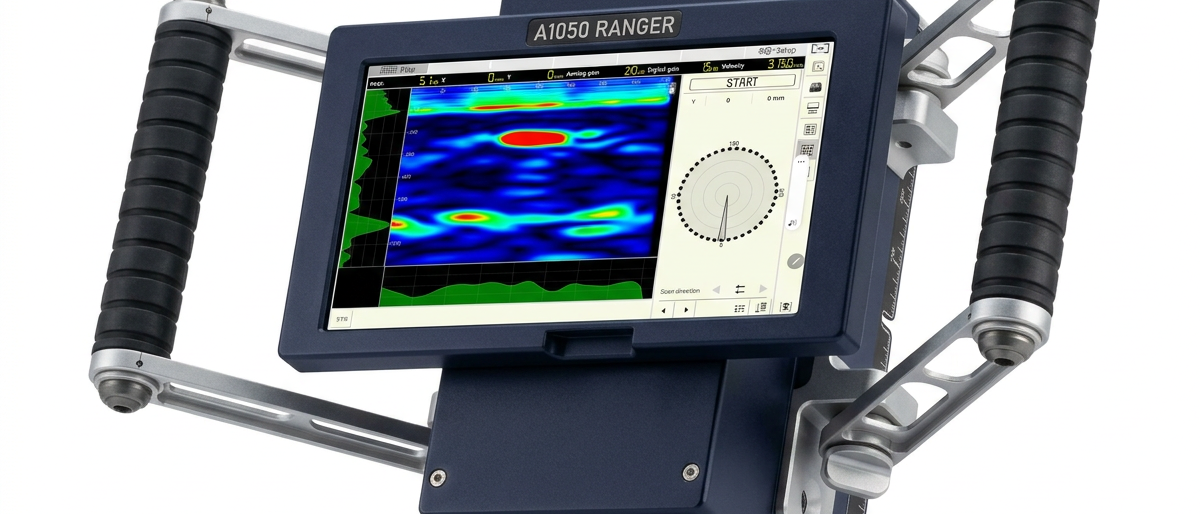

Optional: two handles for manual data collection (without manipulator)
A1050 RANGER electronic unit Tablet-PC in a protective case
Android tablet-PC in a protective case
Adaptive inspection manipulator applicable to various pipe diameters
Type C power supply for electronic unit & tablet-PC
Carrying hard case
Optional: two handles for manual data collection (without manipulator)
