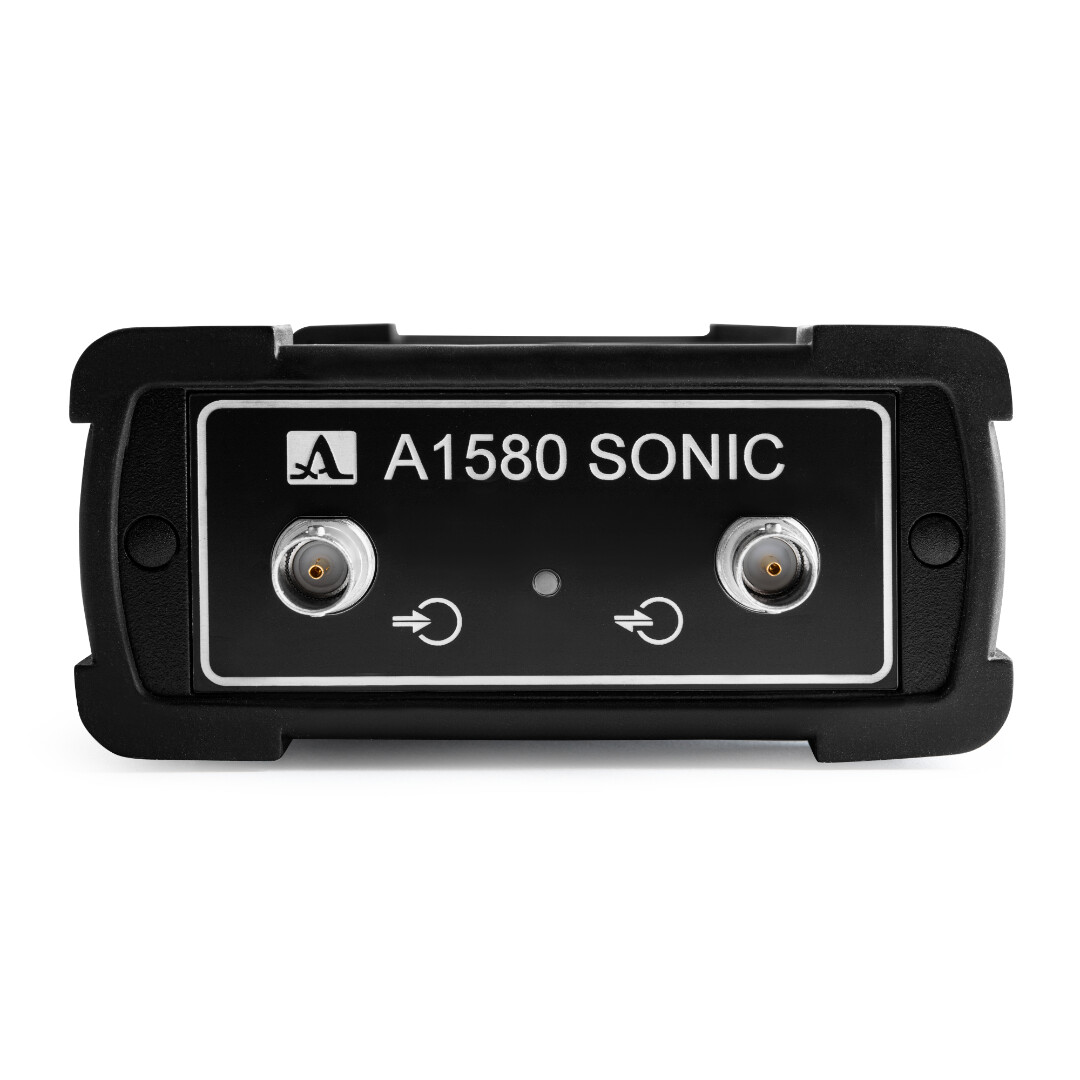

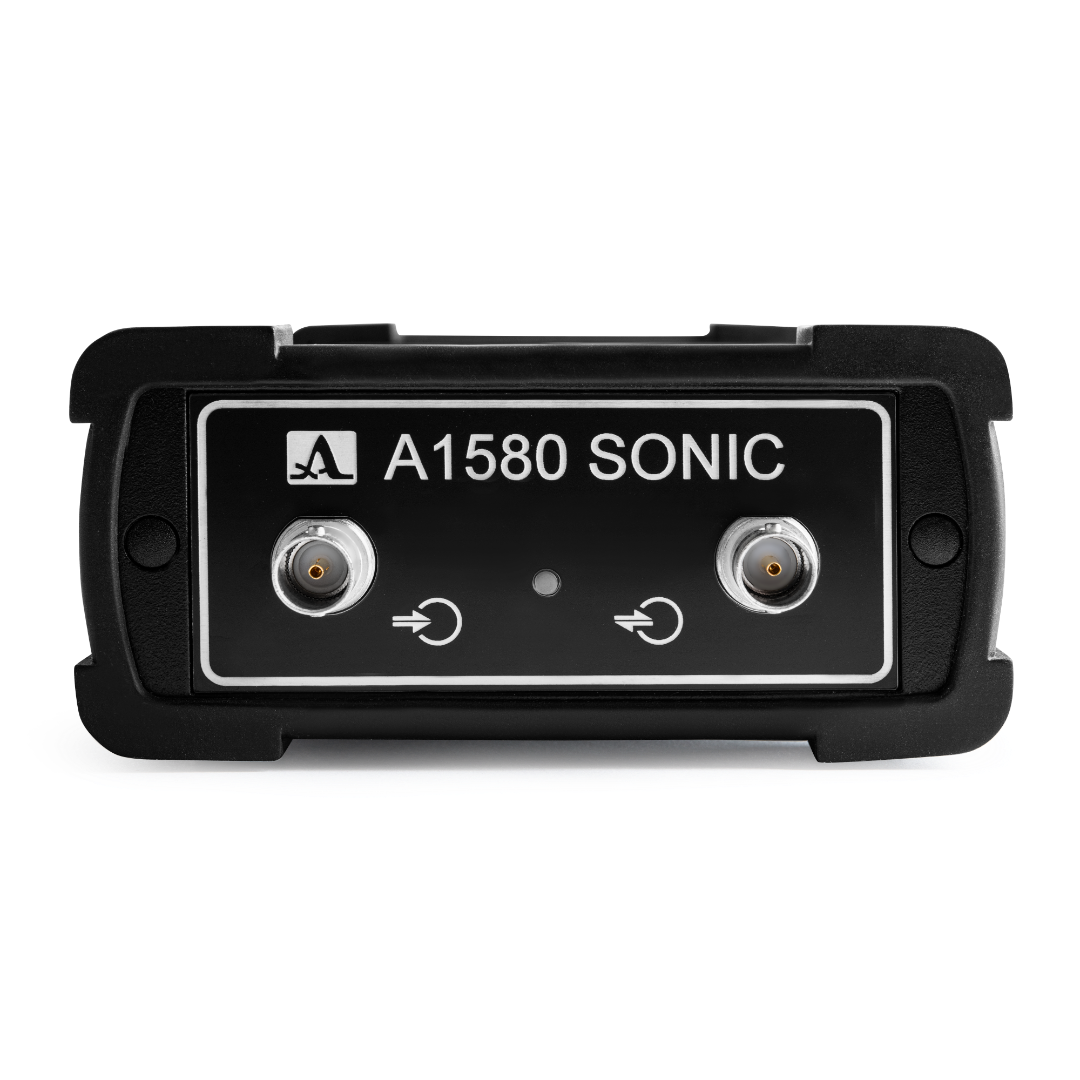

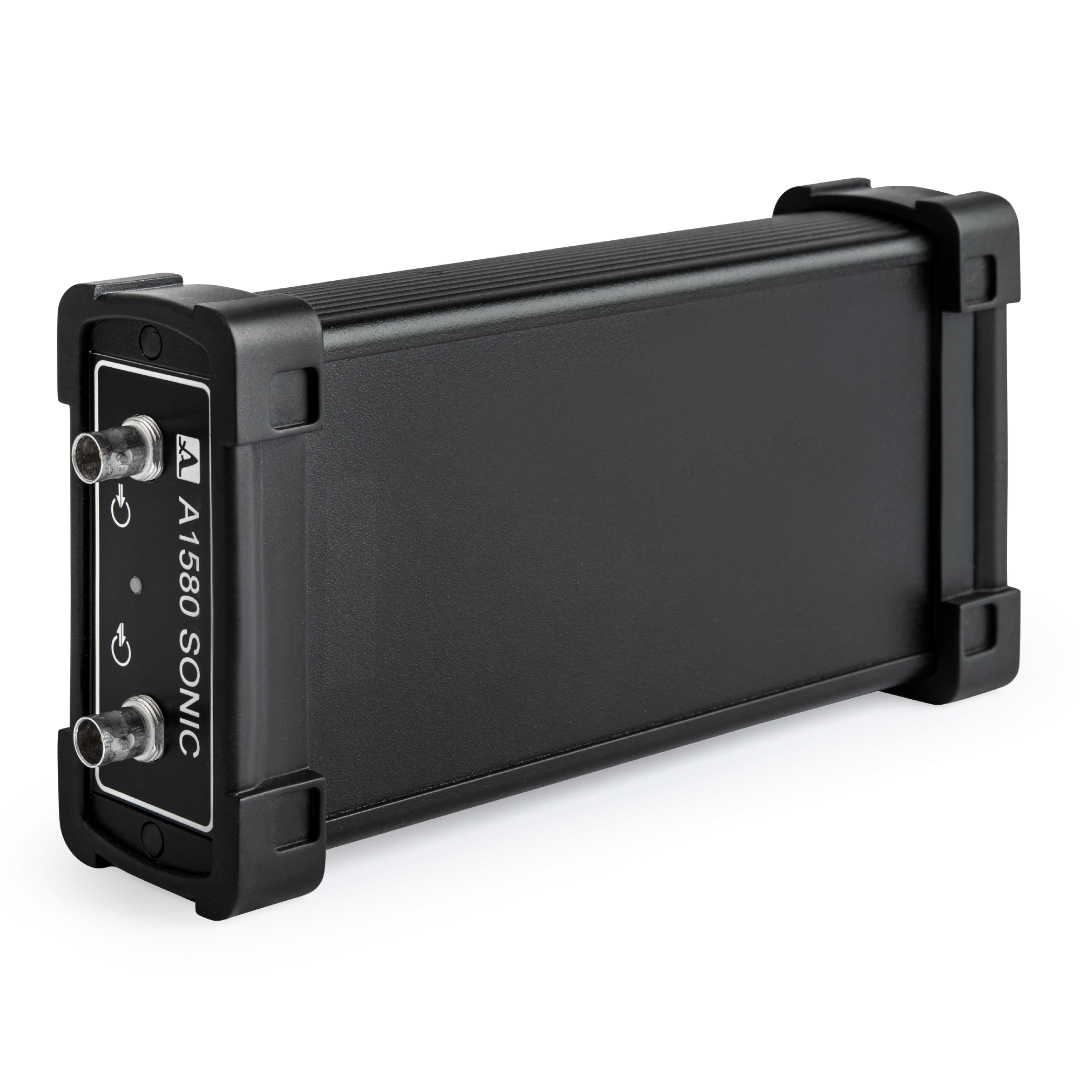

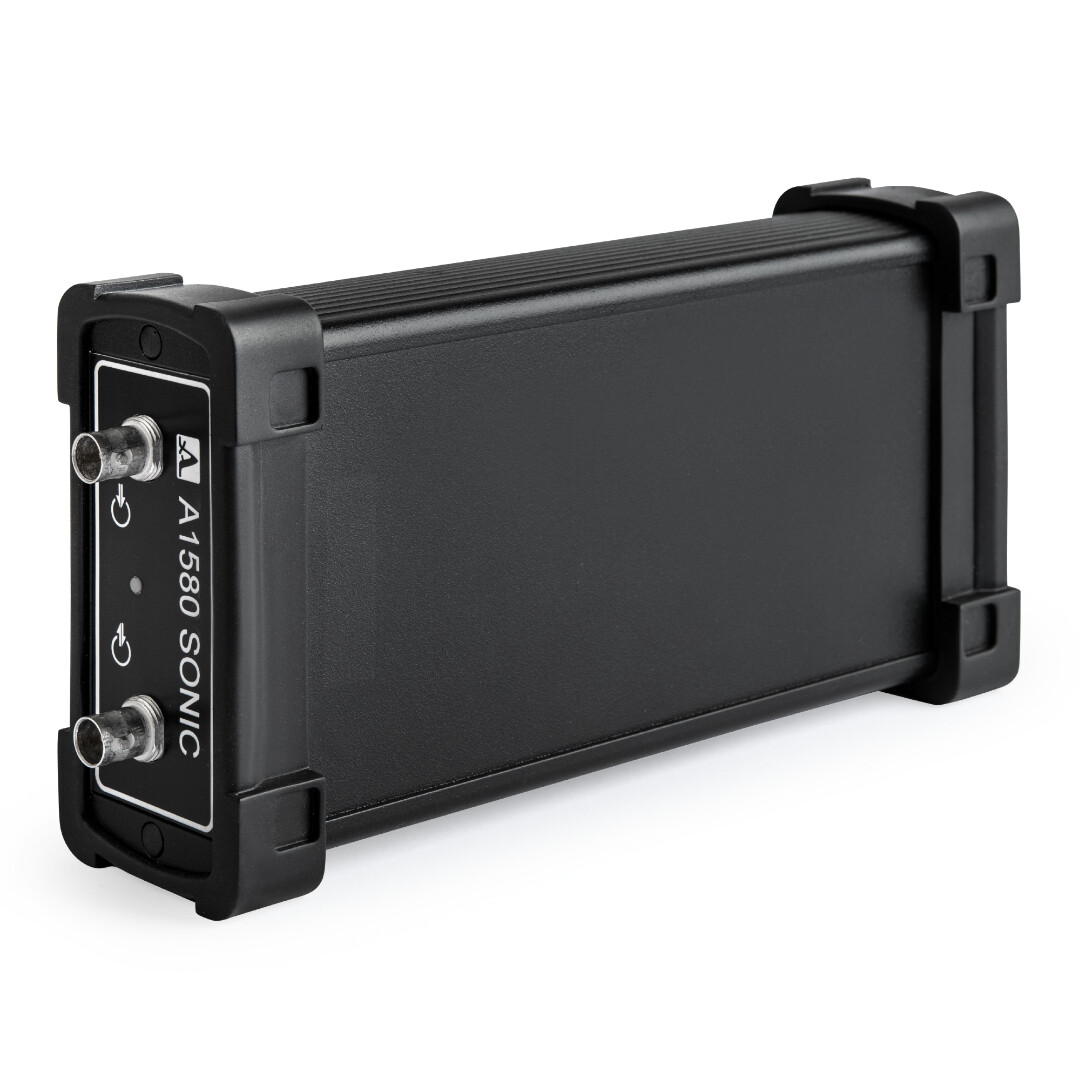

A1580 Sonic
Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for Low-Frequency applications
A broad-banded high-end data acquisition unit designed for stand-alone and integrated use in laboratory and industrial measurement and testing applications. The pulser and receiver of A1580 are perfectly suitable for driving Dry-Point-Contact transducers and regular piezo-electric transducers in a wide frequency range. The instrument possesses a wireless data transfer function.
With the well-documented SDK, the user can develop his own software application for a particular inspection task.
A1580 SONIC is dedicated for ultrasonic data acquisition applications, such as:
- Pulse Velocity Testing
- Pulse-echo data acquisition
- Position-related data acquisition synchronized with the external inspection manipulator
- Time-related data acquisition synchronized with external material test machines (tensile test, compression test)

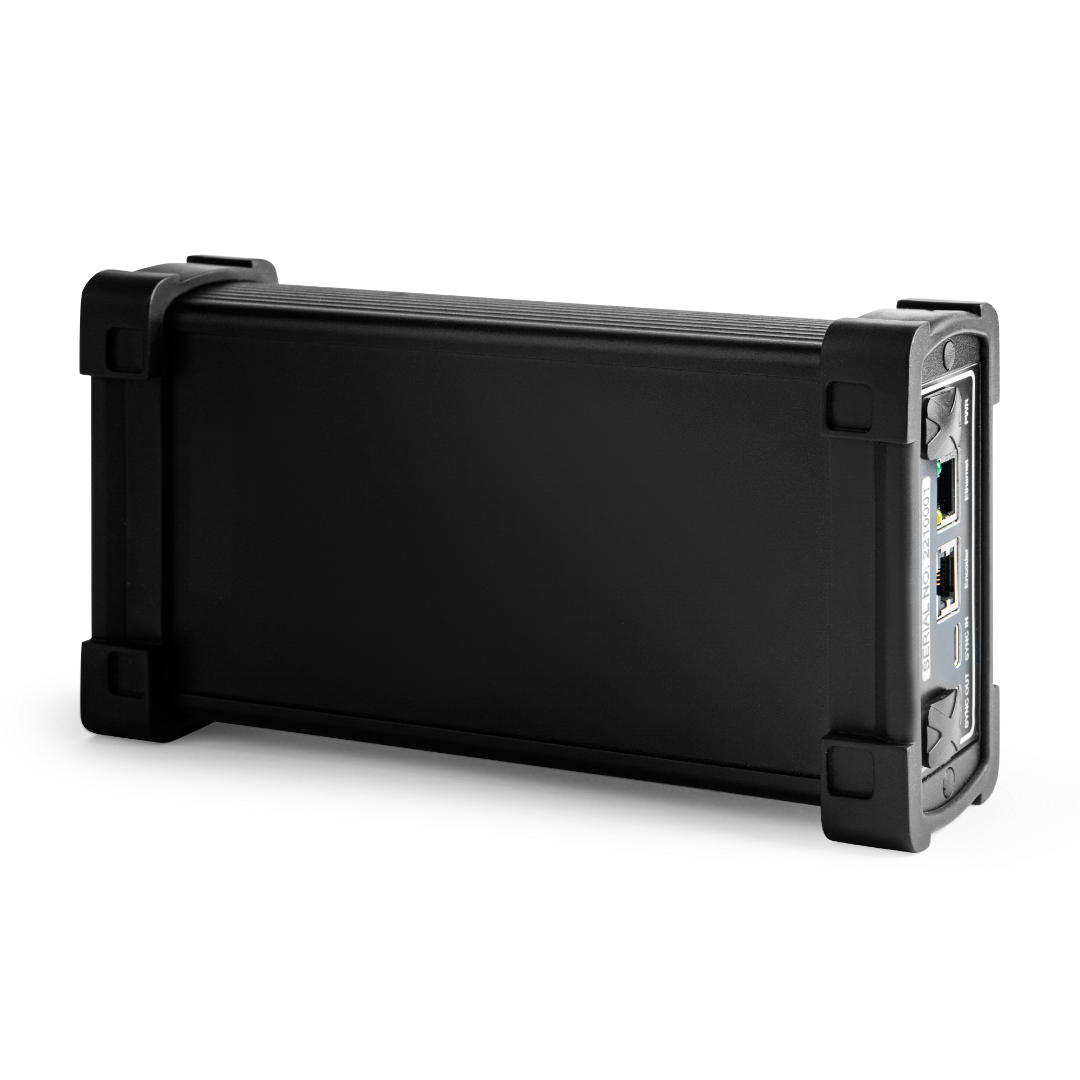

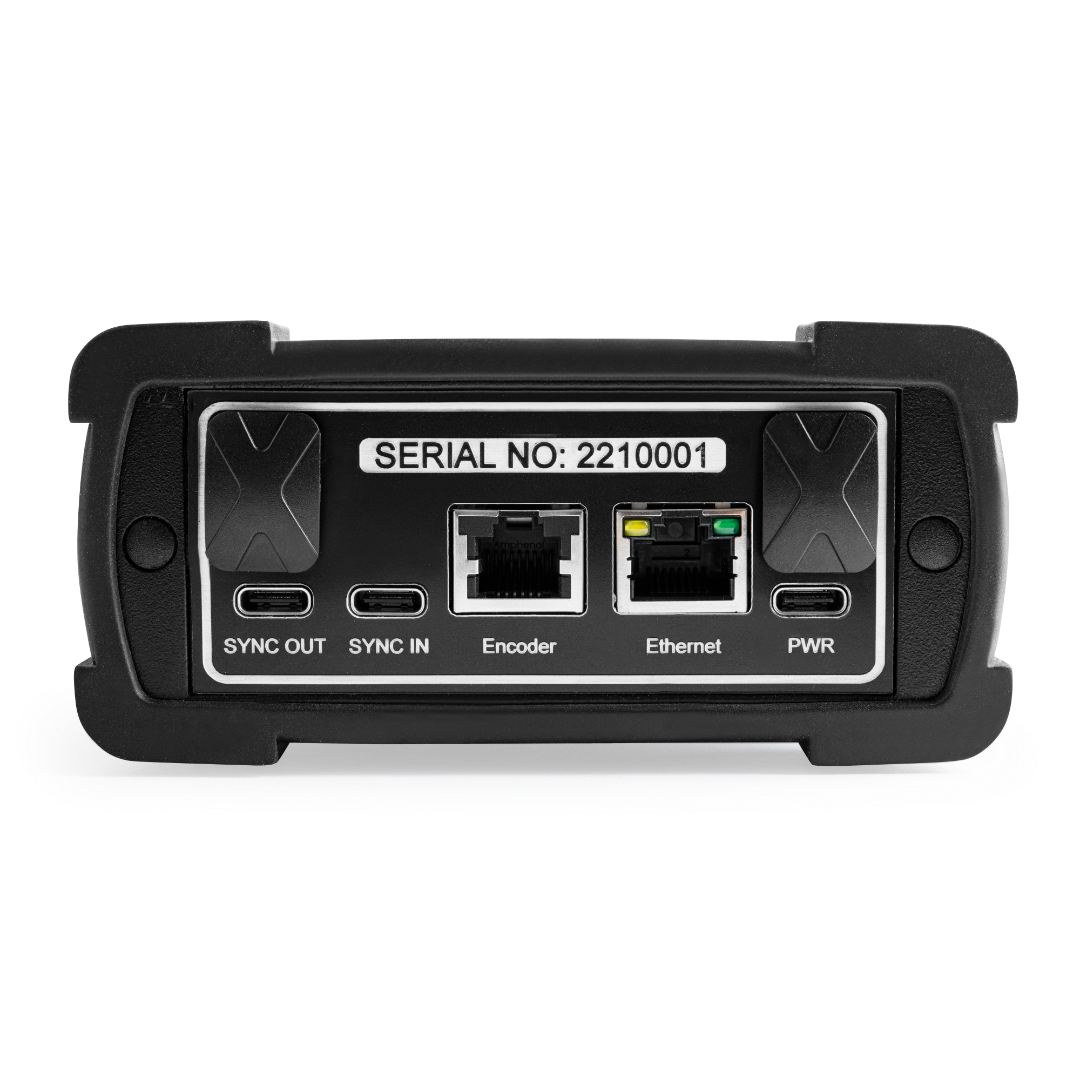

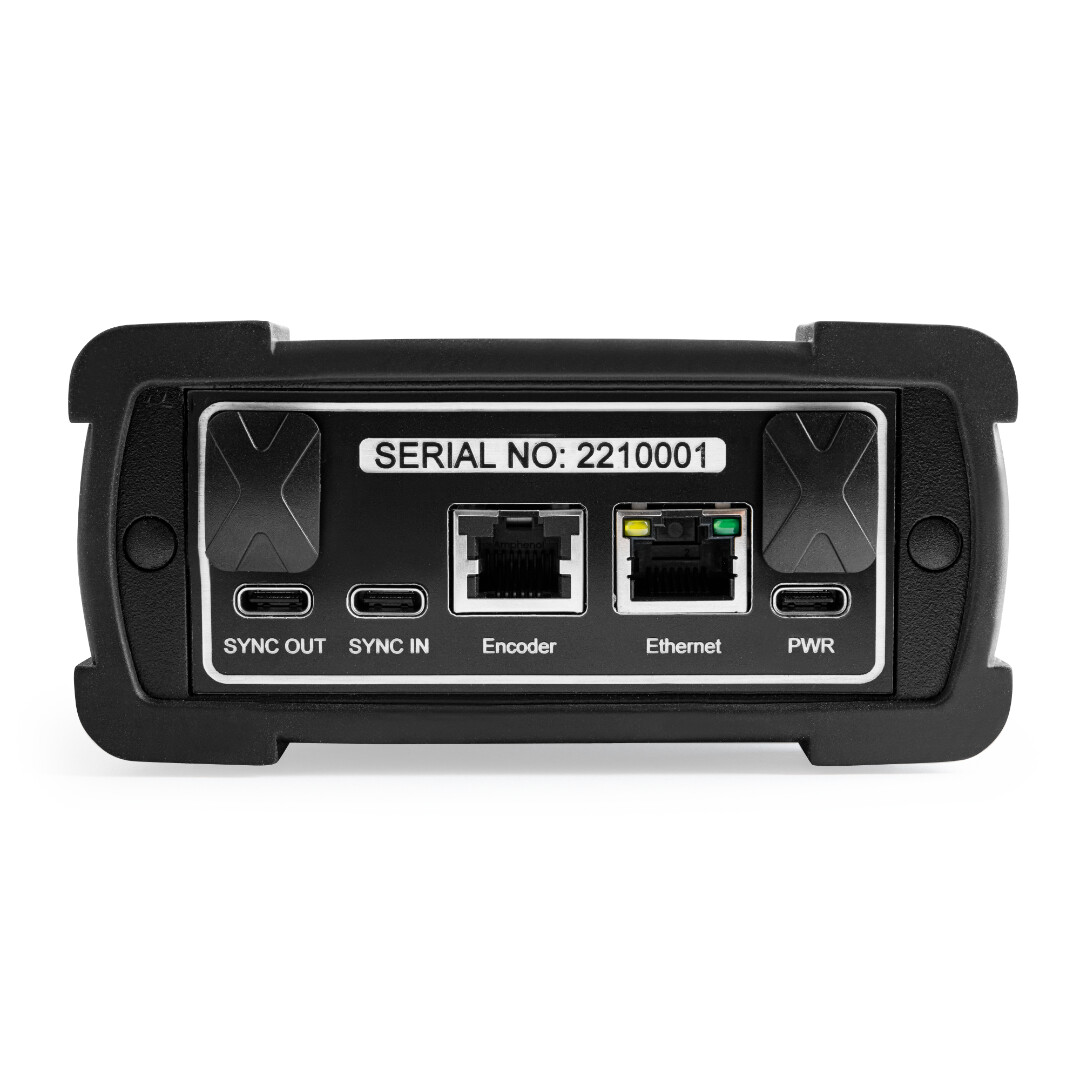

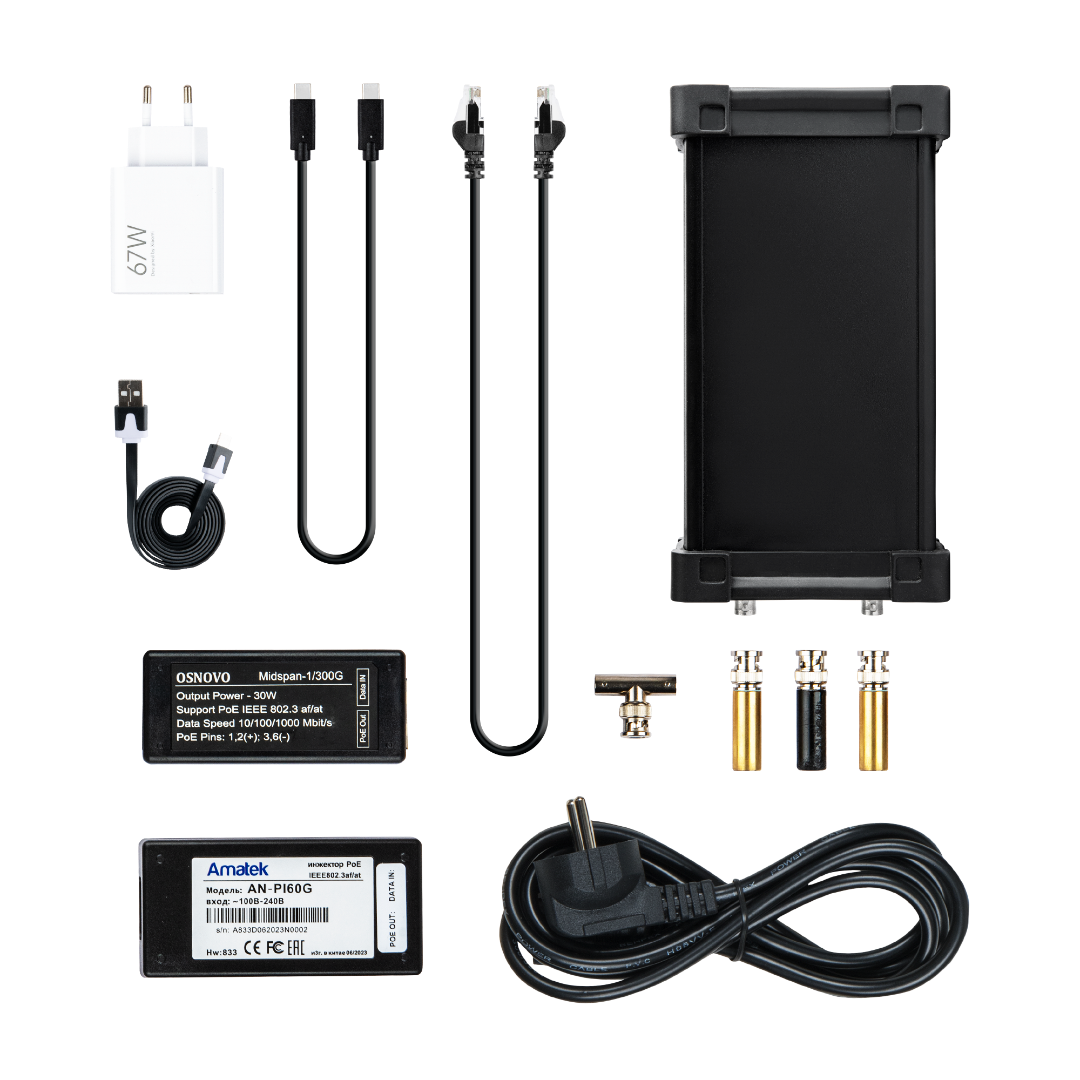

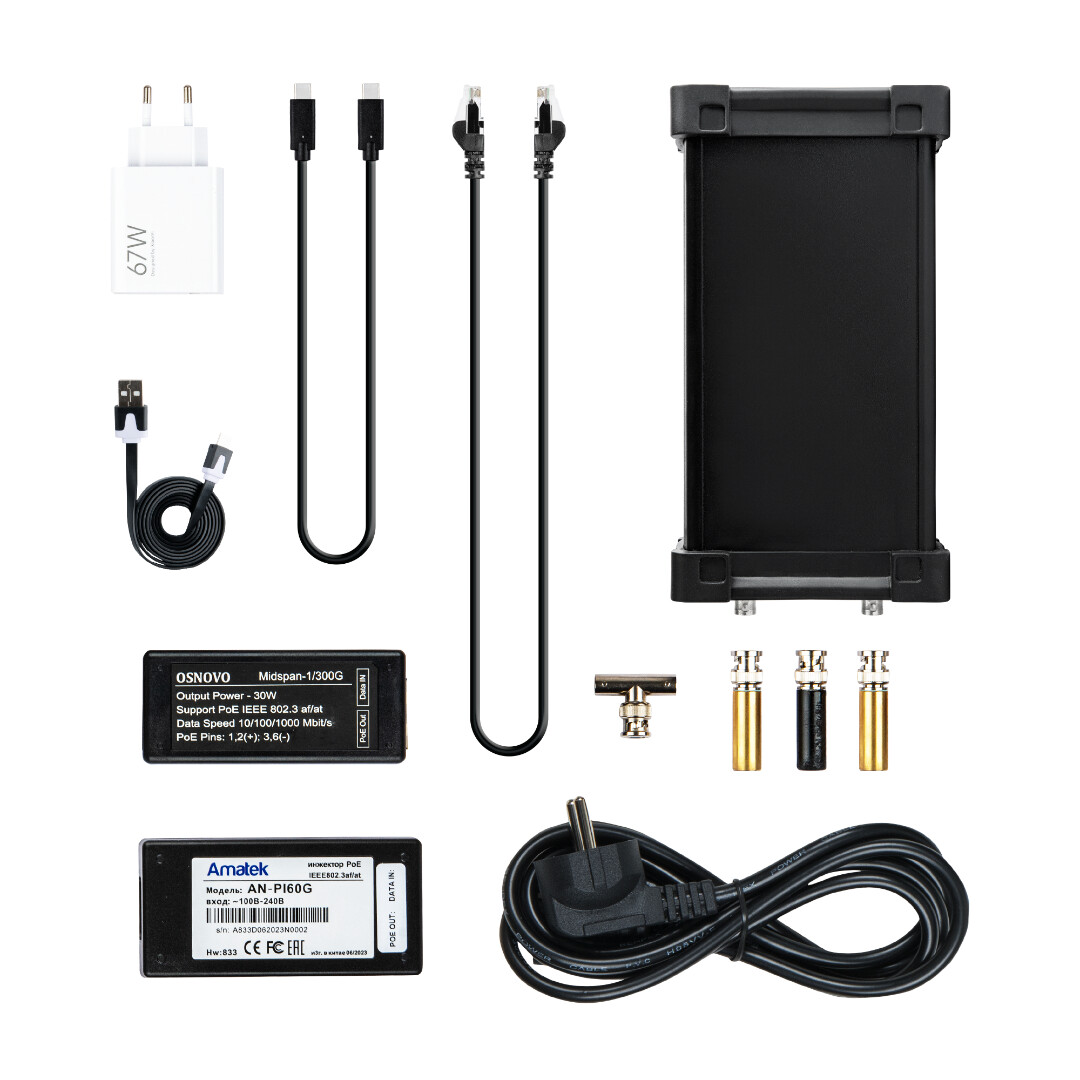

| TRANSMITTER | |
| Transmitter output voltage, V | 200 V |
| Excitation sequence | Meander, 0.5 to 5.0 periods |
| Pulse repitition rate, Hz | 1 – 1.000 Hz |
| RECEIVER | |
| Length of the data acquisition vector, Samples | 128k |
| Sampling rate (MHz) | 1, 10, 25, 50, 100 |
| Filter frequencies (FIR) | configurable |
| Receiving bandwidth | 10 KHz – 16 MHz |
| Dynamic range of amplifier, dB | 0 to 80 |
| Dynamic range of attenuator, dB | - 20 to 0 |
| Gain setup range | from 0 to 100 dB, step 1 dB |
| The quantity of the programmable points of DAC function | 128k |
| Dynamic range of DAC function | 40 dB |
| Averaging factor | 1 to 256 |
| DIMENSIONS & WEIGHT | |
| Dimensions of the electronic block | 116 х 56 х 230 mm |
| Weight of the electronic block | 0.9 kg |
| Operating temperature range | from –20 to +45 ºC |
| DATA INTERFACES | |
| Wireless Ethernet 54 Mbit | IEE802.11n |
| Ethernet 100 Mbit | |
| External trigger input | TTL |
| Name | Quantity, pcs. |
| A1580 Sonic Electronic Unit | 1 |
| Net adaptor with cable 220V-15V | 1 |
| Ethernet cable 1.5 meter | 1 |
| WiFi Antenne | 1 |
| User manual for integration kit (SDK) | 1 |
| Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) | 1 |
