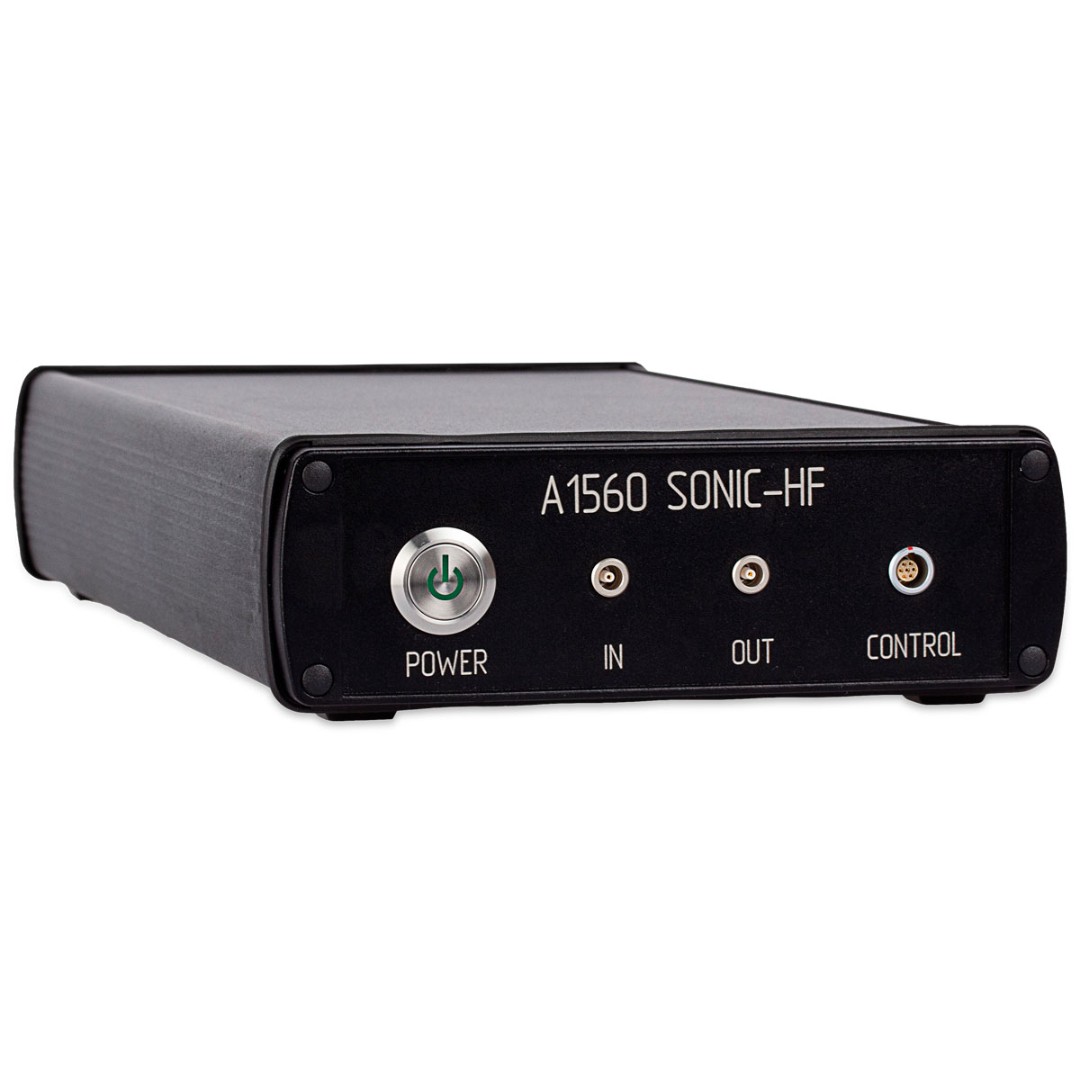

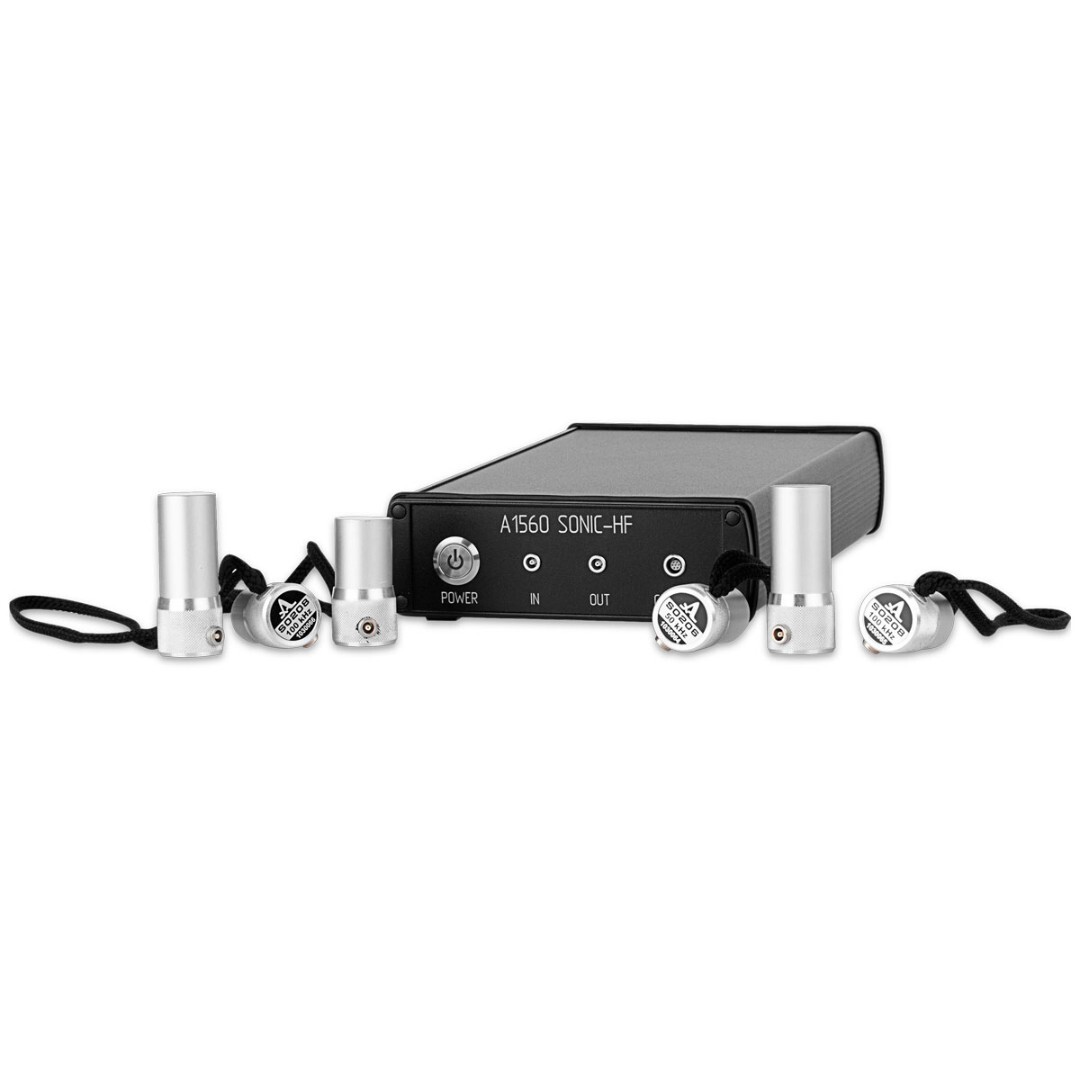

A1560 Sonic-HF

Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for High-Frequency applications

Where to Buy

A high-end data acquisition unit designed for stand-alone and integrated use in laboratory and industrial measurement and testing applications. The pulser and received of A1560 is dedicated for driving widest range of piezo-electric transducers with contact and immersion coupling. The instrument possesses integrated accumulator and wireless data transfer function.

With the well documented SDK the user is enabled to develop his own software application for particular inspection task.

A1560 SONIC-LHF is dedicated for high-frequency ultrasonic data acquisition applications on metals, composite materials and plastics, such as:

  • Pulse-echo data acquisition with single-crystal and dual-crystal transducers
  • Position-related data acquisition synchronized with external inspection manipulator
TRANSMITTER
Transmitter output voltage, V 200 V
Excitation sequence Meander, 0.5 to 5.0 periods
Pulse repitition rate, Hz 1 – 10.000 Hz
RECEIVER
Length of the data acquisition vector, Samples 128k
Sampling rate (MHz) 10, 25, 50, 100
Filter frequencies (FIR) HF 0.4, 0.8, 1,6, 3.2 MHz; LF 15 MHz
Receiving bandwidth 0.4 – 15 MHz
Dynamic range of amplifier, dB 0 to 80
Dynamic range of attenuator, dB - 20 to 0
Gain setup range from 0 to 100 dB, step 1 dB
The quantity of the programmable points of DAC function 128k
Dynamic range of DAC function 40 dB
Averaging factor 1 to 256
POWER SUPPLY
Embedded power source Built-in battery
Operation time of the battery (non-stop operation with high PRR) 5 h
Battery charging time 2.5 h
External power supply DC 15 V, 4A \ AC 110-250 V
DIMENSIONS & WEIGHT
Dimensions of the electronic block 260 х 156 х 43 mm
Weight of the electronic block 800 g
Operating temperature range from –20 to +45 ºC

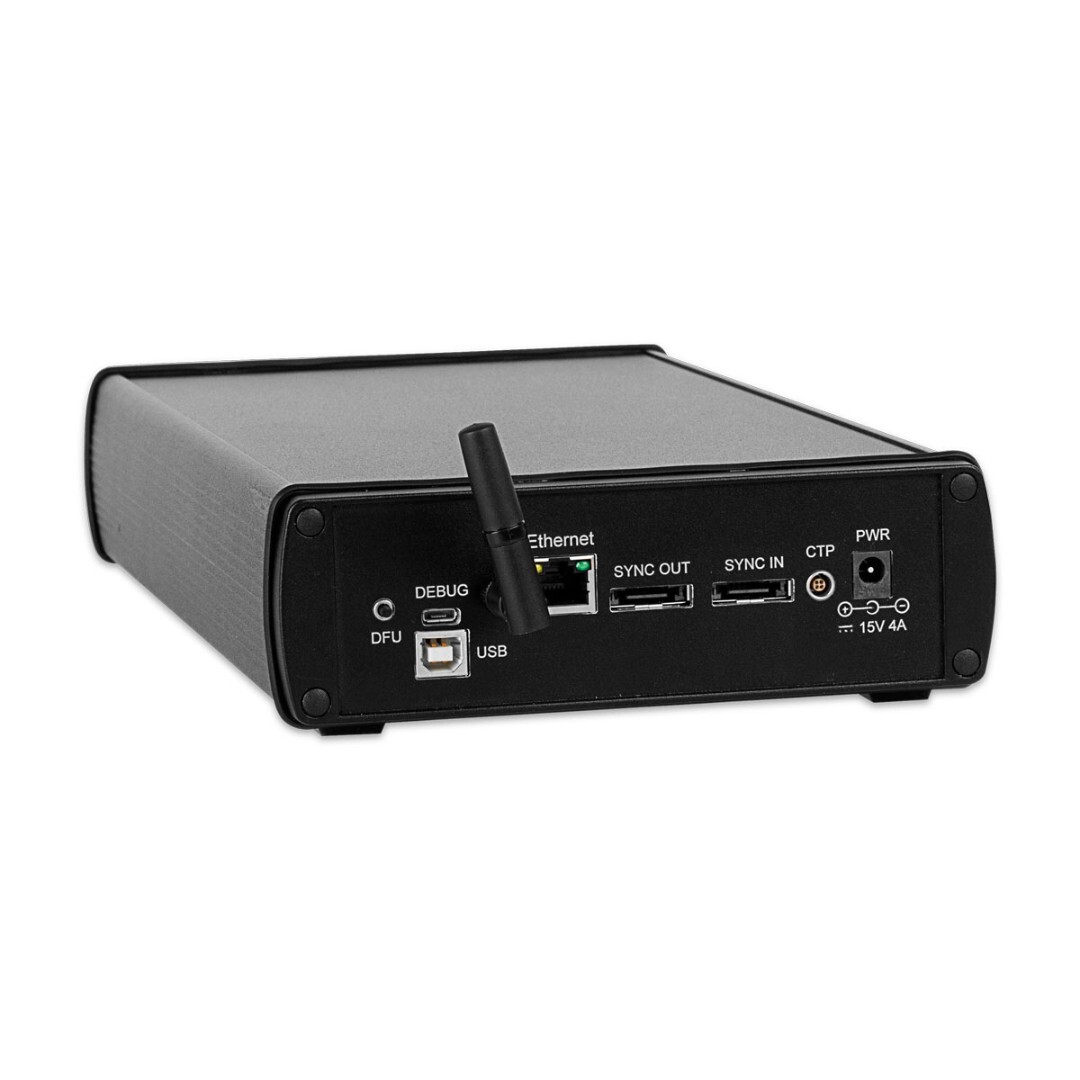

DATA INTERFACES
Wireless Ethernet 54 Mbit IEE802.11n
Ethernet 100 Mbit
External trigger input TTL
Name Quantity, pcs.
A1560 Sonic HF – Electronic Unit 1
Net adaptor with cable 220V-15V 1
Ethernet cable 1.5 meter 1
WiFi Antenne 1
Introductory application software „Mathilda“ 1
User manual for integration kit (SDK) 1
Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) 1
