ULTIMATE ULTRASONIC TOMOGRAPH FOR QUALITY ASSESSMENT OF CONCRETE STRUCTURES: THICKNESS MEASUREMENT, REBAR LOCALIZATION, FLAW DETECTION WITH ULTRASOUND

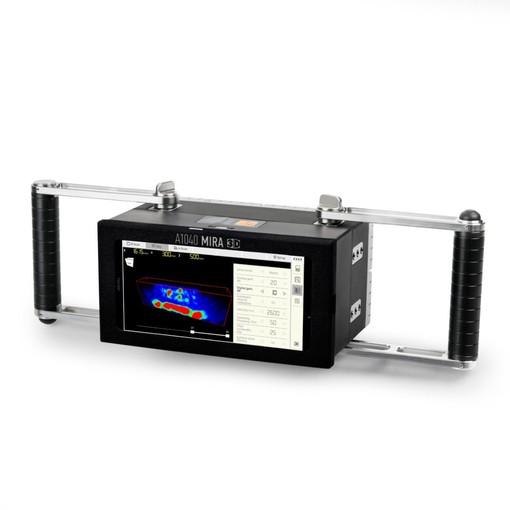

A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable for manual and automated assessment of concrete structures. Due to its novel A-DPC® sensor technology the new MIRA provides unbeatable penetration depth, inspection sensitivity, and imaging resolution by implementing three-dimensional FMC / TFM in each instrument position.
The instrument consists of a lightweight body with 4 x 8 Active Dry-Point-Contact transducers with integrated pulser-receiver circuits and parallel DAQ electronics wirelessly connected to the powerful smartphone that implements image reconstruction and visualization algorithms by means of parallel graphic processor units on-board. This hardware solution allows achieving the highest performance for real-time 3D-TFM imaging.
A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable for manual and automated assessment of concrete structures.
With special transmitting techniques such as E-Boosting, an outstanding penetration depth has been achieved even by using the instrument's relatively small active aperture. Although, for additional extending the inspection range arbitrary aperture extension can be utilized by two and more array units in one configuration.
INTROVIEW® Pro – Desktop or Laptop software for remote unit control and 3D visualization & analysis of Big Data is an essential part of the instrument delivered in the standard delivery set. The open data format for customized developments by the user – for offline and online applications – complete the functional package of this extraordinary instrument.
The ultrasonic tomograph A1040 MIRA 3D is the best solution for ultrasonic testing of highly scattering materials, such us concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials. Among others, following main applications can be mentioned as application fields of the instrument:
|Instrument type||Multi-channel ultrasonic pulse echo tomograph with built-in matrix transducer array|
|Number of channels||32 (extendable to 64, 96 etc.)|
|Number of independent elements in the matrix transducer aperture||32 (extendable to 64, 96 etc.)|
|Type of the ultrasonic transducers||Active dry point contact (A-DPC) transducers with ceramic wear proof tips and integrated pulser-receiver electronics|
|Bandwidth||from 10 to 100 kHz|
|Material sound velocity range||from 1.000 to 4.000 m/s (from 40 to 157 inches / s)|
|Maximum penetration depth in reinforced concrete||up to 3.000 mm (118 inch)|
|Power supply||Exchangeable Li-Ion battery 18650|
|Battery operation time||up to 10 hours|
|Maximum dimensions of one unit without handles:||200x125x100 mm (7,9 x 4,9 x 3,9 inch)|
|Maximum weight of the electronic unit with the batteries, handles and tablet PC mounted||3.5 kg|
|air temperature range||from -10 to + 50 С (from 14 to 122F)|
|relative air humidity at +35С / 95F, max.||95 %|
|Average service life, min.||5 years|
|Electronic unit A1040 MIRA 3D with 32 x A-DPC® transducers||1|
|Tablet-PC with protective case||1|
|Reference block for regular functional tests||1|
|Exchangeable Li-Ion battery 18650||6|
|Type C power supply||2|
|Data cable USB Type C||2|
|INTROVIEW® Pro Software with 12 Months Update & Support service||1|
|Screwdriver for battery exchange||2|
