S5280 – angle-beam transducer 1,8 MHz / 45°

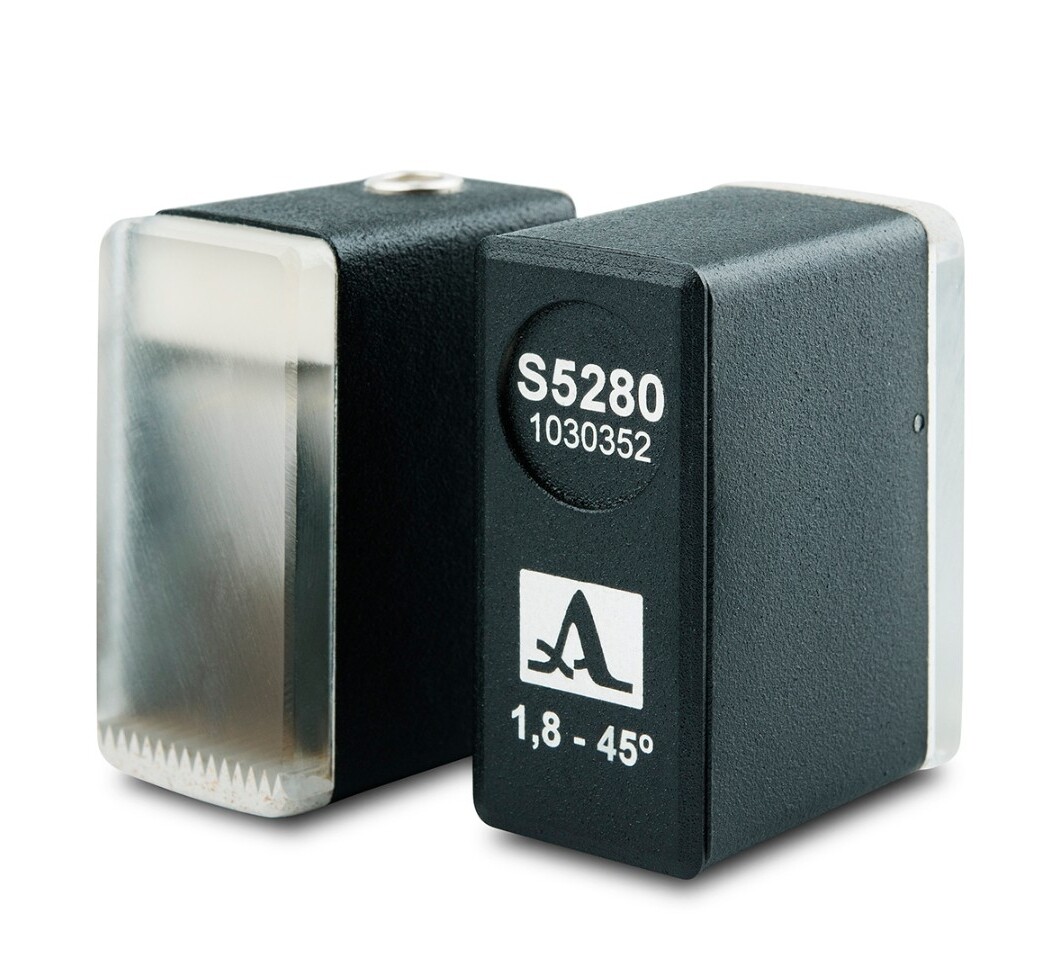

Angle-beam ultrasonic transducer for transmitting and receiving the ultrasonic shear waves
The ultrasonic angle-beam transducer S5280 is used to perform ultrasonic flaw detection in metallic, plastic and composite materials by transmitting and receiving ultrasonic shear waves. The transducer can be used as a part of ultrasonic flaw detectors in pulse-echo mode.
The transducer can be driven by the following ACS instruments:

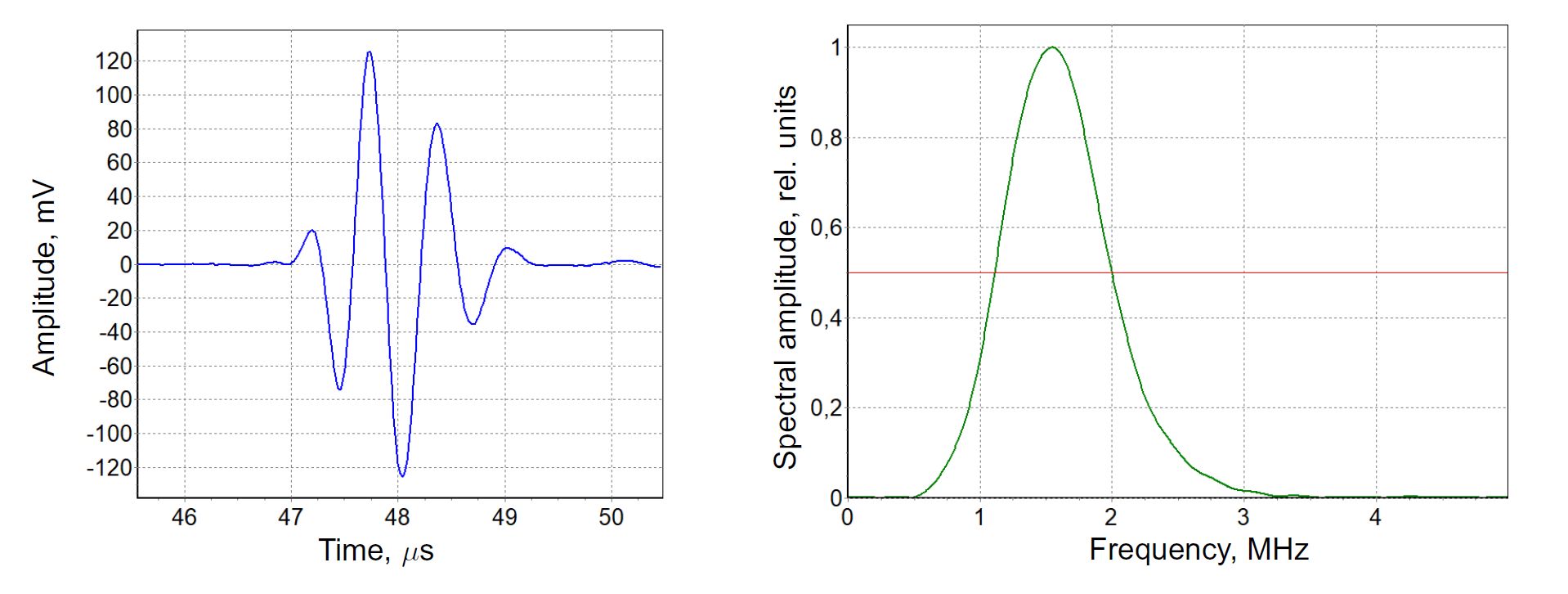

| Type of transducer | angle-beam, piezoelectric |
| Nominal beam angle | 45°C |
| Nominal frequency | 1,8 MHz |
| Effective transducer aperture diameter | 18 mm |
| Piezo-element electric capacity | 3500 ± 50 pF |
| Maximum excitation pulse voltage, V | ± 250 V |
| Operating temperature range | –20...+50°C |
| Connector type | LEMO00.250 |
| Dimensions | 24 × 27 × 23 mm |
| Weight | 40 g |
