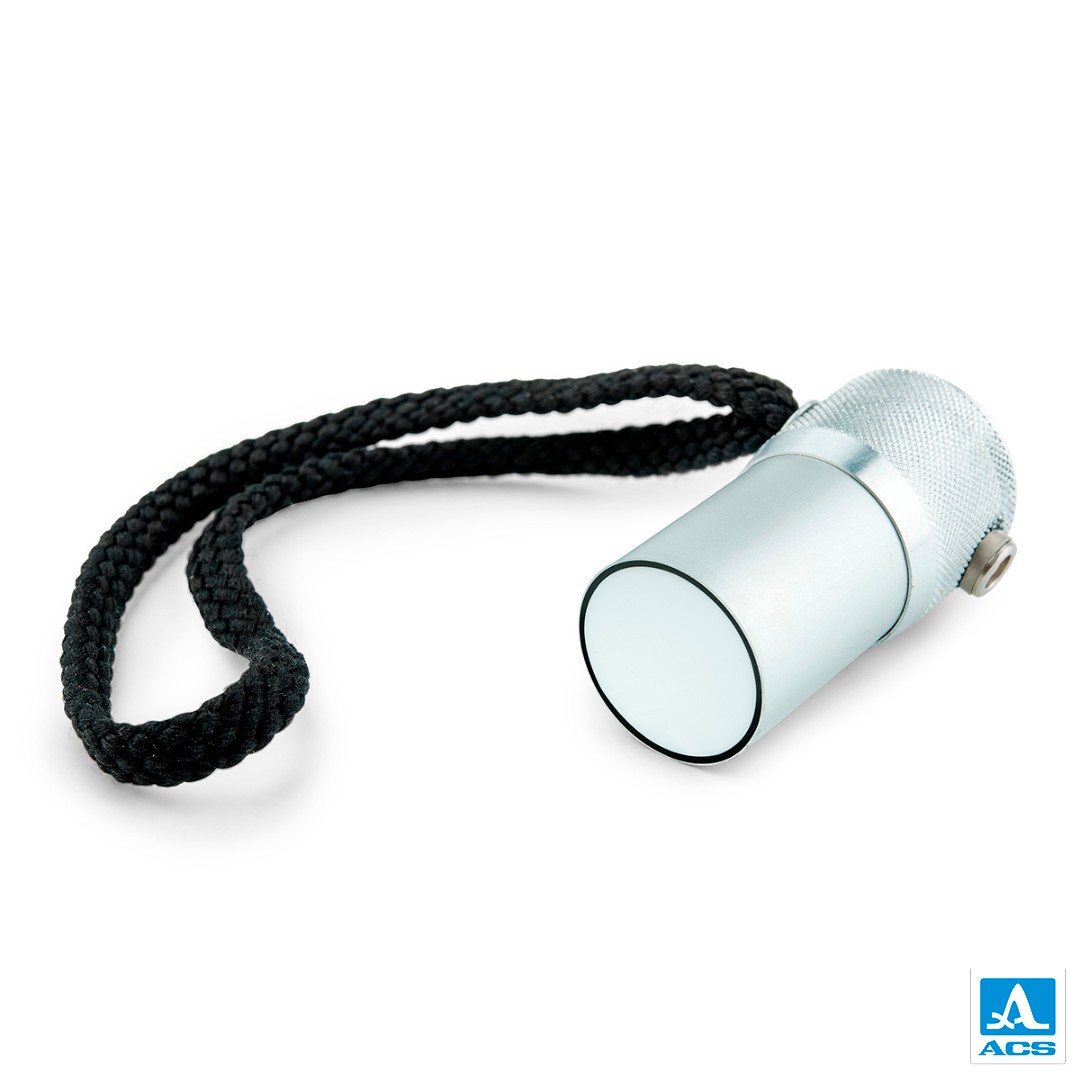

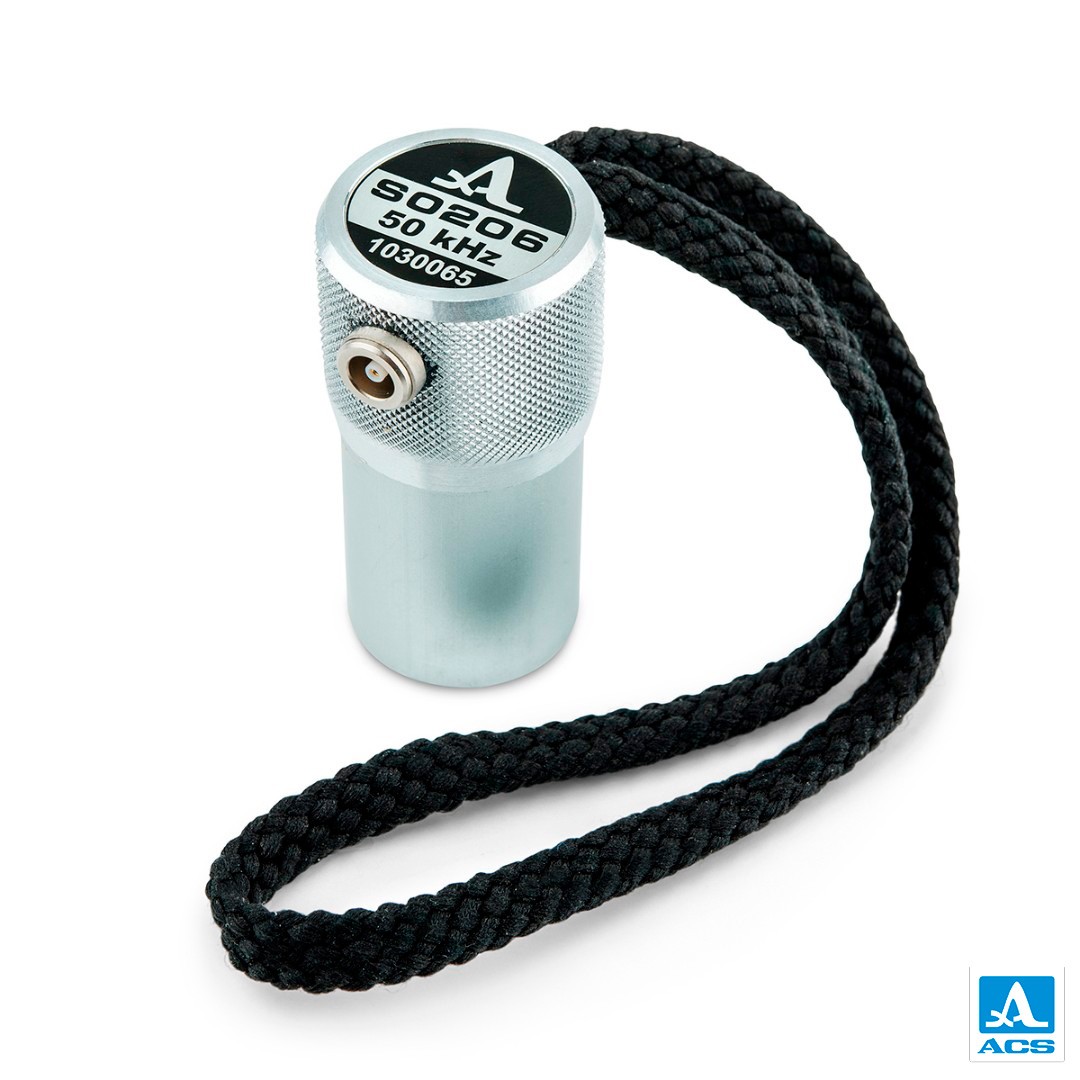

S0206 – Low frequency piezoelectric transducer 50 KHz
Low-frequency ultrasonic transducer for transmitting and receiving the longitudinal ultrasonic waves
A general-purpose ultrasonic transducer S0206 can be applied for ultrasonic testing of various materials and products to evaluate their physical and mechanical properties using transmitting and receiving of ultrasonic longitudinal waves. The transducer can be used as a part of ultrasonic low frequency flaw detectors in pulse-echo mode or ultrasonic pulse velocity testers in through-transmission mode.
The transducer can be driven by following ACS instruments:
| Type of transducer: | Piezoelectric with liquid contact, low frequency, short pulse, low noise |
| Type of generated wave mode: | Longitudinal |
| Nominal frequency: | 50 ± 5 kHz |
| Effective transducer aperture diameter: | 25 mm |
| Delay time in the transducer protector: | 0.2 ms |
| Electric capacity of the piezoelectric element: | 8900 ± 900 pF |
| Maximum excitation pulse voltage, V: | ± 250 V |
| Connector type: | LEMO00 |
| Overall dimensions: | 69 х d28 mm (31 mm on connector) |
| Weight: | 200 gr |
