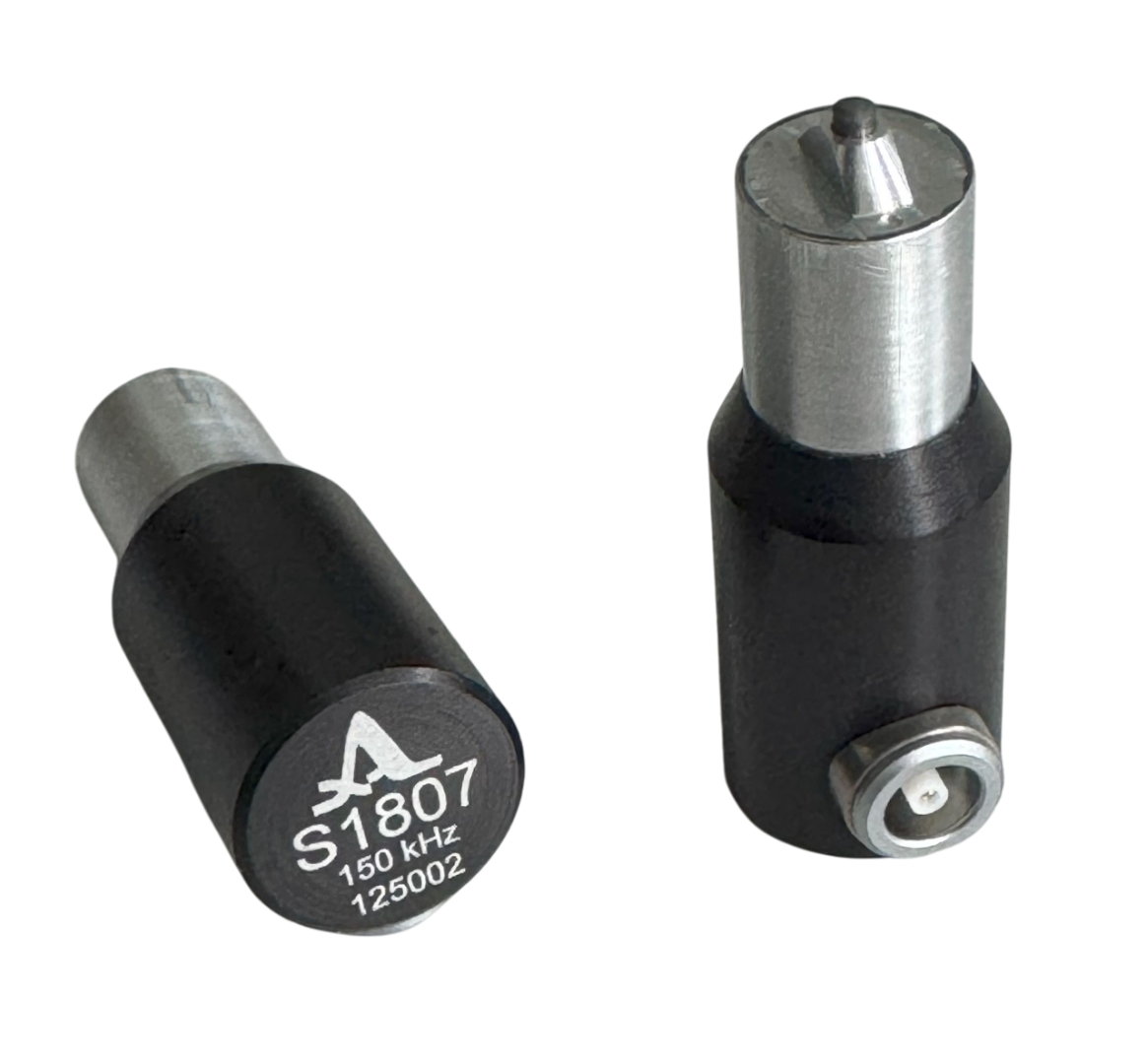

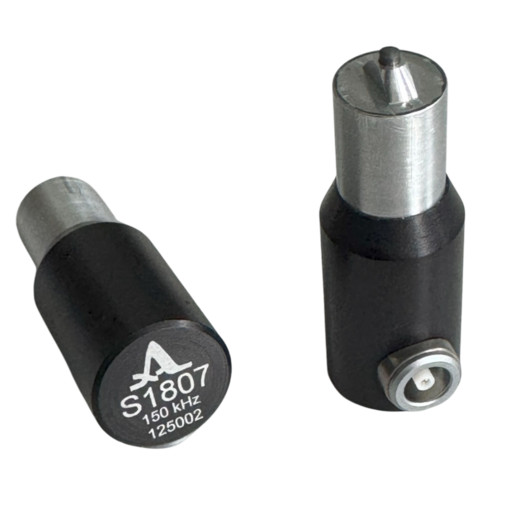

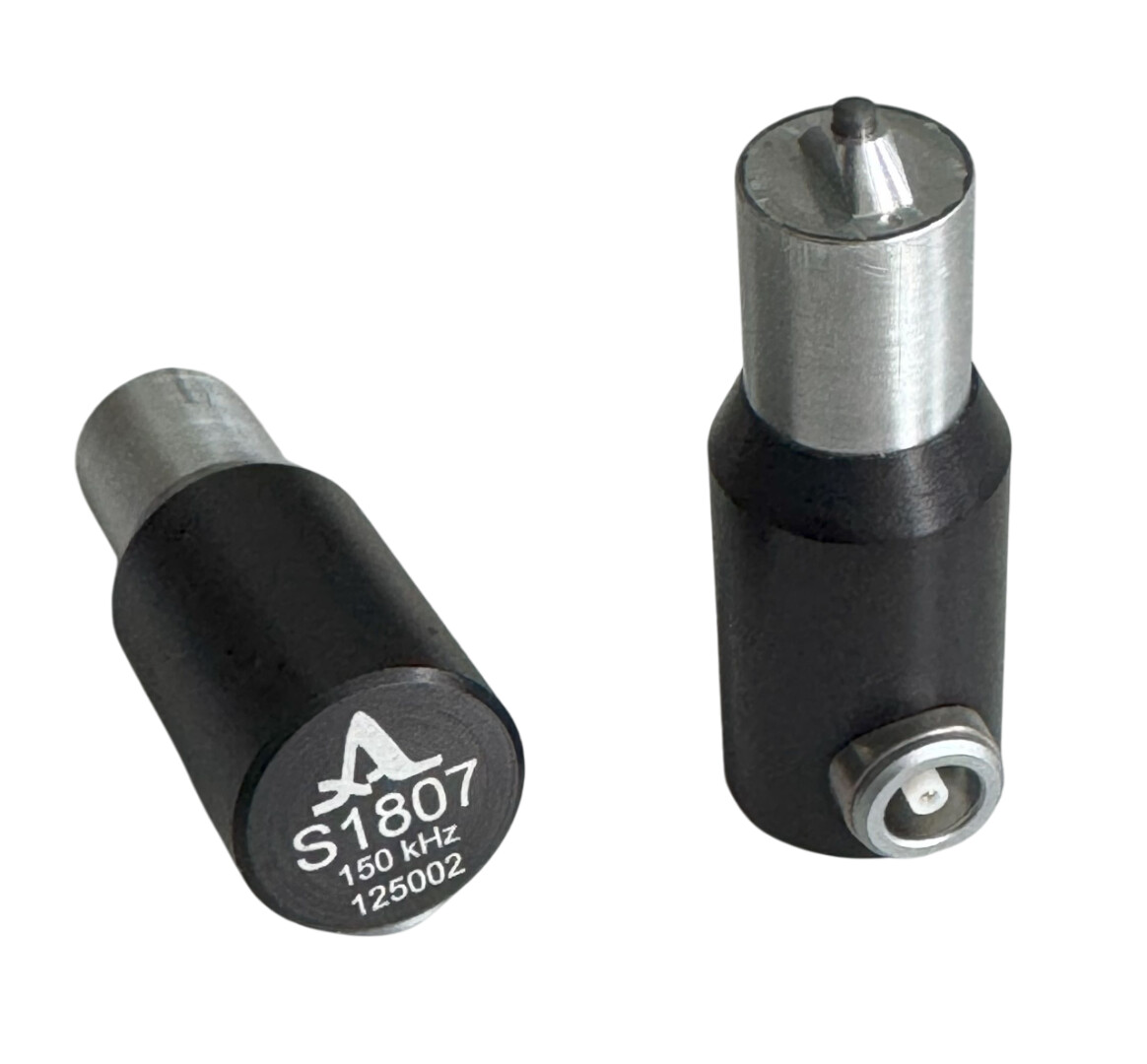

S1807 - shear wave DPC transducer 150 KHz
A low-frequency ultrasonic transducer is used for transmitting or receiving shear-horizontal ultrasonic waves in a broad frequency range from 100 to 200 KHz through transmission testing.

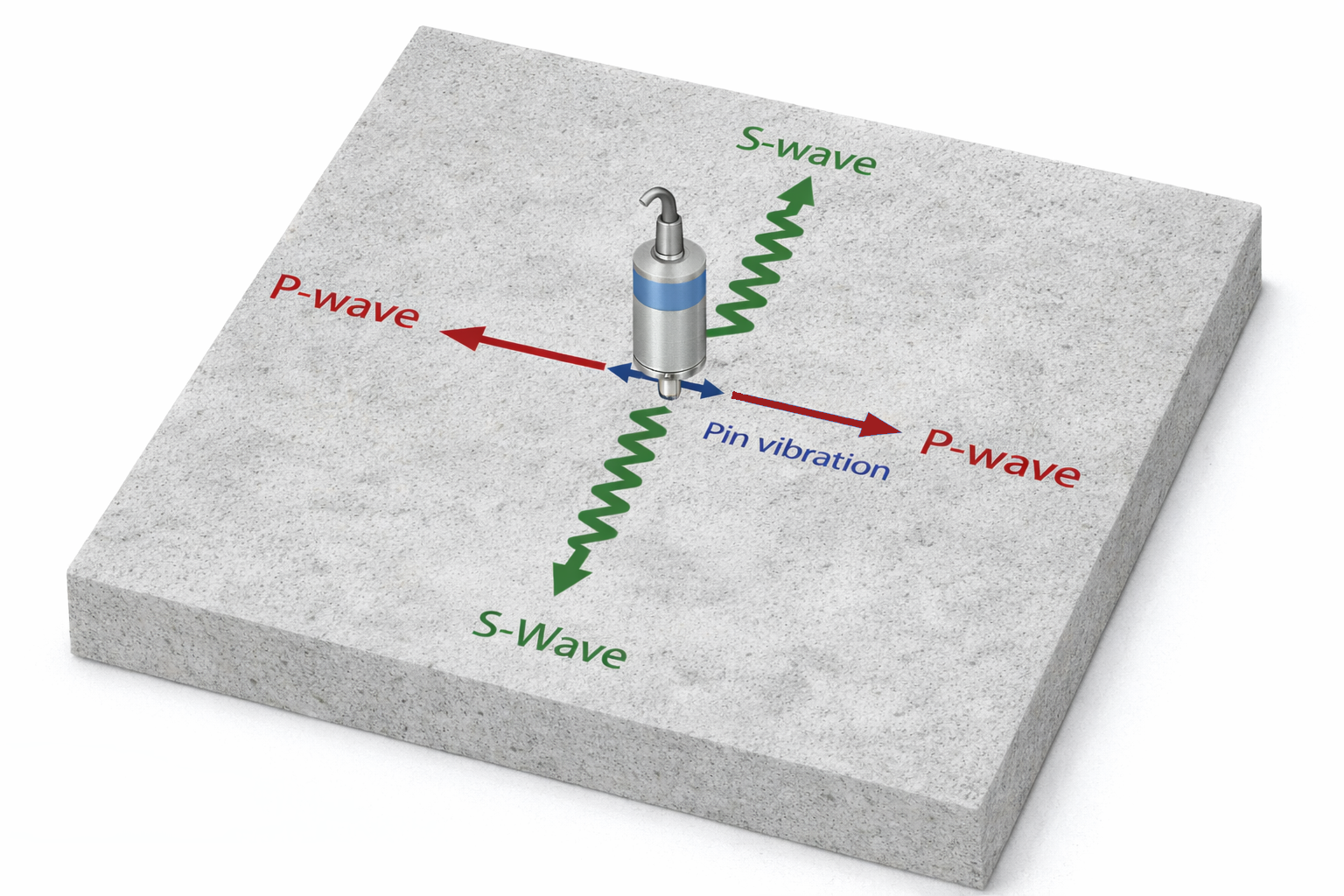

A general-purpose low-frequency transducer with the nominal frequency of 150 KHz for the dry-point-contact (DPC) excitation or acquiring shear ultrasonic waves in highly scattering materials (concrete, wood, stones etc)
It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g., for customization of transducer arrays by the customer.
The following ACS instruments can drive the transducer:
| Transducer type | Dry Point Contact |
| Type of generated wave mode: | Shear |
| Nominal frequency | 150 KHz |

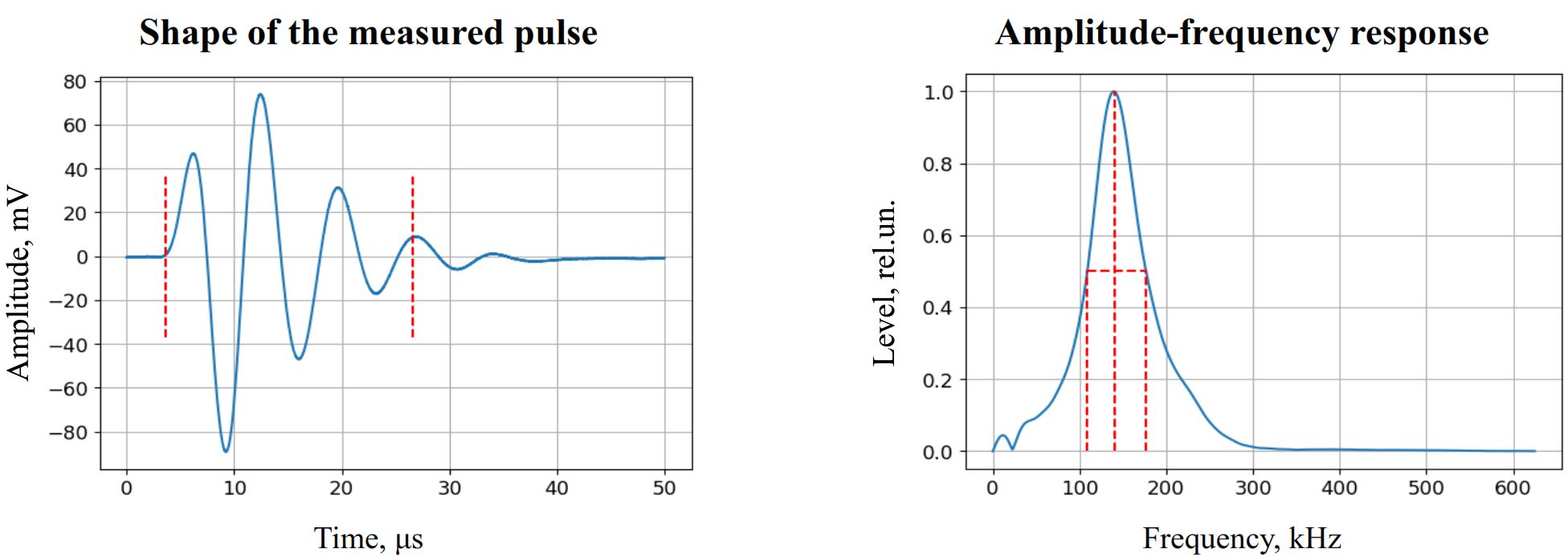

| Band width | 100 to 200 KHz |
| Capacity | 1250 pF ± 100 pF |
| Maximal pulse voltage (bipolar) | 400 V (peak-to-peak) |
| Temperature range | -20 to +50ºC |
| Weight | 11 g |
