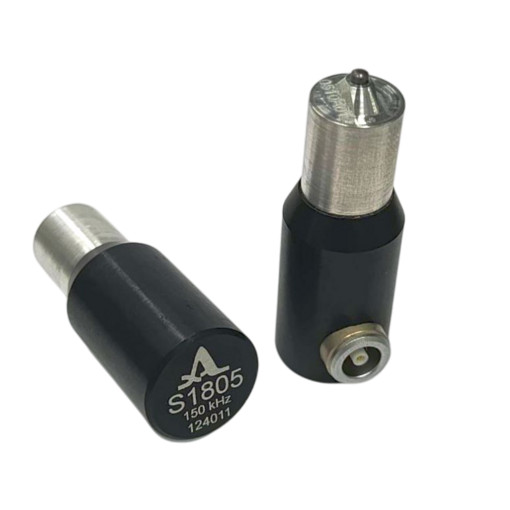

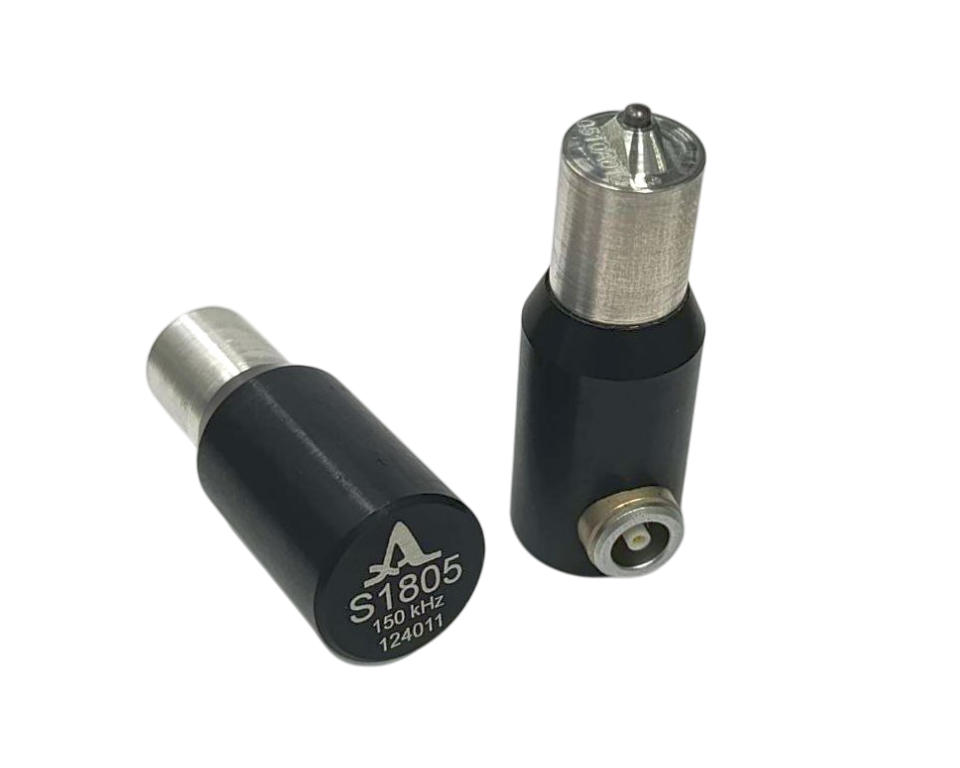

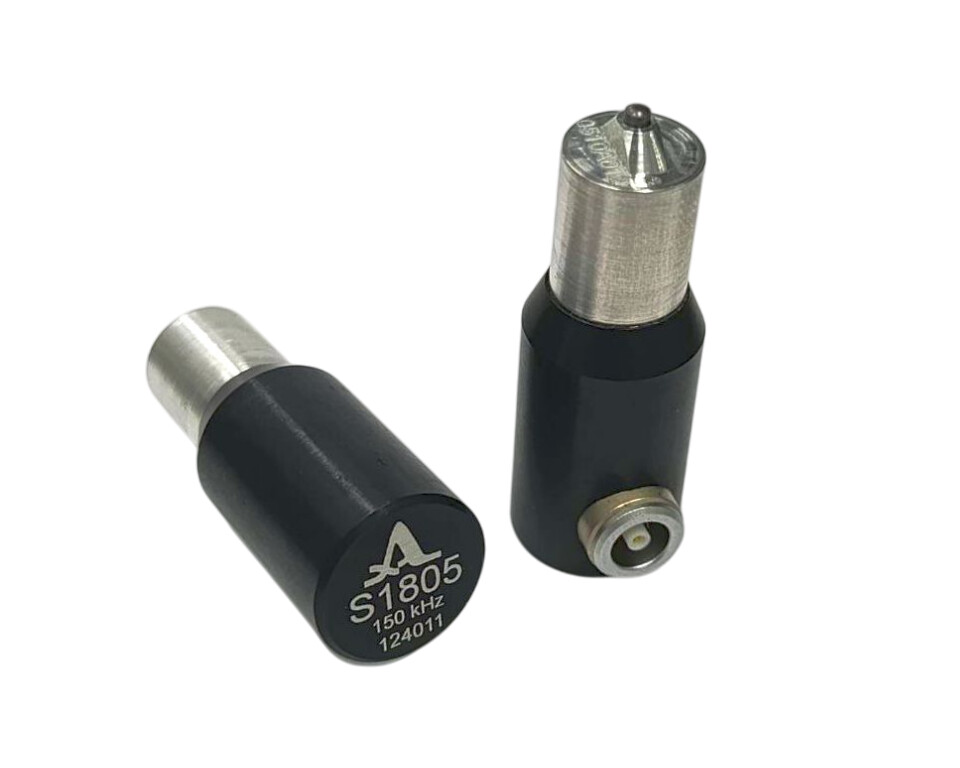

S1805 - longutudinal wave DPC transducer 150 KHz

Low-frequency ultrasonic transducer for transmitting or receiving the shear-horizontal ultrasonic waves in a broad frequency range from 120 to 340 KHz through-transmission testing.

A general-purpose low-frequency transducer with the nominal frequency of 150 KHz for the dry-point-contact (DPC) excitation or acquiring longitudinal ultrasonic waves in highly scattering materials (concrete, wood, stones etc)

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g., for customization of transducer arrays by the customer.

The transducer can be driven by the following ACS instruments:

Transducer type Dry Point Contact
Type of generated wave mode: Longitudinal
Nominal frequency 150 KHz

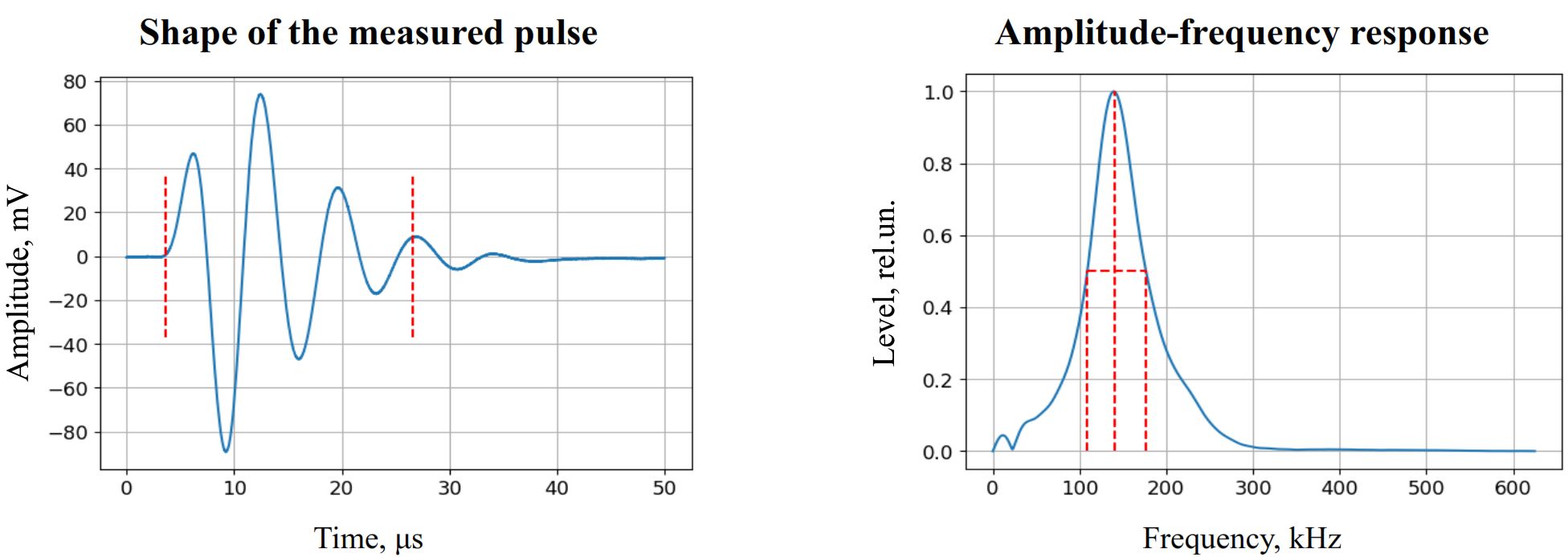

Band width 100 to 200 KHz
Capacity 1250 pF ± 100 pF
Maximal pulse voltage (bipolar) 400 V (peak-to-peak)
Temperature range -20 to +50ºC
Weight 11 g
