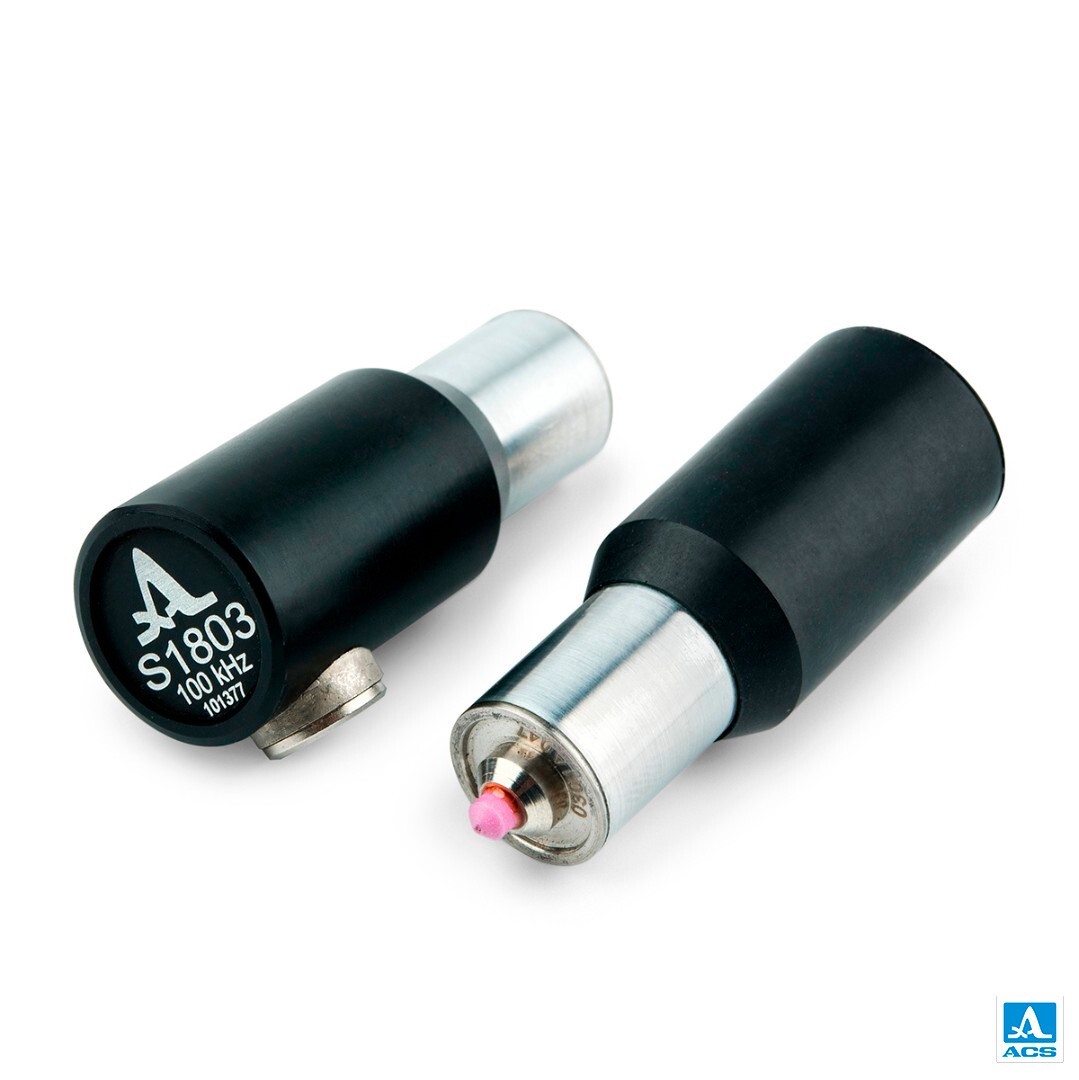

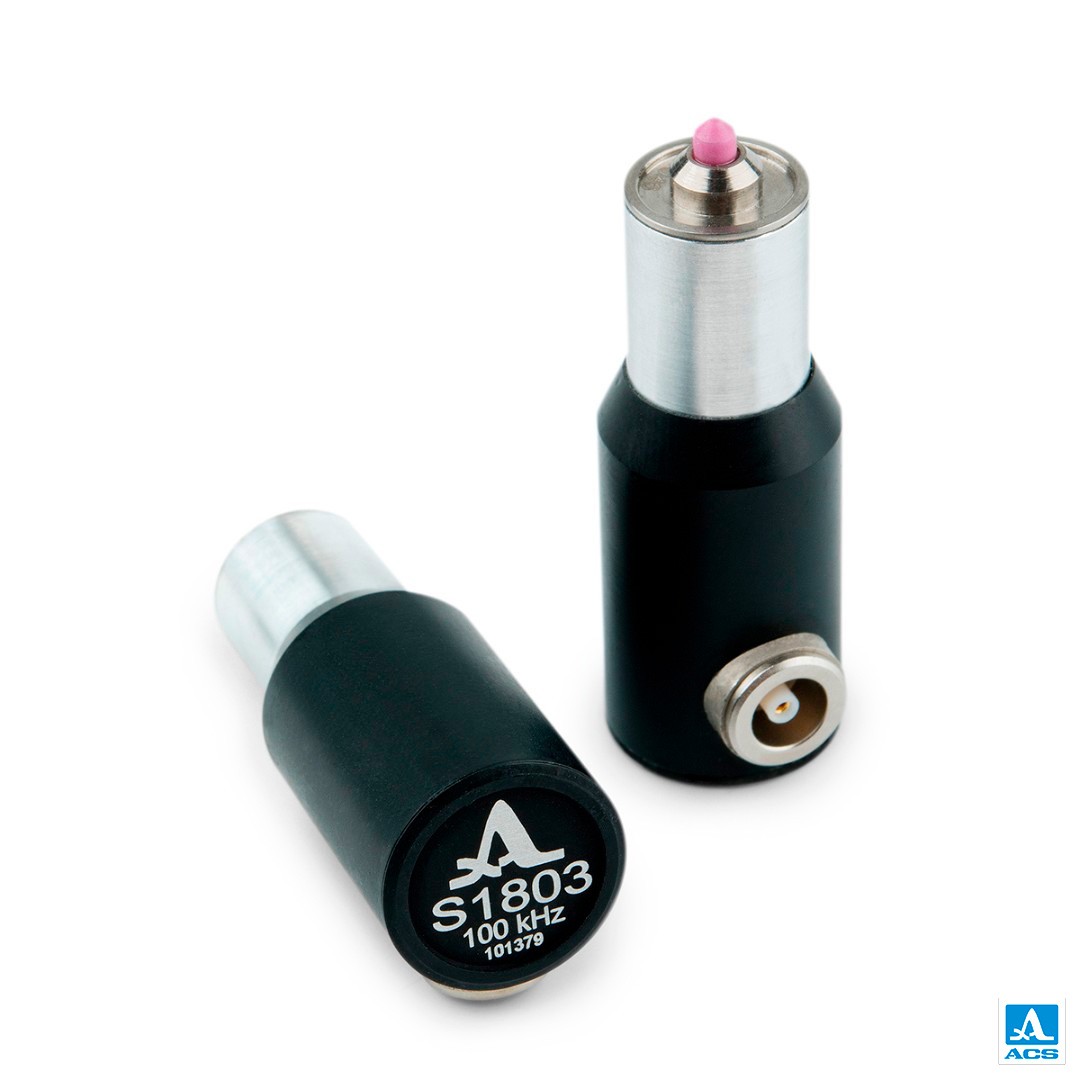

S1803 – Longitudinal wave DPC transducer 100 KHz
Low-frequency ultrasonic transducer for transmitting or receiving the longitudinal ultrasonic waves in a broad frequency range from 10 to 160 KHz for through-transmission and pulse-echo testing.
A general-purpose low-frequency transducer with the nominal frequency of 100 KHz for the dry-point-contact (DPC) excitation or acquiring longitudinal ultrasonic waves in highly scattering materials (concrete, wood, stones etc.)

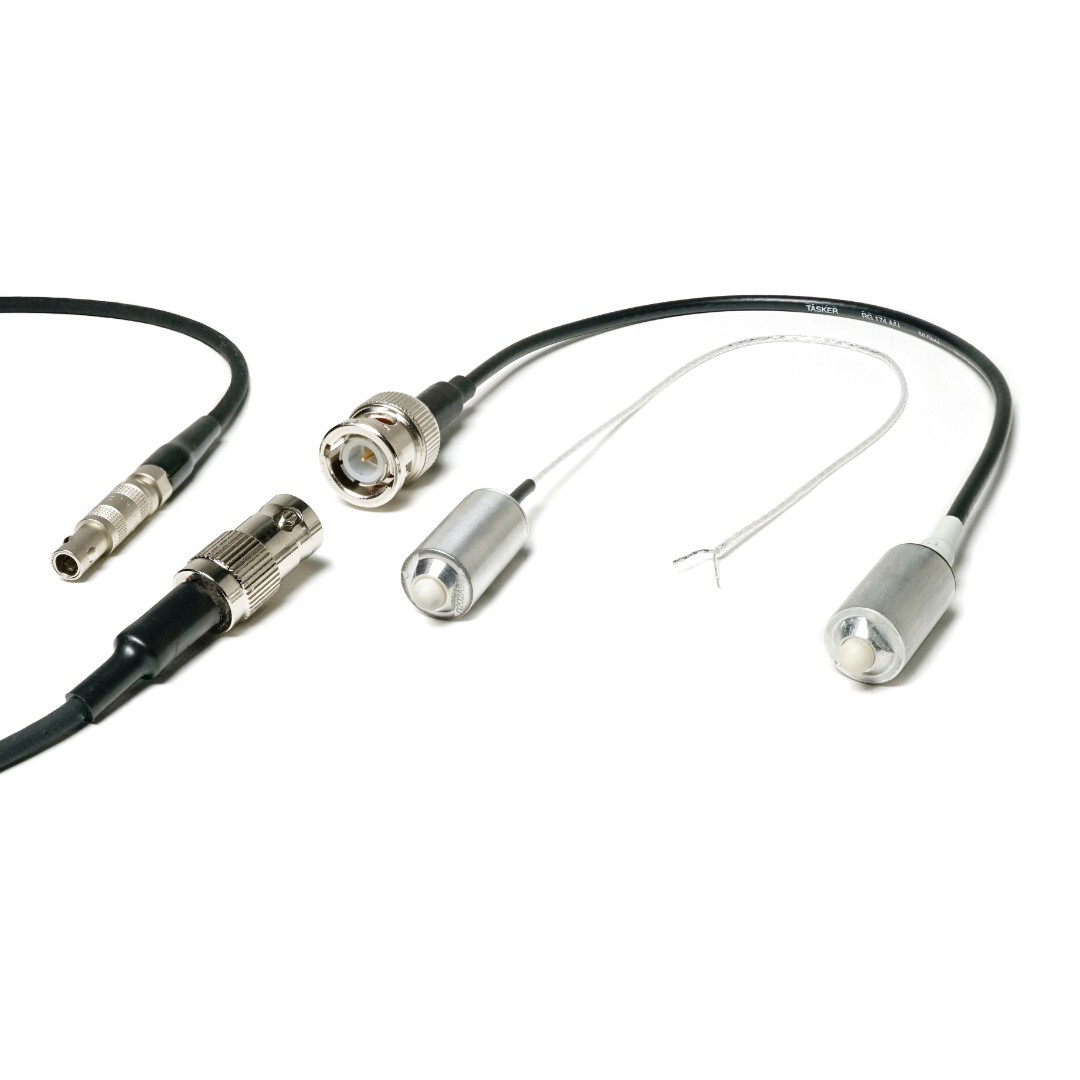

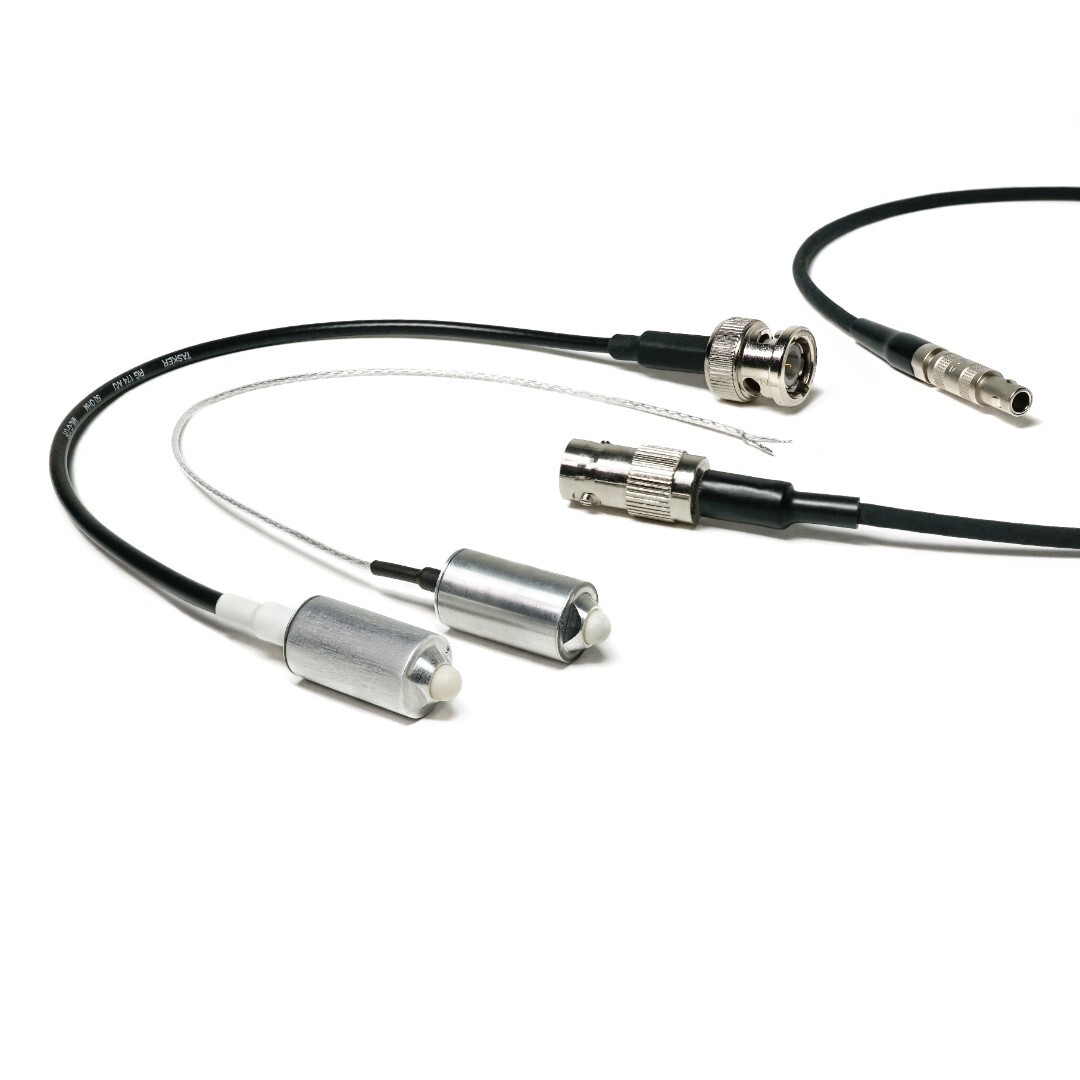

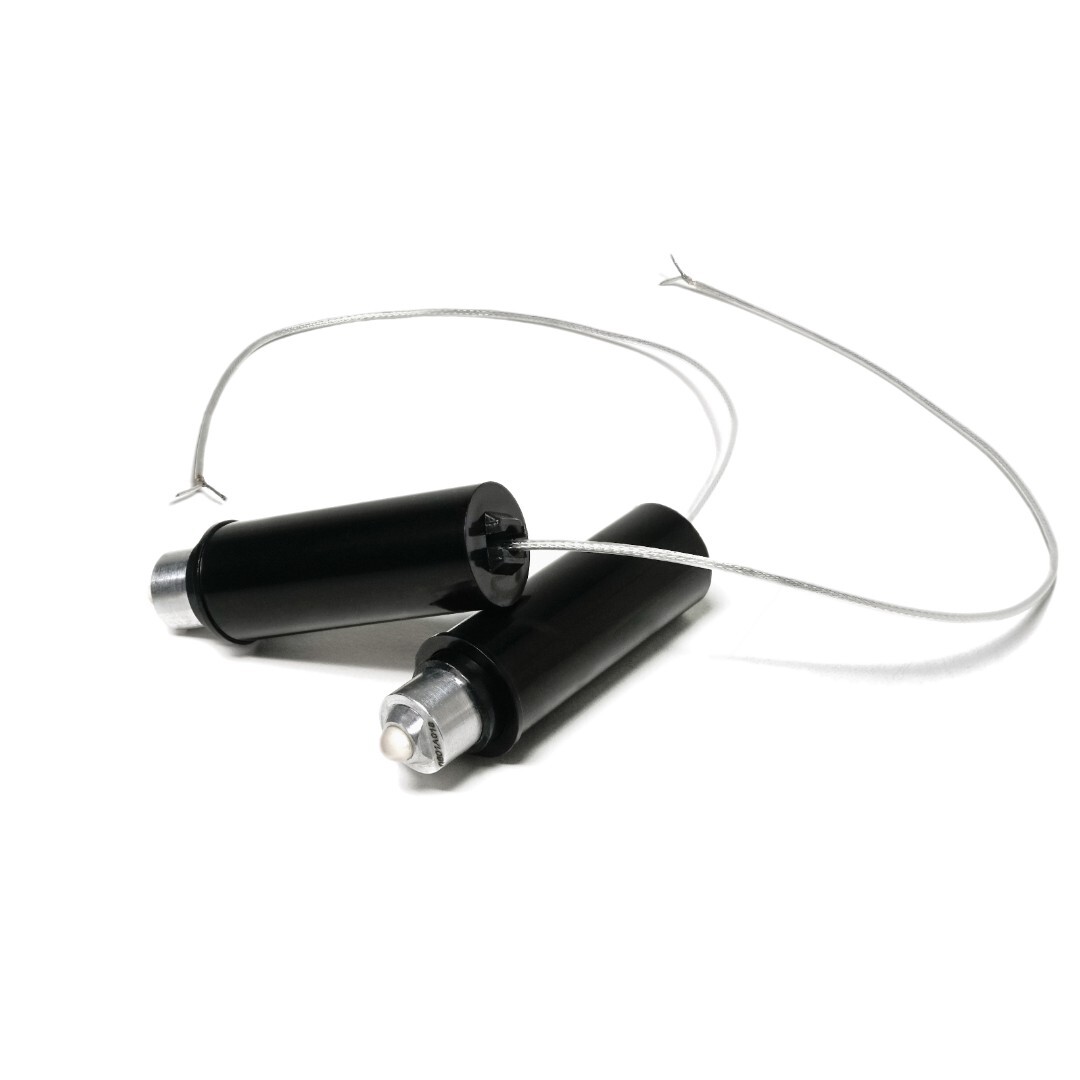

It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer.
The transducer can be driven by following ACS instruments:
| Transducer type | Dry Point Contact |
| Nominal frequency | 100 KHz |
| Band width | 10 to 160 KHz |
| Capacity | 950 pF ± 50 pF |
| Maximal pulse voltage (bipolar) | 400 V (peak-to-peak) |
| Temperature range | -20 to +50ºC |
| Weight | 14 g |
