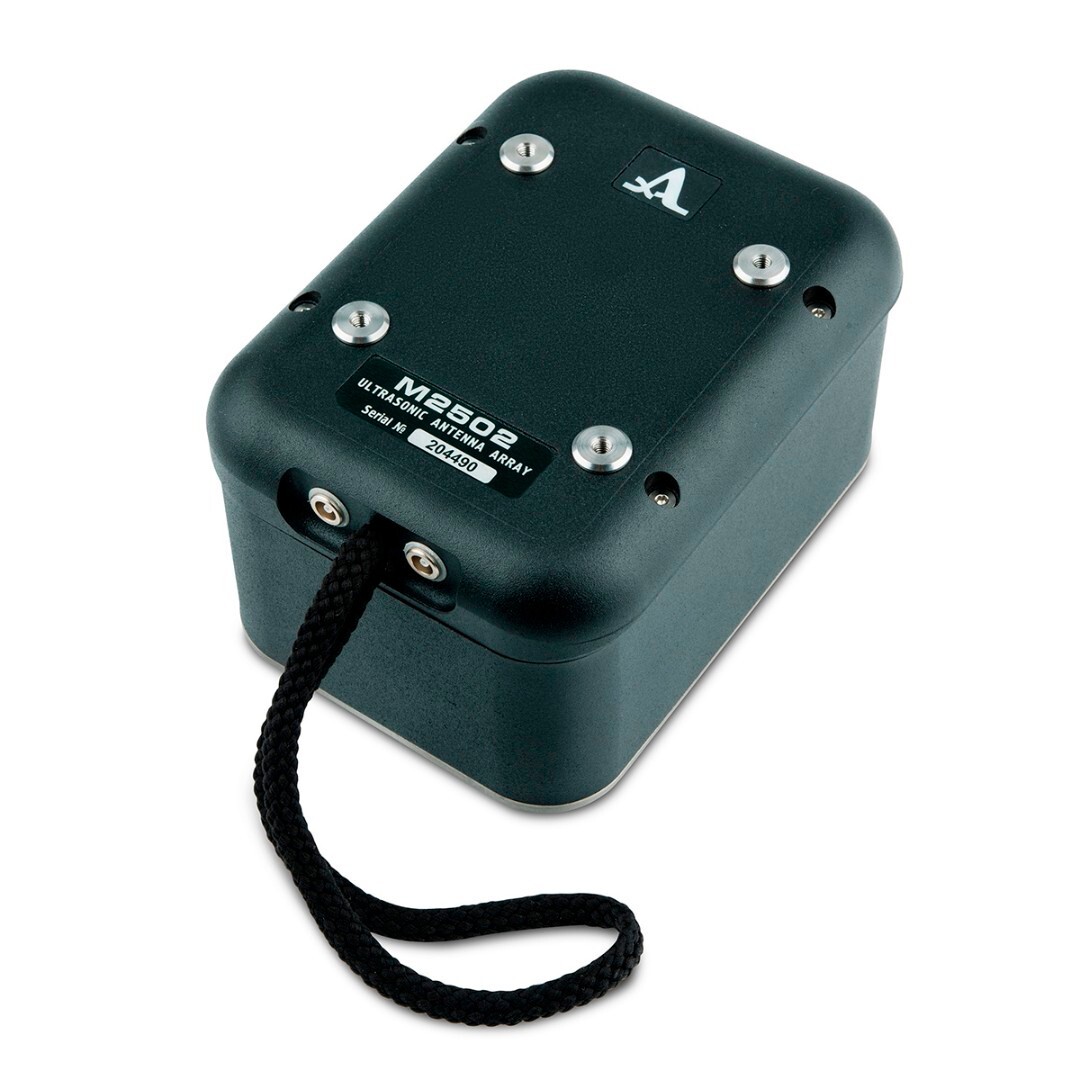

M2502 – dual aperture shear-wave DPC transducer array 50 KHz

Low-frequency dual ultrasonic transducer array for pulse-echo ultrasonic testing of concrete structures by means of shear-horizontal ultrasonic waves.

Get a quote

A general-purpose low-frequency ultrasonic transducer array with the nominal frequency of 50 KHz for the dry-point-contact (DPC) pulse-echo transmitting and receiving ultrasonic waves in highly scattering materials (concrete, wood, stones etc.) by means of dual-aperture arrangement.

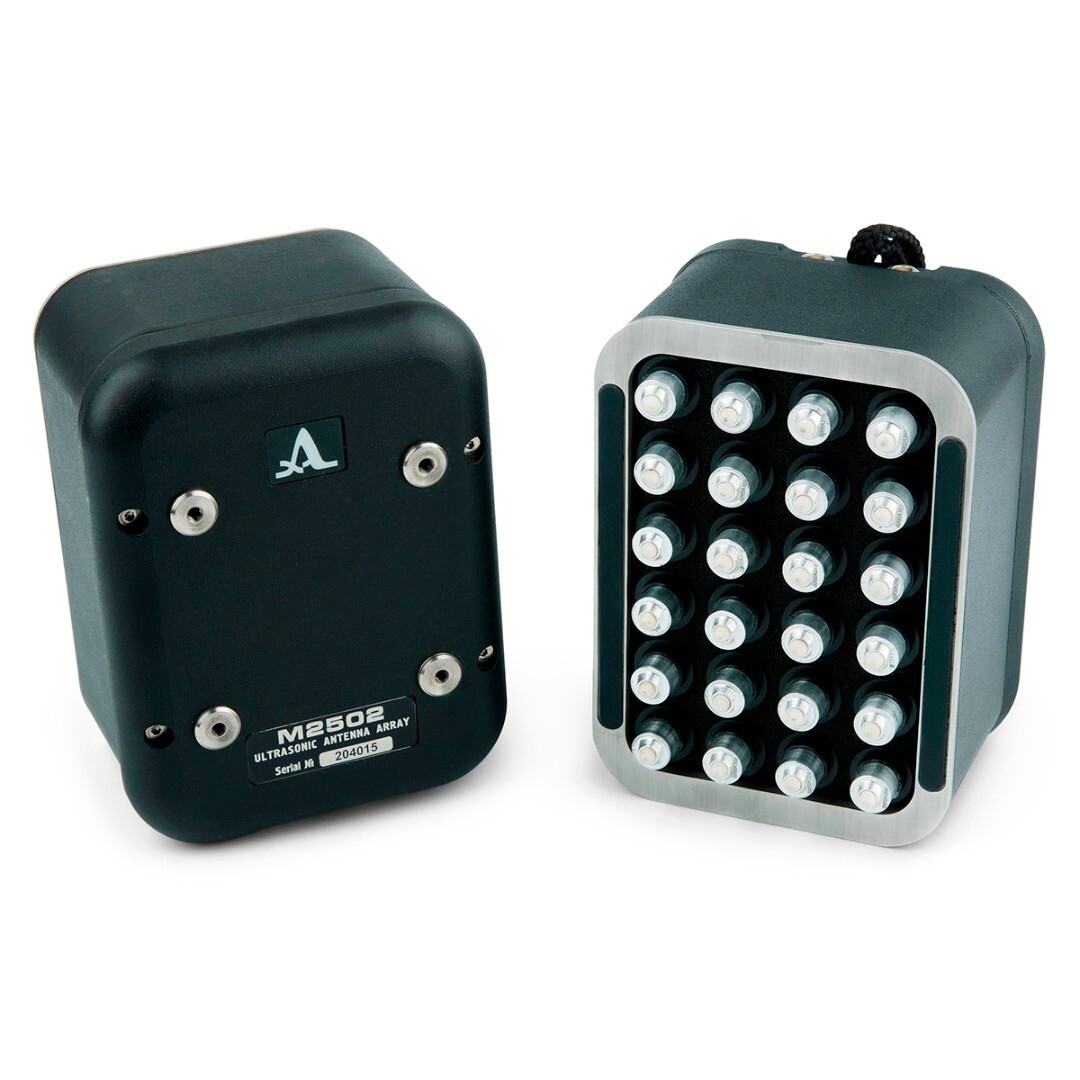

Two independent groups of 3 x 4 elements perform transmitting and receiving of shear-horizontal ultrasonic waves and allow deep penetration and reduced dead zone of ultrasonic testing.

The transducer can be driven by following ACS instruments:

Transducer type Dry Point Contact transducer array
Generated wave mode Shear-horizontal
Nominal frequency 50 KHz

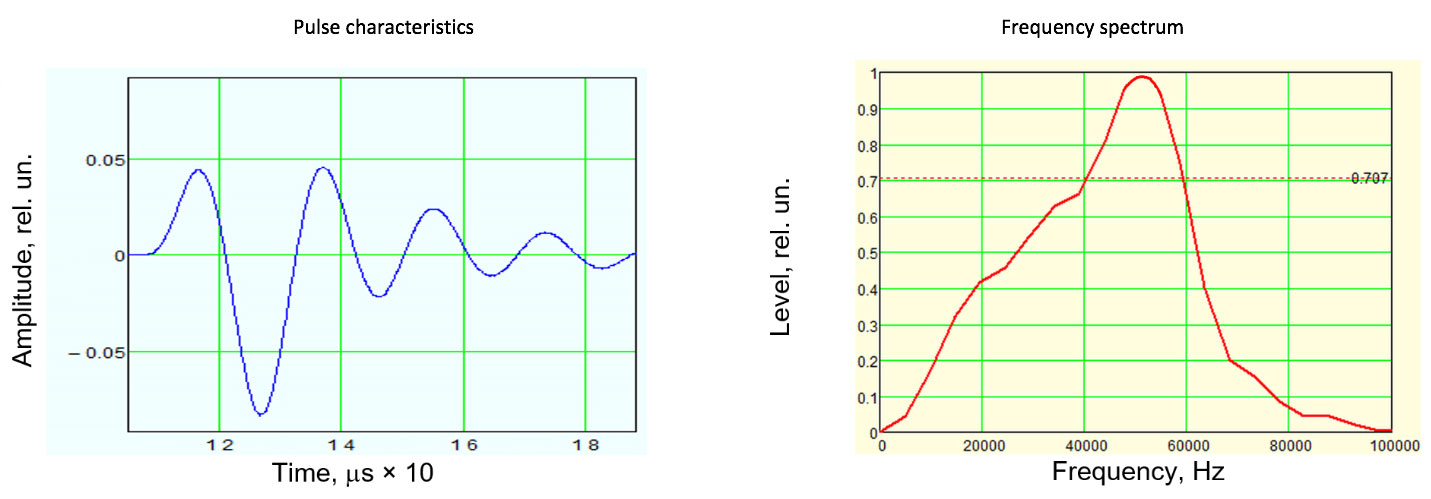

Band width 10 to 100 KHz
Capacity 3.500 pF ± 100 pF
Maximal pulse voltage (bipolar) 400 V (peak-to-peak)
Connector type Lemo00
Temperature range -20 to +50ºC
Dimensions 139,5 х 105,5 х 83,5 mm
Weight 1.1 kg
