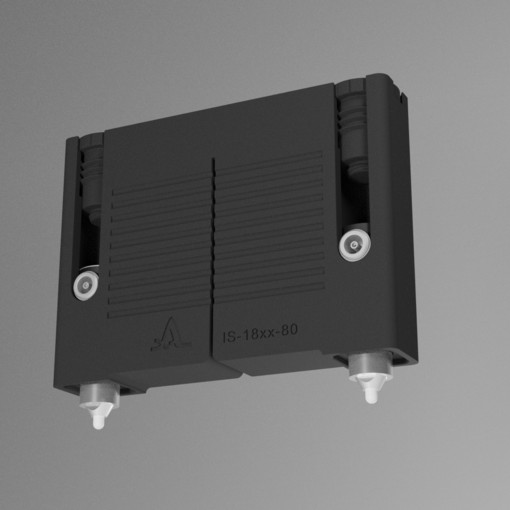

Indirect Shear-Wave Probe Holder for ACS DPC Transducers (IS-18xx Series)
The IS-18xx Indirect Shear-Wave Probe Holder is a precision mechanical accessory for single-sided ultrasonic S-wave measurements using ACS Dry-Point-Contact (DPC) transducers. It is designed specifically for use with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester.
In indirect (surface) mode, both DPC shear transducers are placed on the same surface of the material. The IS-18xx holder ensures correct angular orientation of the shear-wave probes, a stable and repeatable pitch distance, and reliable coupling pressure. These factors are essential for accurate shear-wave velocity measurements on concrete, stone, masonry, and composite structures.
The IS-18xx series supports several standard pitch configurations corresponding to all ACS shear-wave DPC transducers supported by the A1220 MONOLITH UPVT. This enables accurate surface-based S-wave velocity assessment in applications where direct transmission is impractical or where only one surface is accessible.
Indirect shear-wave holder for ACS DPC probes, ensuring fixed pitch, stable coupling pressure and precise probe alignment for surface-based S-wave UPV measurements with the A1220 MONOLITH UPVT.

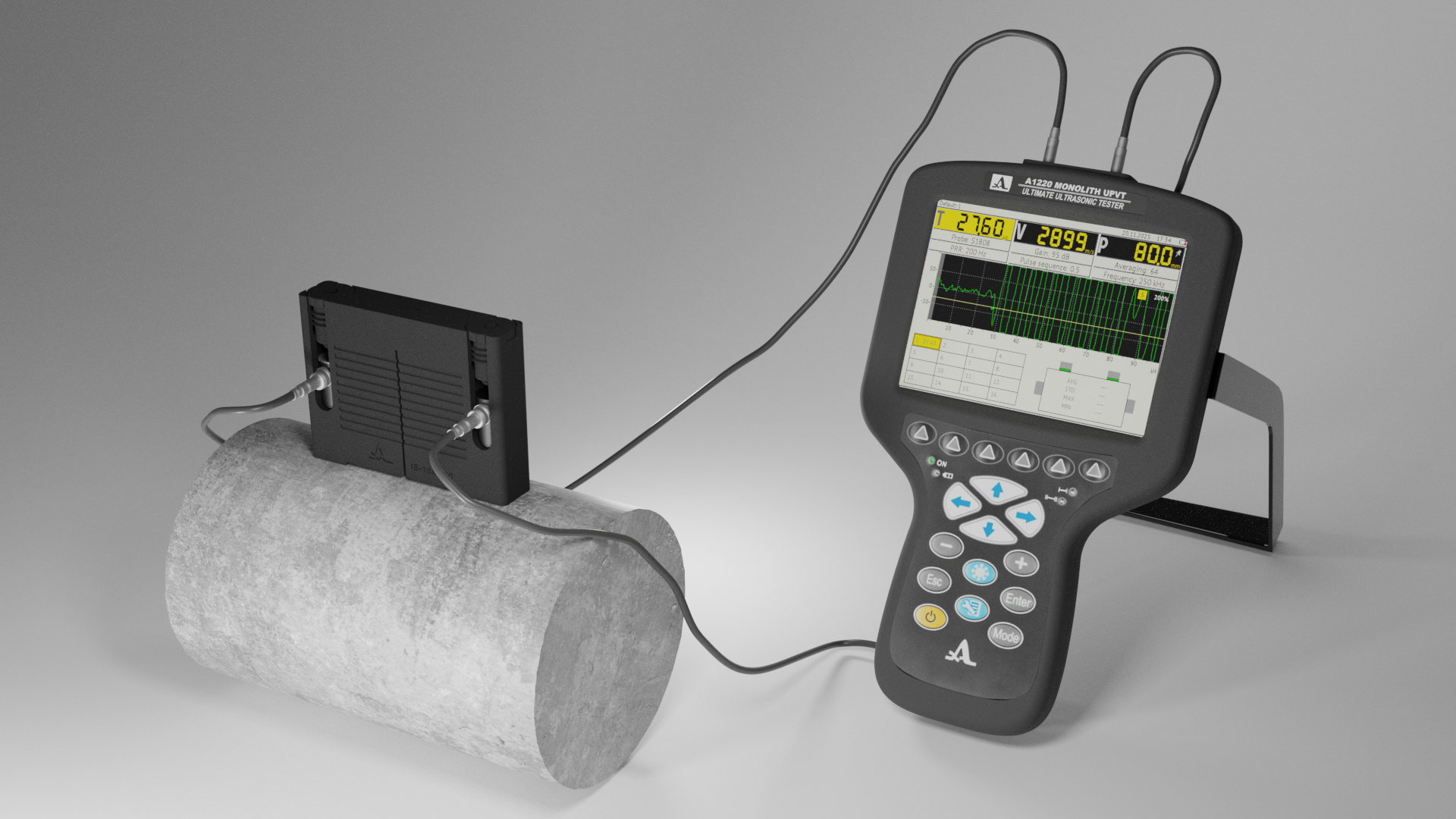

The IS-18xx holder is used with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester to perform shear-wave measurements in indirect (surface) transmission mode. Both DPC shear transducers are positioned on the same surface of the test object, enabling S-wave UPV evaluation when opposite-side access is limited or impossible.
Accurate indirect S-wave measurements require:
• correct orientation of the shear-wave vibration direction
• constant lateral coupling pressure
• a fixed and reproducible pitch distance
The IS-18xx holder ensures these conditions through a rigid mechanical frame and a spring-stabilised probe mounting system.
Compatible ACS shear-wave DPC transducers:
• S1802 — 90 mm pitch
• S1801 — 70 mm pitch
• S1807 — 50 mm pitch
• S1808 — 30 mm pitch
Typical applications with the A1220 MONOLITH UPVT:
• indirect shear-wave velocity measurements
• detection of cracks, voids and anisotropy
• material stiffness evaluation
• surface-access diagnostic testing of concrete and stone structures
| Parameter | Value |
| Avaiable pitch sizes | 30 mm, 50 mm, 70 mm, 90 mm |
| Compatible DPC transducers | S1802, S1801, S1807, S1808 |
| Wave type | Shear (S-wave) |
| Transmission mode | Indirect (surface) |
| Compatible system | A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester |
| Coupling method | Dry-Point-Contact (DPC) |
| Supported materials | Concrete, stone, masonry, composites |
| Pitch accuracy | ±2 mm |
| Frame construction | Rigid shear-wave alignment support |
• IS-18xx Indirect Shear-Wave Holder Frame
• Dual DPC shear probe mounting brackets
• Spring-loaded coupling mechanism
• Shear-wave orientation markers
• Protective transport sleeve / carrying case
