Indirect Longitudinal Probe Holder for ACS DPC Transducers (IL-18xx Series)

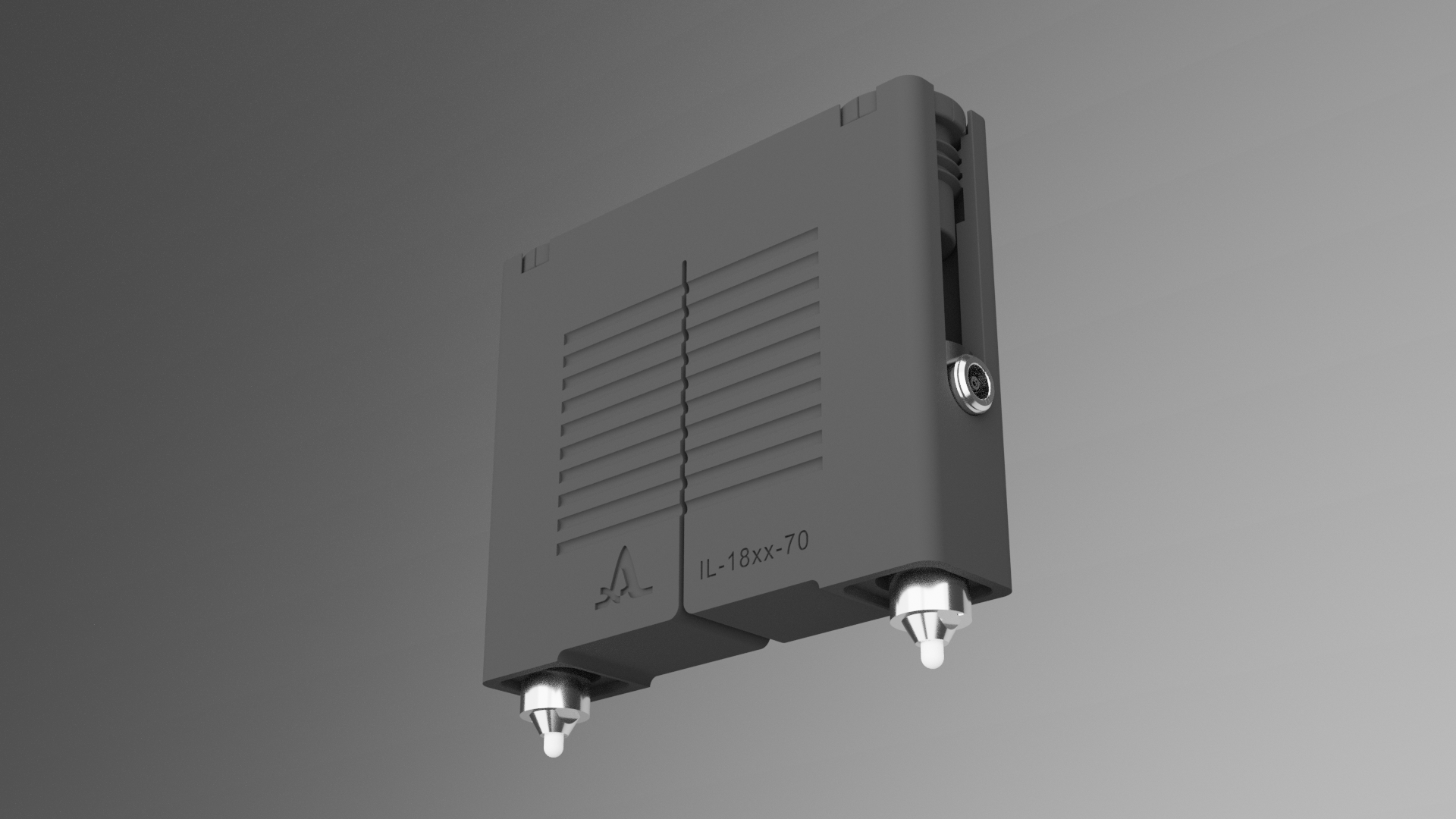

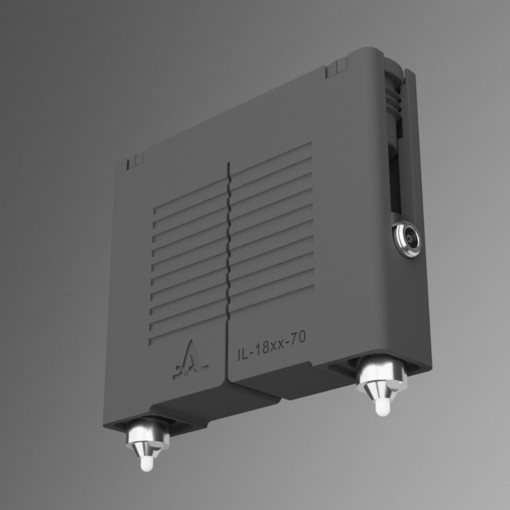

The IL-18xx Indirect Longitudinal-Wave Probe Holder is a precision mechanical accessory for performing single-sided ultrasonic measurements with ACS Dry-Point-Contact (DPC) transducers. It is designed specifically for use with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester.
In indirect (surface) mode, both DPC transducers are positioned on the same accessible surface of the material. The IL-18xx holder ensures correct alignment, a stable probe-to-probe pitch distance, and constant perpendicular coupling force. These conditions are essential for accurate and repeatable longitudinal-wave (P-wave) velocity measurements on concrete, stone, masonry, and composite structures.
The IL-18xx series is available in several standard pitch options matching all ACS longitudinal DPC transducers supported by the A1220 MONOLITH UPVT. This enables high-quality surface-based UPV assessment when direct transmission is not possible or when only one surface of the structure is accessible.
Indirect longitudinal-wave holder for ACS DPC transducers, providing stable pitch, constant coupling pressure, and precise alignment for surface-based UPV measurements with the A1220 MONOLITH UPVT.

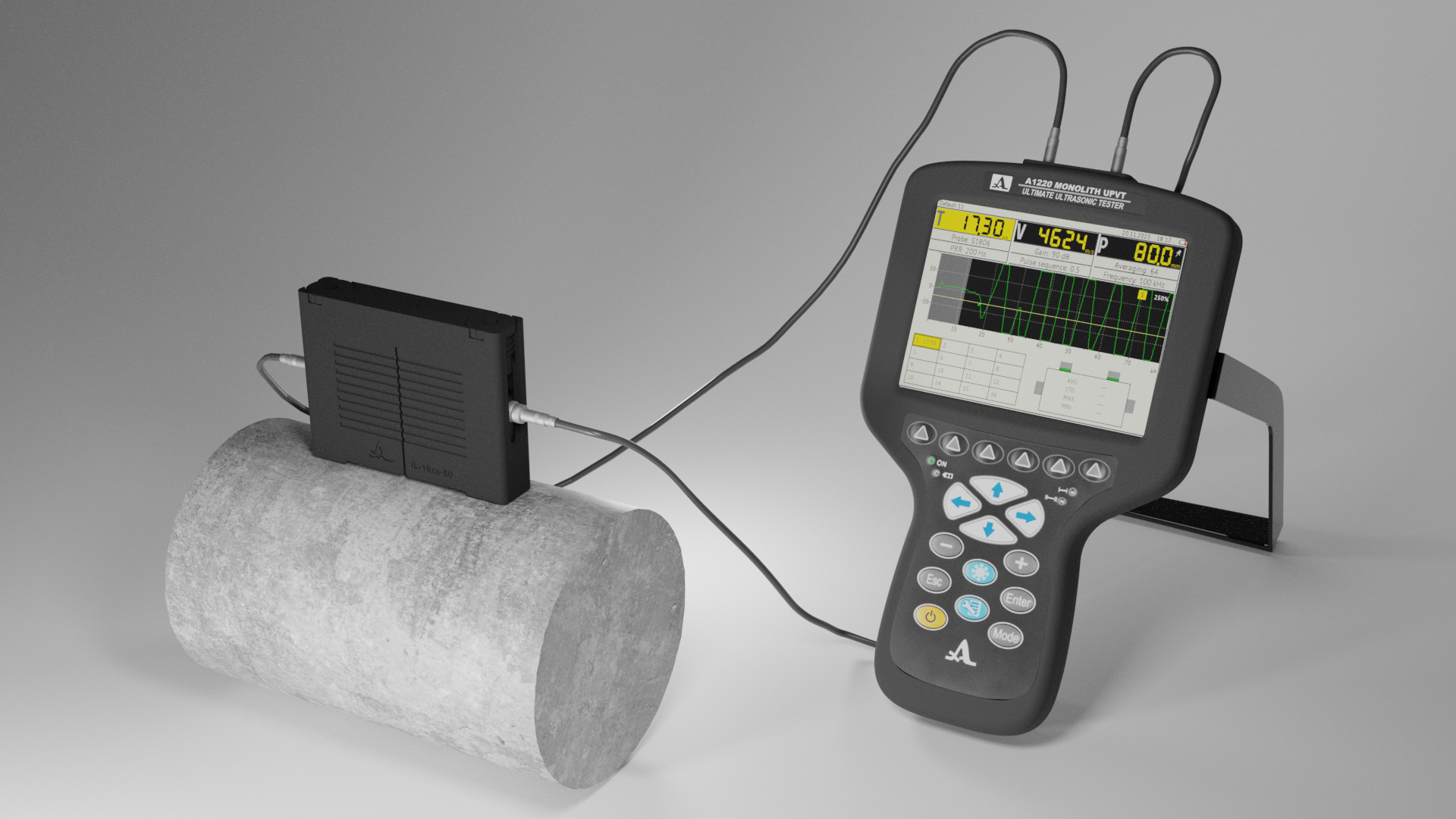

The IL-18xx holder is used with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester to perform longitudinal-wave measurements in indirect (surface) transmission mode. Both DPC transducers are mounted on the same side of the inspected material, enabling UPV evaluation when opposite-side access is limited.
Accurate indirect P-wave readings require:
• parallel alignment of the two ACS DPC probes
• constant perpendicular coupling force
• a stable and reproducible pitch distance
The IL-18xx holder ensures optimal positioning conditions through a rigid mechanical frame and a spring-stabilised coupling mechanism.
Compatible ACS longitudinal DPC transducers:
• S1801 — 120 mm pitch
• S1803 — 70 mm pitch
• S1805 — 60 mm pitch
• S1806 — 30 mm pitch
Typical applications with A1220 MONOLITH UPVT:
• indirect ultrasonic pulse velocity (UPV) measurements
• material homogeneity assessment
• concrete and stone quality evaluation
• structural diagnostics where direct transmission is not feasible
| Parameter | Value |
| Avaiable pitch sizes | 30 mm, 60 mm, 70 mm, 120 mm |
| Compatible DPC transducers | S1801, S1803, S1805, S1806 |
| Wave type | Longitudinal (P-wave) |
| Transmission mode | Indirect (surface) |
| Compatible system | A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester |
| Coupling method | Dry-Point-Contact (DPC) |
| Supported materials | Concrete, stone, masonry, composites |
| Pitch accuracy | ±2 mm |
| Frame construction | Rigid dual-probe guided support |
• IL-18xx Indirect Longitudinal Holder Frame
• Dual DPC probe mounting brackets
• Spring-loaded coupling mechanism
• Alignment and pitch guide markers
• Protective transport sleeve / carrying case
