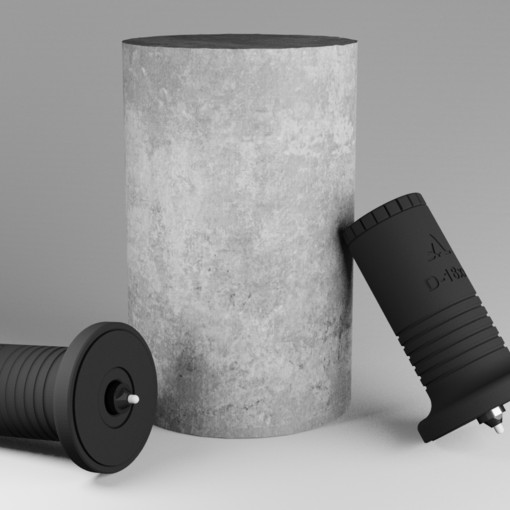

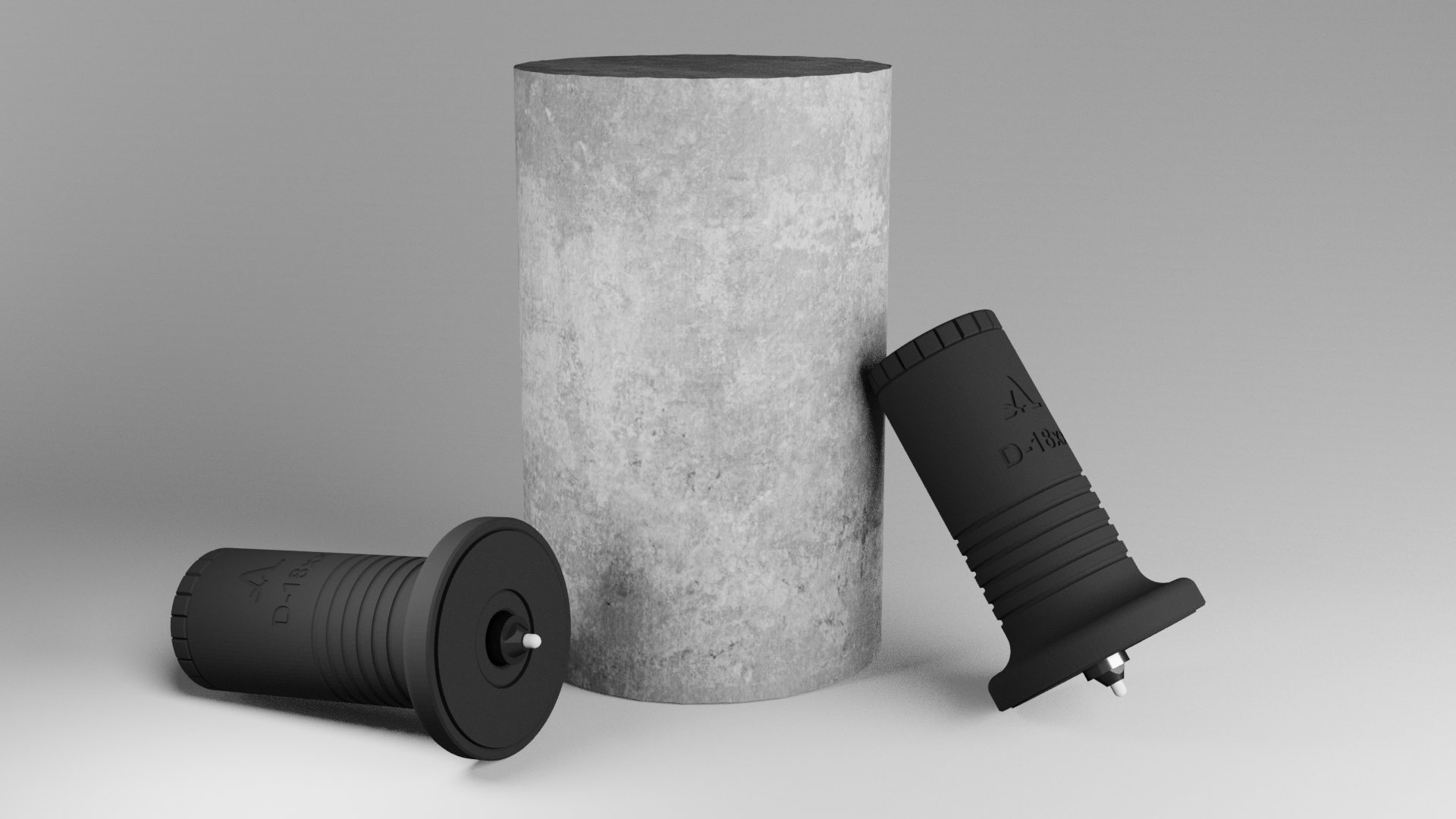

Direct Shear-Wave Probe Holder for ACS DPC Transducers (DS-18xx Series)
The DS-18xx Direct Shear-Wave Probe Holder is a precision alignment and coupling accessory designed for use with ACS Dry-Point-Contact (DPC) shear transducers in direct transmission mode. It is fully compatible with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester.
In the direct method, the transmitting and receiving shear-wave probes are mounted on opposite sides of the inspected object. The DS-18xx holder ensures accurate opposite-side alignment, stable mechanical coupling, and a fixed pitch distance between the two transducers. These mechanical conditions are essential for high-quality shear-wave propagation through concrete, stone, and masonry, enabling reliable through-transmission ultrasonic velocity measurements.
The DS-18xx series supports several standard pitch configurations optimised for all ACS shear-wave DPC transducers. This allows high-sensitivity S-wave velocity assessment, particularly useful for detecting cracks, delamination, stiffness gradients and anisotropy in structural materials.
Direct shear-wave holder for ACS DPC probes, ensuring rigid opposite-side alignment and stable coupling for S-wave through-transmission measurements with the A1220 MONOLITH UPVT.

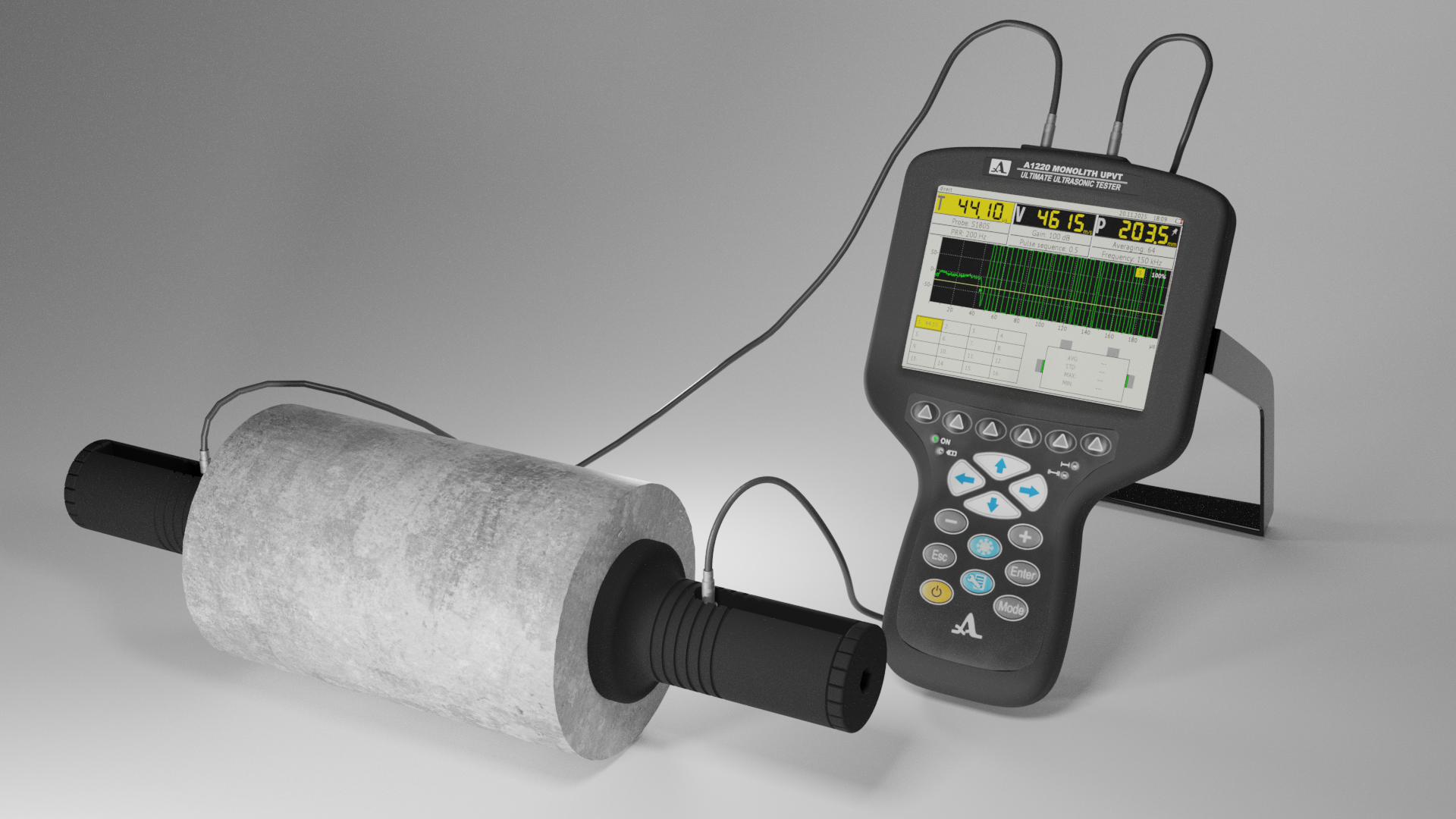

The DS-18xx holder is used with the A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester to perform shear-wave measurements in direct (through-transmission) mode. The transmitting and receiving ACS DPC shear probes are placed on opposite sides of the material, enabling high-sensitivity shear-wave velocity measurements.
Accurate direct S-wave transmission requires:
• precise opposite-side alignment of the two shear probes
• fixed and repeatable probe-to-probe pitch
• constant coupling force on both contact surfaces
The DS-18xx holder ensures these conditions through a rigid dual-side frame and a spring-stabilised coupling mechanism.
Compatible ACS shear-wave DPC transducers:
• S1902 — 120 mm pitch
• S1801 — 80 mm pitch
• S1802 — 80 mm pitch
• S1806 — 40 mm pitch
• S1807 — 25 mm pitch
• S1808 — 20 mm pitch
Typical applications with the A1220 MONOLITH UPVT:
• direct shear-wave velocity measurement
• detection of cracks, voids, delamination, and anisotropy
• evaluation of material integrity and stiffness gradients
• structural diagnostics of concrete, stone, and masonry
| Parameter | Value |
| Recomendet pitch sizes | 20 mm, 25 mm, 40 mm, 80 mm, 120 mm |
| Compatible DPC transducers | S1902, S1801, S1802, S1806, S1807, S1808 |
| Wave type | Shear (S-wave) |
| Transmission mode | Direct (through-transmission) |
| Compatible system | A1220 MONOLITH UPVT – Ultimate Ultrasonic Pulse Velocity Tester |
| Coupling method | Dry-Point-Contact (DPC) |
| Supported materials | Concrete, stone, masonry, composites |
| Pitch accuracy | ±2 mm |
| Frame construction | Rigid dual-probe opposite-side alignment frame |
• DS-18xx Direct Shear-Wave Holder Frame
• Dual opposite-side mounting brackets
• Spring-loaded coupling mechanism for both probes
• Alignment reference guides
• Protective transport sleeve / carrying case
