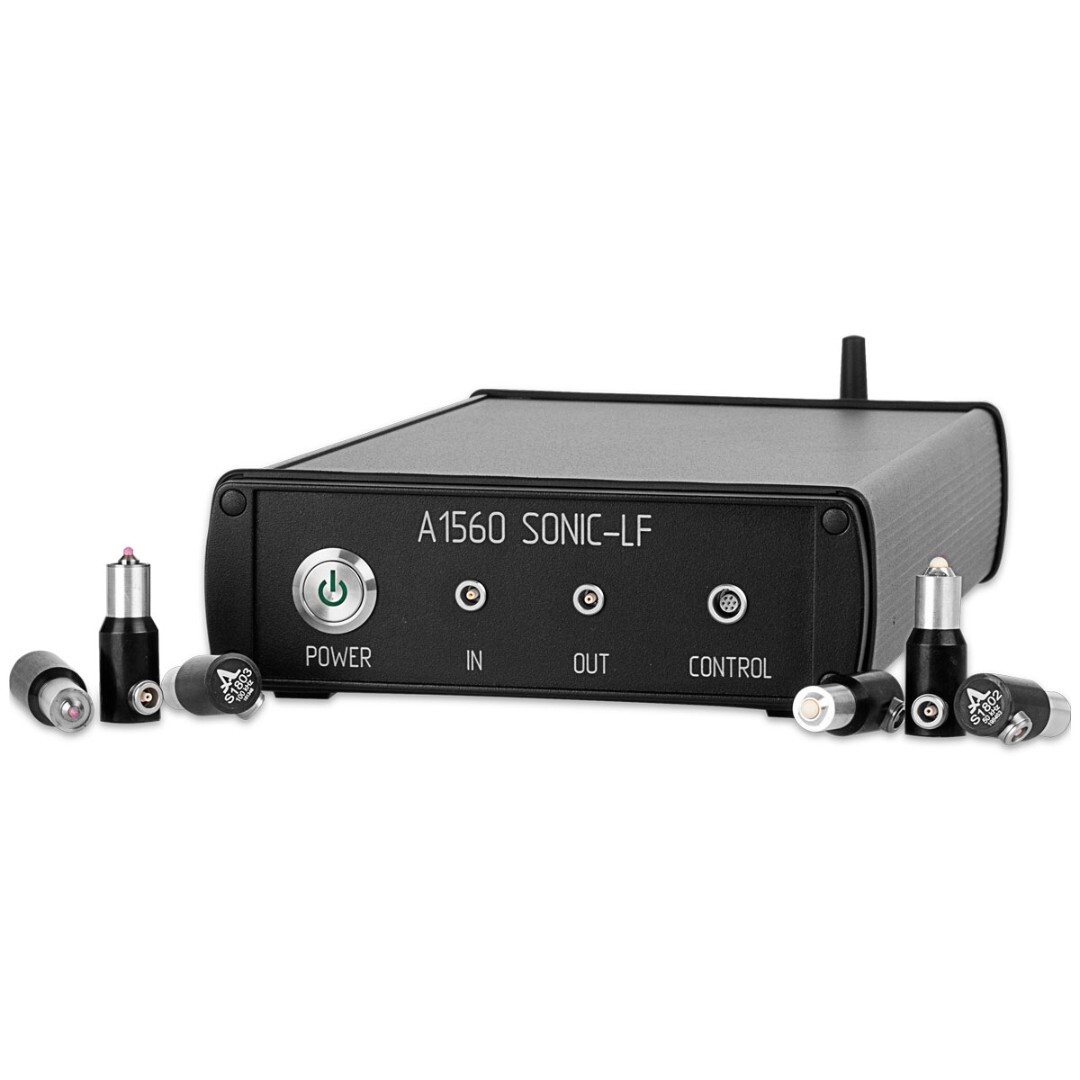

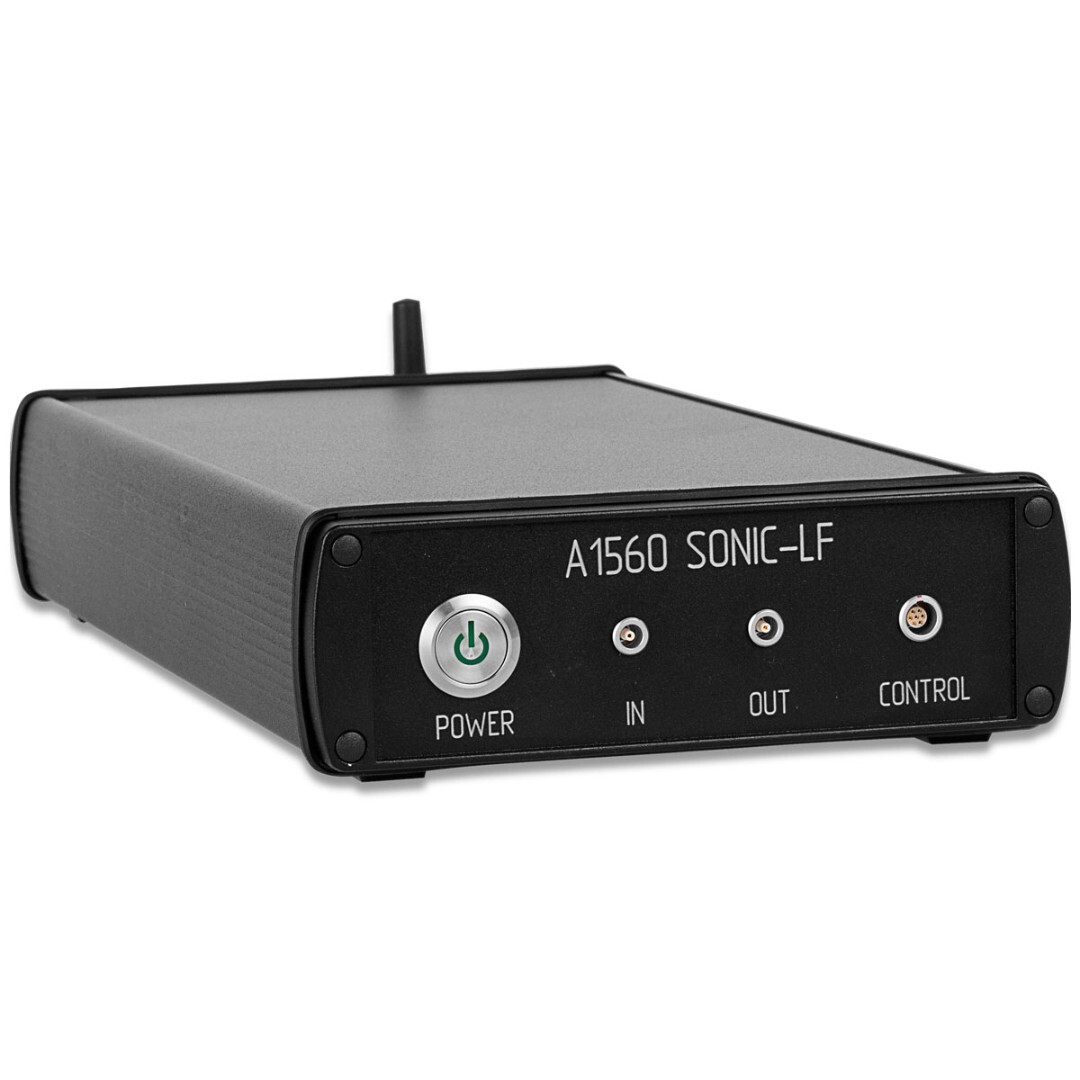

A1560 Sonic-LF
Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for Low-Frequency applications

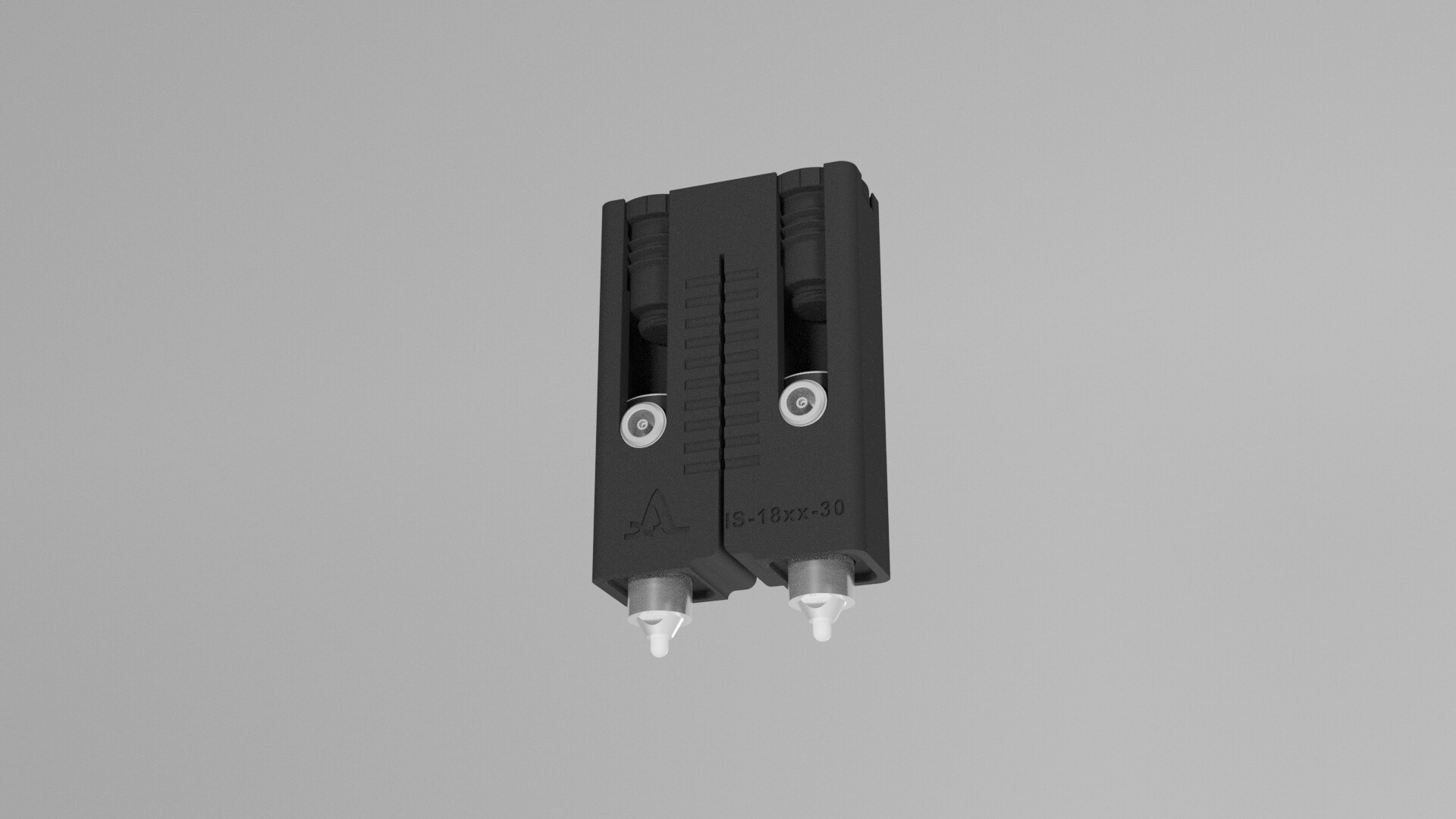

A high-end data acquisition unit designed for stand-alone and integrated use in laboratory and industrial measurement and testing applications. The pulser and receiver of A1560 are perfectly suitable for driving Dry-Point-Contact transducers and regular low-frequency piezo-electric transducers. The instrument possesses an integrated accumulator and wireless data transfer function for long-term stand-alone measurements with a high on-off time ratio.
With the well-documented SDK, the user can develop his own software application for a particular inspection task.
A1560 SONIC-LF is dedicated for low-frequency ultrasonic data acquisition applications on highly attenuative materials, such as:
- Pulse Velocity Testing
- Pulse-echo data acquisition
- Position-related data acquisition synchronized with external inspection manipulator
- Time-related data acquisition synchronized with external material test machines (tensile test, compression test)
| TRANSMITTER | |
| Transmitter output voltage, V | 200 V |
| Excitation sequence | Meander, 0.5 to 5.0 periods |
| Pulse repitition rate, Hz | 1 – 1.000 Hz |
| RECEIVER | |
| Length of the data acquisition vector, Samples | 128k |
| Sampling rate (MHz) | 1, 10, 25, 50, 100 |
| Filter frequencies (FIR) | HF 10,20,40,100kHz; LF 750kHz |
| Receiving bandwidth | 10 – 750 kHz |
| Dynamic range of amplifier, dB | 0 to 80 |
| Dynamic range of attenuator, dB | - 20 to 0 |
| Gain setup range | from 0 to 100 dB, step 1 dB |
| The quantity of the programmable points of DAC function | 128k |
| Dynamic range of DAC function | 40 dB |
| Averaging factor | 1 to 256 |
| POWER SUPPLY | |
| Embedded power source | Built-in battery |
| Operation time of the battery, not less than | 5 h |
| Battery charging time | 2.5 h |
| External power supply | DC 15 V, 4A \ AC 110-250 V |
| DIMENSIONS & WEIGHT | |
| Dimensions of the electronic block | 320 х 165 х 55 mm |
| Weight of the electronic block | 1.8 kg |
| Operating temperature range | from –20 to +45 ºC |

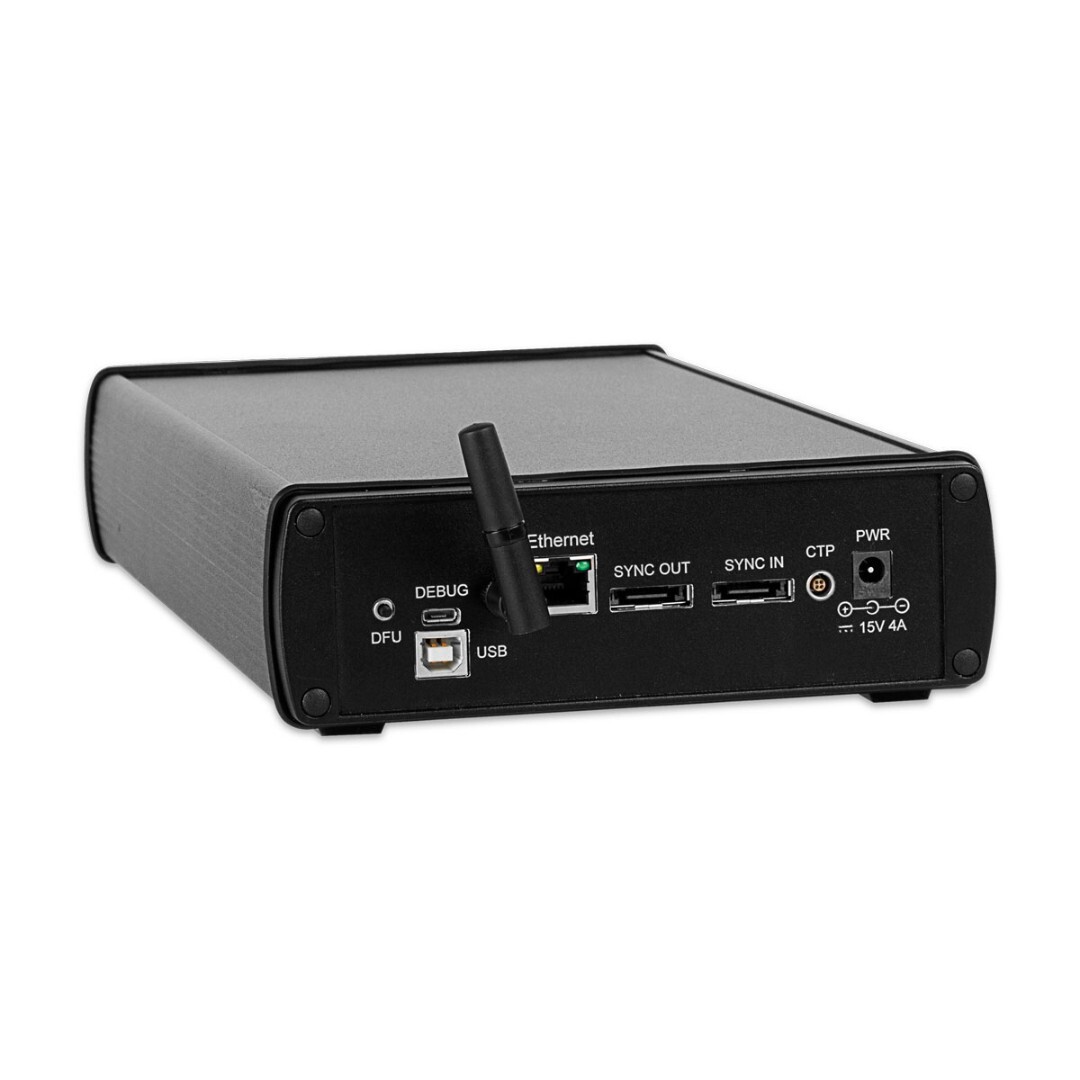

| DATA INTERFACES | |
| Wireless Ethernet 54 Mbit | IEE802.11n |
| Ethernet 100 Mbit | |
| External trigger input | TTL |
| Name | Quantity, pcs. |
| A1560 Sonic LF – Electronic Unit | 1 |
| Net adaptor with cable 220V-15V | 1 |
| Ethernet cable 1.5 meter | 1 |
| WiFi Antenne | 1 |
| User manual for integration kit (SDK) | 1 |
| Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) | 1 |
