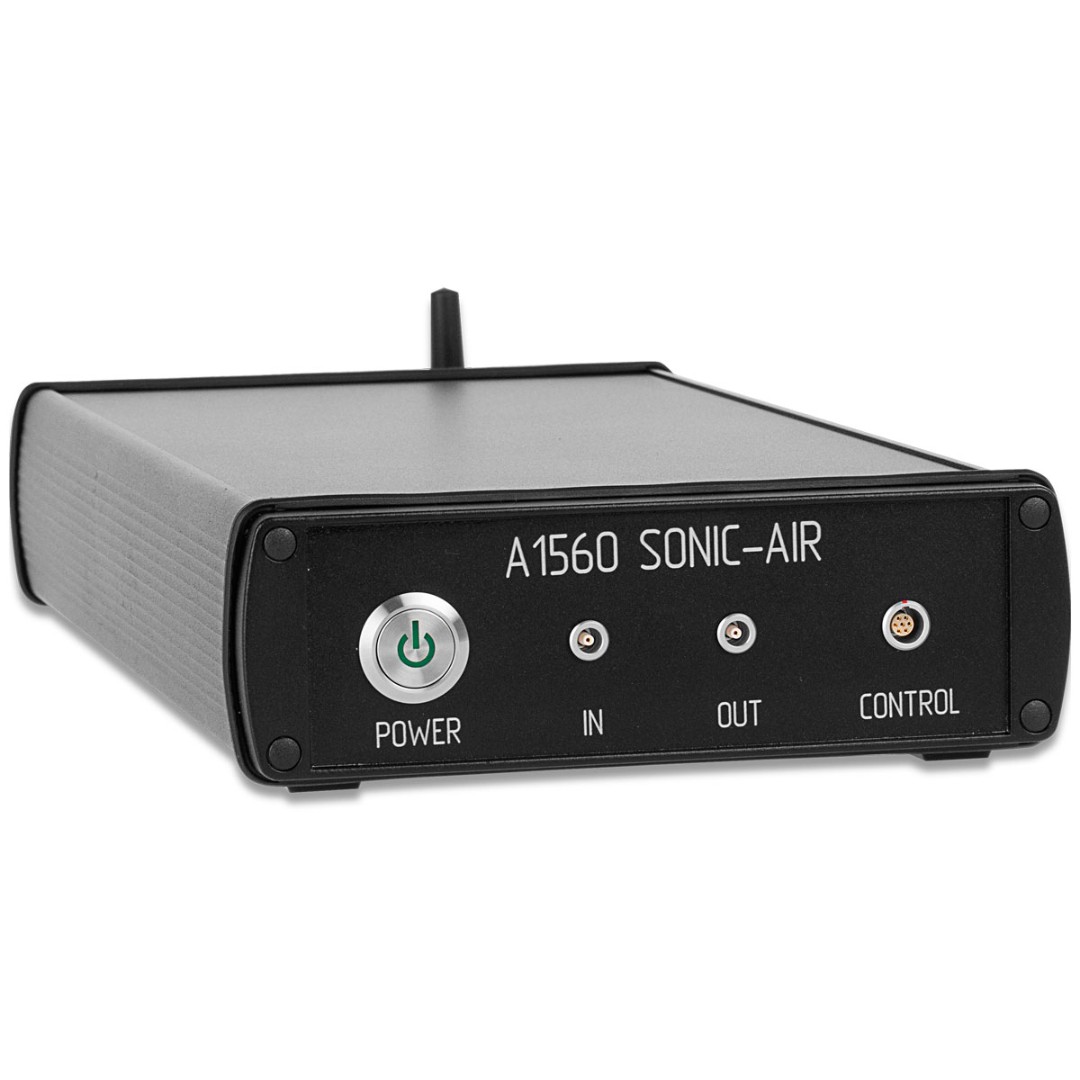

A1560 Sonic-AIR
Universal OEM Ultrasonic Pulser-Receiver Electronic Frontend / Flaw Detector with Wireless Data Interface for Air-Coupled Ultrasonics

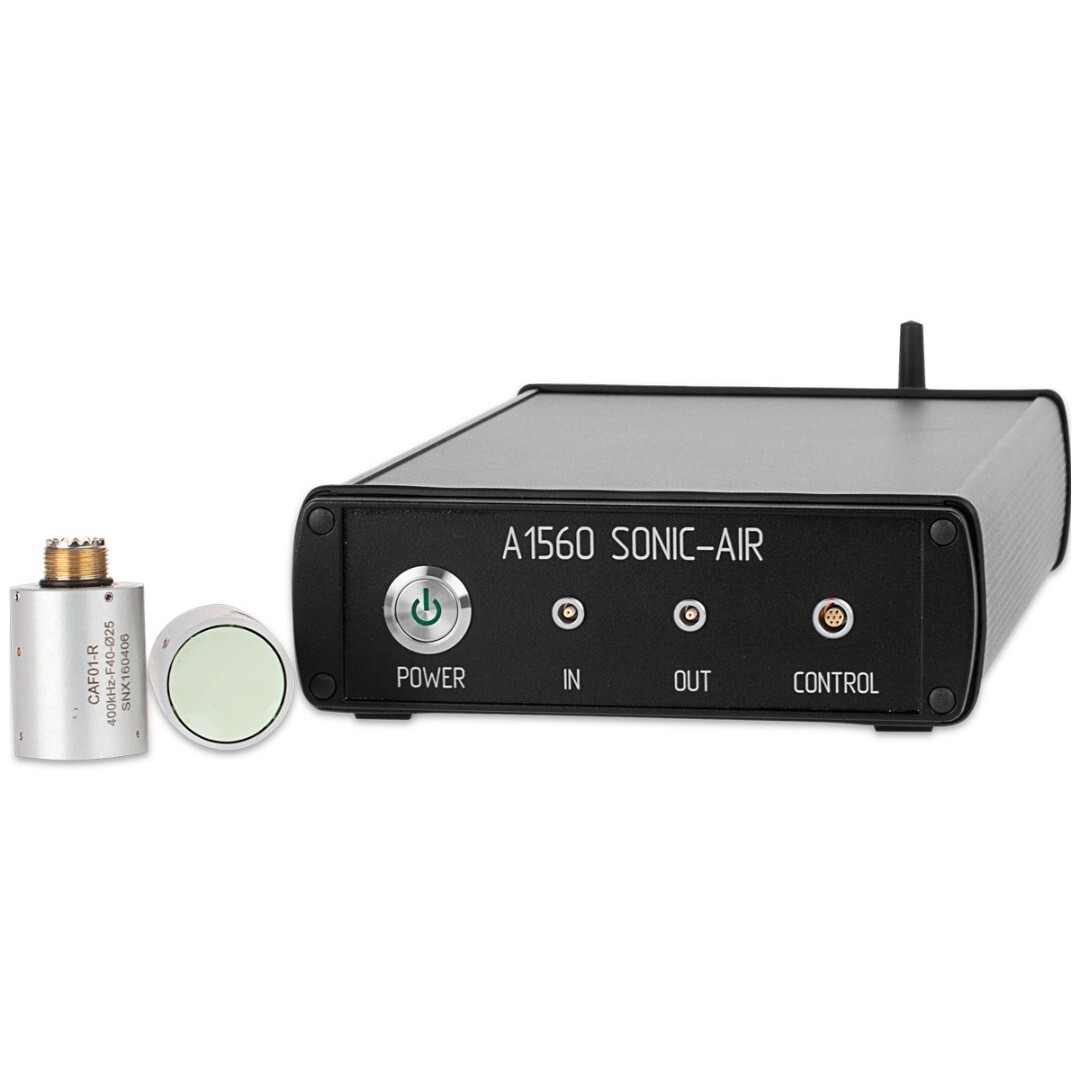

A high-end data acquisition unit designed for system integration in laboratory and industrial measurement and testing applications. The pulser and receiver of A1560 is perfectly suitable for a wide range of air-coupled piezo-electric transducers. The instrument possesses an integrated accumulator and wireless data transfer function.
With the well-documented SDK the user is enabled to develop his own software application for particular inspection tasks.
A1560 SONIC-AIR is dedicated for air-coupled ultrasonic data acquisition applications on metals, composite materials and plastics, such as:
- Through-transmission
- One-side access transmission with guided waves
| TRANSMITTER | |
| Alternative: Transmitter output voltage for fixed transmitter frequency, V | 800 V |
| Excitation sequence | Meander, 0.5 to 5.0 periods |
| Pulse repitition rate, Hz | 1 – 1.000 Hz |
| RECEIVER | |
| Length of the data acquisition vector, Samples | 128k |
| Sampling rate (MHz) | 10, 25, 50, 100 |
| Filter frequencies (FIR) | HF 10,20,40,100kHz; LF 750kHz |
| Receiving bandwidth | 10 – 750 kHz |
| Dynamic range of amplifier, dB | 0 to 80 |
| Dynamic range of attenuator, dB | - 20 to 0 |
| Gain setup range | from 0 to 100 dB, step 1 dB |
| The quantity of the programmable points of DAC function | 128k |
| Dynamic range of DAC function | 40 dB |
| Averaging factor | 1 to 256 |
| POWER SUPPLY | |
| Embedded power source | Built-in battery |
| Operation time of the battery (non-stop operation with high PRR) | 5 h |
| Battery charging time | 2.5 h |
| External power supply | DC 15 V, 4A \ AC 110-250 V |
| DIMENSIONS & WEIGHT | |
| Dimensions of the electronic block | 320 х 165 х 55 mm |
| Weight of the electronic block | 1.8 kg |
| Operating temperature range | from –20 to +45 ºC |
| DATA INTERFACES | |

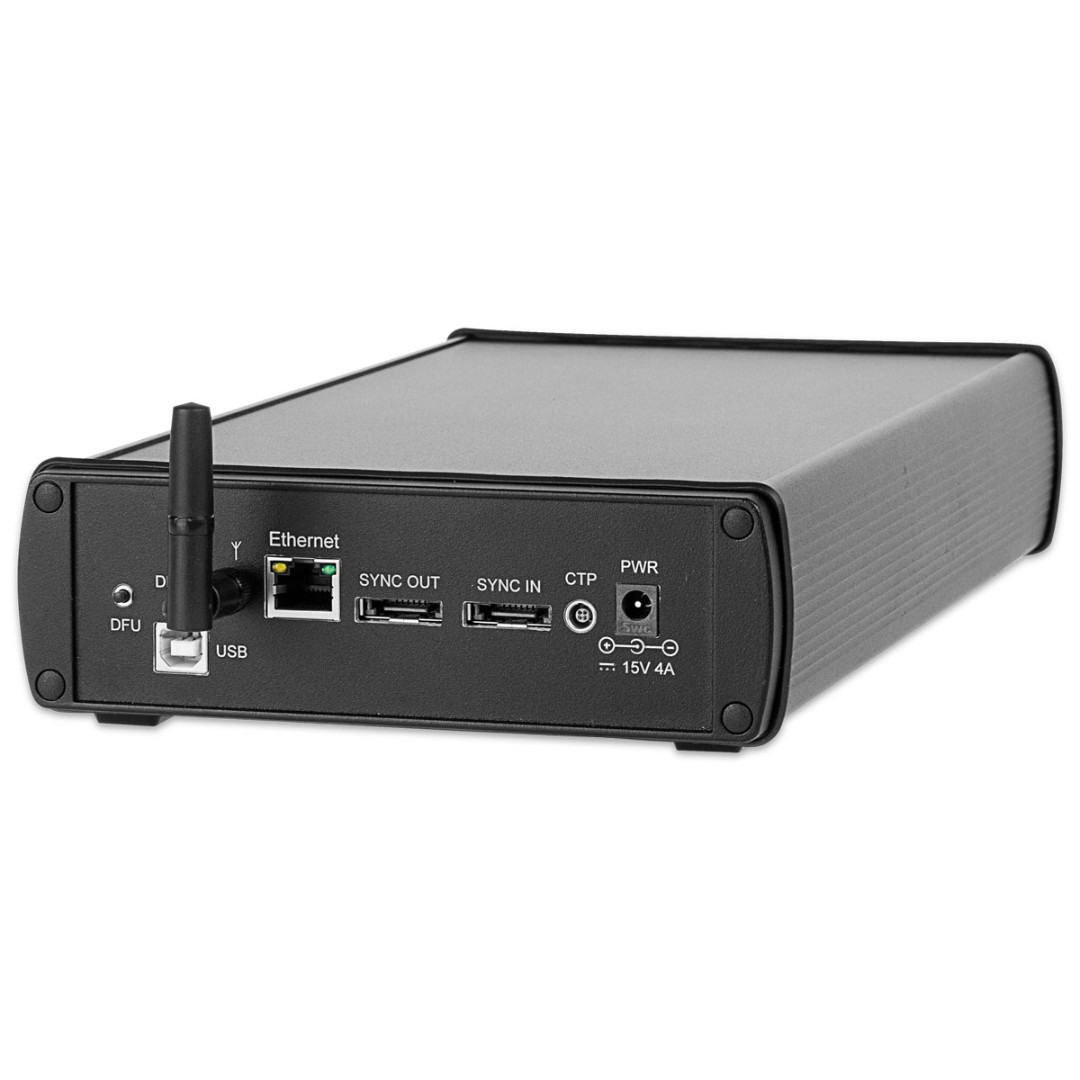

| Wireless Ethernet 54 Mbit | IEE802.11n |
| Ethernet 100 Mbit | |
| External trigger input | TTL |
| Name | Quantity, pcs. |
| A1560 Sonic AIR – Electronic Unit | 1 |
| Net adaptor with cable 220V-15V | 1 |
| Ethernet cable 1.5 meter | 1 |
| WiFi Antenne | 1 |
| User manual for integration kit (SDK) | 1 |
| Introductory application software „ACS "Mathilda" Windows GUI App“ (available at www.acs-international.com) | 1 |
