A1052 MultiSONIC

Multichannel Ultrasonic Pulser-Receiver Unit with WiFi Data Interface for Low-Frequency UT applications

Get a quote

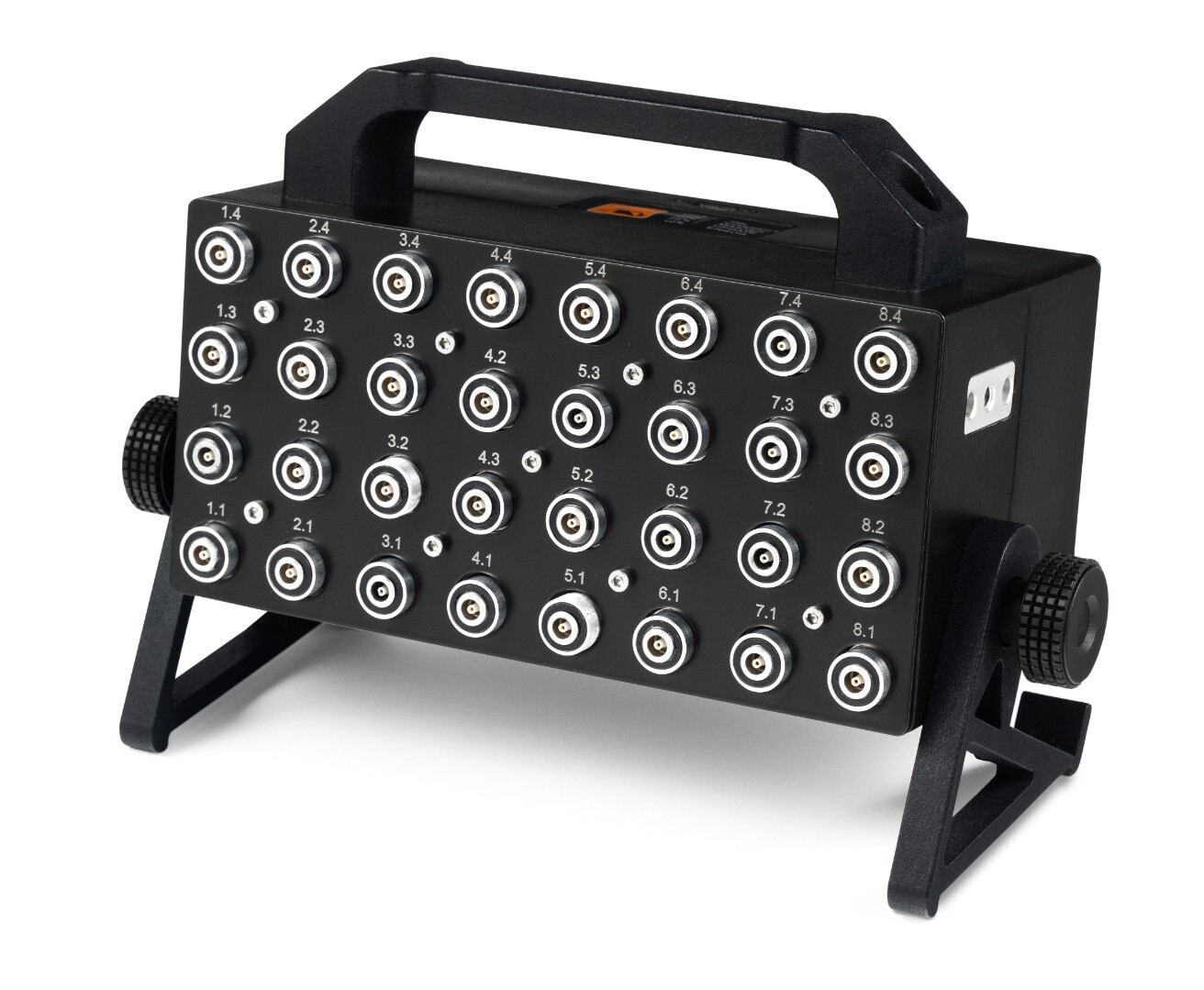

A 32-channel ultrasonic data acquisition unit designed for stand-alone and integrated use in laboratory and industrial measurement and testing applications. The 32 individual transmitter and receiver channels of A1052 are perfectly suitable for driving Dry-Point-Contact transducers. The instrument possesses integrated accumulators and wireless data interface for stand-alone measurements with a high on-off time ratio.

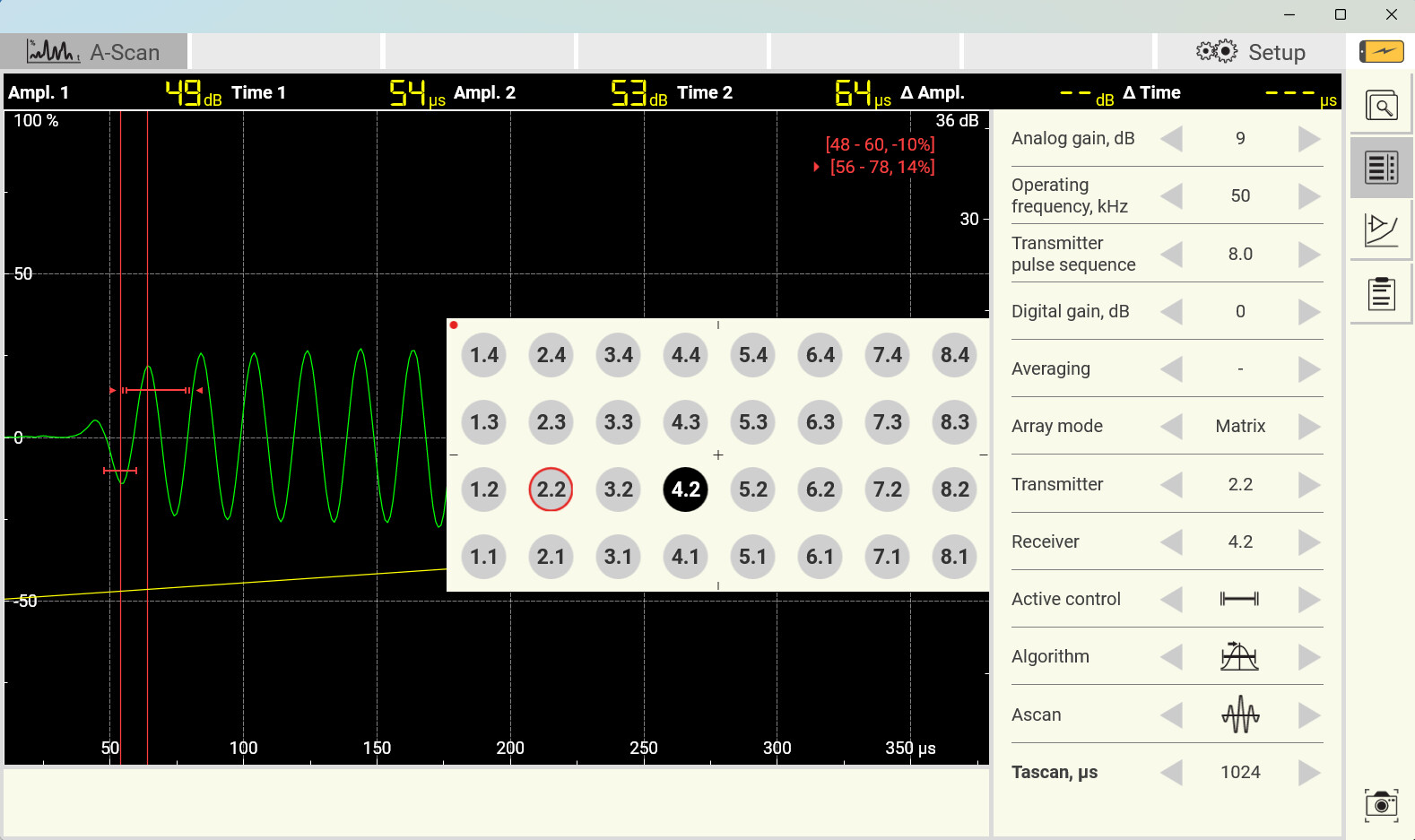

With the well-documented SDK, the user can develop his own software application for a particular inspection task.

A1052 MultiSONIC is dedicated for low-frequency ultrasonic data acquisition applications on highly attenuative materials, such as:

  • Pulse Velocity Testing
  • Pulse-echo data acquisition
  • Position-related data acquisition synchronized with external inspection manipulator
  • Time-related data acquisition synchronized with external material test machines (tensile test, compression test)

Parameter

Value

TRANSMITTER

Number of transmitting channels

32

Transmitter output voltage, V

± 200 Volt (400 Vpp)

Excitation sequence, periods

Meander, 0.5 to 5.0

RECEIVER

Number of receiving channels

32

Data acquisition length, Samples

128k

Sampling rate (MHz)

1, 4

Filter frequencies (FIR)

HF 10,20,40,100kHz; LF 350kHz

Receiving bandwidth

20 – 250 kHz

Dynamic range of amplifier, dB

0 to 60

Dynamic range of DAC function

40 dB

Averaging factor

1 to 256

POWER SUPPLY

Power source

Exchangable battery

Operation time of the battery, not less than

8 h

Battery charging time

2.5 h

External power supply

DC 15 V, 4A \ AC 110-250 V

DATA INTERFACES

Wireless Ethernet 54 Mbit

IEE802.11n

DIMENSIONS & WEIGHT

Dimensions of the electronic block

200x125x100 mm (7,9 x 4,9 x 3,9 inch)

Weight of the electronic block

2.4 kg / 5.5 pounds

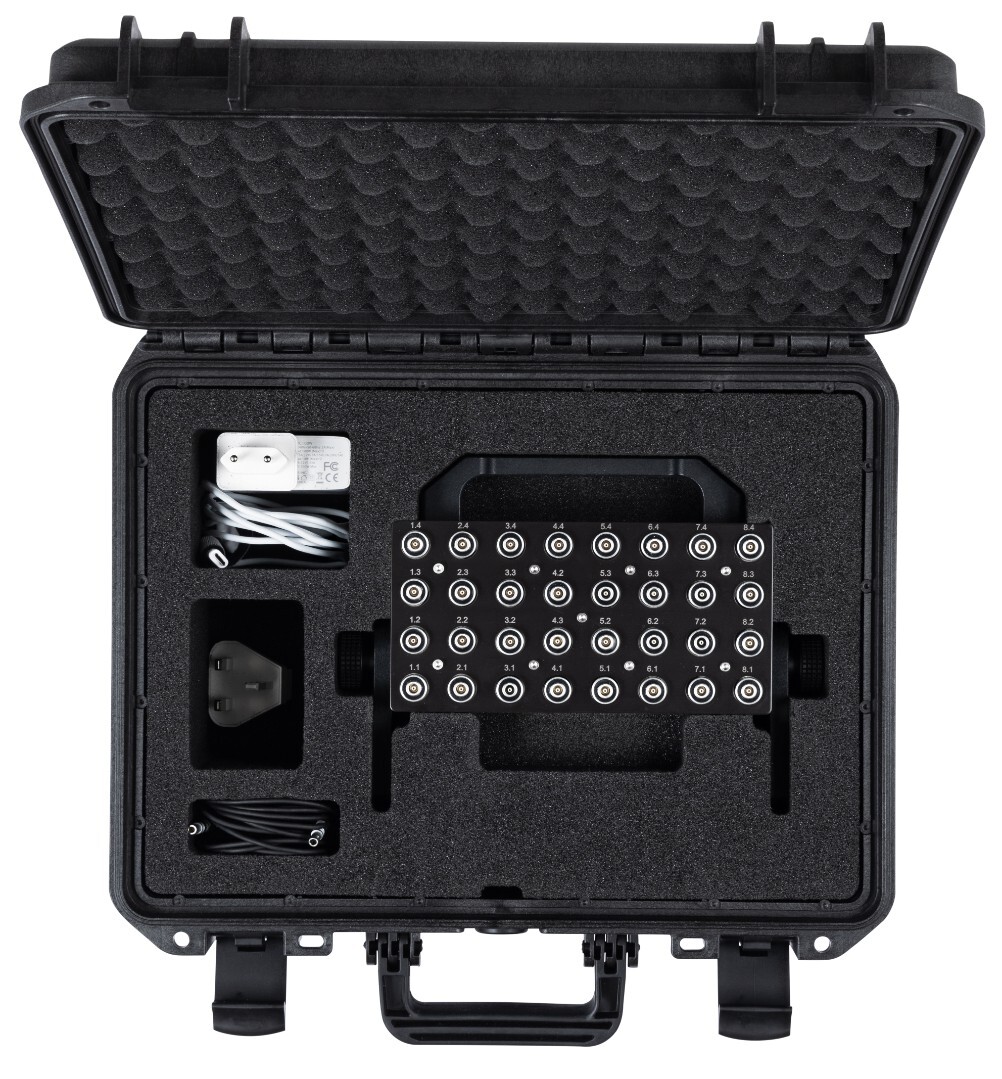

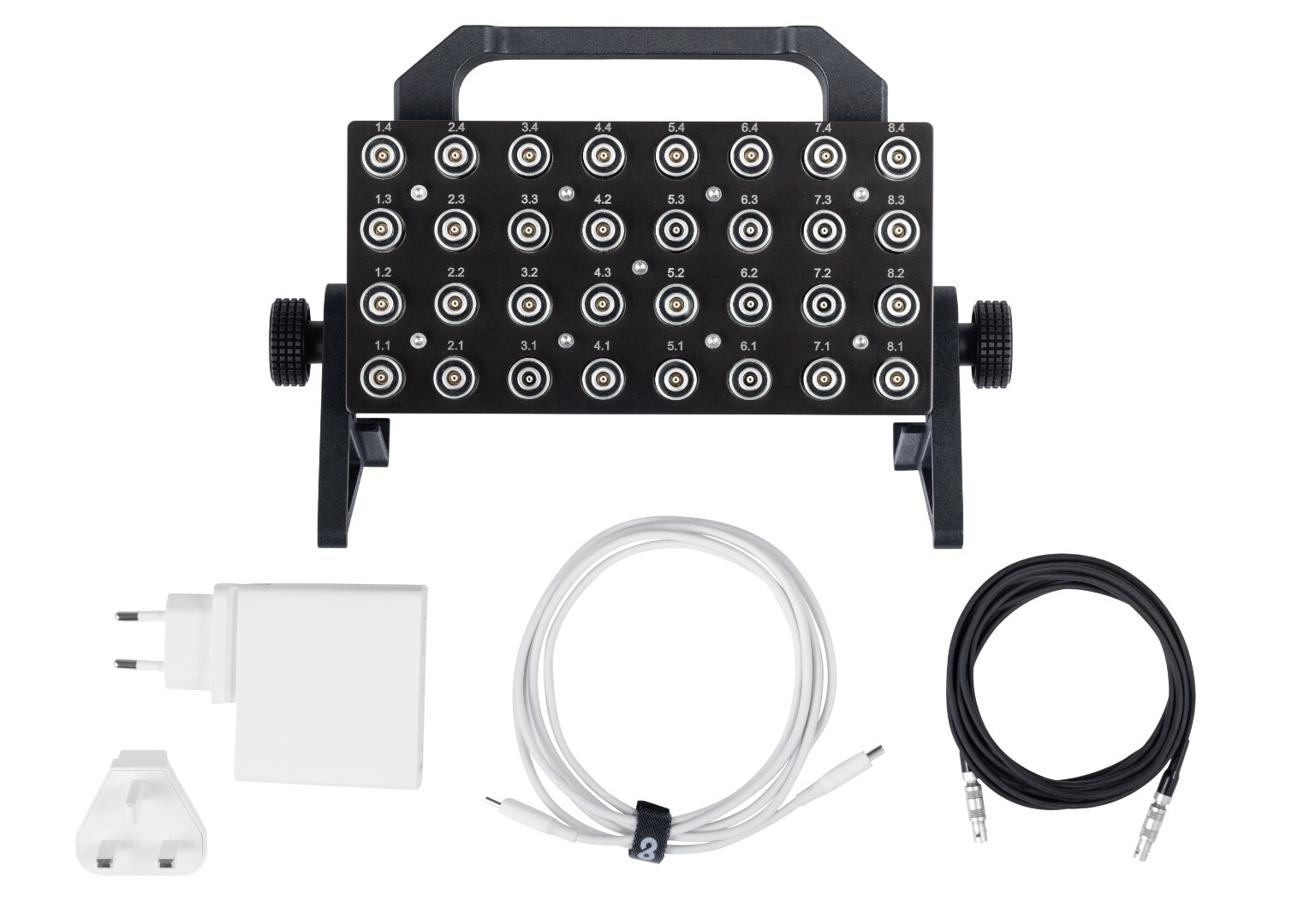

Name Quantity, pcs.

Electronic unit A1052 MultiSONIC with 32 channels

1

Exchangeable Li-Ion accumulator, inside the electronic unit

6

Power charger

1

Power plugs (US/UK/EU)

1 (for each)

Power USB-C cable

1

USB-A to USB-C cable

1

Screwdriver Hex-Plus 2.0

1

Warranty certificate

1

Operating Manual

1

Free demo SW for smartphone/tablet PC / PC

to be downloaded

Integration kit for software development by the user

On request
