A1207 PenGauge - pocket-size thickness gauge dev

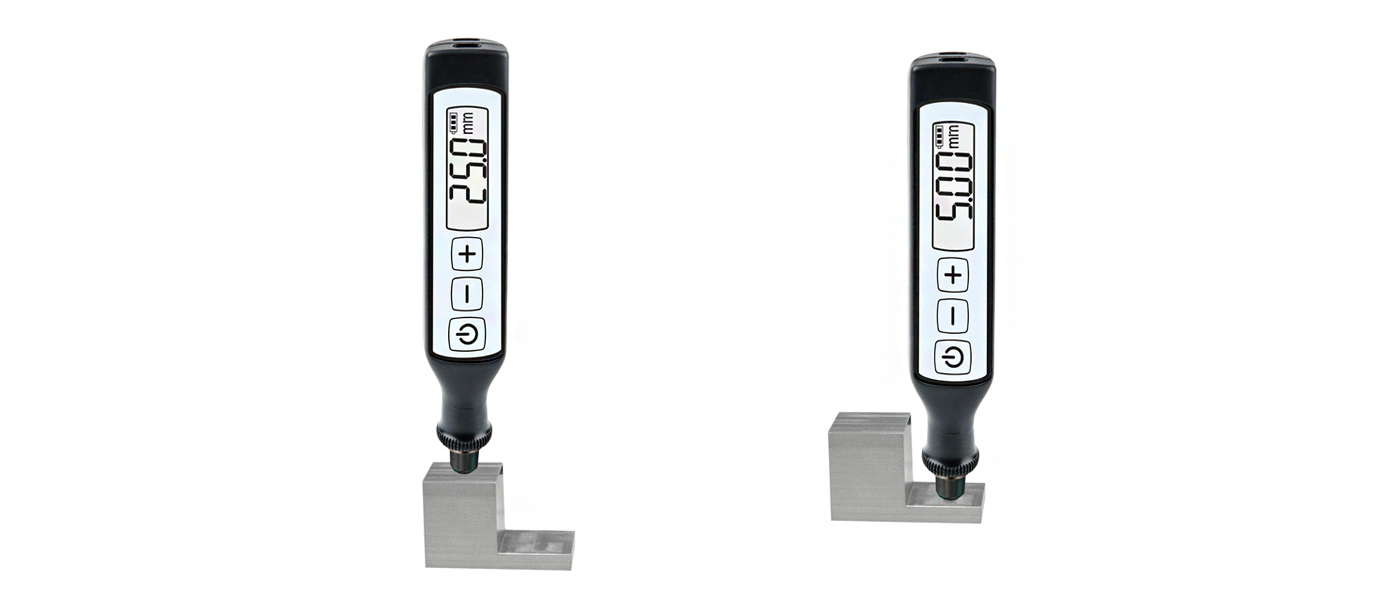

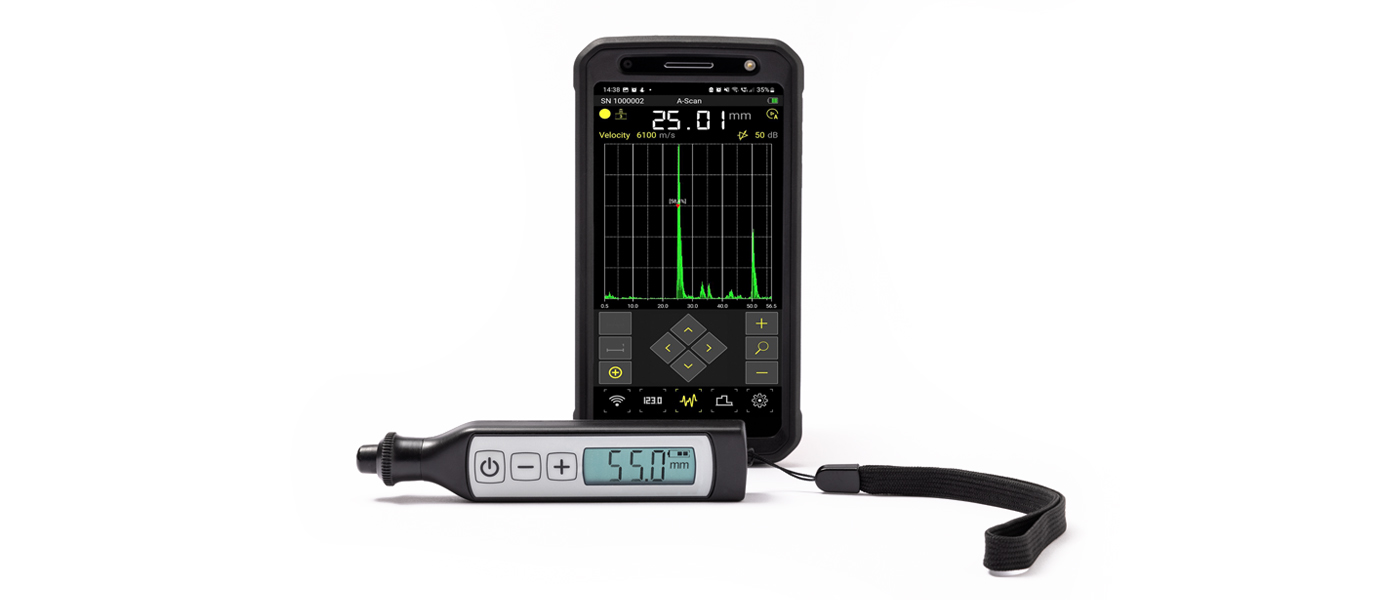

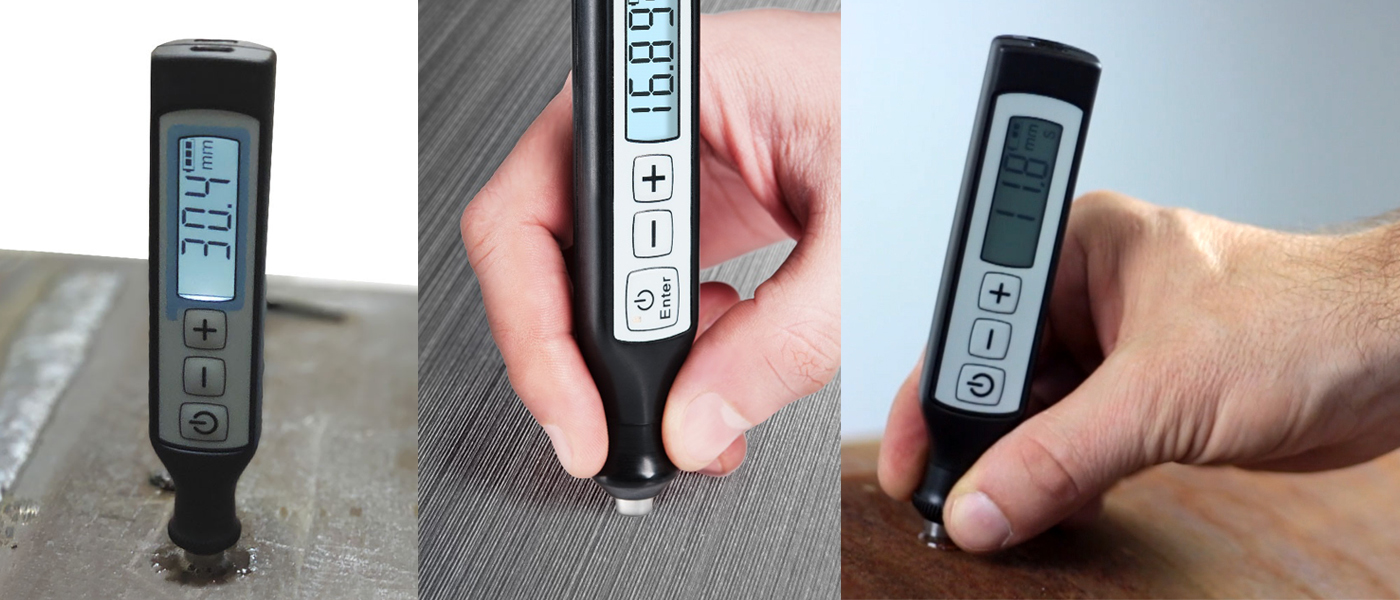

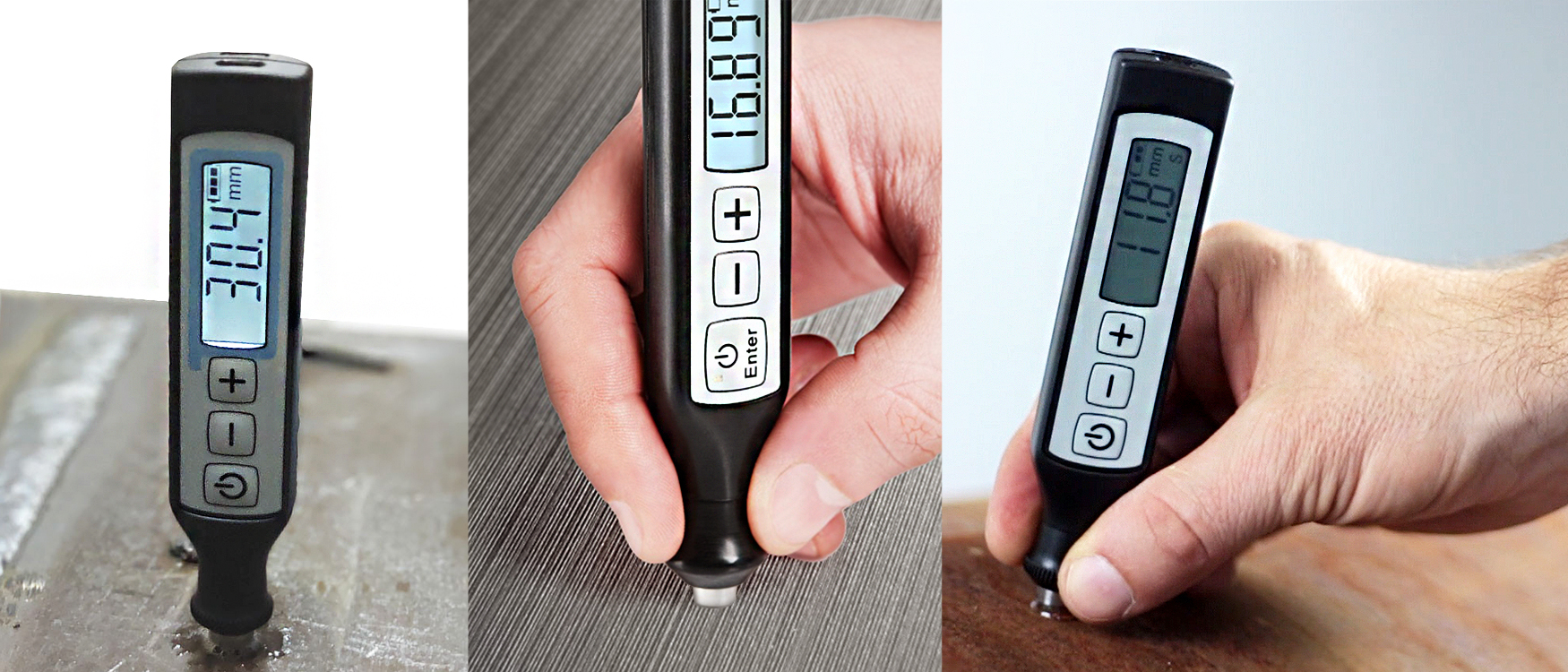

A1207 PenGauge’s integrated product design combines the instrument and transducer into a single package, allowing for true single-hand operation and providing a very capable, yet simple-to-use device.
Features and Benefits
- Compact design: probe and display unit in one and the same instrument - Never break a cable again!
- Direct readout of the digitally displayed thickness value on bright LCD display
- Easy and straightforward operation via two keys only
- Calibration to known wall thickness or known material velocity
- Hot-pluggable built-in exchangeable 7 MHz dual-crystal probe for all standard applications or optional 4 MHz single-crystal probe for extending measurement range
- Measurement ranges from 0.7 mm to 150 mm (0.028 inches to 5.9 inches) depending on the material and surface
- A-scan capability on iOS and Android APP included in the package
Description
A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.
The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.

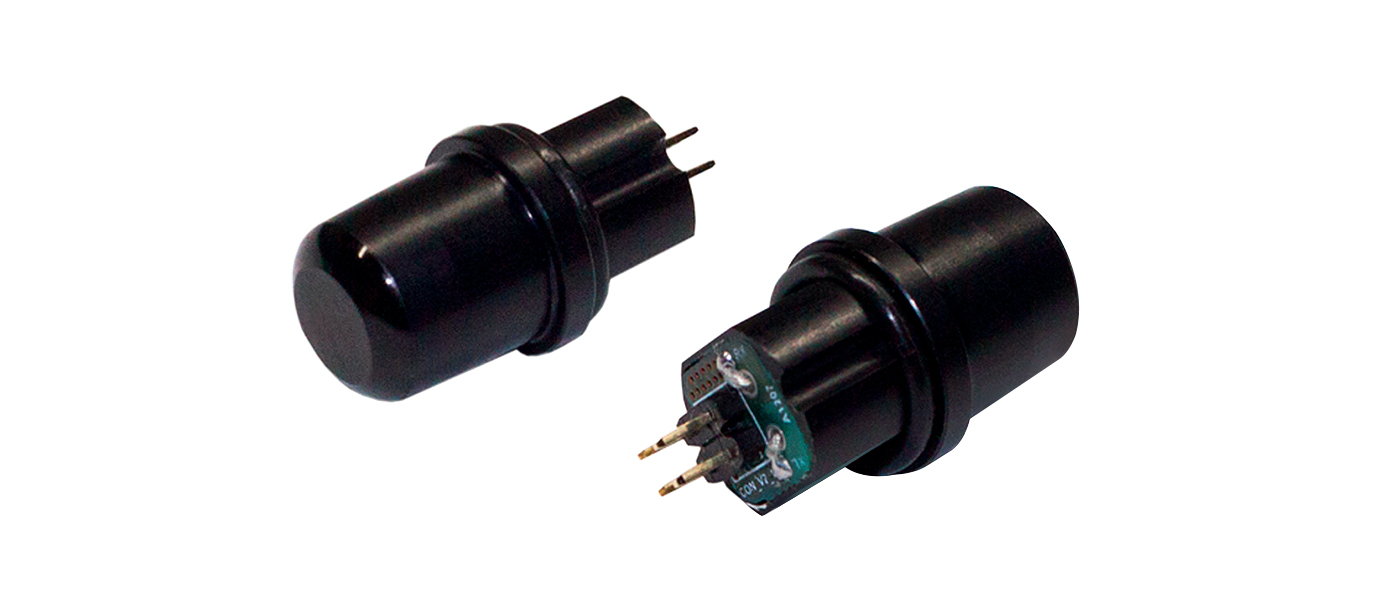

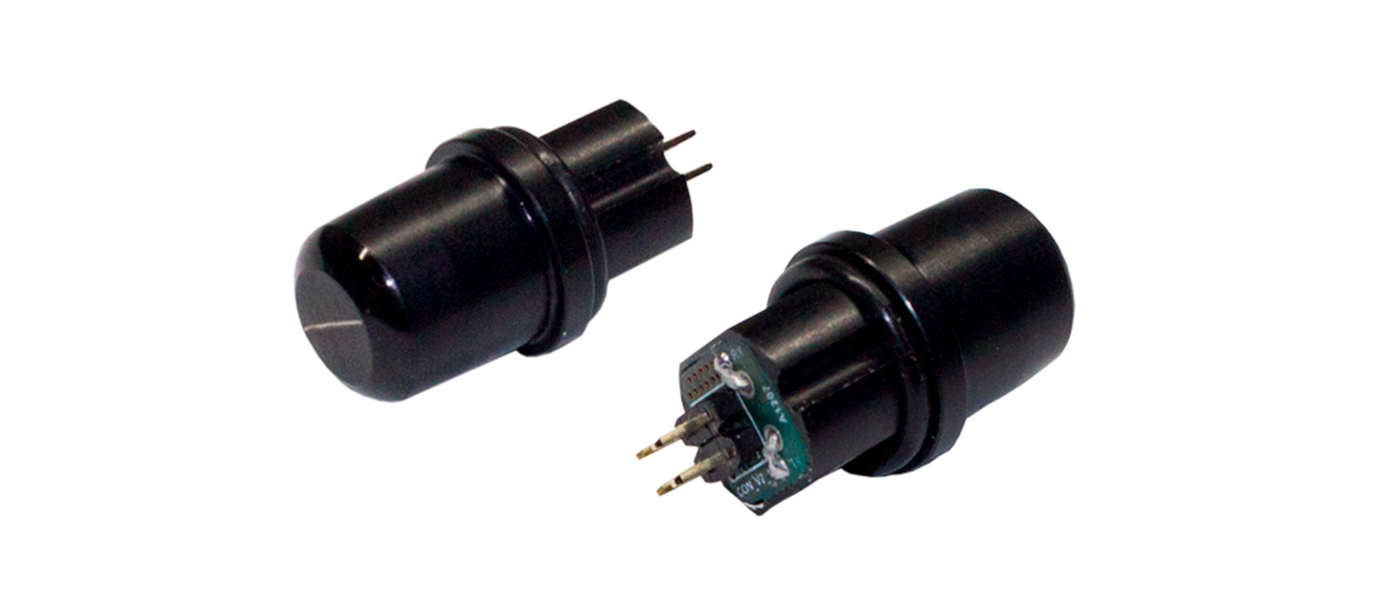

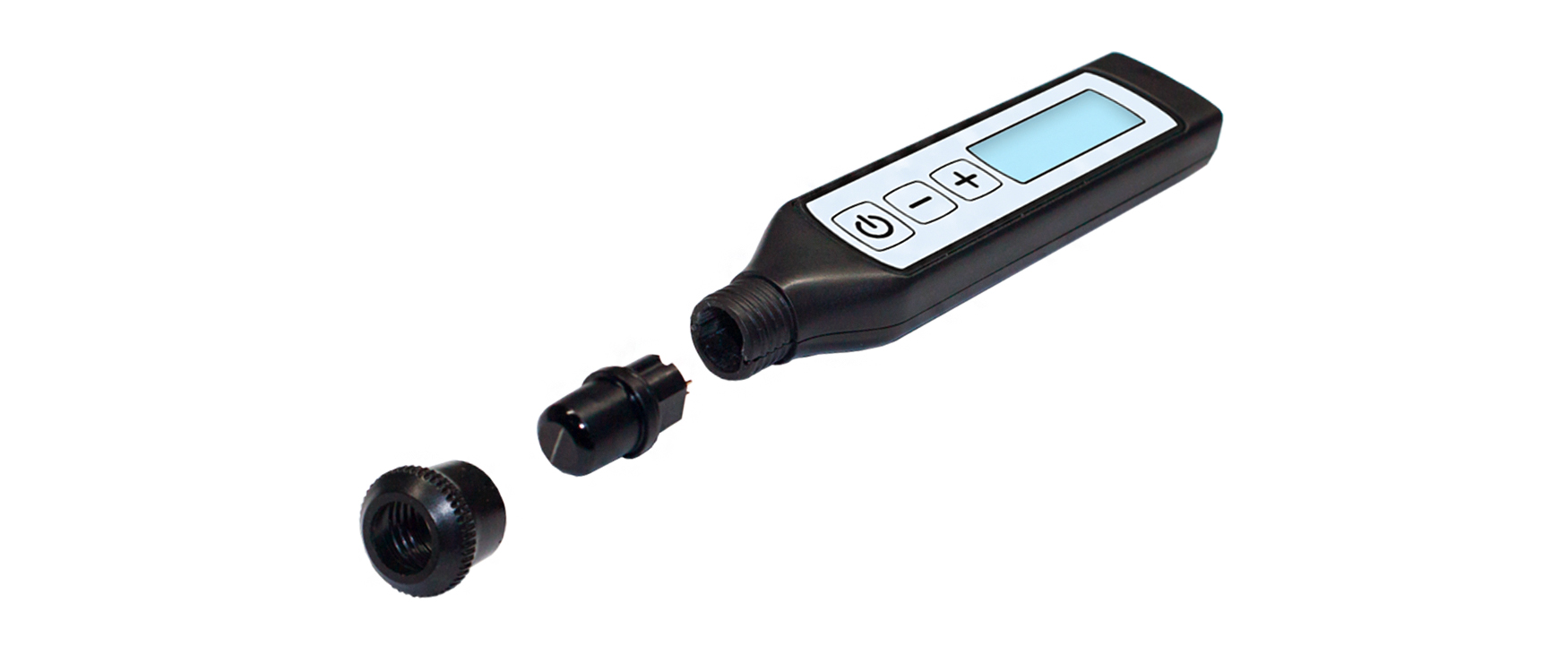

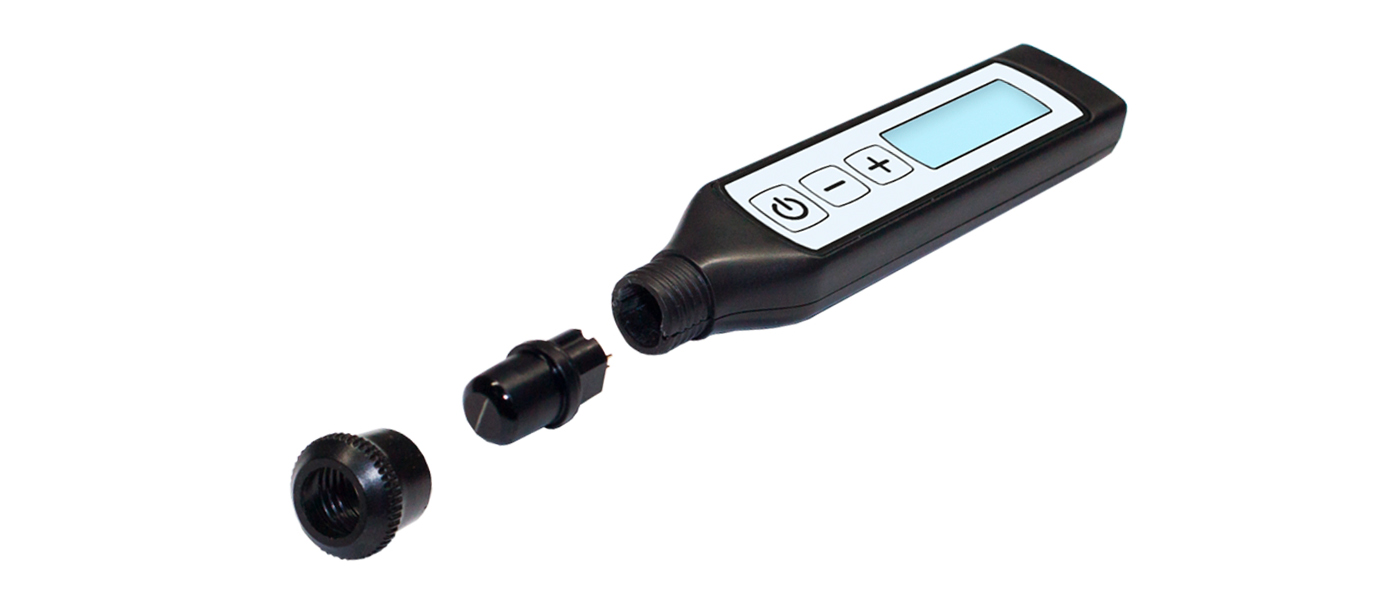

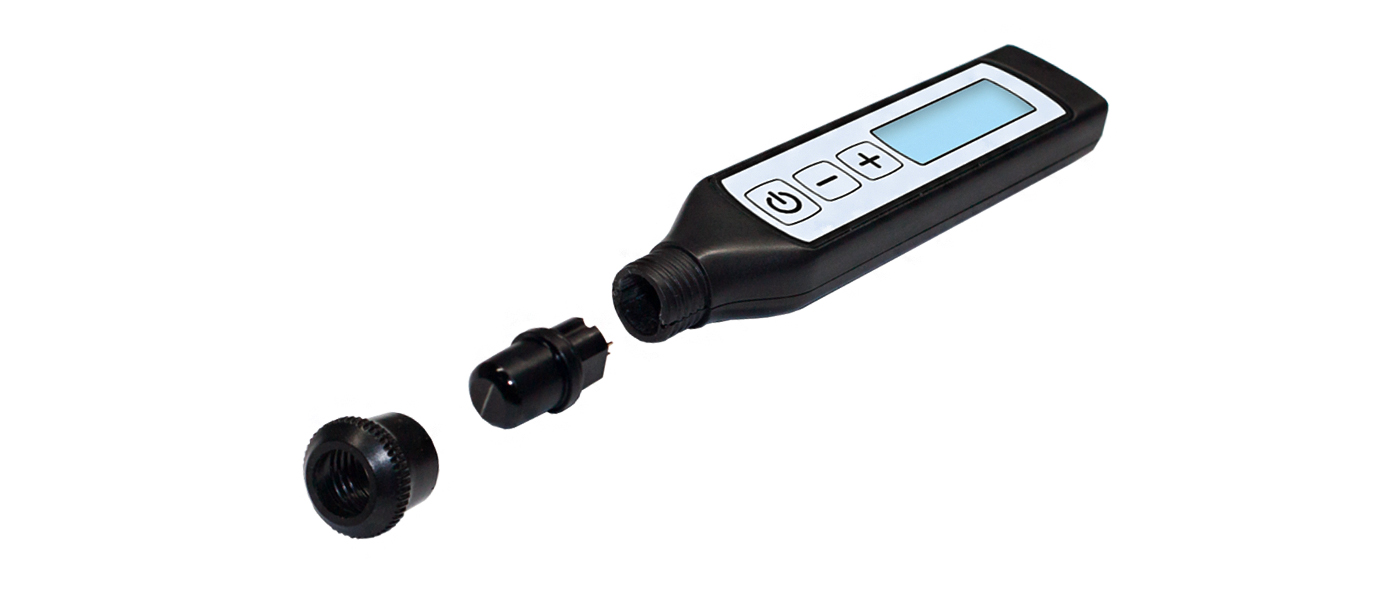

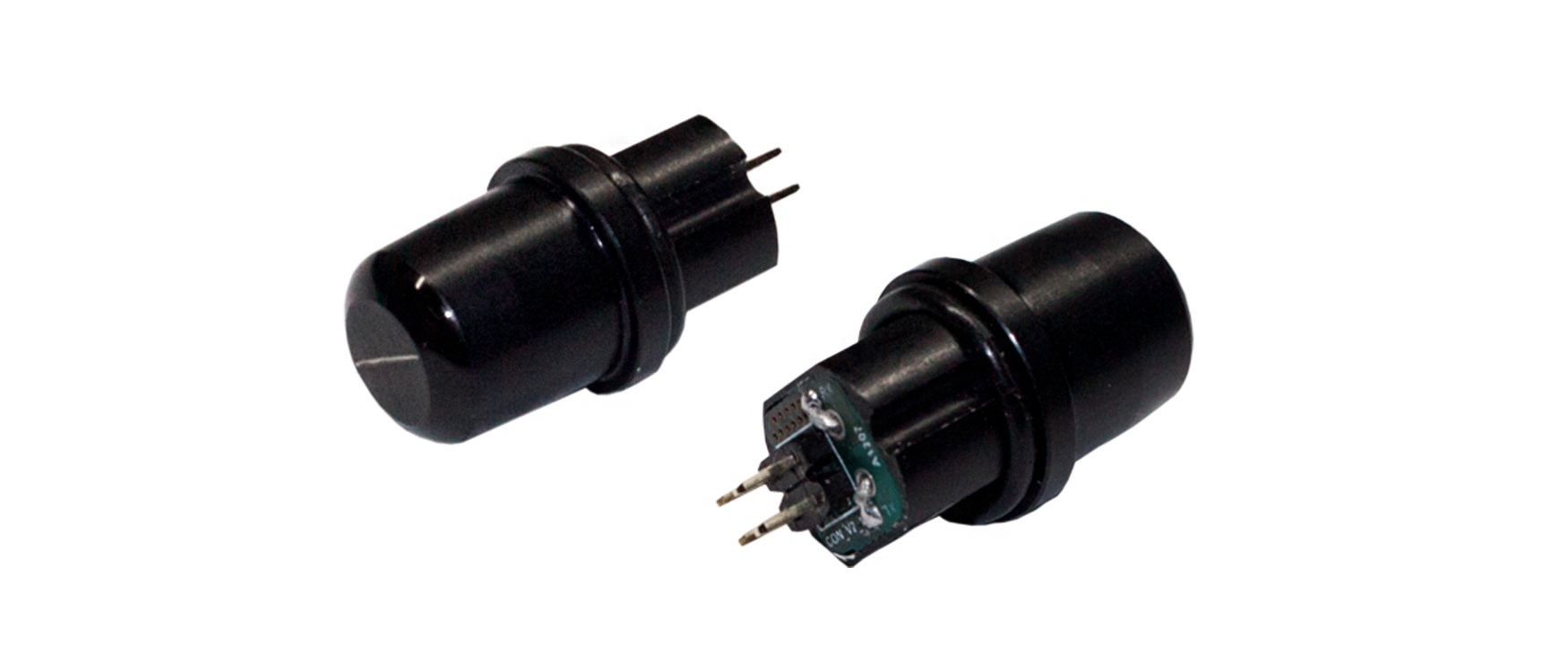

The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.

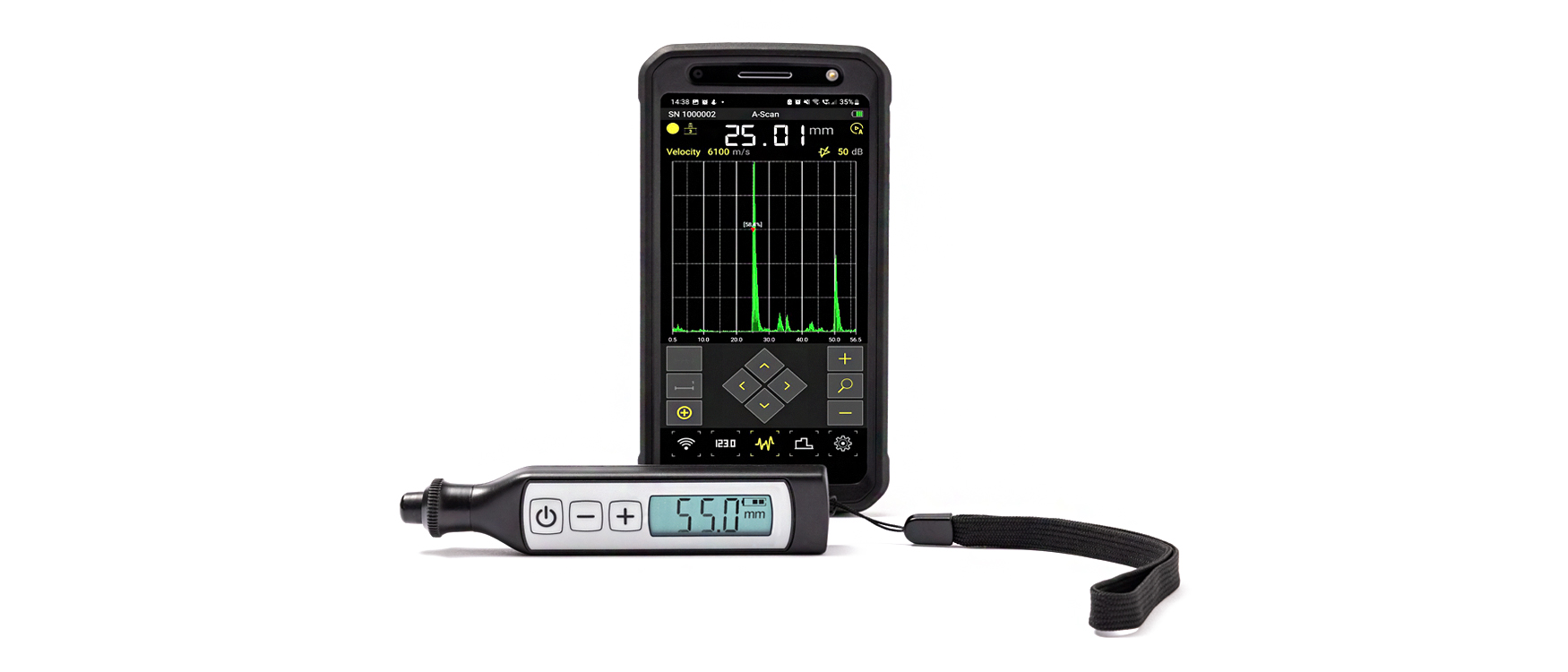

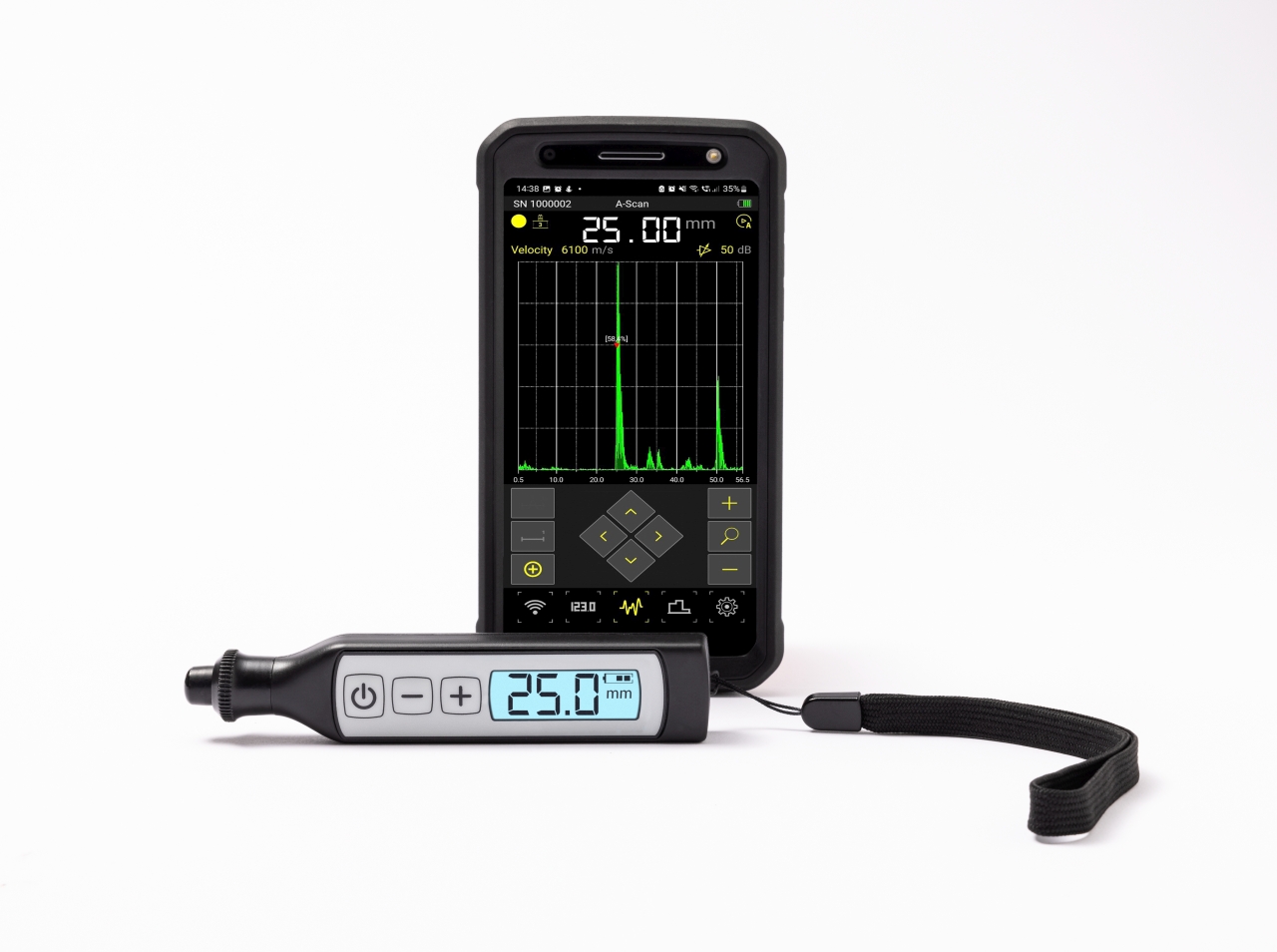

The built-in Bluetooth module provides communication and real-time display (online–thickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.

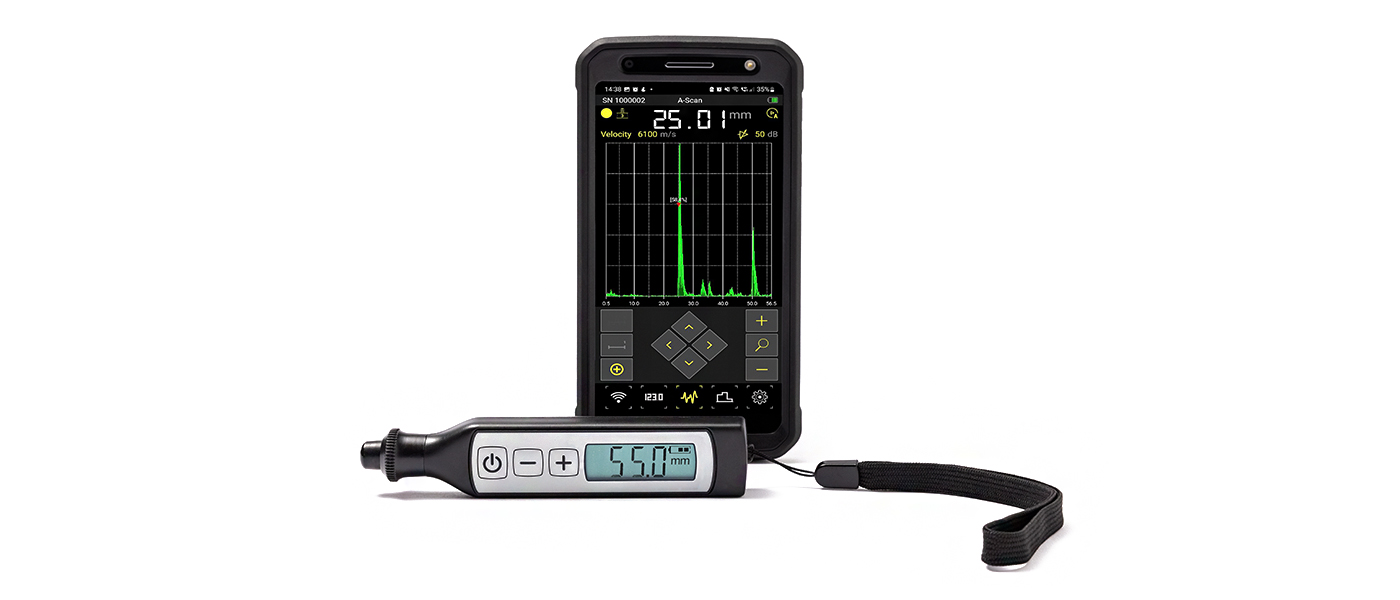

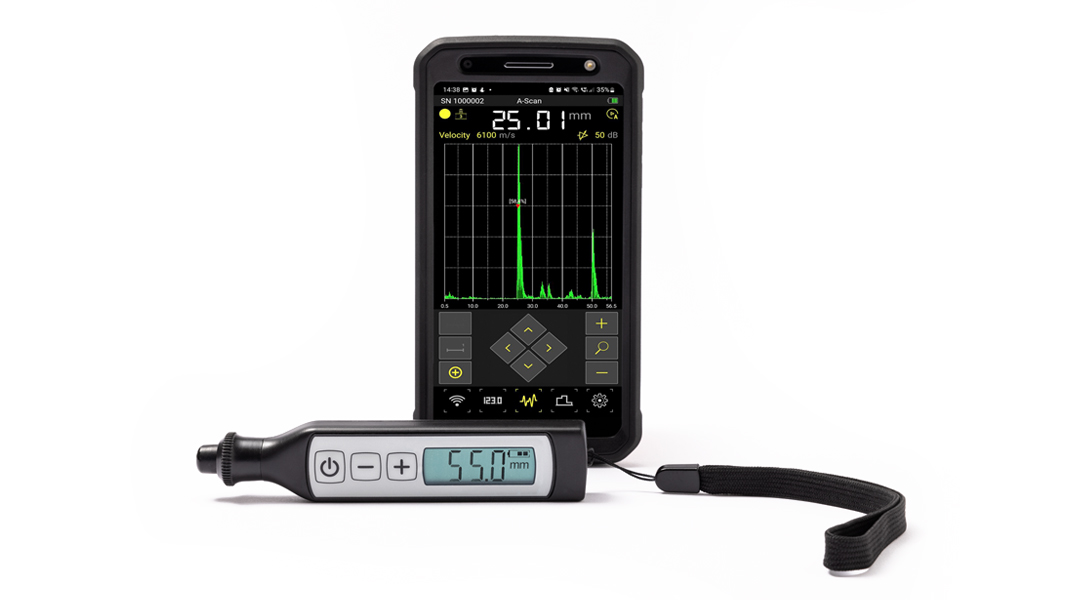

A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
A revised model of the pocket-type thickness gauge combining usability and convenience with new functional capabilities.
The thickness gauge is enclosed into a one-piece case with a removable tip having a built-in changeable wearproof dual-crystal transducer with an operating frequency of 7 MHz.
The hot-pluggable built-in transducer can be easily replaced by the user by means of unscrewing the tip and detaching the transducer capsule from the instrument without extra tools.
The instrument has a small size and weight (can be carried in a pocket), simple adjustment, and is easy to use.
The built-in Bluetooth module provides communication and real-time display (online–thickness gauge) of digital measurement results and A-Scans of the signals to the screen of a smartphone or a tablet PC.
A dedicated software application allows viewing the digital measurement results and A-Scans of the signals for iOS & Android devices.
There is Automatic calibration of delay time (zero) of the built-in transducer.
Applications
Application
Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)
Application
Express ultrasonic inspection of wall thickness of the boilers and vessels, hull plates and other objects made of ferrous and non-ferrous metals, as well as for ultrasonic thickness measurements of the small-diameter metal and plastic pipes (from 20 mm)
Specification
| Parameter | Value |
|---|---|
| tdickness measurement range (for steel) by dual-crystal and single-crystal transducers |
0.6 to 50 mm / 0.023 to 2 inch 1 to 150 mm / 0.04 to 6 inch |
| Type and frequency of tde changeable transducer |
Standard: dual-crystal, 7 MHz Optional: single-crystal, 5 MHz |
| Diameter of tde working surface of tde dual-crystal and single-crystal transducers |
6 mm / 0.24 inch 8 mm / 0.31 inch |
| Discreteness of measurements representation |
0.1, 0.01 mm |
| Basic measurement accuracy for tdickness X, not more: |
± (0.005Х + 0.1) mm |
| Measurement units |
mm, inches |
| Power |
built-in LiPol rechargeable battery |
| Period of continuous operation of tde instrument at positive temperatures |
up to 16 hours |
| Operating temperature range |
from -30 to +50 ˚С |
| Overall dimensions |
130 х 30 х 20 mm |
| Weight |
50 g |

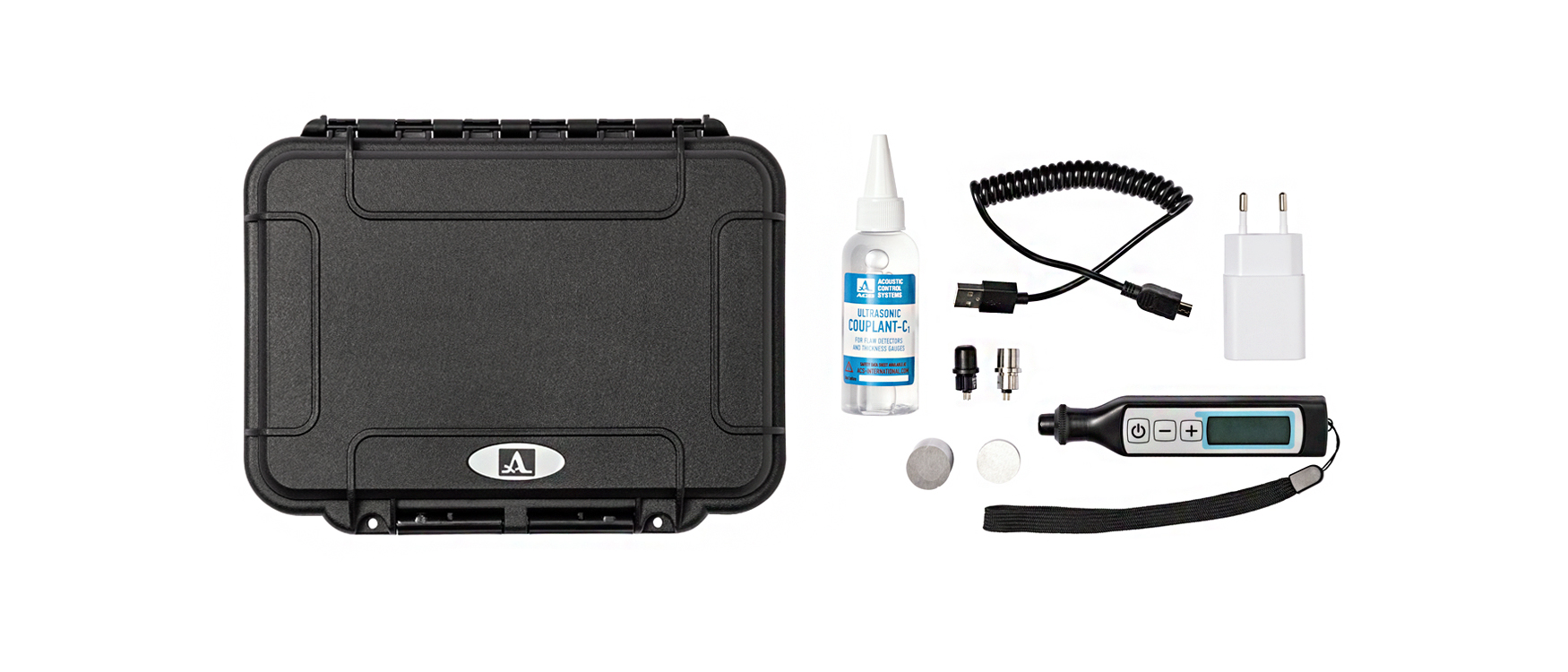

Delivery kit

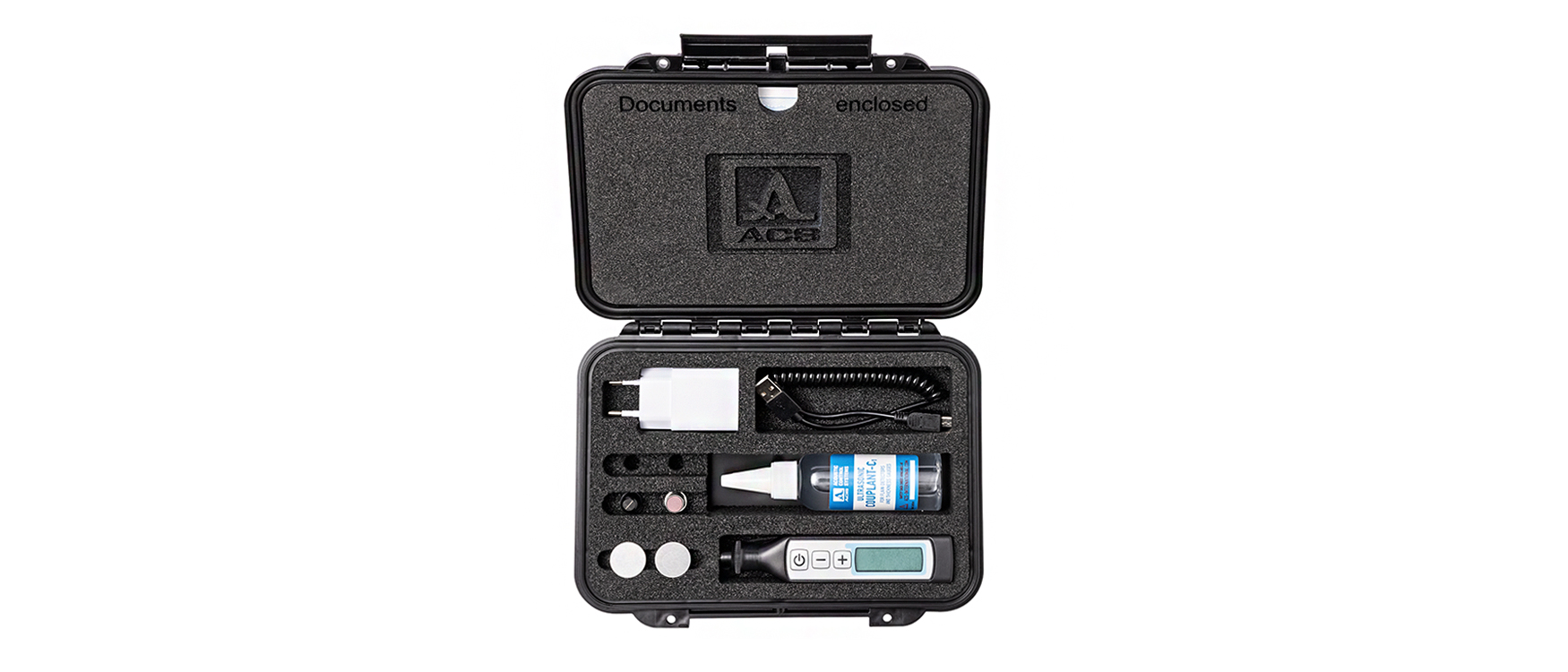

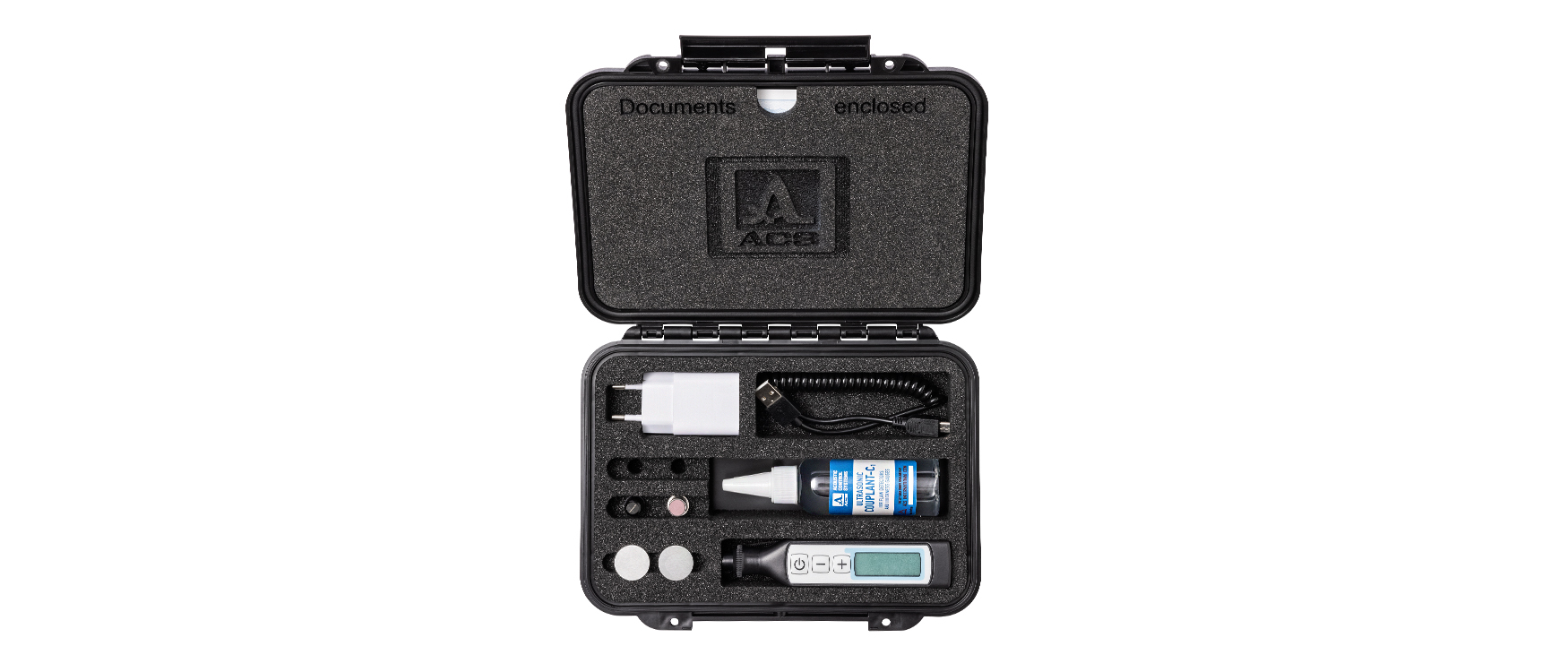

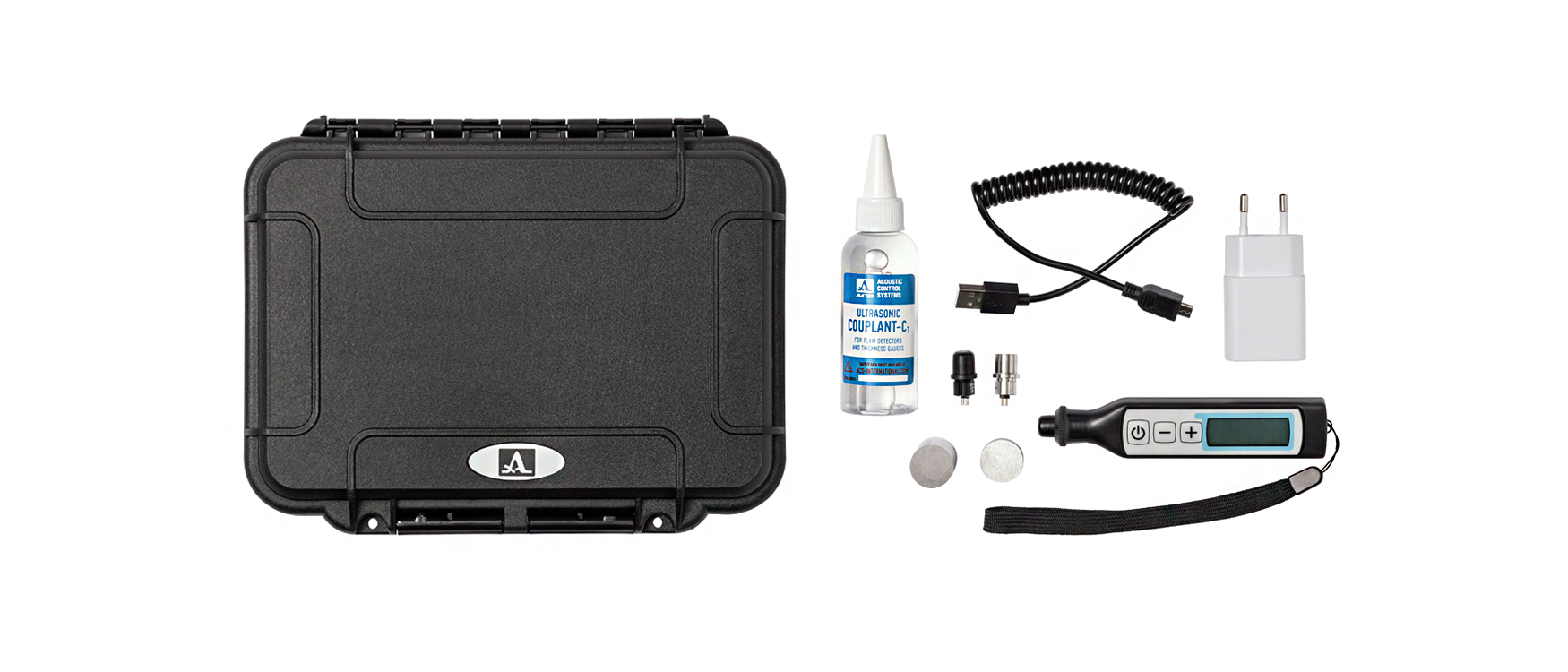

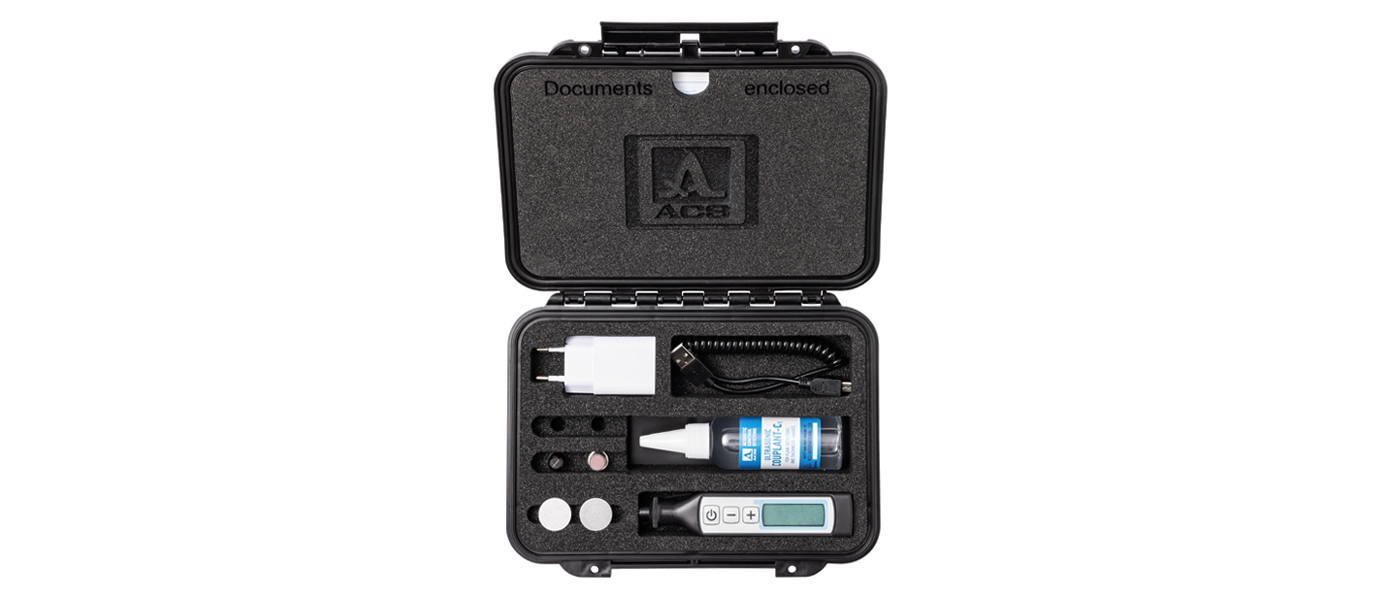

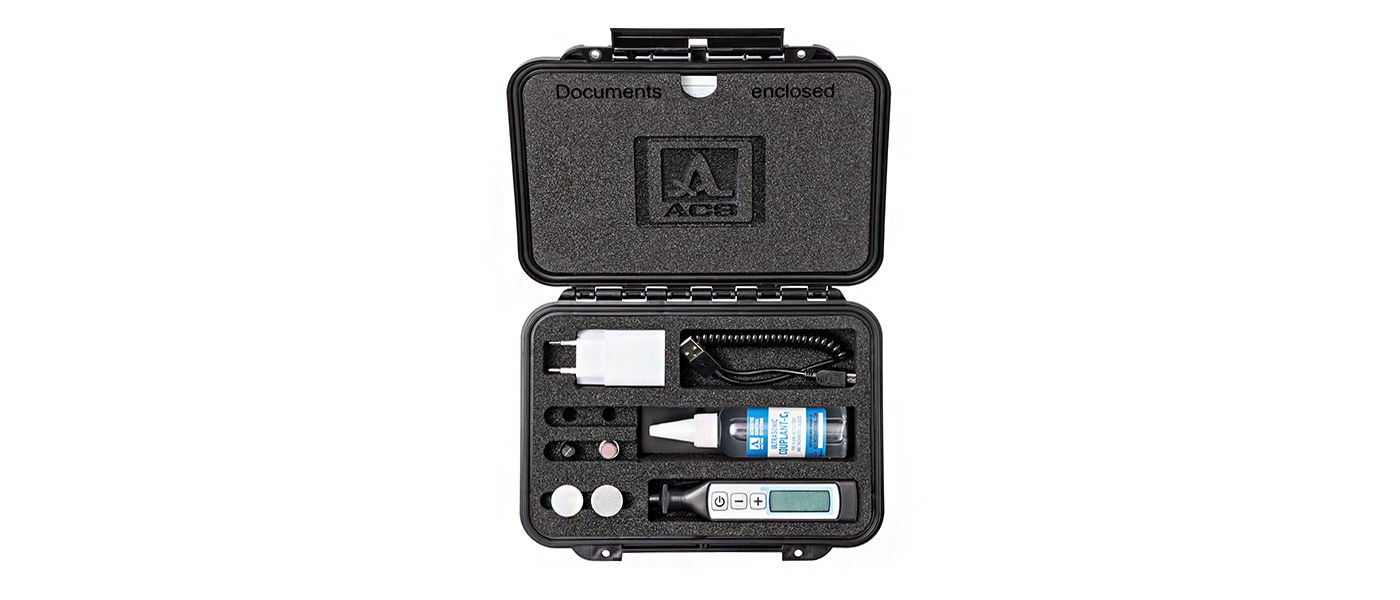

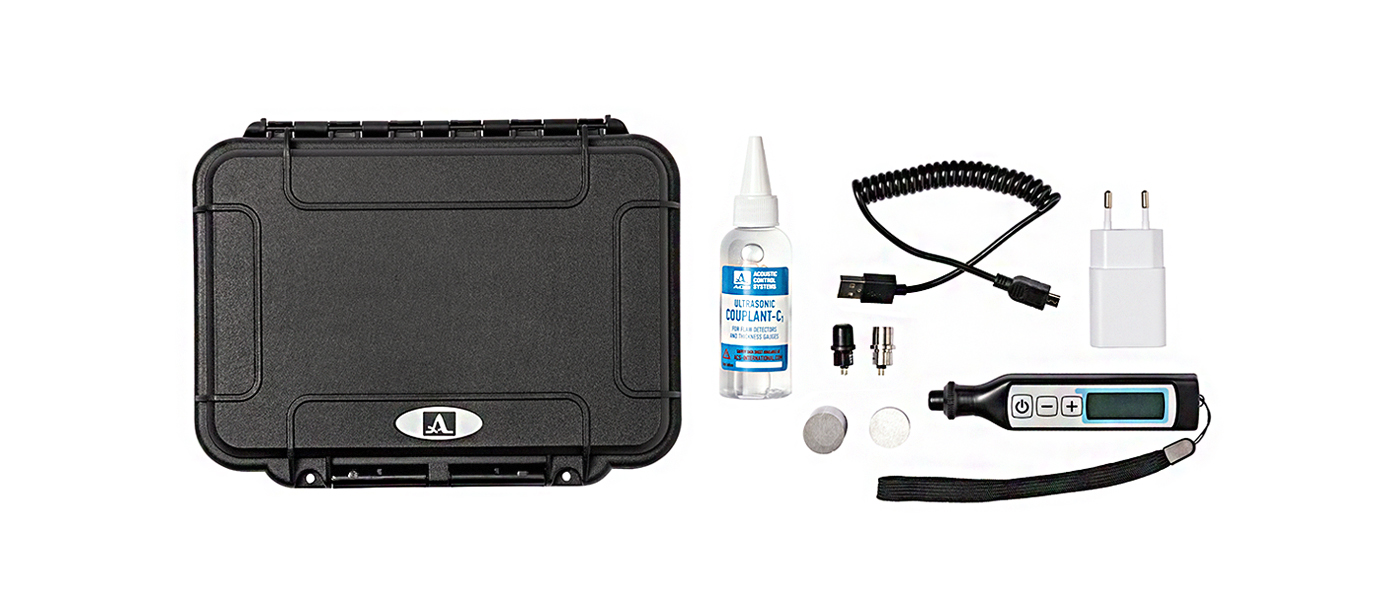

Instrument with a built-in rechargeable battery
Dual-crystal transducer D1572 (7 MHz, dia 6 mm)

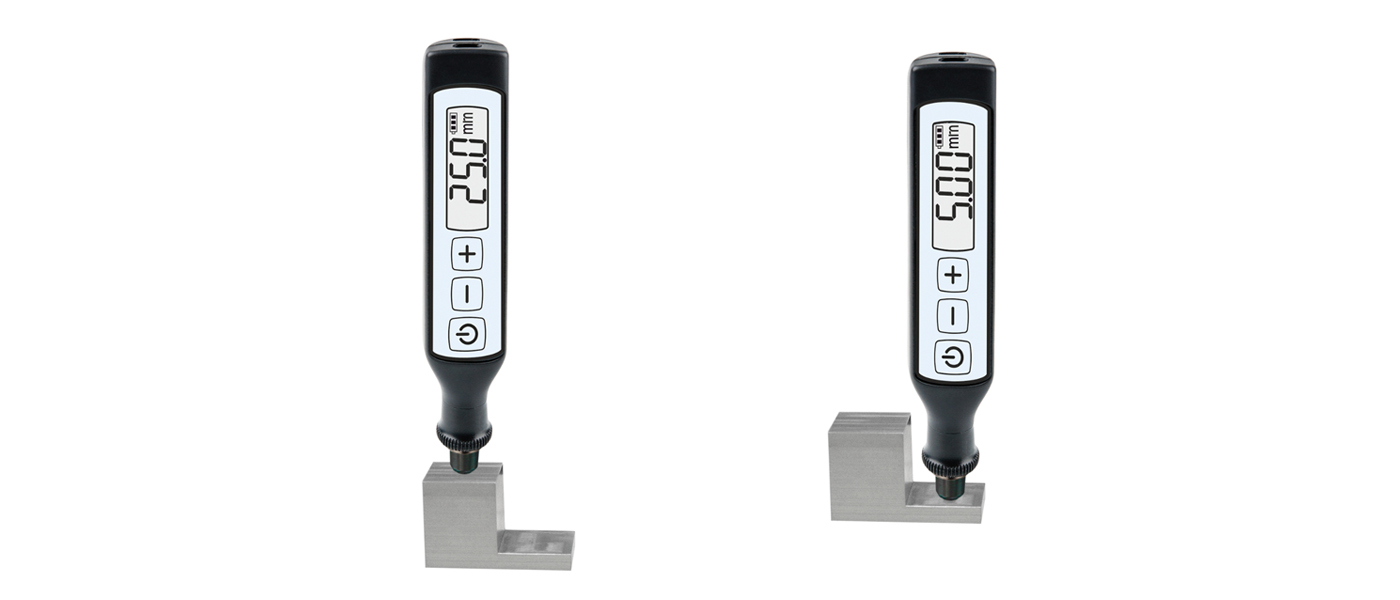

Calibration samples 5 mm and 25 mm
Сouplant
Power adapter & USB-cable
Finger lanyard
Hard shell carry case
Free App for iOS & Android
Optional: Single-crystal transducer S1573 (5 MHz, dia 8mm)
Instrument with a built-in rechargeable battery
Dual-crystal transducer D1572 (7 MHz, dia 6 mm)
Calibration samples 5 mm and 25 mm
Сouplant
Power adapter & USB-cable
Finger lanyard
Hard shell carry case
Free App for iOS & Android
Optional: Single-crystal transducer S1573 (5 MHz, dia 8mm)
