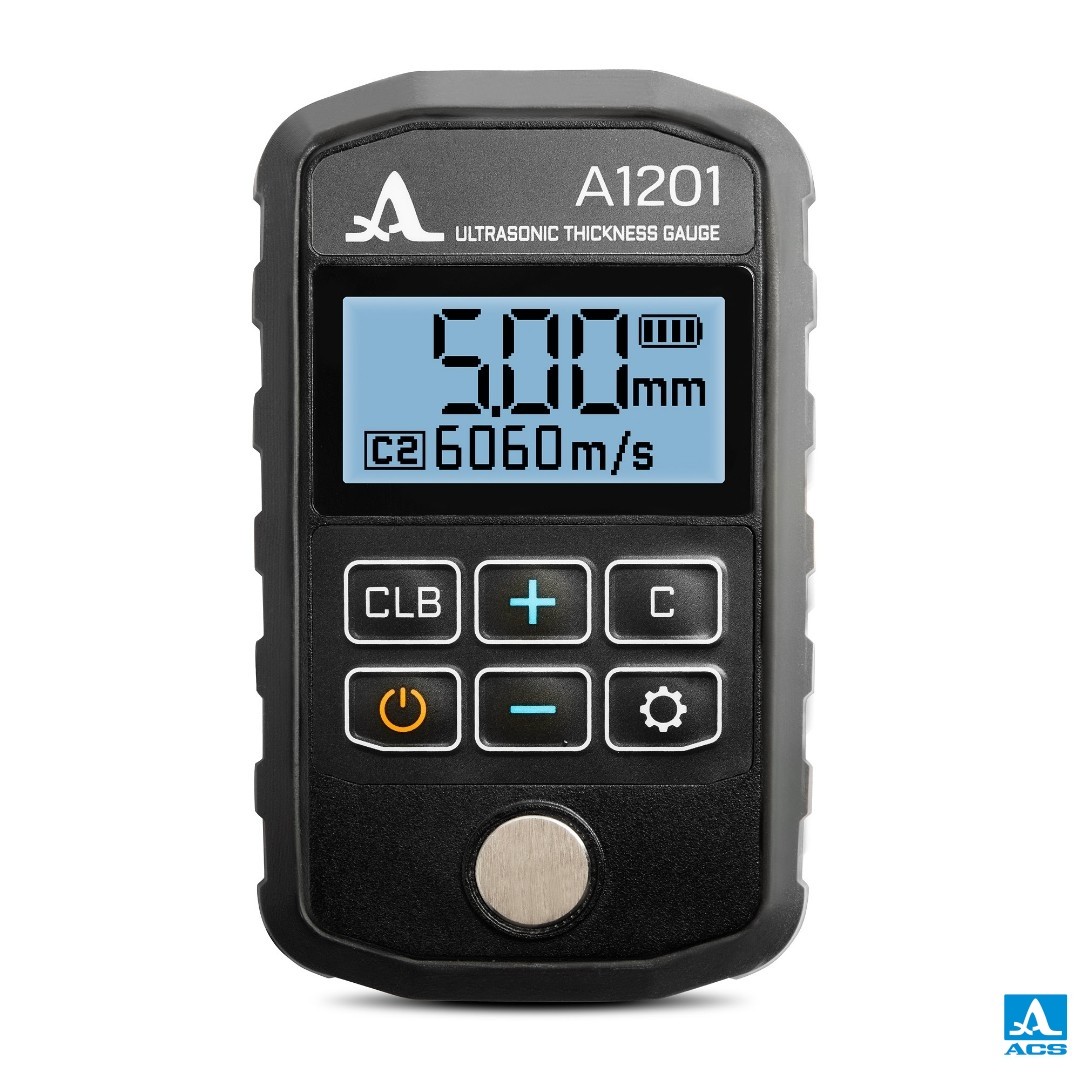

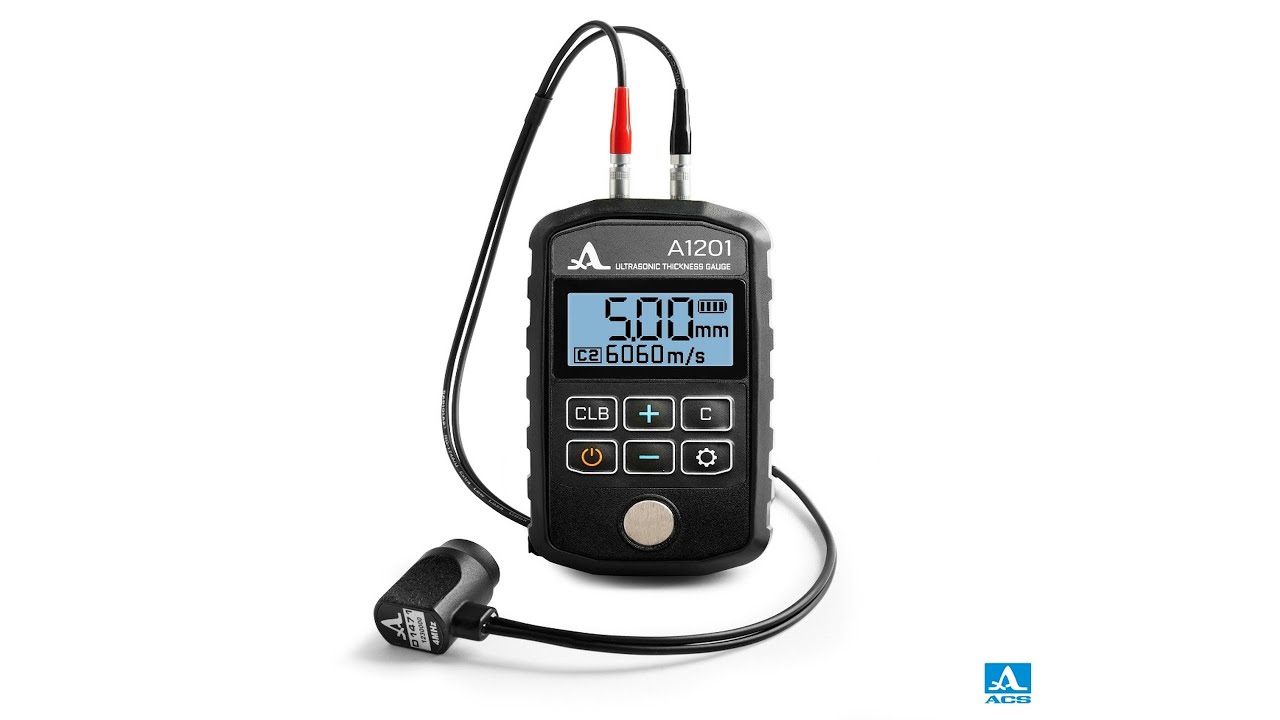

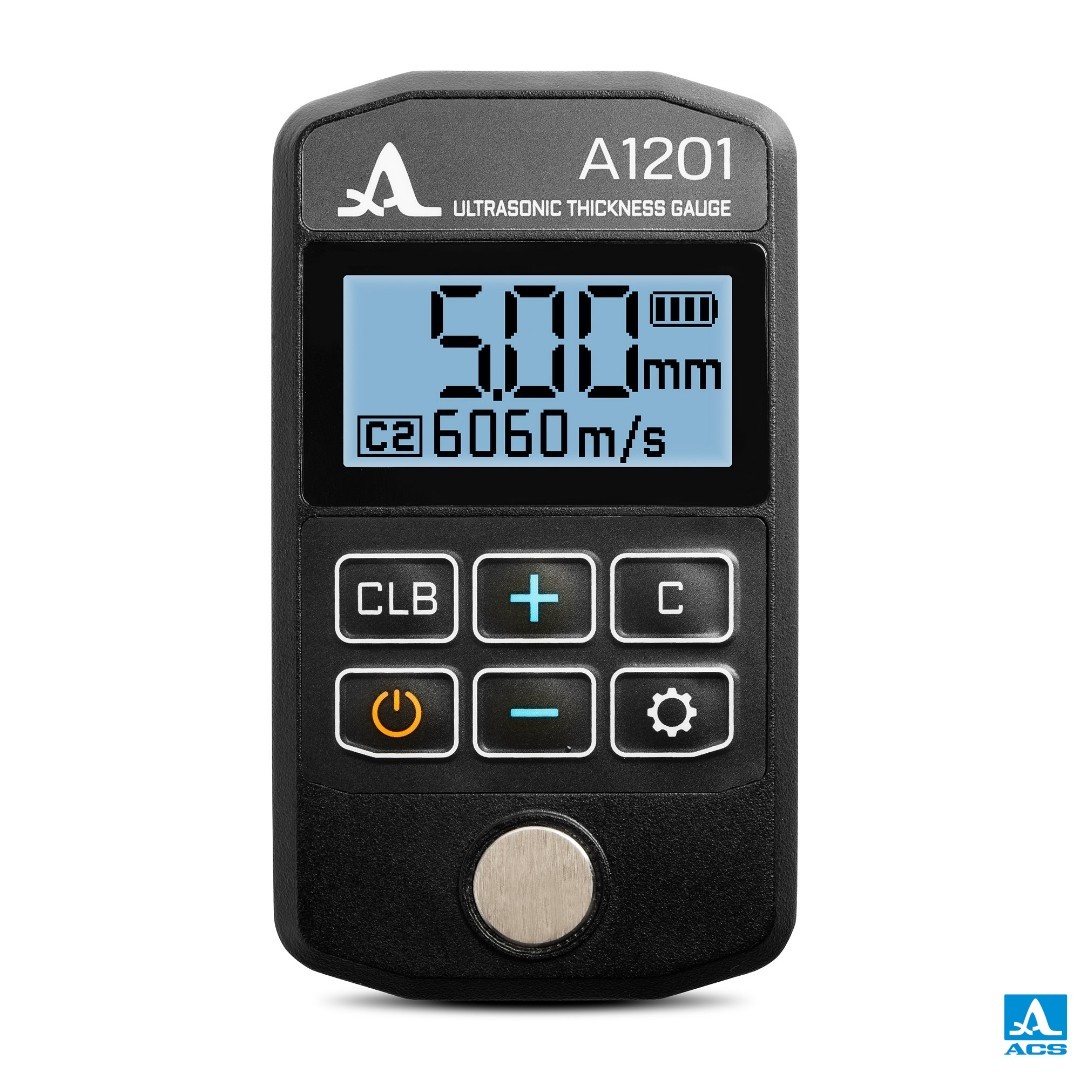

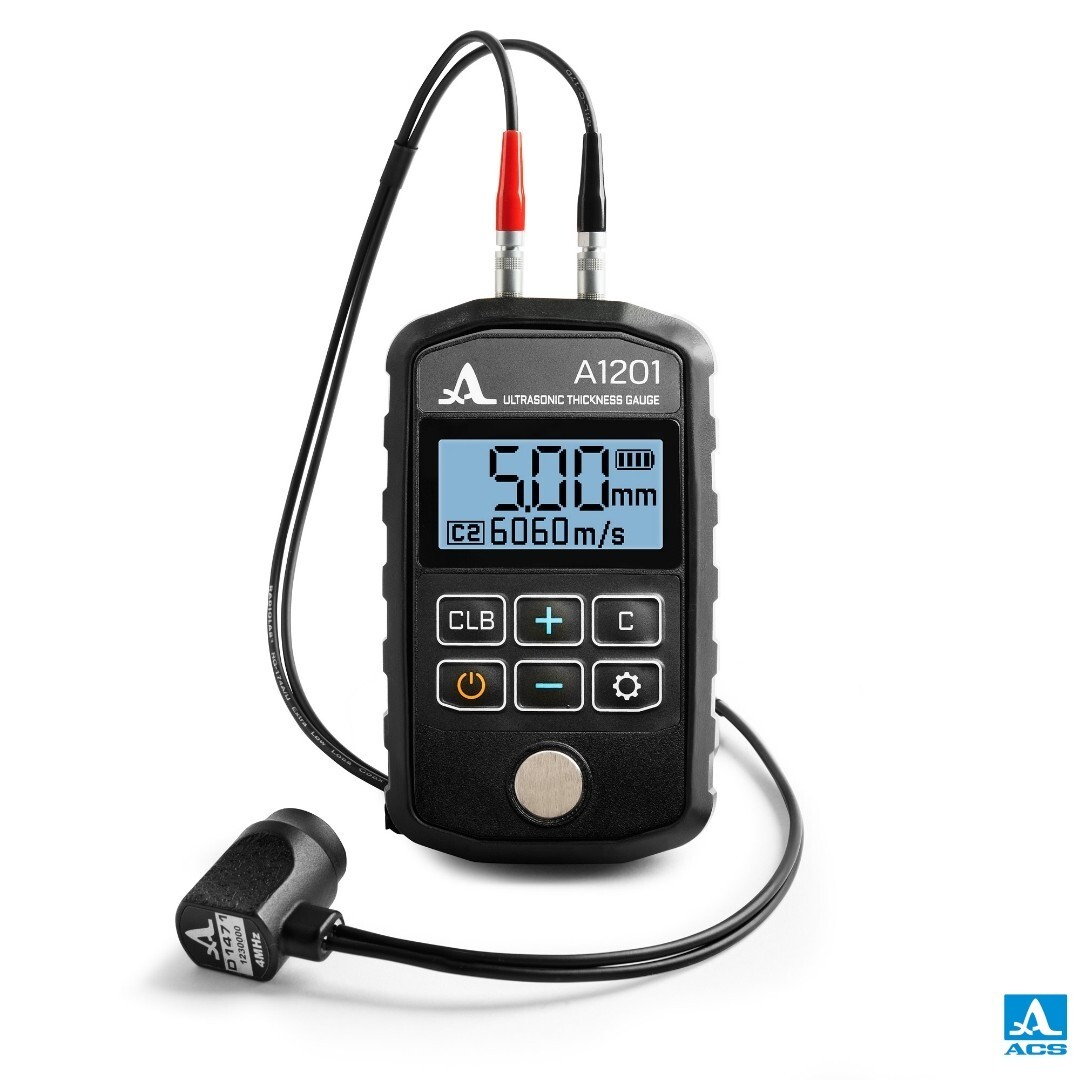

A1201 - compact ultrasonic thickness gauge

The universal model of the compact ultrasonic thickness gauge offers exceptional ease of setup and use at an affordable price. It is designed for quick and efficient thickness measurements of various steel objects, including small-diameter pipes (from 20 mm), within a 0.7 to 300 mm thickness range.

It is ideal for thickness measurements in hard-to-reach places, thanks to its compact separate-integrated transducer with an integrated cable, which is part of the basic package.

It supports operation with the entire range of separate-integrated transducers produced by ACS, with frequencies of 4, 5, and 10 MHz.

With its small size and weight (only 160 g), it is convenient to use at height and also for storage and transport.

Due to its built-in lithium-polymer battery, the thickness gauge has a long battery life (at least 40 hours without recharging).

The device's electronic block includes a Bluetooth module for transmitting measurement results (digital and A-scan) to a mobile device running Android OS (app currently in development).

 Get a quote

Product Description

  • Intuitive Interface: Easy to use with a user-friendly design.
  • Four Preset Sound Velocities: Allows for quick selection of the appropriate sound velocity.
  • Ergonomic Housing: Designed for comfortable handling.
  • Durable Polyurethane Case: Protects the electronic unit from damage and includes built-in magnets for securing the device to ferromagnetic objects.
  • Strap Set: For attaching the electronic unit to your arm.
  • Frost-Resistant (up to -30°C) Anti-Glare Monochrome LCD Display: Ensures readability in bright sunlight and low-light conditions.
  • Universal USB-C Port: For charging the electronic unit.
  • Soft Eco-Leather Carrying Bag: For convenient transport.

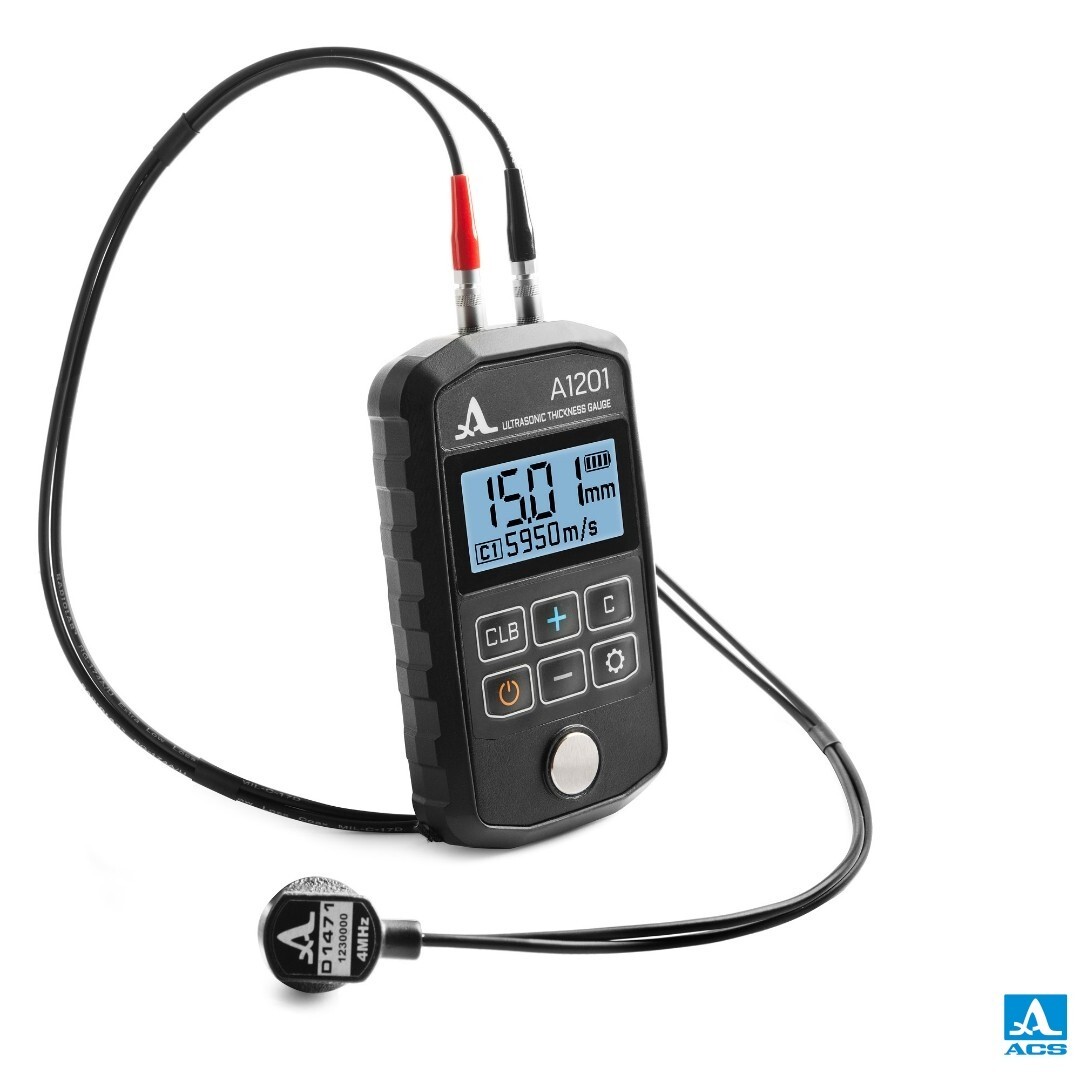

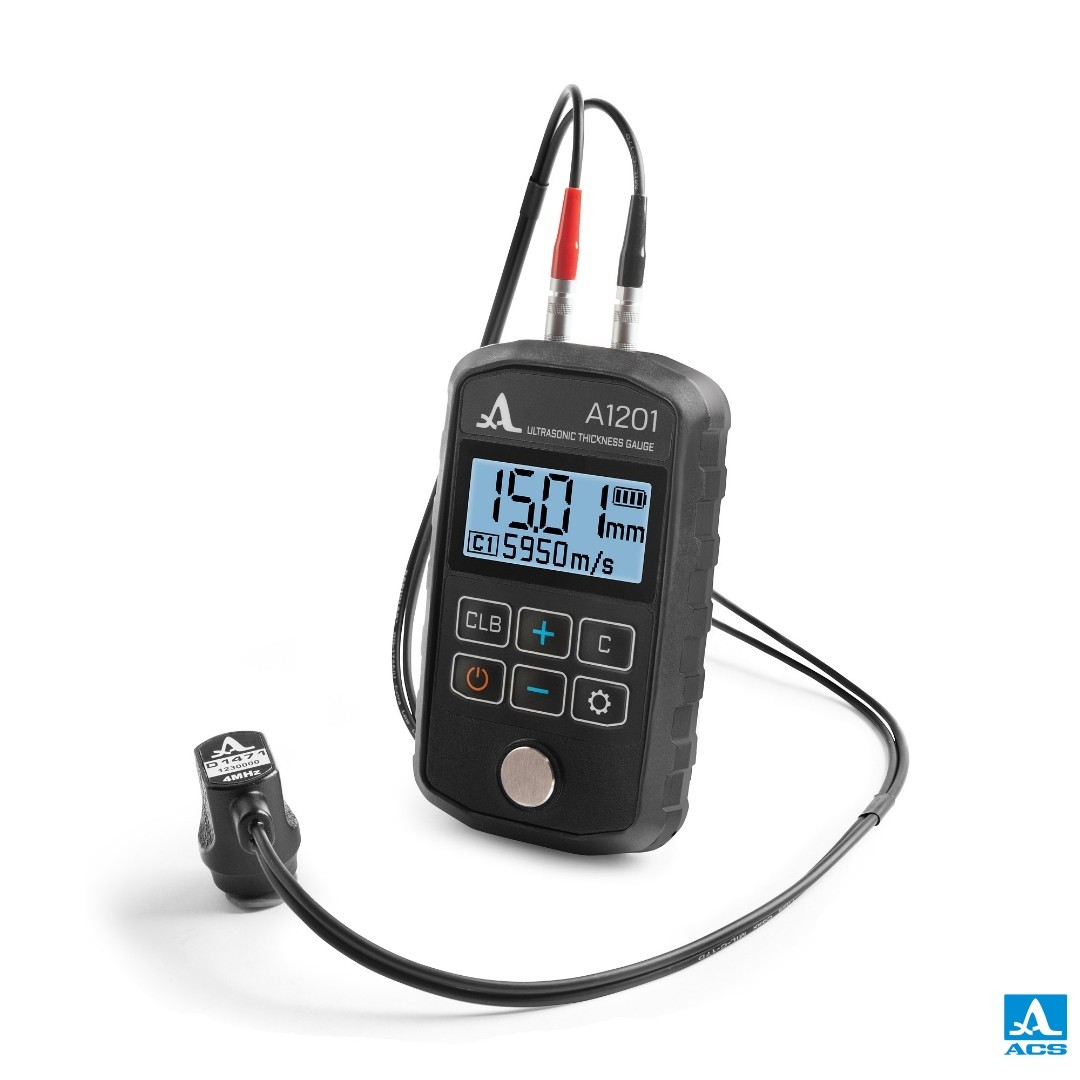

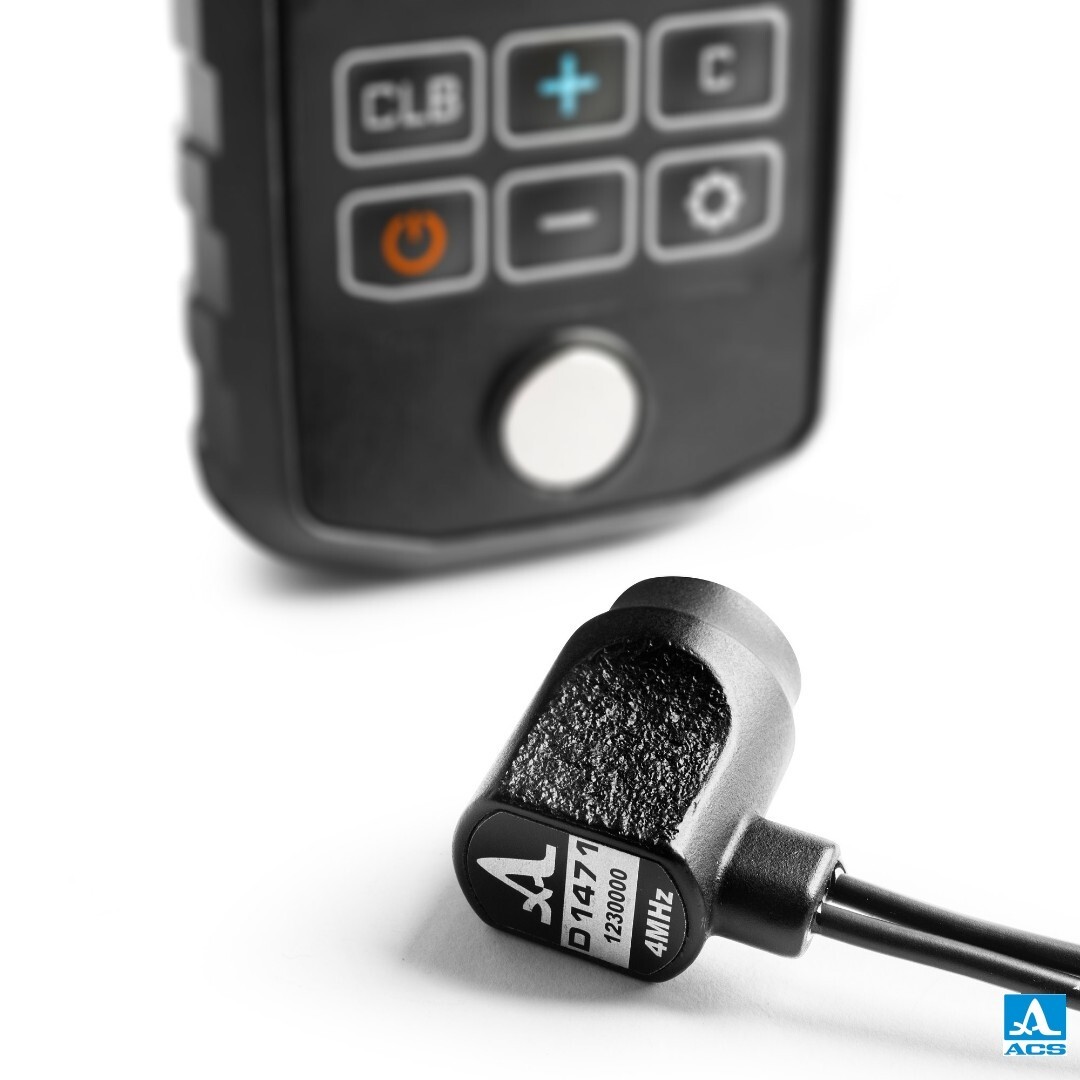

  • Included New Compact Separate-Integrated Transducer D1471: Comes with an integrated cable and operates at a frequency of 4 MHz, suitable for thickness measurement of various steel objects, including small-diameter pipes.

Application

The instrument applies to a wide range of ultrasonic thickness measurements on various materials, including using it on hot surfaces when applied with the ultrasonic transducer D1763.

Specification

Measuring range with included dual-crystal 4 MHz transducer

0.6 – 300 mm

0.0236 – 11.8 inch

Displayed measurement resolution

0.01 up to 9.99 mm, 0.1 above 10 mm / 0.001 inch

Time of continuous operation:

0.1, 0.01 mm

Operating temperature range

-30°C to +50°C

-20°F to 122°F
Measurement units

mm, inches

Weight:

160 grams

0.35 pounds

Physical size:

120x70x25 mm

4.7 x 2.8 x 1 inch

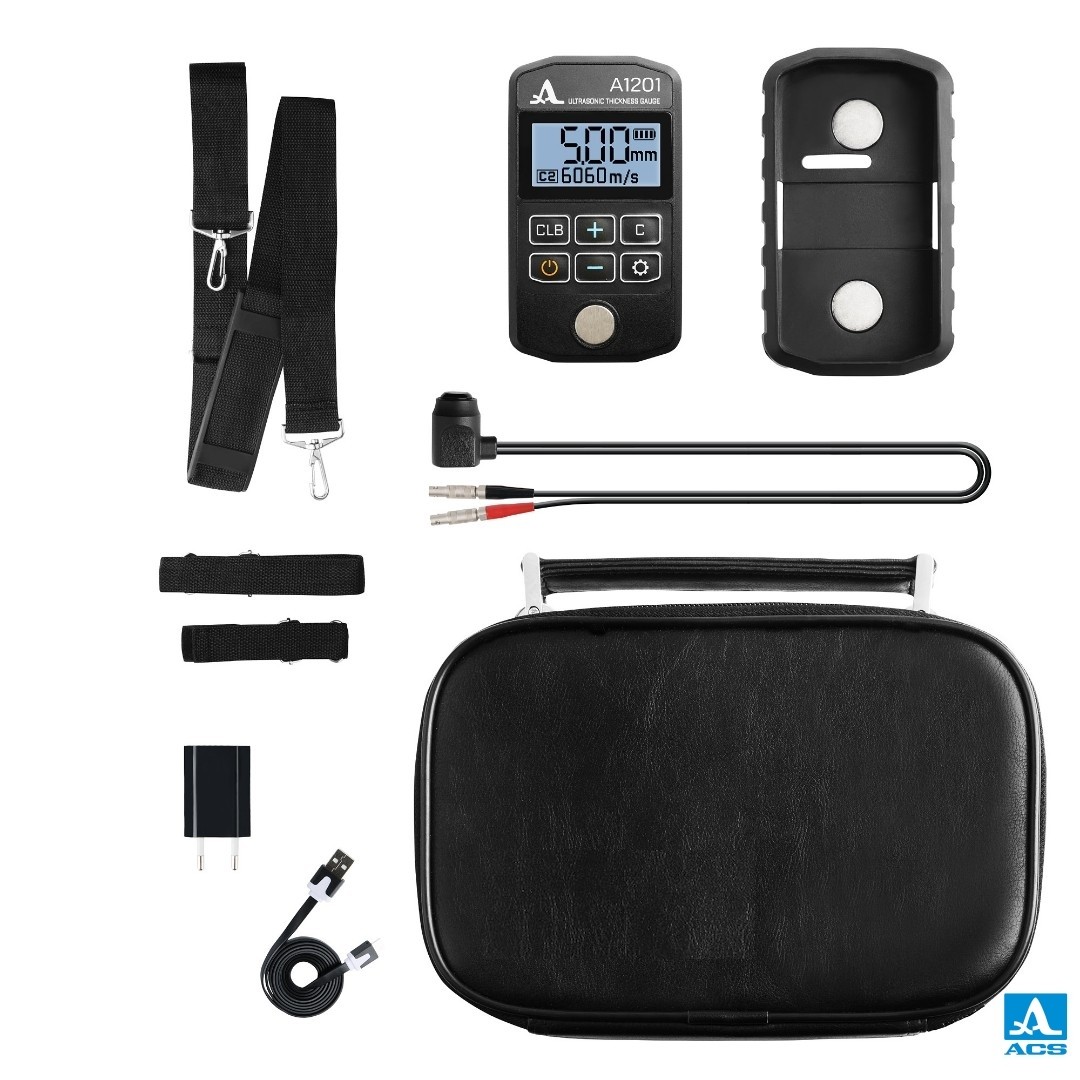

Delivery set

  • A1201: Electronic unit of the ultrasonic thickness gauge
  • Transducer D1471 4.0A0D12CL: With integrated cable
  • Power adapter: 220 V - USB
  • USB Cable: USB A - USB C
  • "AKS Gel": For temperatures from -35 to +100 ºC
  • Protective cover

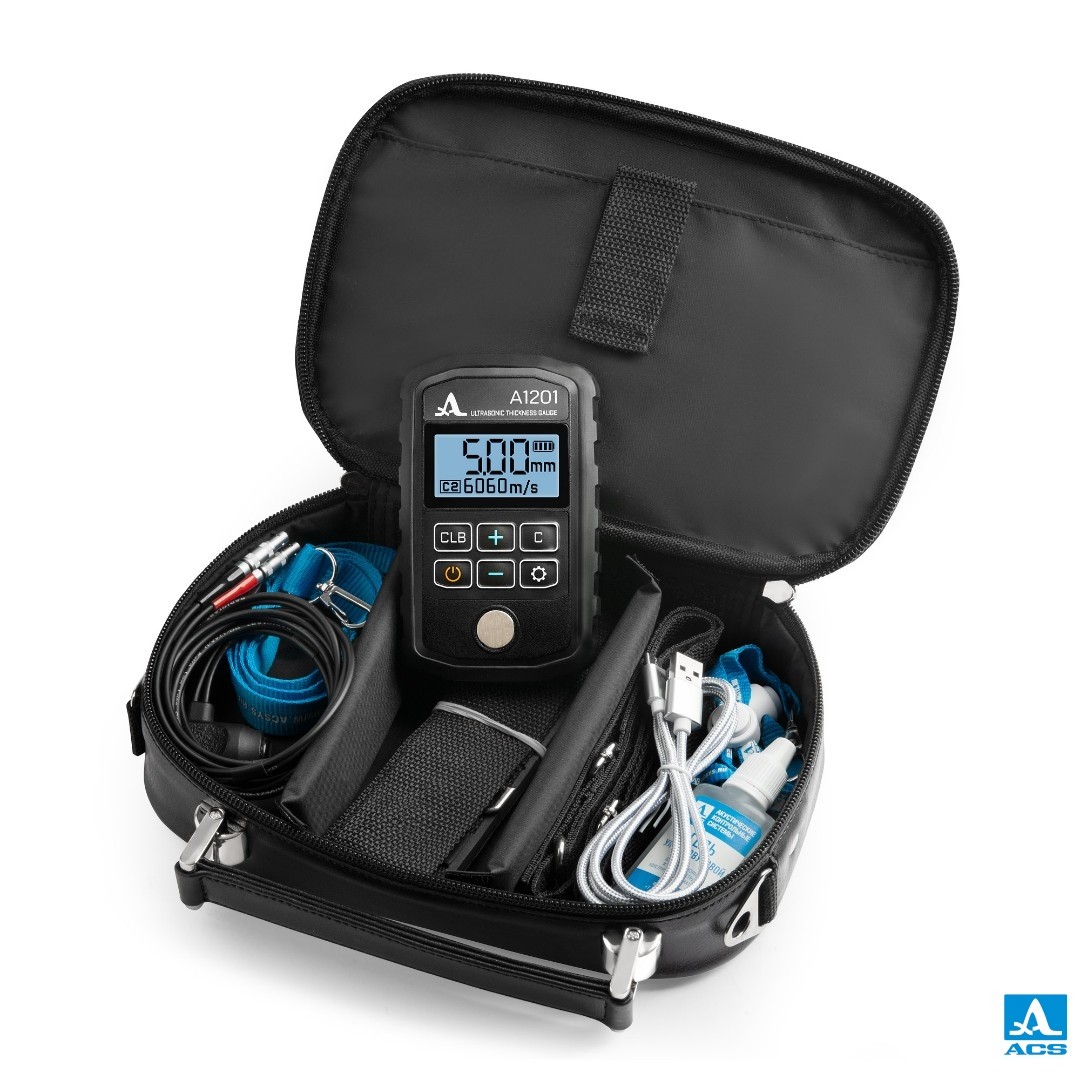

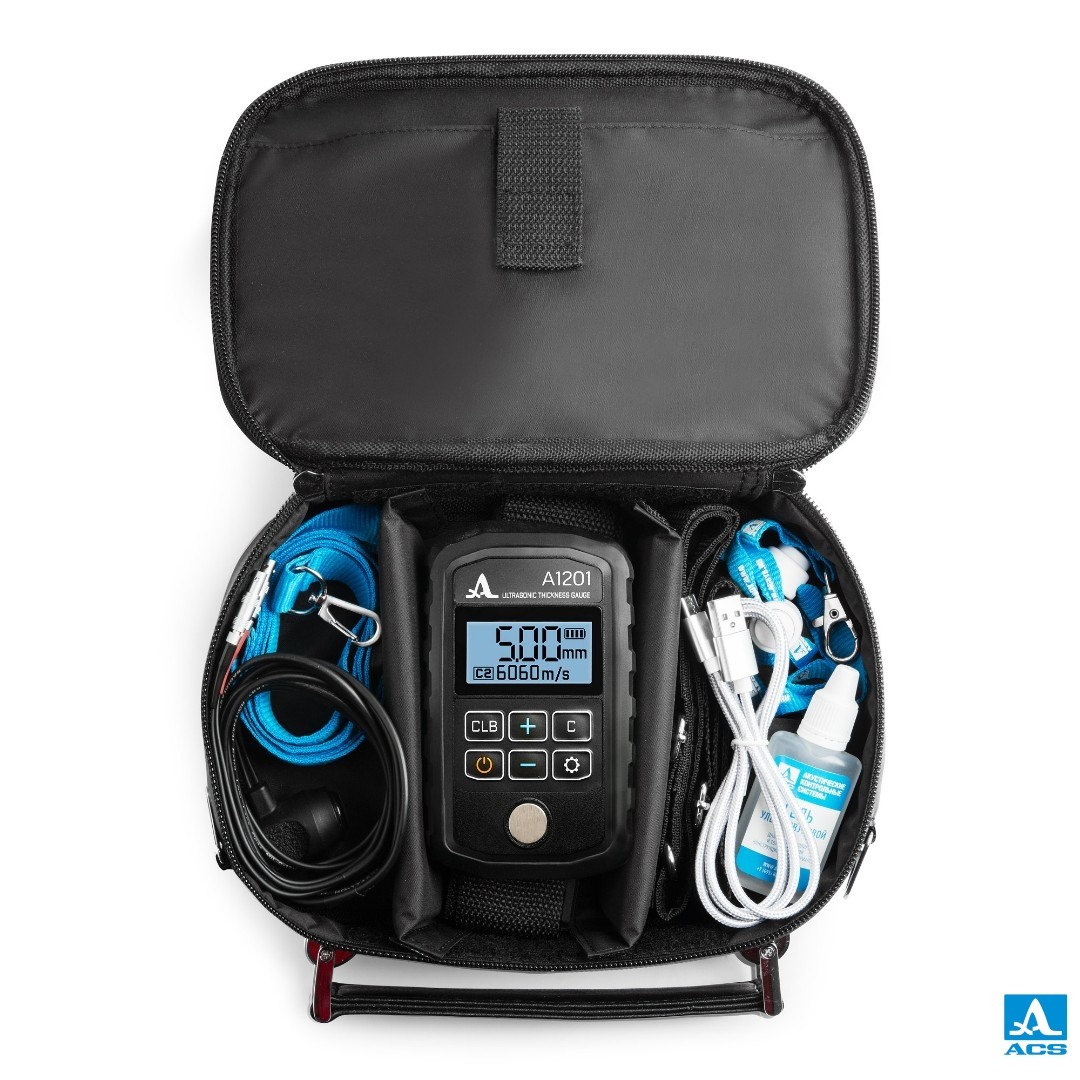

  • Carrying case
