А1220 MONOLITH «CLASSIC»

A compact handheld ultrasonic pulse velocity and pulse echo tester is designed for ultrasonic thickness measurements and flaw detection of concrete and reinforced concrete constructions and rocks.

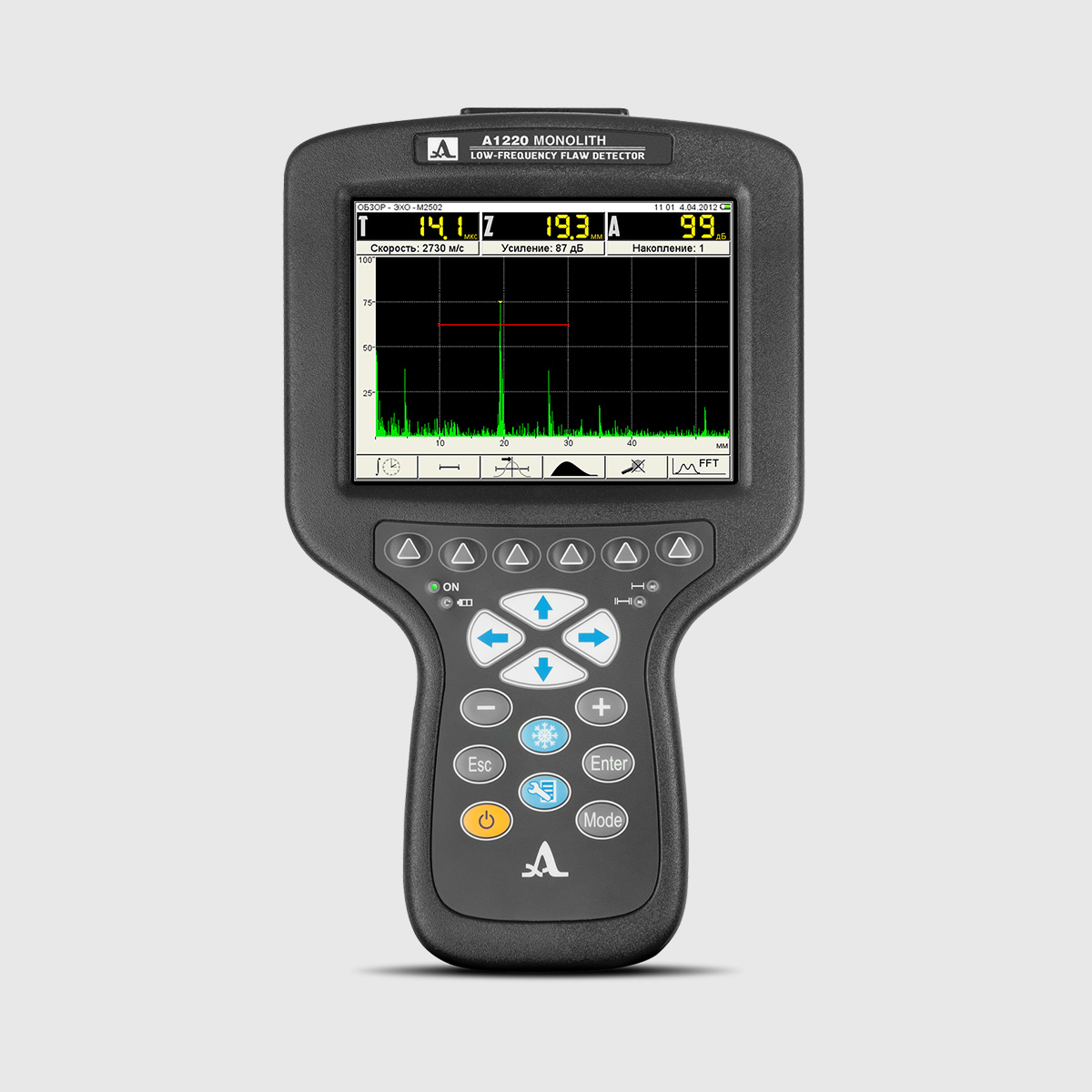

The flaw detector represents an compact electronic unit is equipped with a large high-contrast TFT display and a keyboard.

Despite multifunctionality the instrument is easу to use due to its intuitive interface and icons menu providing quick access to main settings and functions of the instrument.

Where to Buy

Category:

Product Description

A compact handheld ultrasonic pulse velocity and pulse echo tester is designed for ultrasonic thickness measurements and flaw detection of concrete and reinforced concrete constructions and rocks.

The flaw detector represents an compact electronic unit is equipped with a large high-contrast TFT display and a keyboard.

Despite multifunctionality the instrument is easy to use due to its intuitive interface and icons menu providing quick access to main settings and functions of the instrument.

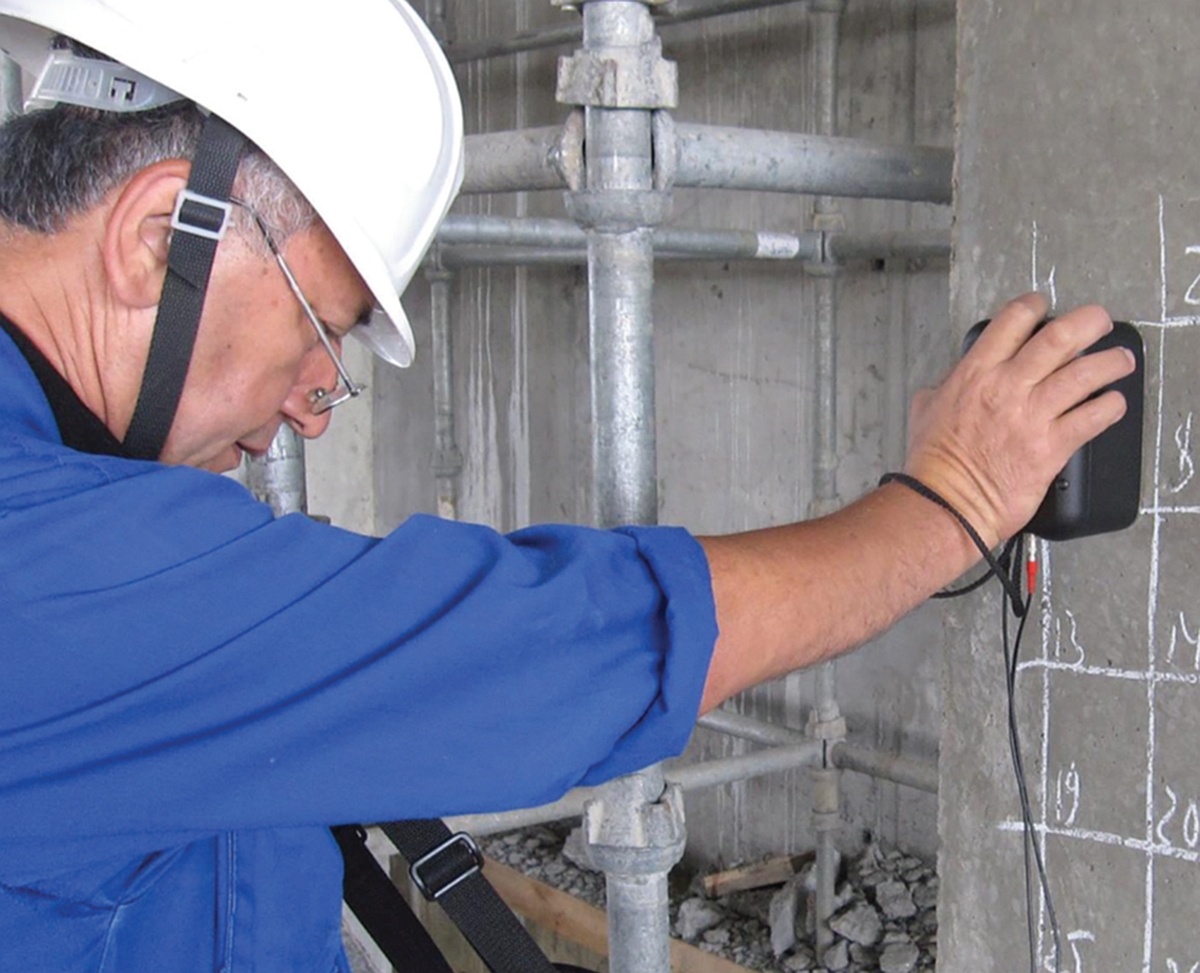

Ergonomic design of the flaw detector and its light weight (as little as 800 grams), as well as capability of fastening the electronic unit in the specialized pad, provide convenient operation of the instrument in hard-to-reach areas and allow its working at height.

All inspection results are recorded into the instrument’s memory and can be transferred via the USB-port to the external PC for further processing, registration and archivation.

Application

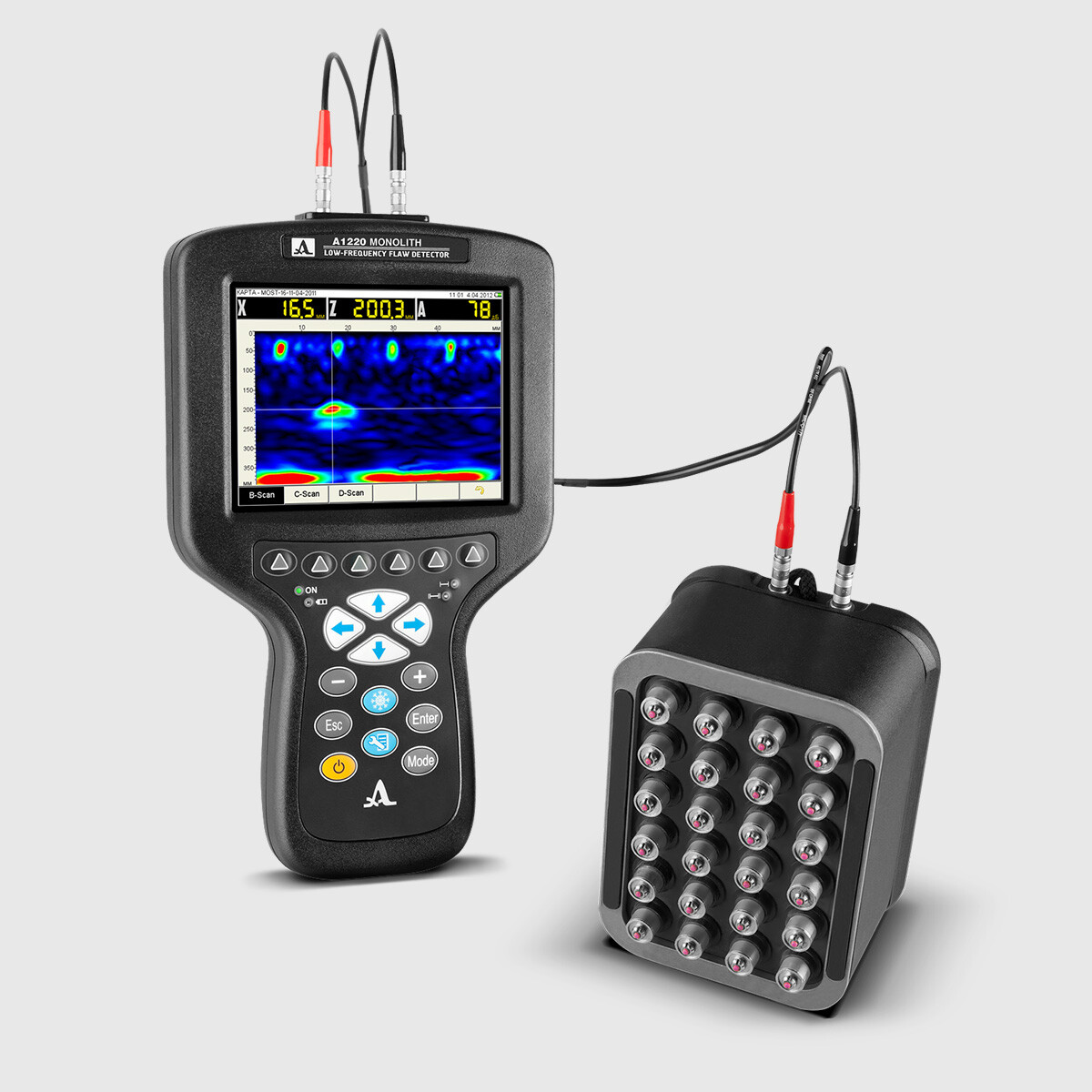

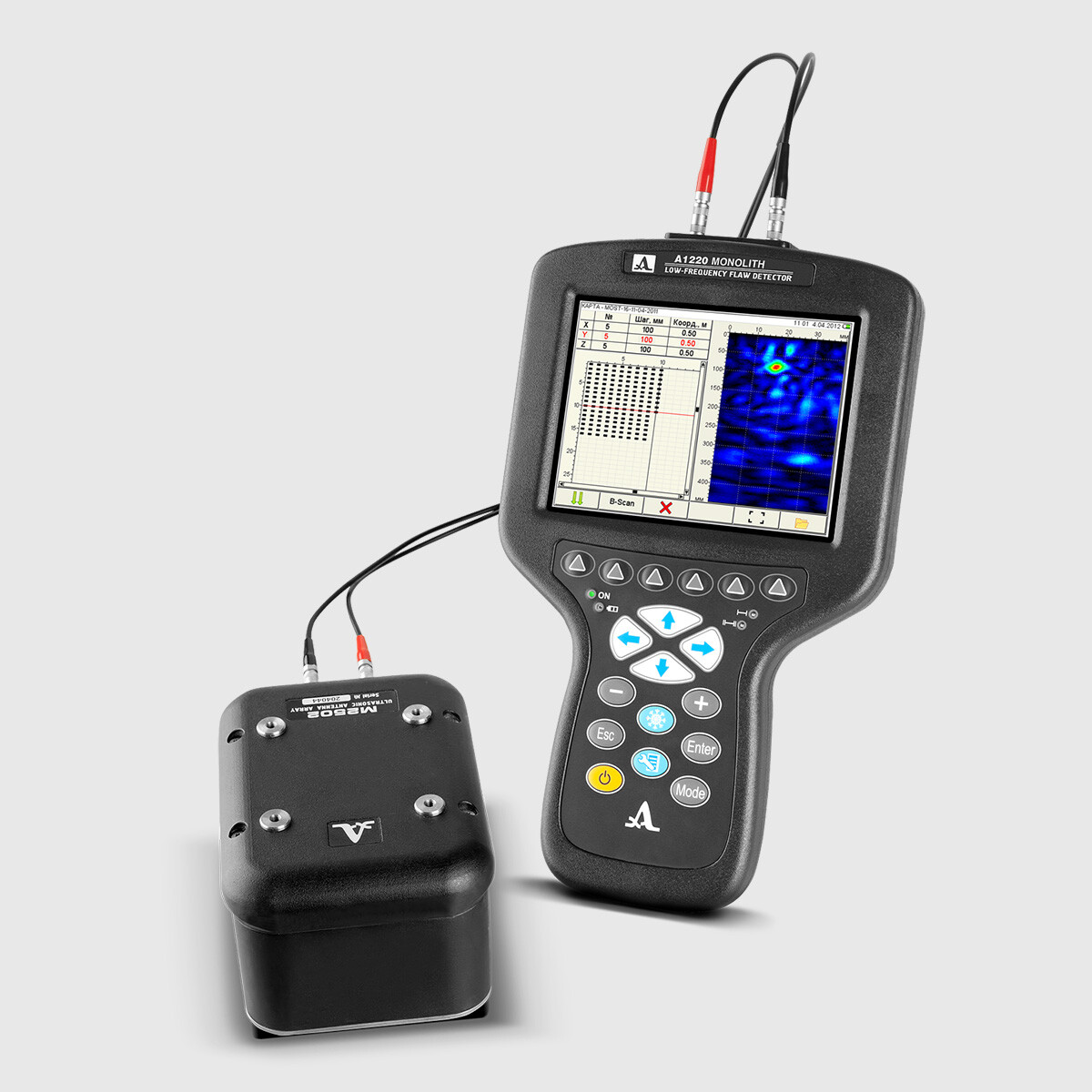

The «CLASSIC» version of the device with 2D projection imaging function is included one of 24-element matrix antenna array М2502 0.05A0R100X60PS is connected to the electronic unit by the LEMO-LEMO double cable. This antenna array operates like a double-crystal transducer. Its elements are spring-loaded thus allowing operation on rough and uneven surfaces.

Using one low frequency dry point contact antenna array M2502 0.05A0R100Х60PS with shear wave and nominal frequency 50 kHz allows carrying out thickness measurement of the concrete objects up to 3 000 mm and reinforced concrete objects up to 600 mm.

The instrument allows to operator search for internal foreign inclusions, cavities, voids and cracks of the products and constructions made of reinforced concrete, stone and similar materials at one-sided access as well as search for embedded flaws of bronze castings.

It is possible to testing of the internal structure of the coarse-grained materials.

The results of inspection are slice and projection images by grid-scan function (B-Scan, C-Scan, D-Scan, thickness-profile) – visualization software INTROVIEW.

Specification

Maximum deepness of the echo-signals visualization (at transversal wave control)

2150 mm

Maximum length of the signal realizations, visible on the device’s screen

1600 μs

Maximum measured thickness of concrete (concrete grade 400)

600 mm

Minimal diameter of flaw in form of an air cylinder

30 mm

The error of measurements of flaw location thickness and depths

10 %

Time of one measurement processing and writing the result in memory

10 s

The number of single A-scans, that can be written into memory

200

Maximal area of controlled surface (MAP mode)

2 m2

Material velocity range

1 000 – 9 999 m/s

Drive-pulse generator amplitude

20, 100, 200 V

Pulse form

Meandr, 0.5÷5.0 periods

Pulse frequency

1 – 50 Hz

Receiving bandwidth

10 – 300 kHz

Gain setup range

from 0 to 100 dB, step 1 dB

The quantity of the programmable points of DAC function

32

DAC function setup range

30 dB

Power source

Built-in battery

Operation time

14 h

Battery charging time

3 h

Operating temperature range

from –20 to +45 ºC

Display type

TFT (640 х 480)

Electronic unit size

260 х 156 х 43 mm

Electronic unit weight

800 g

Size of M2502 antenna array

139 х 105 х 89 mm

Weight of M2502 antenna array

1,1 g

Accessories

• Antenna array М2502 0.05A0R100X60PS
• Double LEMO 00 – LEMO 00 cable 1,2 m
• USB A – Micro B cable
• Net adaptor with cable 220V-15V
• Carrying map-case
• Soft cover
• Travel case
• Visualization software INTROVIEW (B-Scan, C-Scan, D-Scan, thickness-profile)
